1-56 — EXHAUST BRAKE SYSTEM (#52121) — 43 parça

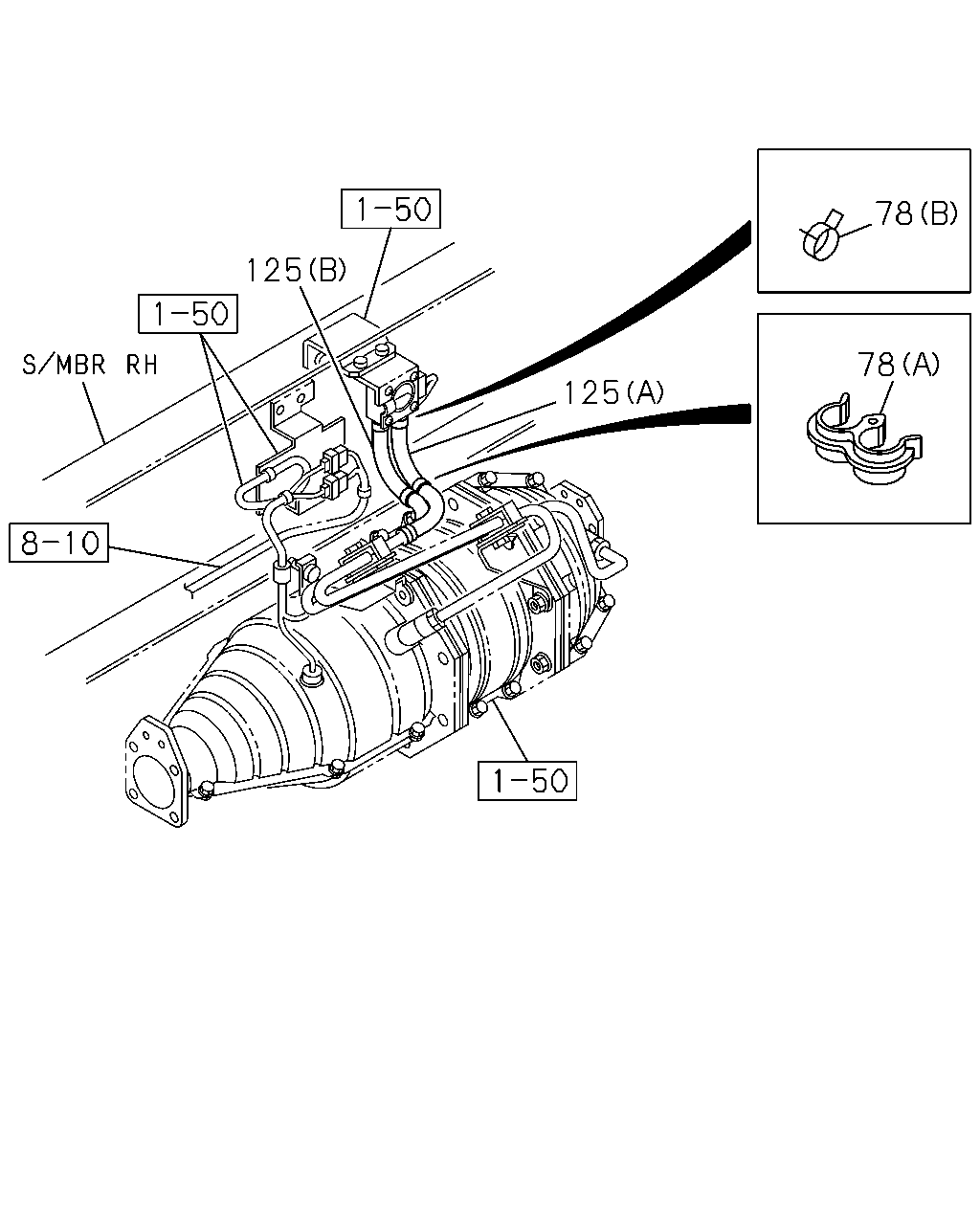

çizim 159598
78 78 125 125
BalonParca AdiParca NoAdetTipApplied Date
78 03.636 CLIP; HOSE
03.162 (A) 		8-97173-119-0 01 1 0907-
78 03.636 CLIP; HOSE
03.162 (B) ID=13 		8-97329-627-0 04 1 0907-
125 03.630 HOSE; DPD
(A) L=90 		8-98029-399-0 01 1 0907-
125 03.630 HOSE; DPD
(B) L=110 		8-98029-400-0 01 1 0907-
çizim 159602
1 8 5 5 1 10 10
BalonParca AdiParca NoAdetTipApplied Date
1 03.632 BRAKE UNIT; EXH
(B) REAR 		8-97384-098-2 01 1 0907-1012
1 03.632 BRAKE UNIT; EXH
(B) REAR 		8-98167-677-1 01 1 1101-1310
1 03.632 BRAKE UNIT; EXH
(B) REAR 		8-98258-268-0 01 1 1311-
1 03.632 BRAKE UNIT; EXH
(A) FRONT 		8-98068-178-1 01 1 0907-1212
1 03.632 BRAKE UNIT; EXH
(A) FRONT 		8-98227-170-0 01 1 1301-
5 03.634 GASKET; EXH BRAKE UNIT
03.611 ID=64 		8-97373-108-0 02 1 0907-
8 03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 0907-
10 03.634 NUT; BRKT,EXH BRAKE
IDENTIFICATION LABEL FOR KD<6UT> 03.613 (B) M8 		1-09400-118-1 04 1 1204-
10 03.634 NUT; BRKT,EXH BRAKE
03.417 (A) M8 W/LK WASHER 		8-97581-234-0 04 1 0907-1203
10 03.634 NUT; BRKT,EXH BRAKE
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) M8 W/LK WASHER 		8-97581-234-0 04 1 1204-

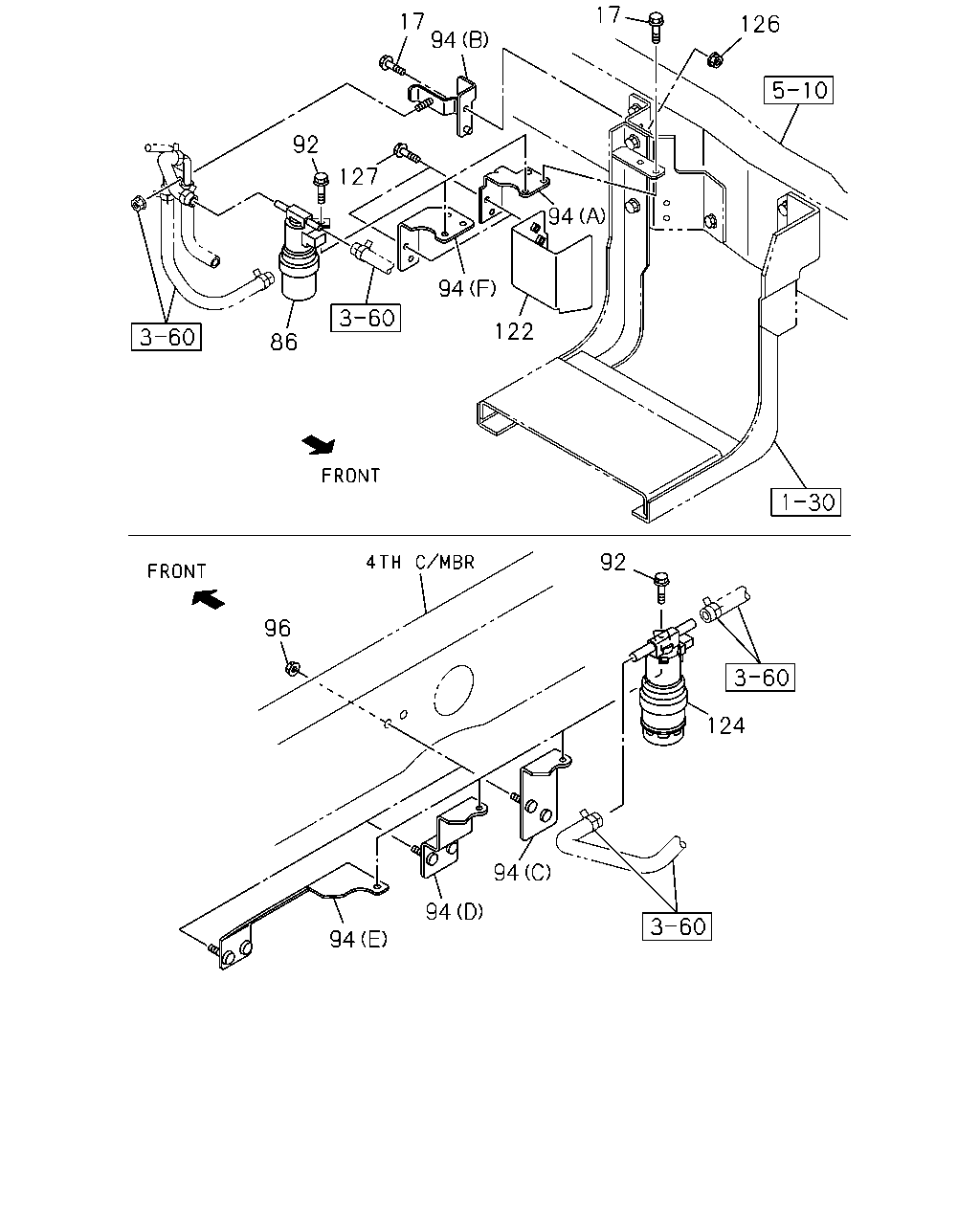

çizim 159706
126 17 17 94 127 92 94 86 122 124 92 94 94 94 96 94
BalonParca AdiParca NoAdetTipApplied Date
17 03.634 BOLT; BRKT
WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907-0910
17 03.634 BOLT; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911-1003
17 03.634 BOLT; BRKT
WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1004-1111
17 03.634 BOLT; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1112-
17 03.634 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907-
86 03.636 VALVE; MAG,EXH BRK 8-98043-344-0 01 1 0907-
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907-
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907-
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2800MM(28W) (E) 		8-98039-761-2 01 1 0911-1003
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98039-761-2 01 1 1004-1111
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98039-761-2 01 1 1112-
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2800MM(28W) (E) 		8-98039-761-2 01 1 1112-
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2400MM(24W) (D) 		8-98039-762-1 01 1 0907-0909
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D) 		8-98039-762-1 01 1 0910-
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3300MM(33W) (C) 		8-98039-764-1 01 1 0907-
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3300MM(33W) (B) 		8-98042-694-2 01 1 0907-0910
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-98042-694-2 01 1 0911-1003
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3300MM(33W) (B) 		8-98042-694-2 01 1 1004-1111
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) 		8-98042-694-2 01 1 1112-
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98042-145-2 01 1 0907-1206
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(F) 		8-98211-757-1 01 1 1207-
96 03.636 NUT; BRKT,MAG VLV,EXH BRAKE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0907-
122 03.640 PROTECTOR; MAG VLV 8-98098-564-0 01 1 0907-
124 03.636 VALVE; MAG,DPD EXH THROTTLE 8-98043-344-0 01 1 0907-
126 03.634 NUT; BRKT
WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-0910
126 03.634 NUT; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0911-1003
126 03.634 NUT; BRKT
WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1004-1111
126 03.634 NUT; BRKT
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1112-
127 04.902 BOLT; PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0907-
