Sayfa 0-35 - Isuzu EPC

0-35 — ENGINE CONTROL VALVE AND LEVER (#5212) — 230 parça

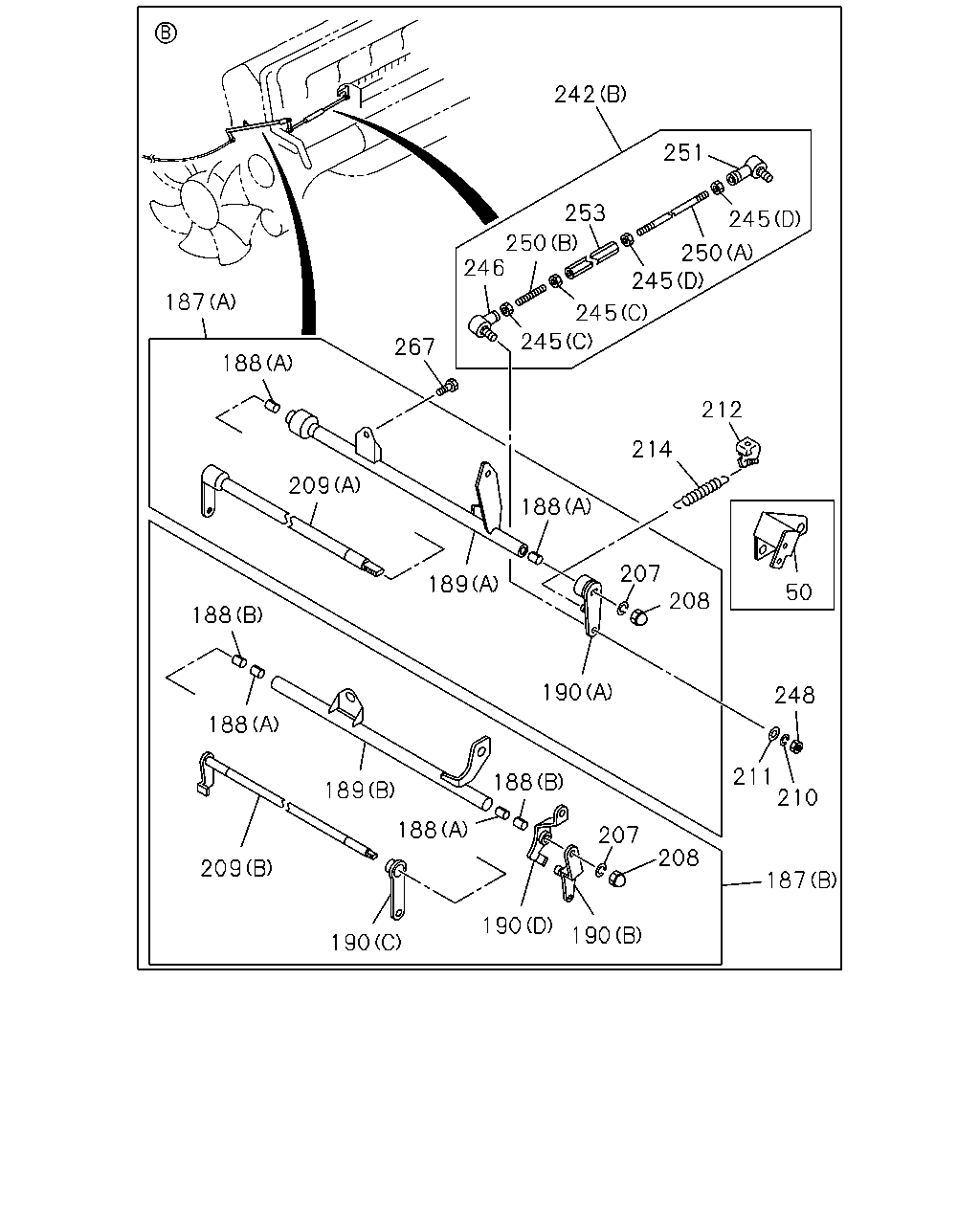

242 251 253 245 250 246 250 245 187 245 245 267 188 212 214 209 188 189 207 208 50 188 190 248 188 211 210 188 189 188 207 208 209 187 190 190 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
50	BRACKET; ENG CONT CABLE GOVERNOR CONTROL<W69>	1-23335-493-0	01	1	9604-9904	●
50	BRACKET; ENG CONT CABLE CONCRETE PUMP<RA5>	1-23335-493-0	01	1	9905-	●
187	CONTROL ASM; ENG (A)	1-23300-326-0	01	1	9604-9604	●
187	CONTROL ASM; ENG EXC. GOVERNOR CONTROL<W69> (A)	1-23300-326-0	01	1	9604-9904	●
187	CONTROL ASM; ENG EXC. CONCRETE PUMP<RA5> (A)	1-23300-326-0	01	1	9905-	●
187	CONTROL ASM; ENG GOVERNOR CONTROL<W69> (B)	1-23300-329-0	01	1	9604-9904	●
187	CONTROL ASM; ENG CONCRETE PUMP<RA5> (B)	1-23300-329-0	01	1	9905-	●
188	BUSHING; CONT SHAFT (A)	1-09330-053-0	02	1	9604-	●
188	BUSHING; CONT SHAFT GOVERNOR CONTROL<W69> (B)	1-09330-059-0	02	1	9604-9904	●
188	BUSHING; CONT SHAFT CONCRETE PUMP<RA5> (B)	1-09330-059-0	02	1	9905-	●
189	BRACKET; ENG CONT (A)	1-23335-482-0	01	1	9604-9604	●
189	BRACKET; ENG CONT EXC. GOVERNOR CONTROL<W69> (A)	1-23335-482-0	01	1	9604-9904	●
189	BRACKET; ENG CONT EXC. CONCRETE PUMP<RA5> (A)	1-23335-482-0	01	1	9905-	●
189	BRACKET; ENG CONT GOVERNOR CONTROL<W69> (B)	1-23335-492-0	01	1	9604-9904	●
189	BRACKET; ENG CONT CONCRETE PUMP<RA5> (B)	1-23335-492-0	01	1	9905-	●
190	LEVER; ENG CONT (A)	1-23311-352-0	01	1	9604-9604	●
190	LEVER; ENG CONT EXC. GOVERNOR CONTROL<W69> (A)	1-23311-352-0	01	1	9604-9904	●
190	LEVER; ENG CONT EXC. CONCRETE PUMP<RA5> (A)	1-23311-352-0	01	1	9905-	●
190	LEVER; ENG CONT GOVERNOR CONTROL<W69> (B)	1-23311-353-0	01	1	9604-9904	●
190	LEVER; ENG CONT CONCRETE PUMP<RA5> (B)	1-23311-353-0	01	1	9905-	●
190	LEVER; ENG CONT GOVERNOR CONTROL<W69> (C)	1-23311-354-0	01	1	9604-9904	●
190	LEVER; ENG CONT CONCRETE PUMP<RA5> (C)	1-23311-354-0	01	1	9905-	●
190	LEVER; ENG CONT GOVERNOR CONTROL<W69> (D)	1-23311-355-0	01	1	9604-9904	●
190	LEVER; ENG CONT CONCRETE PUMP<RA5> (D)	1-23311-355-0	01	1	9905-	●
207	WASHER; LK,CONT LEVER ID=8.2	9-09150-508-0	01	1	9604-	●
208	NUT; LEVER	1-09984-015-0	01	1	9604-	●
209	SHAFT; ENG CONT (A)	1-23331-128-0	01	1	9604-9604	●
209	SHAFT; ENG CONT EXC. GOVERNOR CONTROL<W69> (A)	1-23331-128-0	01	1	9604-9904	●
209	SHAFT; ENG CONT EXC. CONCRETE PUMP<RA5> (A)	1-23331-128-0	01	1	9905-	●
209	SHAFT; ENG CONT GOVERNOR CONTROL<W69> (B)	1-23331-130-0	01	1	9604-9904	●
209	SHAFT; ENG CONT CONCRETE PUMP<RA5> (B)	1-23331-130-0	01	1	9905-	●
210	WASHER; LK,JOINT BALL ID=5.1	9-09150-505-0	02	1	9604-	●
211	WASHER; PL,JOINT BALL ID=5.3 OD=16	9-09164-705-0	02	1	9604-	●
212	BRACKET; SPR EYE	1-23335-486-0	01	1	9604-	●
214	SPRING; ENG CONT RETURN	1-09583-315-0	01	1	9604-	●
242	LINK ASM (B) L=143	1-23314-176-0	01	1	9604-	●
242	LINK ASM GOVERNOR CONTROL<W69> (A) L=113	1-22190-493-1	01	1	9604-9904	●
242	LINK ASM CONCRETE PUMP<RA5> (A) L=113	1-22190-493-1	01	1	9905-	●
245	NUT; LINK (C) M5 LH THREAD	9-09840-277-0	02	1	9604-	●
245	NUT; LINK (D) M5	9-99111-405-0	02	1	9604-	●
245	NUT; LINK GOVERNOR CONTROL<W69> (B) LH THREAD	1-09409-002-0	01	1	9604-9904	●
245	NUT; LINK CONCRETE PUMP<RA5> (B) LH THREAD	1-09409-002-0	01	1	9905-	●
245	NUT; LINK GOVERNOR CONTROL<W69> (A) RH THREAD M8	9-09110-408-0	03	1	9604-9904	●
245	NUT; LINK CONCRETE PUMP<RA5> (A) RH THREAD M8	9-09110-408-0	03	1	9905-	●
246	JOINT; BALL,ENG CONT LINK	1-09760-104-0	01	1	9604-	●
248	NUT; JOINT BALL M5	9-99110-405-0	02	1	9604-	●
250	ROD; ROD TO JOINT (B) M5X50 LH THREAD	1-09765-197-0	01	1	9604-	●
250	ROD; ROD TO JOINT (A) M5X50	1-09765-198-0	01	1	9604-	●
251	JOINT; BALL,RIGHT SCREW,ENG CONT LINK	1-09760-103-0	01	1	9604-	●
253	JOINT; ROD TO ROD	9-23319-194-0	01	1	9604-	●
267	BOLT; ENG CONT M10X30 FLANGE	0-28181-030-0	01	1	9604-	●

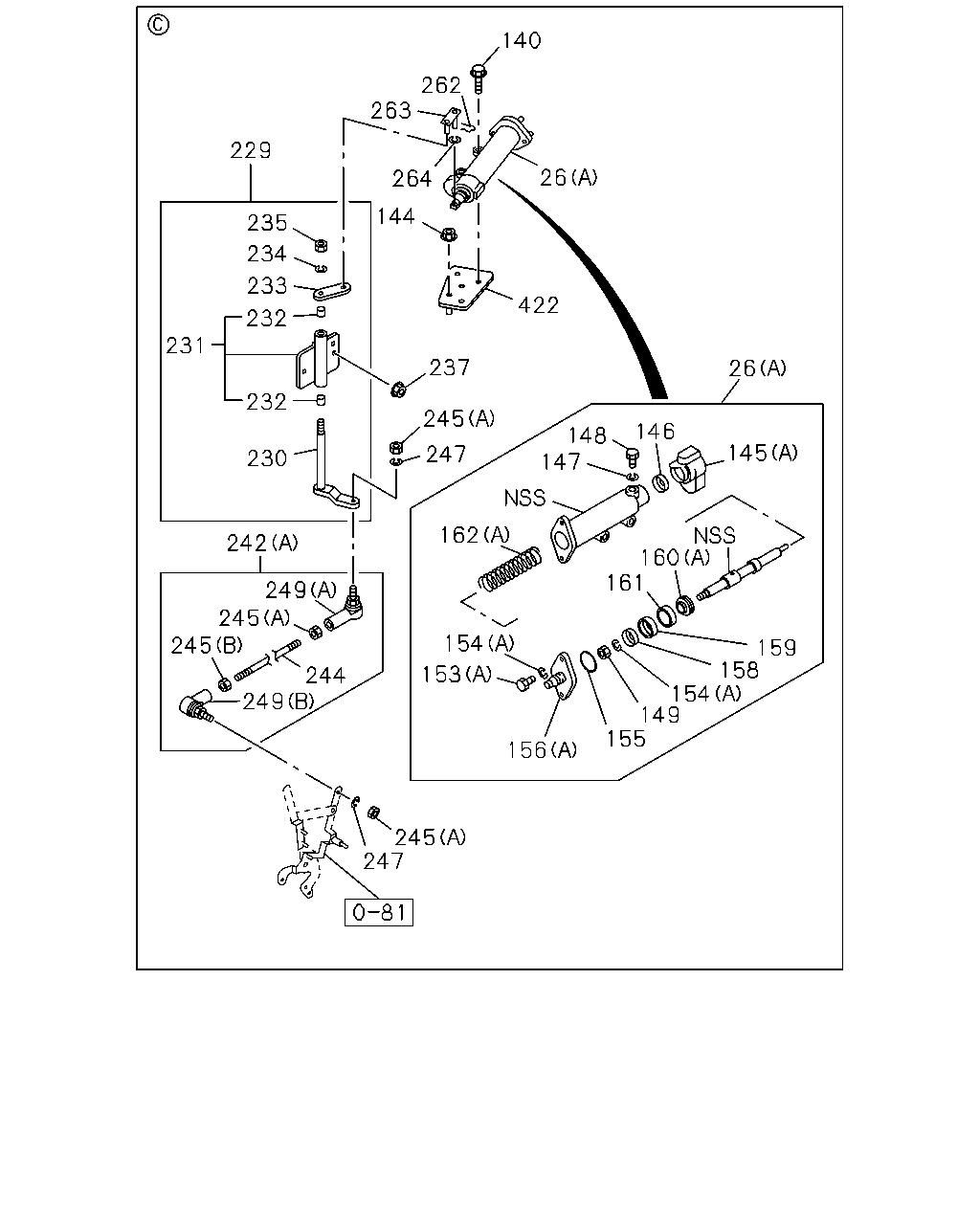

140 262 263 229 26 264 144 235 234 233 422 232 231 237 26 232 245 146 148 147 145 247 230 162 160 161 242 249 245 245 154 159 158 154 149 155 153 244 249 156 245 247

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	CYLINDER ASM; CONT (B) INTAKE SHUTTER	1-22190-622-0	01	1	9604-9702	●
26	CYLINDER ASM; CONT (B) INTAKE SHUTTER	1-22190-527-1	01	1	9703-9904	●
26	CYLINDER ASM; CONT (B) INTAKE SHUTTER	1-22190-527-1	01	1	9905-	●	●
26	CYLINDER ASM; CONT GOVERNOR CONTROL<W69> (A) ENG SPEED CONT	1-22190-545-0	01	1	9604-9904	●
26	CYLINDER ASM; CONT CONCRETE PUMP<RA5> (A) ENG SPEED CONT	1-22190-545-0	01	1	9905-	●
140	BOLT; CONNECTOR CYL GOVERNOR CONTROL<W69> M10X60 FLANGE	0-28081-060-0	02	1	9604-9904	●
140	BOLT; CONNECTOR CYL CONCRETE PUMP<RA5> M10X60 FLANGE	0-28081-060-0	02	1	9905-	●
144	NUT; BRKT GOVERNOR CONTROL<W69> M10 FLANGE	0-91150-110-0	03	1	9604-9904	●
144	NUT; BRKT CONCRETE PUMP<RA5> M10 FLANGE	0-91150-110-0	03	1	9905-	●
145	COVER; BREATHER (B)	1-22199-008-0	01	1	9604-9904	●
145	COVER; BREATHER (B)	1-22199-008-0	01	1	9905-	●	●
145	COVER; BREATHER GOVERNOR CONTROL<W69> (A)	1-22199-009-0	01	1	9604-9904	●
145	COVER; BREATHER CONCRETE PUMP<RA5> (A)	1-22199-009-0	01	1	9905-	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9604-9904	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9905-	●	●
146	SEAL; DUST,CONT CONCRETE PUMP<RA5>	1-22189-016-0	01	1	9905-	●
147	RING; RET	9-88510-331-0	01	1	9604-9904	●
147	RING; RET	9-88510-331-0	01	1	9905-	●	●
147	RING; RET CONCRETE PUMP<RA5>	9-88510-331-0	01	1	9905-	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9604-9904	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9905-	●	●
148	FILTER; CONT CYL CONCRETE PUMP<RA5>	9-88510-330-0	01	1	9905-	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9604-9904	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9905-	●	●
149	NUT; LOCK,CONT SHAFT CONCRETE PUMP<RA5>	9-83315-085-0	01	1	9905-	●
153	BOLT; CONT CYL (B)	1-22199-155-0	02	1	9604-9702	●
153	BOLT; CONT CYL (B)	1-33739-326-0	02	1	9703-9904	●
153	BOLT; CONT CYL (B)	1-33739-326-0	02	1	9905-	●	●
153	BOLT; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-267-0	02	1	9604-9904	●
153	BOLT; CONT CYL CONCRETE PUMP<RA5> (A)	9-88510-267-0	02	1	9905-	●
154	WASHER; LK,CYL (B) ID=8.2	9-09150-508-0	01	1	9604-9904	●
154	WASHER; LK,CYL CONCRETE PUMP<RA5> (B) ID=8.2	9-09150-508-0	03	1	9905-	●
154	WASHER; LK,CYL GOVERNOR CONTROL<W69> (A) ID=8.2	9-09150-508-0	03	1	9604-9904	●
154	WASHER; LK,CYL (A) ID=8.2	9-09150-508-0	01	1	9905-	●	●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9604-9904	●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9905-	●	●
155	GASKET; CONT CYL CONCRETE PUMP<RA5>	9-88510-372-0	01	1	9905-	●
156	COVER; CONT CYL (B)	9-88510-321-0	01	1	9604-9702	●
156	COVER; CONT CYL (B)	1-22189-162-1	01	1	9703-9904	●
156	COVER; CONT CYL (B)	1-22189-162-1	01	1	9905-	●	●
156	COVER; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-375-0	01	1	9604-9904	●
156	COVER; CONT CYL CONCRETE PUMP<RA5> (A)	9-88510-375-0	01	1	9905-	●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9604-9904	●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9905-	●	●
158	RETAINER; GASKET,CYL CONCRETE PUMP<RA5>	9-88510-324-0	01	1	9905-	●
159	GASKET; CONT CYL	9-88510-373-0	01	1	9604-9904	●
159	GASKET; CONT CYL	9-88510-373-0	01	1	9905-	●	●
159	GASKET; CONT CYL CONCRETE PUMP<RA5>	9-88510-373-0	01	1	9905-	●
160	PLATE (B)	1-22199-020-0	01	1	9604-9904	●
160	PLATE (B)	1-22199-020-0	01	1	9905-	●	●
160	PLATE GOVERNOR CONTROL<W69> (A)	1-22199-001-0	01	1	9604-9904	●
160	PLATE CONCRETE PUMP<RA5> (A)	1-22199-001-0	01	1	9905-	●
161	RING; WEAR	1-22199-002-0	01	1	9604-9904	●
161	RING; WEAR	1-22199-002-0	01	1	9905-	●	●
161	RING; WEAR CONCRETE PUMP<RA5>	1-22199-002-0	01	1	9905-	●
162	SPRING; CONT CYL (B)	1-22199-018-0	01	1	9604-9904	●
162	SPRING; CONT CYL (B)	1-22199-018-0	01	1	9905-	●	●
162	SPRING; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-374-0	01	1	9604-9904	●
162	SPRING; CONT CYL CONCRETE PUMP<RA5> (A)	9-88510-374-0	01	1	9905-	●
229	CONTROL ASM; ENG SPD GOVERNOR CONTROL<W69>	1-23300-305-1	01	1	9604-9904	●
229	CONTROL ASM; ENG SPD CONCRETE PUMP<RA5>	1-23300-305-1	01	1	9905-	●
230	SHAFT; ENG SPD CONT GOVERNOR CONTROL<W69>	1-23331-107-0	01	1	9604-9904	●
230	SHAFT; ENG SPD CONT CONCRETE PUMP<RA5>	1-23331-107-0	01	1	9905-	●
231	BRACKET; ENG SPD CONT GOVERNOR CONTROL<W69>	1-23335-398-1	01	1	9604-9904	●
231	BRACKET; ENG SPD CONT CONCRETE PUMP<RA5>	1-23335-398-1	01	1	9905-	●
232	BUSHING; BRKT,ENG SPD CONT GOVERNOR CONTROL<W69>	1-23319-216-0	02	1	9604-9904	●
232	BUSHING; BRKT,ENG SPD CONT CONCRETE PUMP<RA5>	1-23319-216-0	02	1	9905-	●
233	LEVER; ENG SPD CONT GOVERNOR CONTROL<W69>	1-23311-269-0	01	1	9604-9904	●
233	LEVER; ENG SPD CONT CONCRETE PUMP<RA5>	1-23311-269-0	01	1	9905-	●
234	WASHER; LK,LEVER,ENG SPD CONT GOVERNOR CONTROL<W69> ID=10.2	9-09150-510-0	01	1	9604-9904	●
234	WASHER; LK,LEVER,ENG SPD CONT CONCRETE PUMP<RA5> ID=10.2	9-09150-510-0	01	1	9905-	●
235	NUT; LEVER ENG SPD CONT GOVERNOR CONTROL<W69> M10	9-09110-410-0	01	1	9604-9904	●
235	NUT; LEVER ENG SPD CONT CONCRETE PUMP<RA5> M10	9-09110-410-0	01	1	9905-	●
237	NUT; BRKT GOVERNOR CONTROL<W69> M10 FLANGE	0-91150-110-0	02	1	9604-9904	●
237	NUT; BRKT CONCRETE PUMP<RA5> M10 FLANGE	0-91150-110-0	02	1	9905-	●
242	LINK ASM (B) L=143	1-23314-176-0	01	1	9604-	●
242	LINK ASM GOVERNOR CONTROL<W69> (A) L=113	1-22190-493-1	01	1	9604-9904	●
242	LINK ASM CONCRETE PUMP<RA5> (A) L=113	1-22190-493-1	01	1	9905-	●
244	JOINT ASM; BALL GOVERNOR CONTROL<W69>	1-09765-209-1	01	1	9604-9904	●
244	JOINT ASM; BALL CONCRETE PUMP<RA5>	1-09765-209-1	01	1	9905-	●
245	NUT; LINK (C) M5 LH THREAD	9-09840-277-0	02	1	9604-	●
245	NUT; LINK (D) M5	9-99111-405-0	02	1	9604-	●
245	NUT; LINK GOVERNOR CONTROL<W69> (B) LH THREAD	1-09409-002-0	01	1	9604-9904	●
245	NUT; LINK CONCRETE PUMP<RA5> (B) LH THREAD	1-09409-002-0	01	1	9905-	●
245	NUT; LINK GOVERNOR CONTROL<W69> (A) RH THREAD M8	9-09110-408-0	03	1	9604-9904	●
245	NUT; LINK CONCRETE PUMP<RA5> (A) RH THREAD M8	9-09110-408-0	03	1	9905-	●
247	WASHER; LK,LINK GOVERNOR CONTROL<W69> ID=8.2	9-09150-508-0	02	1	9604-9904	●
247	WASHER; LK,LINK CONCRETE PUMP<RA5> ID=8.2	9-09150-508-0	02	1	9905-	●
249	ROD; LINK GOVERNOR CONTROL<W69> (A) RH THREAD	1-09760-009-0	01	1	9604-9904	●
249	ROD; LINK CONCRETE PUMP<RA5> (A) RH THREAD	1-09760-009-0	01	1	9905-	●
249	ROD; LINK GOVERNOR CONTROL<W69> (B) LH THREAD	1-09760-010-0	01	1	9604-9904	●
249	ROD; LINK CONCRETE PUMP<RA5> (B) LH THREAD	1-09760-010-0	01	1	9905-	●
262	PIN; SNAP,LINK,CONT CYL GOVERNOR CONTROL<W69> L=21.2	1-09747-003-0	02	1	9604-9904	●
262	PIN; SNAP,LINK,CONT CYL CONCRETE PUMP<RA5> L=21.2	1-09747-003-0	02	1	9905-	●
263	LINK ASM; CONT CYL GOVERNOR CONTROL<W69>	1-22196-183-0	01	1	9604-9904	●
263	LINK ASM; CONT CYL CONCRETE PUMP<RA5>	1-22196-183-0	01	1	9905-	●
264	WASHER; LK,LINK,CONT CYL GOVERNOR CONTROL<W69> PLAIN WASHER ID=6.4	9-09160-506-0	02	1	9604-9904	●
264	WASHER; LK,LINK,CONT CYL CONCRETE PUMP<RA5> ID=6.4	9-09160-506-0	02	1	9905-	●
422	BRACKET; CONT CYL GOVERNOR CONTROL<W69>	1-23335-487-0	01	1	9604-9904	●
422	BRACKET; CONT CYL CONCRETE PUMP<RA5>	1-23335-487-0	01	1	9905-	●

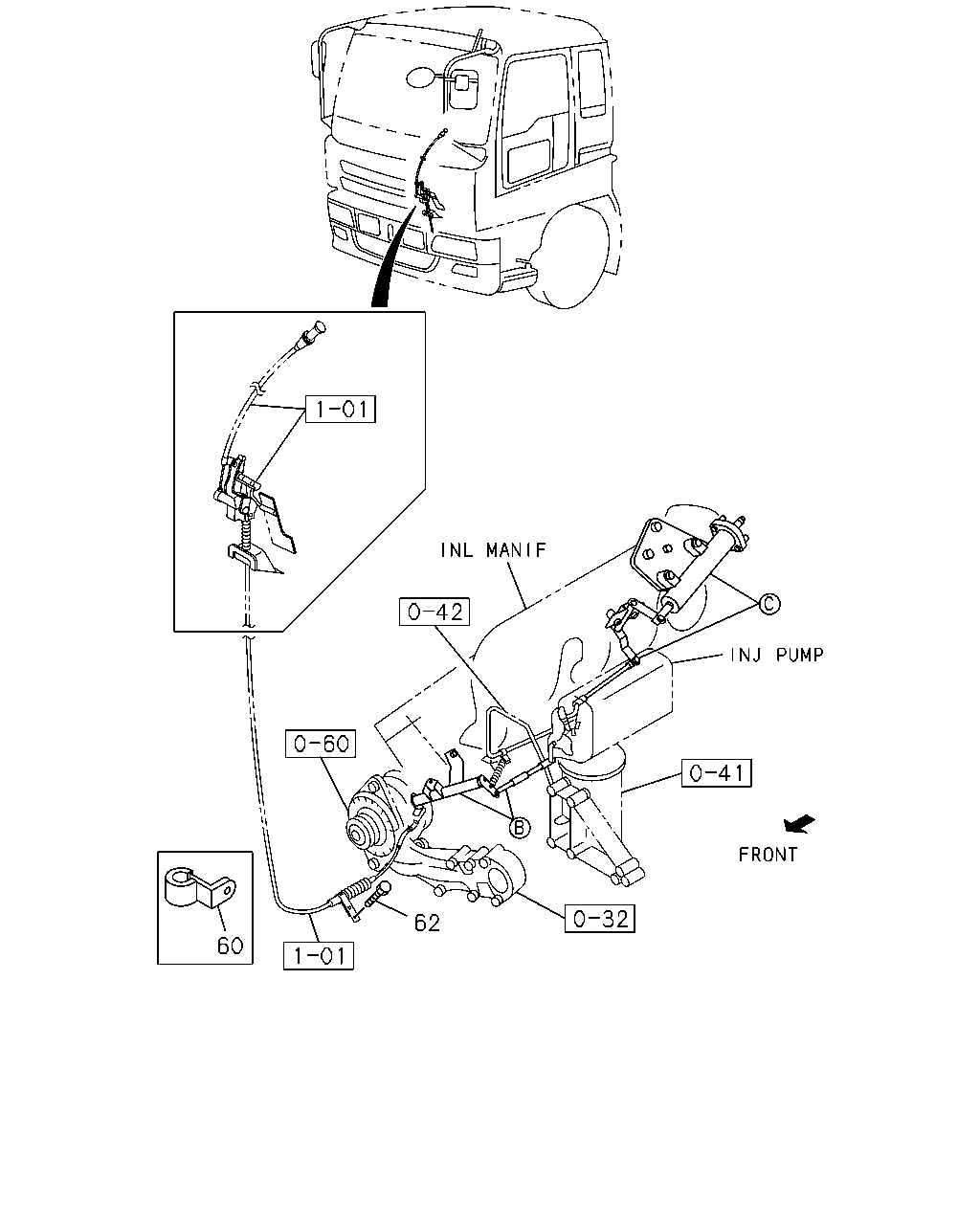

62 60

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	60	CLIP; CABLE ID=8 H=20 L=20	1-09700-604-0	01	1	9604-	●	●
	62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	9604-	●	●

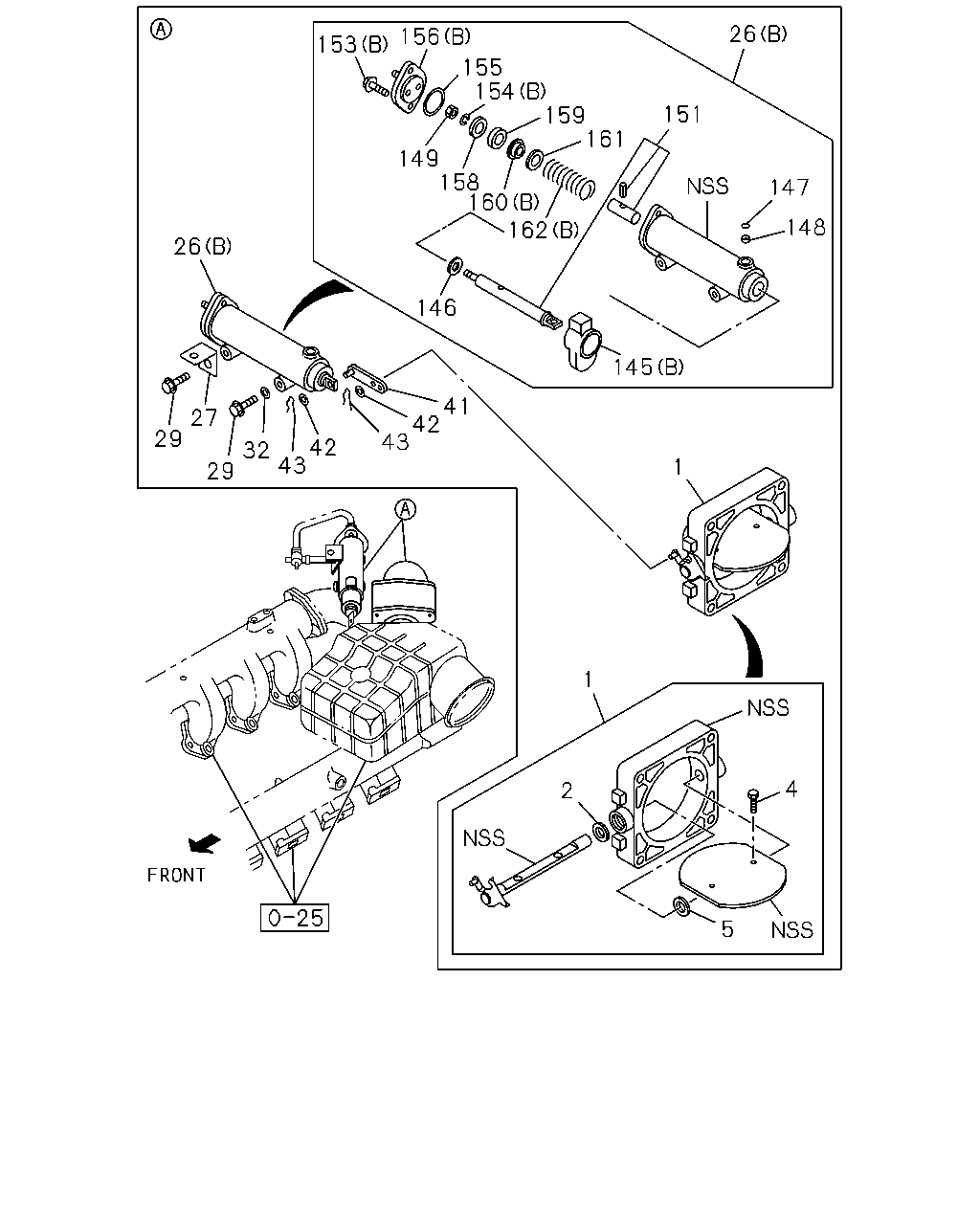

26 156 153 155 154 159 161 151 149 158 160 162 147 148 26 146 145 41 42 43 27 29 32 42 43 29 1 1 4 2 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHUTTER ASM; INT	1-14310-219-0	01	1	9604-9904	●
1	SHUTTER ASM; INT	1-14310-219-1	01	1	9905-	●	●
2	COVER; DUST,SHAFT	9-14319-316-0	01	1	9604-9904	●
2	COVER; DUST,SHAFT	9-14319-316-0	01	1	9905-	●	●
4	SCREW; VLV FIX	9-92050-514-0	02	1	9604-9904	●
4	SCREW; VLV FIX	9-92050-514-0	02	1	9905-	●	●
5	WASHER; THRUST,INT SHUTTER ID=12.5	9-09160-512-0	01	1	9604-9904	●
5	WASHER; THRUST,INT SHUTTER ID=12.5	9-09160-512-0	01	1	9905-	●	●
26	CYLINDER ASM; CONT (B) INTAKE SHUTTER	1-22190-622-0	01	1	9604-9702	●
26	CYLINDER ASM; CONT (B) INTAKE SHUTTER	1-22190-527-1	01	1	9703-9904	●
26	CYLINDER ASM; CONT (B) INTAKE SHUTTER	1-22190-527-1	01	1	9905-	●	●
26	CYLINDER ASM; CONT GOVERNOR CONTROL<W69> (A) ENG SPEED CONT	1-22190-545-0	01	1	9604-9904	●
26	CYLINDER ASM; CONT CONCRETE PUMP<RA5> (A) ENG SPEED CONT	1-22190-545-0	01	1	9905-	●
27	BRACKET; WIRE CLIP	1-83129-087-0	01	1	9604-9904	●
27	BRACKET; WIRE CLIP	1-83129-087-0	01	1	9905-	●	●
29	BOLT; CONT CYL M10X55 FLANGE	8-94399-863-1	02	1	9604-9904	●
29	BOLT; CONT CYL M10X55 FLANGE	8-94399-863-1	02	1	9905-	●	●
32	WASHER; LK,CONT CYL ID=10.5 OD=18	9-09160-510-0	01	1	9905-		●
41	LINK; INT SHUTTER	1-14319-004-2	01	1	9604-9711	●
41	LINK; INT SHUTTER	1-14319-133-0	01	1	9712-9904	●
41	LINK; INT SHUTTER	1-14319-133-0	01	1	9905-	●	●
42	WASHER; LK,ROD LOCK PLAIN WASHER ID=6.4	9-09160-506-0	02	1	9604-9904	●
42	WASHER; LK,ROD LOCK ID=6.4	9-09160-506-0	02	1	9905-	●	●
43	PIN; SNAP ROD LK L=21.2	1-09747-003-0	02	1	9604-9904	●
43	PIN; SNAP ROD LK L=21.2	1-09747-003-0	02	1	9905-	●	●
145	COVER; BREATHER (B)	1-22199-008-0	01	1	9604-9904	●
145	COVER; BREATHER (B)	1-22199-008-0	01	1	9905-	●	●
145	COVER; BREATHER GOVERNOR CONTROL<W69> (A)	1-22199-009-0	01	1	9604-9904	●
145	COVER; BREATHER CONCRETE PUMP<RA5> (A)	1-22199-009-0	01	1	9905-	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9604-9904	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9905-	●	●
146	SEAL; DUST,CONT CONCRETE PUMP<RA5>	1-22189-016-0	01	1	9905-	●
147	RING; RET	9-88510-331-0	01	1	9604-9904	●
147	RING; RET	9-88510-331-0	01	1	9905-	●	●
147	RING; RET CONCRETE PUMP<RA5>	9-88510-331-0	01	1	9905-	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9604-9904	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9905-	●	●
148	FILTER; CONT CYL CONCRETE PUMP<RA5>	9-88510-330-0	01	1	9905-	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9604-9904	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9905-	●	●
149	NUT; LOCK,CONT SHAFT CONCRETE PUMP<RA5>	9-83315-085-0	01	1	9905-	●
151	SHAFT; CONT CYL	1-22196-256-0	01	1	9604-9904	●
151	SHAFT; CONT CYL	1-22196-256-0	01	1	9905-	●	●
153	BOLT; CONT CYL (B)	1-22199-155-0	02	1	9604-9702	●
153	BOLT; CONT CYL (B)	1-33739-326-0	02	1	9703-9904	●
153	BOLT; CONT CYL (B)	1-33739-326-0	02	1	9905-	●	●
153	BOLT; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-267-0	02	1	9604-9904	●
153	BOLT; CONT CYL CONCRETE PUMP<RA5> (A)	9-88510-267-0	02	1	9905-	●
154	WASHER; LK,CYL (B) ID=8.2	9-09150-508-0	01	1	9604-9904	●
154	WASHER; LK,CYL CONCRETE PUMP<RA5> (B) ID=8.2	9-09150-508-0	03	1	9905-	●
154	WASHER; LK,CYL GOVERNOR CONTROL<W69> (A) ID=8.2	9-09150-508-0	03	1	9604-9904	●
154	WASHER; LK,CYL (A) ID=8.2	9-09150-508-0	01	1	9905-	●	●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9604-9904	●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9905-	●	●
155	GASKET; CONT CYL CONCRETE PUMP<RA5>	9-88510-372-0	01	1	9905-	●
156	COVER; CONT CYL (B)	9-88510-321-0	01	1	9604-9702	●
156	COVER; CONT CYL (B)	1-22189-162-1	01	1	9703-9904	●
156	COVER; CONT CYL (B)	1-22189-162-1	01	1	9905-	●	●
156	COVER; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-375-0	01	1	9604-9904	●
156	COVER; CONT CYL CONCRETE PUMP<RA5> (A)	9-88510-375-0	01	1	9905-	●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9604-9904	●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9905-	●	●
158	RETAINER; GASKET,CYL CONCRETE PUMP<RA5>	9-88510-324-0	01	1	9905-	●
159	GASKET; CONT CYL	9-88510-373-0	01	1	9604-9904	●
159	GASKET; CONT CYL	9-88510-373-0	01	1	9905-	●	●
159	GASKET; CONT CYL CONCRETE PUMP<RA5>	9-88510-373-0	01	1	9905-	●
160	PLATE (B)	1-22199-020-0	01	1	9604-9904	●
160	PLATE (B)	1-22199-020-0	01	1	9905-	●	●
160	PLATE GOVERNOR CONTROL<W69> (A)	1-22199-001-0	01	1	9604-9904	●
160	PLATE CONCRETE PUMP<RA5> (A)	1-22199-001-0	01	1	9905-	●
161	RING; WEAR	1-22199-002-0	01	1	9604-9904	●
161	RING; WEAR	1-22199-002-0	01	1	9905-	●	●
161	RING; WEAR CONCRETE PUMP<RA5>	1-22199-002-0	01	1	9905-	●
162	SPRING; CONT CYL (B)	1-22199-018-0	01	1	9604-9904	●
162	SPRING; CONT CYL (B)	1-22199-018-0	01	1	9905-	●	●
162	SPRING; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-374-0	01	1	9604-9904	●
162	SPRING; CONT CYL CONCRETE PUMP<RA5> (A)	9-88510-374-0	01	1	9905-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
