Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#52119) — 397 parça

2 36 1 25 568 44 8 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

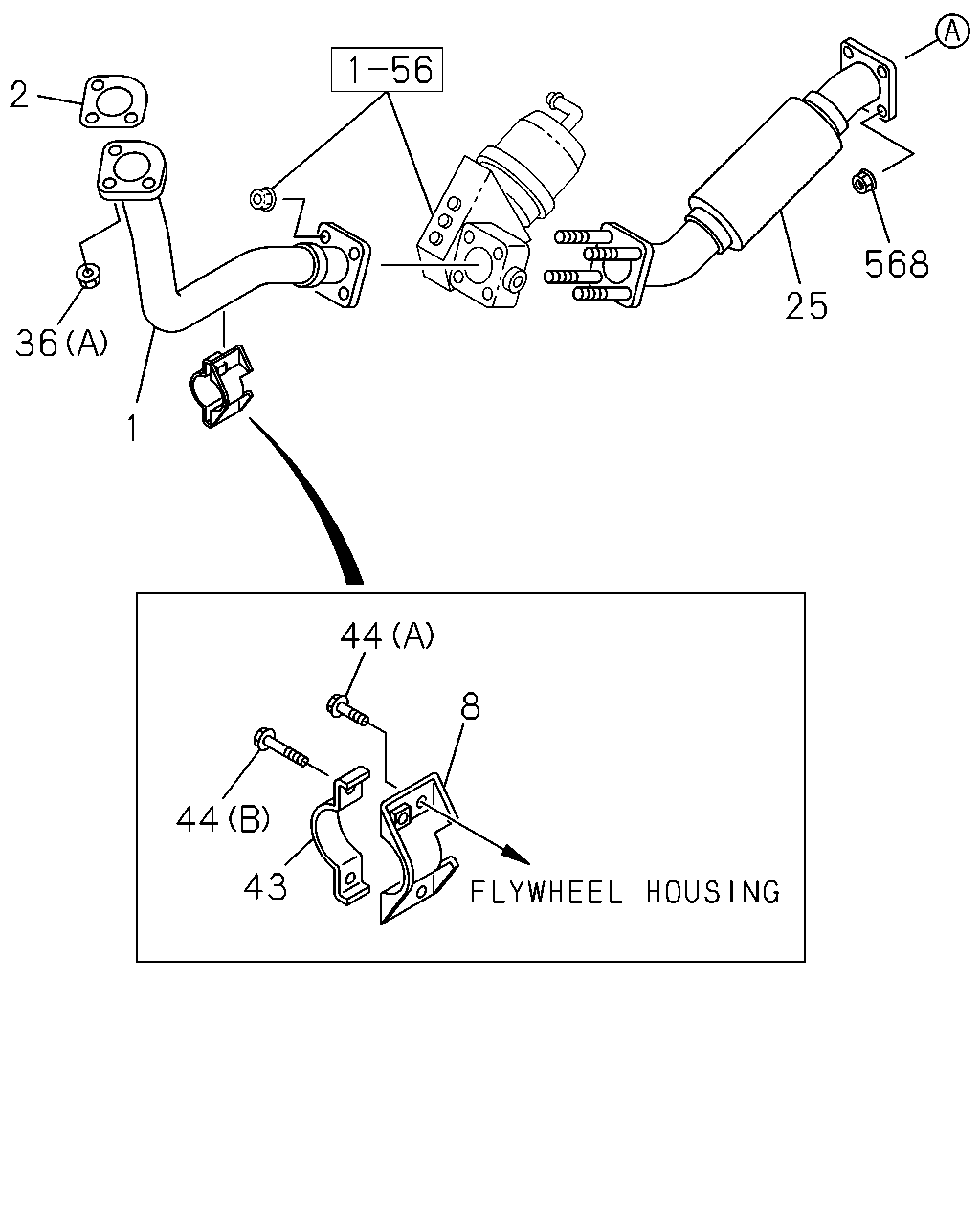

1	03.609 PIPE; EXH	8-98026-060-0	01	1	0907-
2	03.611 GASKET; PIPE TO MANIF	8-97384-590-0	01	1	0907-
8	03.704 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	0907-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98026-061-2	01	1	0907-
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0907-1003
36	03.613 NUT; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1004-
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1004-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0907-
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0907-
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0907-
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0907-
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0907-
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	0907-

118 117 115 579 376 376 118 117 115 376 376 376 118 117 115 578 115 113 337 576 562 352 44 562 560 562 562 34 361 12 12 556 532 385 385 532 577 352 113 115 579 352 376 577 352 113 115 352 172 143 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

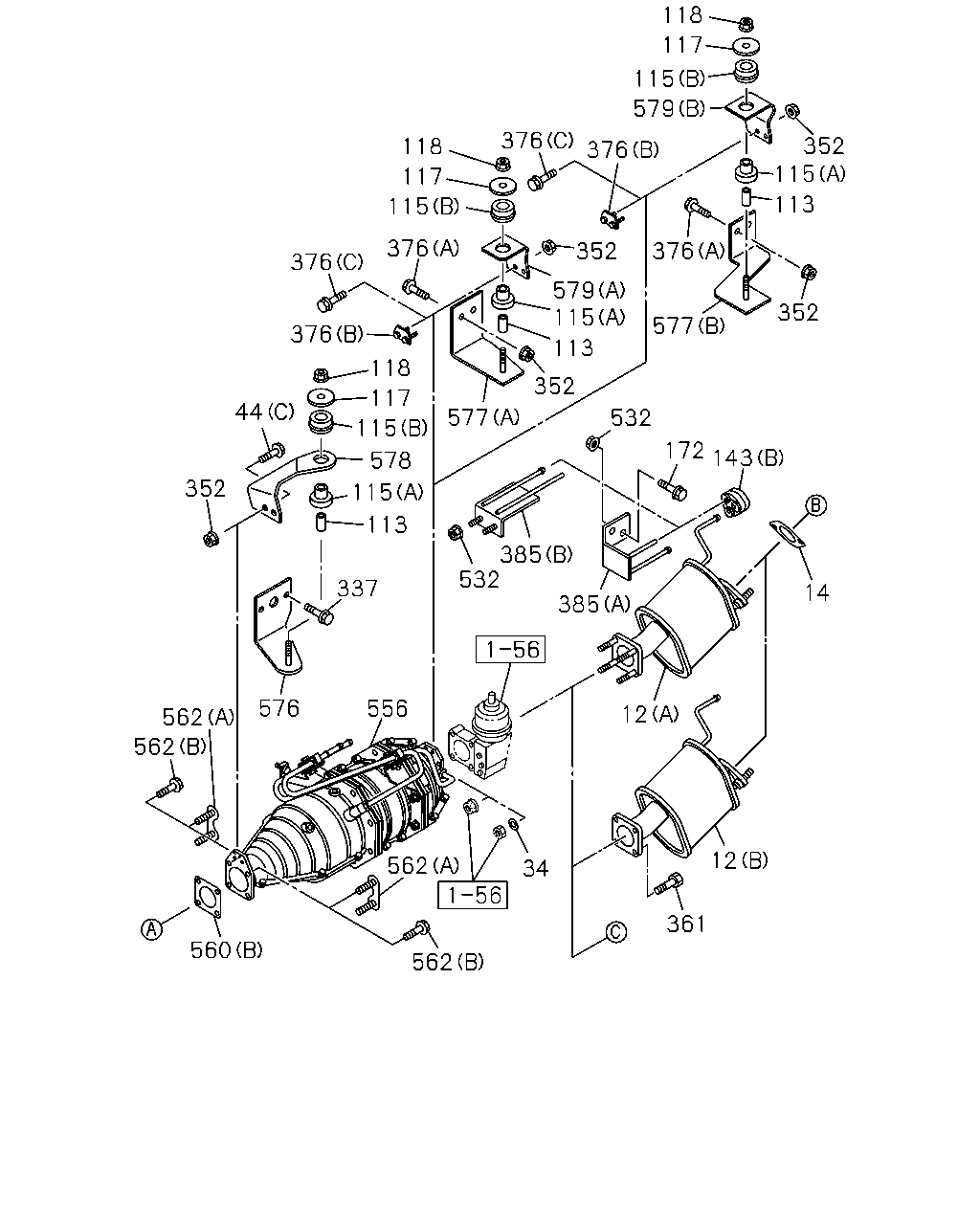

12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98214-239-0	01	1	1204-1308
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98254-790-0	01	1	1309-
12	03.701 SILENCER ASM; EXH WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98214-240-0	01	1	1204-1308
12	03.701 SILENCER ASM; EXH WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98254-791-0	01	1	1309-
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) (A)	8-98001-836-1	01	1	0907-0909
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98001-836-1	01	1	0910-1203
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98001-836-1	01	1	1204-1308
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98254-781-0	01	1	1309-
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W) (A)	8-98034-019-1	01	1	0907-0912
12	03.701 SILENCER ASM; EXH WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98034-019-1	01	1	1001-1003
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W) (A)	8-98034-019-1	01	1	1004-1111
12	03.701 SILENCER ASM; EXH WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98034-019-1	01	1	1112-1203
12	03.701 SILENCER ASM; EXH WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98034-019-1	01	1	1204-1308
12	03.701 SILENCER ASM; EXH WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98254-784-0	01	1	1309-
14	03.704 GASKET; SILENCER TO EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.611 ID=65	8-97148-757-1	01	1	0907-0912
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65	8-97148-757-1	01	1	1001-1003
14	03.704 GASKET; SILENCER TO EXH PIPE WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.611 ID=65	8-97148-757-1	01	1	1004-1111
14	03.704 GASKET; SILENCER TO EXH PIPE WHEEL BASE 3300MM(33W) 03.611 ID=65	8-97148-757-1	01	1	1004-1111
14	03.704 GASKET; SILENCER TO EXH PIPE WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.611 ID=65	8-97148-757-1	01	1	1112-
14	03.704 GASKET; SILENCER TO EXH PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.611 ID=65	8-97148-757-1	01	1	1112-
34	03.613 WASHER; EXH PIPE IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9	5-09500-012-0	04	1	1204-
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0907-
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0907-
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0907-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0907-
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	0907-
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	0907-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0907-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0907-
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	0907-0912
143	03.704 RUBBER; SUPPORT (B)	8-97080-694-0	01	1	1001-1003
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97080-694-0	01	1	1004-1111
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	1004-1111
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97080-694-0	01	1	1112-
143	03.704 RUBBER; SUPPORT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	1112-
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0907-
172	03.708 BOLT WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-1003
172	03.708 BOLT WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1004-
337	03.706 BOLT; RUBBER,SUPPORT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0907-1007
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1008-1009
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1010-
361	03.704 BOLT; EXH PIPE TO PIPE IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE	8-98213-301-0	04	1	1204-
376	03.708 BOLT; BRKT IDENTIFICATION LABEL FOR KD<6UT> 03.890 (C) M10X30 FLANGE	0-28051-030-0	02	1	1206-
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0907-
376	03.708 BOLT; BRKT 03.690 (B)	8-98005-985-0	01	1	0907-1205
376	03.708 BOLT; BRKT EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.690 (B)	8-98005-985-0	01	1	1206-
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) (A)	8-98051-655-0	01	1	0907-0909
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98051-655-0	01	1	0910-
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (B)	8-98001-889-1	01	1	0907-0912
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-889-1	01	1	1001-1003
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (B)	8-98001-889-1	01	1	1004-1111
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-889-1	01	1	1112-
532	03.704 NUT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0907-0909
532	03.704 NUT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0910-0912
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0910-0912
532	03.704 NUT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-1003
532	03.704 NUT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-1003
532	03.704 NUT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1111
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1111
532	03.704 NUT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1112-
532	03.704 NUT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1112-
556	03.701 DPD ASM	8-98036-810-7	01	1	0907-1011
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0907-
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0907-
562	03.690 PLATE; STUD,BOLT IDENTIFICATION LABEL FOR KD<6UT> 03.162 (B) M8X35 FLANGE	0-28050-835-0	04	1	1206-
562	03.690 PLATE; STUD,BOLT (A)	8-97373-966-0	02	1	0907-1205
562	03.690 PLATE; STUD,BOLT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97373-966-0	02	1	1206-
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-98001-862-0	01	1	0907-0912
576	03.706 BRACKET; DPD FRT TO FRAME	8-98001-862-0	01	1	1001-1003
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-98001-862-0	01	1	1004-1111
576	03.706 BRACKET; DPD FRT TO FRAME	8-98001-862-0	01	1	1112-
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) (A)	8-98001-880-0	01	1	0907-
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W) (B)	8-98001-875-0	01	1	0907-0912
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-875-0	01	1	1001-1003
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W) (B)	8-98001-875-0	01	1	1004-1111
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-875-0	01	1	1112-
578	03.706 BRACKET; DPD FRT	8-98001-873-1	01	1	0907-
579	03.704 BRACKET; DPD RR WHEEL BASE 2400MM(24W) (A)	8-98001-883-1	01	1	0907-
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W) (B)	8-98001-877-0	01	1	0907-0912
579	03.704 BRACKET; DPD RR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-877-0	01	1	1001-1003
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W) (B)	8-98001-877-0	01	1	1004-1111
579	03.704 BRACKET; DPD RR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-877-0	01	1	1112-

81 144 137 143 94 38 126 88 97 125 88 357 105 95 104 137 164 166 165 162 94 124 144 70 137 81 94 3 84 3 361 36 126 88 97 125 165 124 162 124 137 165 164 95 104 166 70 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

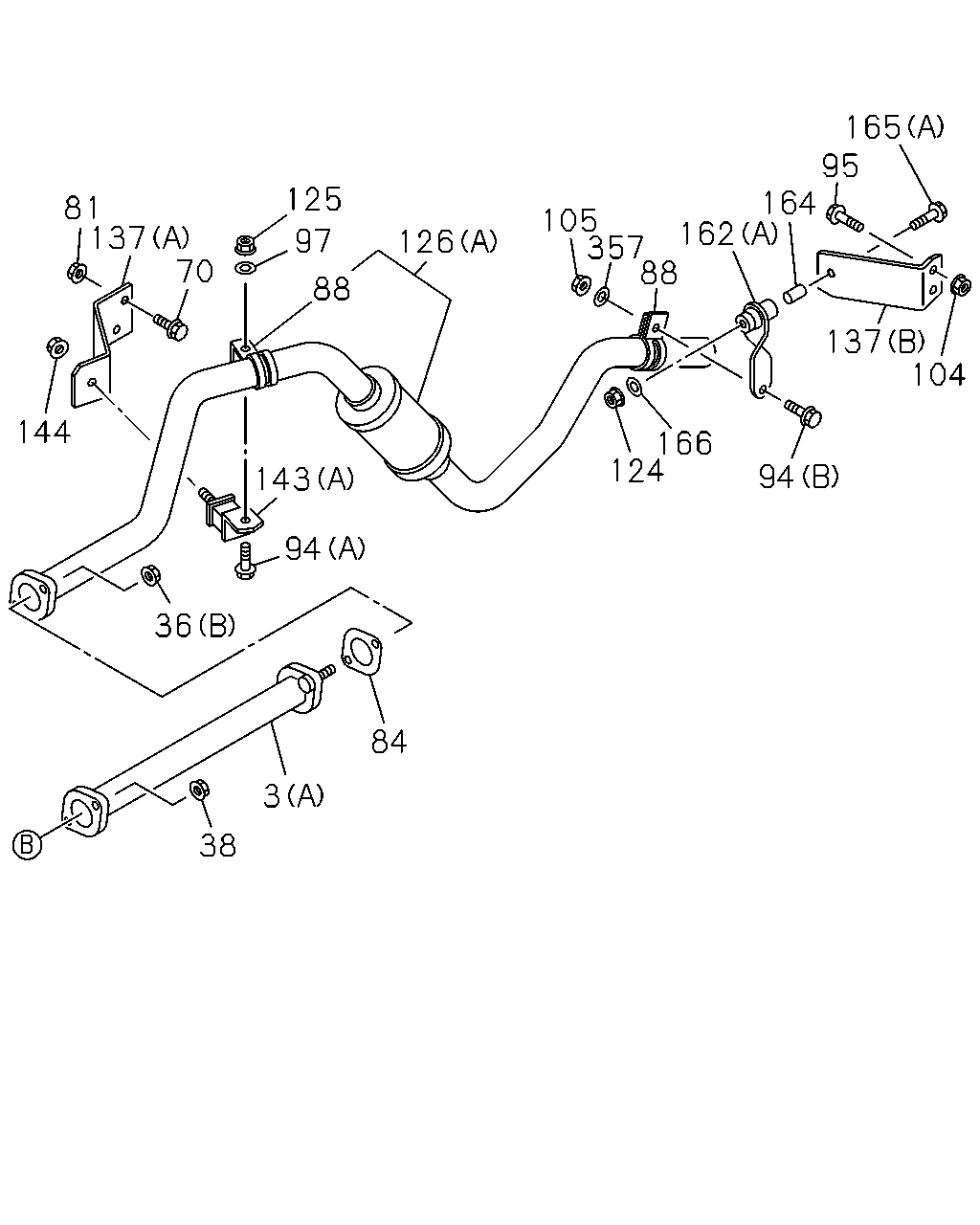

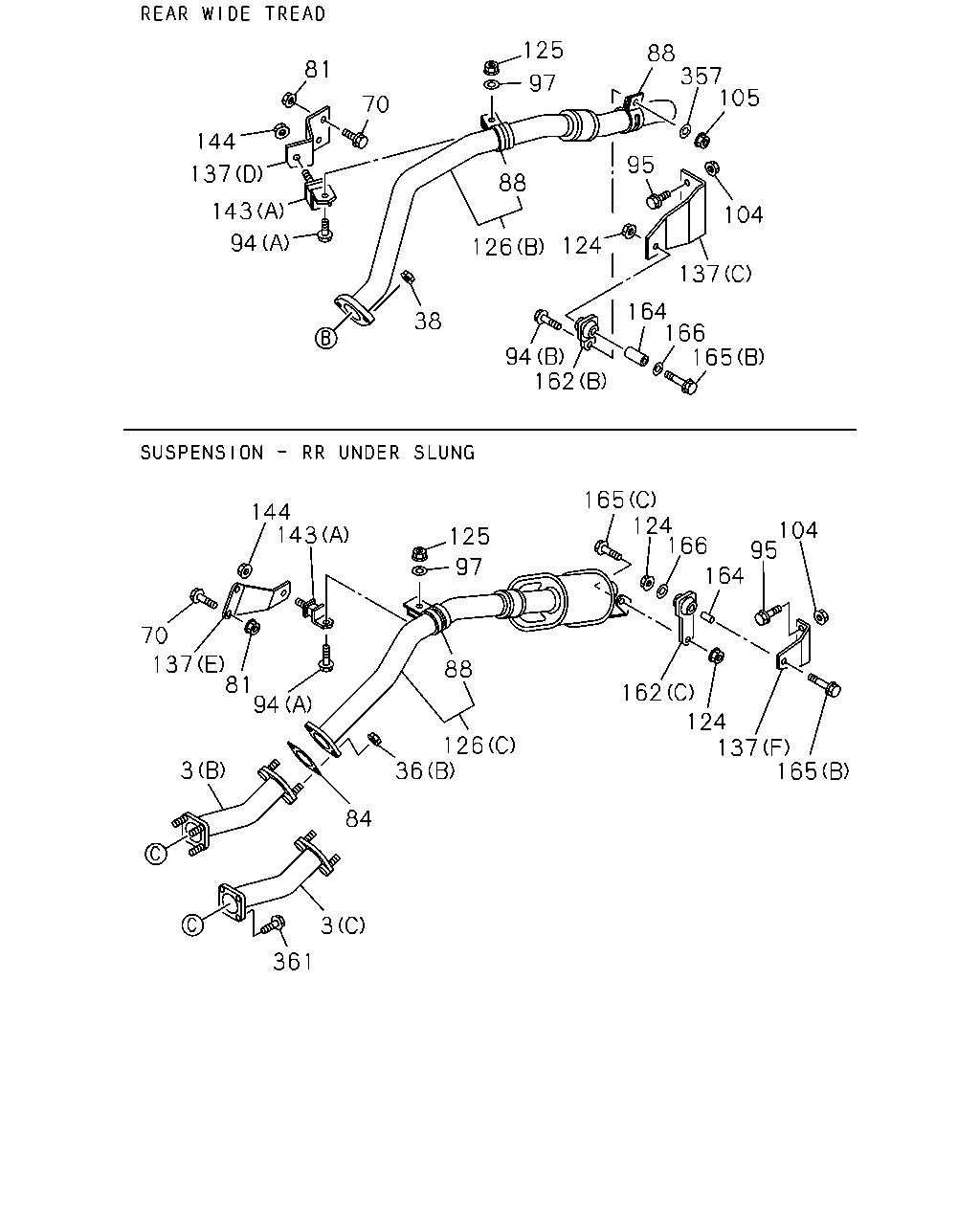

3	03.609 PIPE; EXH,CENTER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98214-259-0	01	1	1204-
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98014-286-1	01	1	1004-1203
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98014-286-1	01	1	1204-
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) (A)	8-98005-237-0	01	1	0907-
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0907-1003
36	03.613 NUT; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1004-
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1004-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0907-
38	00.002 NUT; SILENCER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0907-0912
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-1003
38	00.002 NUT; SILENCER WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1111
38	00.002 NUT; SILENCER WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1111
38	00.002 NUT; SILENCER WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1112-
38	00.002 NUT; SILENCER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1112-
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0907-1003
81	03.704 NUT; BRKT EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) ID=65	8-97148-757-1	01	1	0907-1003
84	03.611 GASKET; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=65	8-97148-757-1	01	1	1004-
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) ID=65	8-97148-757-1	01	1	1004-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0907-0909
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0907-0909
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	0910-0912
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0910-0912
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0910-0912
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	1001-1003
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1001-1003
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1001-1003
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	1004-1111
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1004-1111
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1004-1111
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	1112-1308
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1112-1308
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1112-1308
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	1309-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1309-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U>	8-97373-158-0	01	1	1309-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1309-
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0907-0912
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1001-1003
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1004-1111
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1004-1111
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1112-
94	03.704 BOLT; CLAMP WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1112-
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0907-
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0907-
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0907-0909
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0910-0912
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0910-0912
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-1003
104	03.704 NUT; BRKT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-1003
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1111
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1111
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1111
104	03.704 NUT; BRKT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1112-
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1112-
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1112-
105	03.704 NUT; CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	0907-0912
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1001-1003
105	03.704 NUT; CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10	0-91110-510-0	01	1	1004-1111
105	03.704 NUT; CLAMP WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	1004-1111
105	03.704 NUT; CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10	0-91110-510-0	01	1	1112-
105	03.704 NUT; CLAMP WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	1112-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0907-0912
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-1003
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	01	1	1004-1111
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1004-1111
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	01	1	1112-
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1112-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0907-
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98072-127-2	01	1	1004-1308
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98254-812-0	01	1	1309-
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) (B)	8-98072-128-0	01	1	0907-0909
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98072-128-0	01	1	0910-
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	0907-0912
126	03.705 PIPE; EXH,RR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	1001-1003
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	1004-1111
126	03.705 PIPE; EXH,RR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	1112-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (E)	8-98001-896-1	01	1	1004-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (F)	8-98001-908-1	01	1	1004-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (D)	8-98001-895-1	01	1	0907-0909
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98001-895-1	01	1	0910-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (C)	8-98038-762-1	01	1	0907-0909
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98038-762-1	01	1	0910-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	0907-0912
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	1001-1003
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	1004-1111
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	1112-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	0907-0912
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	1001-1003
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	1004-1111
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	1112-
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	0907-0912
143	03.704 RUBBER; SUPPORT (B)	8-97080-694-0	01	1	1001-1003
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97080-694-0	01	1	1004-1111
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	1004-1111
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97080-694-0	01	1	1112-
143	03.704 RUBBER; SUPPORT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	1112-
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0907-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98032-150-0	01	1	1004-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (B) L=115	8-98032-151-0	01	1	0907-0909
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B) L=115	8-98032-151-0	01	1	0910-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (A) L=115	8-98034-765-0	01	1	0907-0912
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=115	8-98034-765-0	01	1	1001-1003
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (A) L=115	8-98034-765-0	01	1	1004-1111
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=115	8-98034-765-0	01	1	1112-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) L=23	8-98006-011-0	01	1	0907-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	0907-0912
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	1001-1003
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	1004-1111
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	1112-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1004-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0907-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0907-0912
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1001-1003
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1004-1111
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1112-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0907-
357	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0907-0912
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1001-1003
357	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1004-1111
357	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1004-1111
357	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1112-
357	03.708 WASHER; PL,CLAMP WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1112-
361	03.704 BOLT; EXH PIPE TO PIPE IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE	8-98213-301-0	04	1	1204-

84 3 38 143 94 36 144 81 137 70 125 97 88 126 105 357 88 162 164 95 165 104 137 94 166 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98214-259-0	01	1	1204-
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98014-286-1	01	1	1004-1203
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98014-286-1	01	1	1204-
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) (A)	8-98005-237-0	01	1	0907-
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0907-1003
36	03.613 NUT; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1004-
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1004-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0907-
38	00.002 NUT; SILENCER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0907-0912
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-1003
38	00.002 NUT; SILENCER WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1111
38	00.002 NUT; SILENCER WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1111
38	00.002 NUT; SILENCER WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1112-
38	00.002 NUT; SILENCER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1112-
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0907-1003
81	03.704 NUT; BRKT EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) ID=65	8-97148-757-1	01	1	0907-1003
84	03.611 GASKET; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=65	8-97148-757-1	01	1	1004-
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) ID=65	8-97148-757-1	01	1	1004-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0907-0909
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0907-0909
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	0910-0912
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0910-0912
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0910-0912
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	1001-1003
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1001-1003
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1001-1003
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	1004-1111
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1004-1111
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1004-1111
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	1112-1308
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1112-1308
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1112-1308
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	1309-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1309-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U>	8-97373-158-0	01	1	1309-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1309-
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0907-0912
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1001-1003
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1004-1111
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1004-1111
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1112-
94	03.704 BOLT; CLAMP WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1112-
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0907-
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0907-
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0907-0909
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0910-0912
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0910-0912
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-1003
104	03.704 NUT; BRKT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1001-1003
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1111
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1111
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1004-1111
104	03.704 NUT; BRKT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1112-
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1112-
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1112-
105	03.704 NUT; CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	0907-0912
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1001-1003
105	03.704 NUT; CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10	0-91110-510-0	01	1	1004-1111
105	03.704 NUT; CLAMP WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	1004-1111
105	03.704 NUT; CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10	0-91110-510-0	01	1	1112-
105	03.704 NUT; CLAMP WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	1112-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0907-0912
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-1003
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	01	1	1004-1111
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1004-1111
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	01	1	1112-
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1112-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0907-
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98072-127-2	01	1	1004-1308
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98254-812-0	01	1	1309-
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) (B)	8-98072-128-0	01	1	0907-0909
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98072-128-0	01	1	0910-
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	0907-0912
126	03.705 PIPE; EXH,RR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	1001-1003
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	1004-1111
126	03.705 PIPE; EXH,RR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	1112-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (E)	8-98001-896-1	01	1	1004-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (F)	8-98001-908-1	01	1	1004-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (D)	8-98001-895-1	01	1	0907-0909
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98001-895-1	01	1	0910-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (C)	8-98038-762-1	01	1	0907-0909
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98038-762-1	01	1	0910-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	0907-0912
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	1001-1003
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	1004-1111
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	1112-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	0907-0912
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	1001-1003
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	1004-1111
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	1112-
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	0907-0912
143	03.704 RUBBER; SUPPORT (B)	8-97080-694-0	01	1	1001-1003
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97080-694-0	01	1	1004-1111
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	1004-1111
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97080-694-0	01	1	1112-
143	03.704 RUBBER; SUPPORT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	1112-
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0907-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98032-150-0	01	1	1004-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (B) L=115	8-98032-151-0	01	1	0907-0909
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B) L=115	8-98032-151-0	01	1	0910-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (A) L=115	8-98034-765-0	01	1	0907-0912
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=115	8-98034-765-0	01	1	1001-1003
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (A) L=115	8-98034-765-0	01	1	1004-1111
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=115	8-98034-765-0	01	1	1112-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) L=23	8-98006-011-0	01	1	0907-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	0907-0912
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	1001-1003
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	1004-1111
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	1112-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1004-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0907-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (A) M10X70 FLANGE	0-28051-070-0	01	1	0907-0912
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1001-1003
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1004-1111
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1112-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0907-
357	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0907-0912
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1001-1003
357	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1004-1111
357	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1004-1111
357	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1112-
357	03.708 WASHER; PL,CLAMP WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1112-

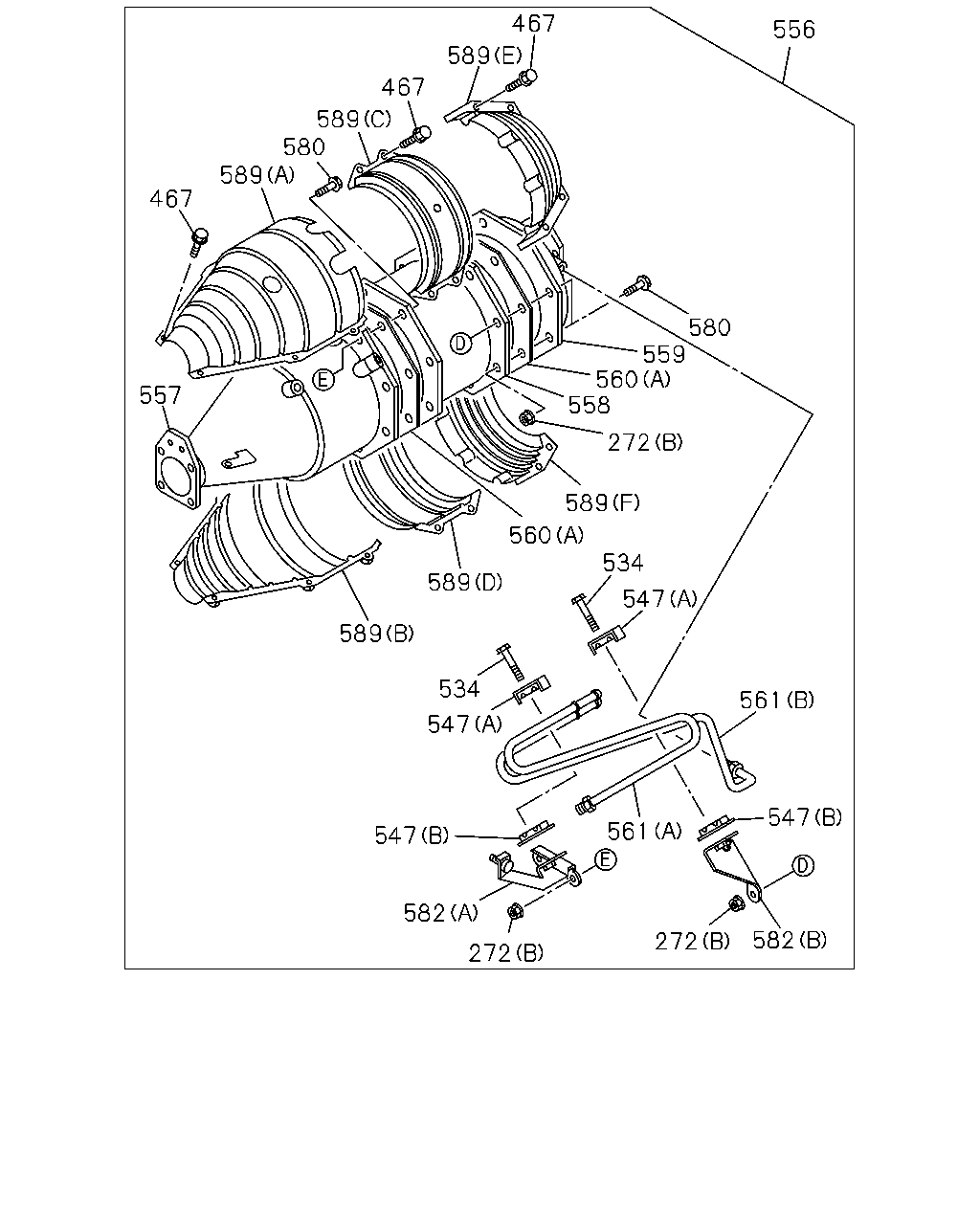

556 467 589 467 589 580 589 467 557 580 559 560 558 272 589 560 534 547 589 589 534 547 561 547 582 272 561 272 582 547

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0907-
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0907-
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0907-
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0907-
547	03.682 CLIP; PIPE (A)	8-97381-635-0	02	1	0907-
547	03.682 CLIP; PIPE (B)	8-97381-636-0	02	1	0907-
556	03.701 DPD ASM	8-98036-810-7	01	1	0907-1011
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-
557	03.701 CATALYST ASM	8-98036-815-7	01	1	0907-
558	03.634 FILTER ASM	8-98032-908-2	01	1	0907-
559	03.602 COVER; RR	8-98084-599-0	01	1	0907-1011
559	03.602 COVER; RR	8-98093-507-0	01	1	1012-
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0907-
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0907-
561	03.609 PIPE; DPD (A) FRONT	8-98032-910-0	01	1	0907-1011
561	03.609 PIPE; DPD (A) FRONT	8-98084-600-0	01	1	1012-
561	03.609 PIPE; DPD (B) REAR	8-98032-911-1	01	1	0907-1011
561	03.609 PIPE; DPD (B) REAR	8-98084-601-0	01	1	1012-
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0907-
582	03.706 BRACKET; PIPE (A)	8-98032-919-0	01	1	0907-
582	03.706 BRACKET; PIPE (B)	8-98032-920-0	01	1	0907-
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97383-660-0	01	1	0907-
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97383-663-0	01	1	0907-
589	03.609 PROTECTOR; HEAT,DPD (A)	8-98032-921-0	01	1	0907-
589	03.609 PROTECTOR; HEAT,DPD (B)	8-98032-923-0	01	1	0907-
589	03.609 PROTECTOR; HEAT,DPD (D)	8-98032-924-0	01	1	0907-
589	03.609 PROTECTOR; HEAT,DPD (E)	8-98032-926-0	01	1	0907-

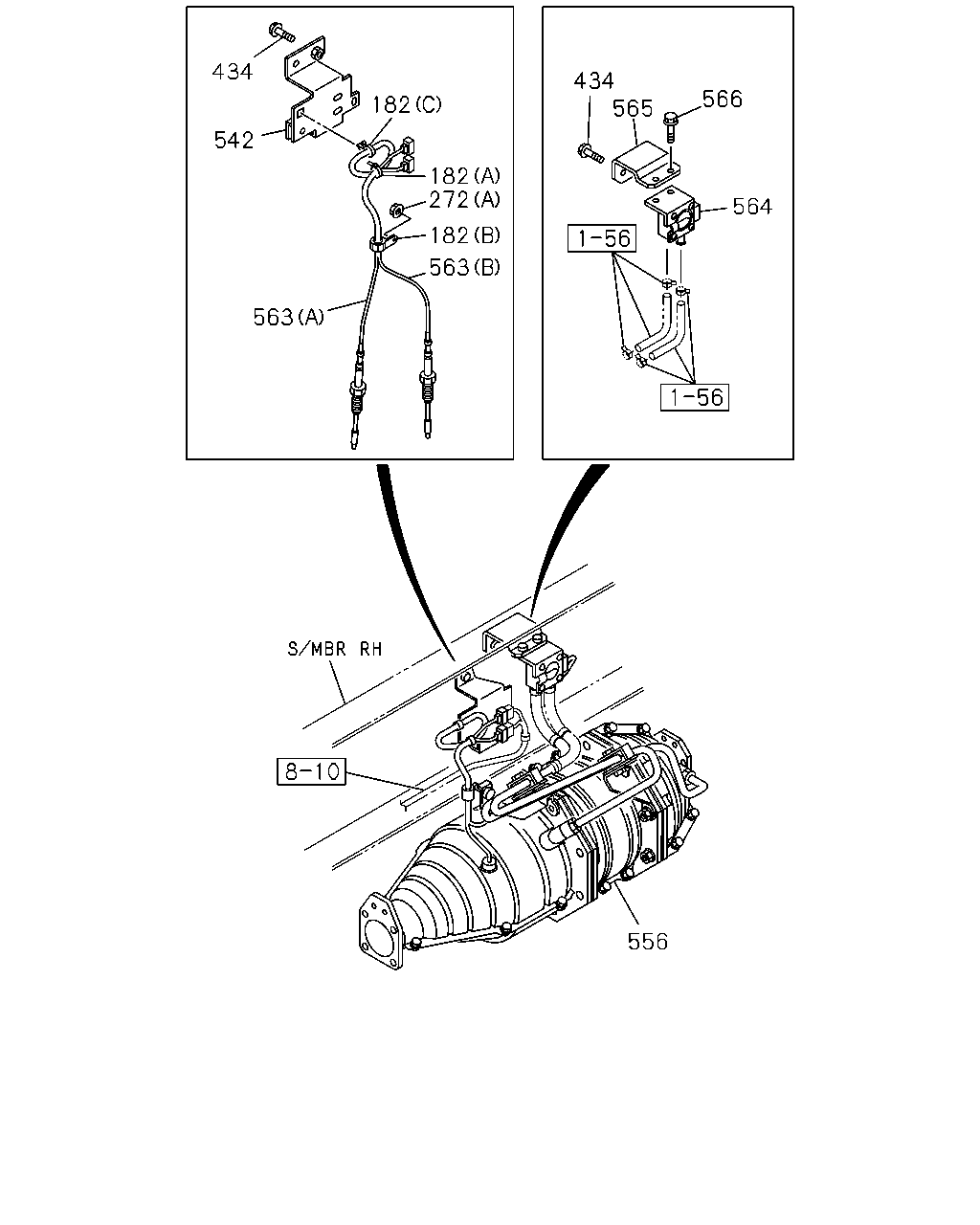

434 542 563 182 182 272 182 563 434 565 566 564 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	01	1	0907-
182	03.682 CLIP; HARNESS (C) ID=7 L=7.5	8-97369-561-0	01	1	0907-
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	0907-
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0907-
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0907-
434	03.613 BOLT; BRKT WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0907-
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-1212
434	03.613 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-1212
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1301-
434	03.613 BOLT; BRKT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1301-
542	03.704 BRACKET	8-98047-896-0	01	1	0907-
556	03.701 DPD ASM	8-98036-810-7	01	1	0907-1011
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-
563	01.150 SENSOR; TEMPERATURE,DPD (A) FRONT	8-98004-329-0	01	1	0907-
563	01.150 SENSOR; TEMPERATURE,DPD (B) REAR	8-98004-330-0	01	1	0907-
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	0907-
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 2400MM(24W)	8-98029-348-0	01	1	0907-
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 3300MM(33W)	8-98029-347-0	01	1	0907-1212
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-98029-347-0	01	1	1301-
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
