Sayfa 1-41 - Isuzu EPC

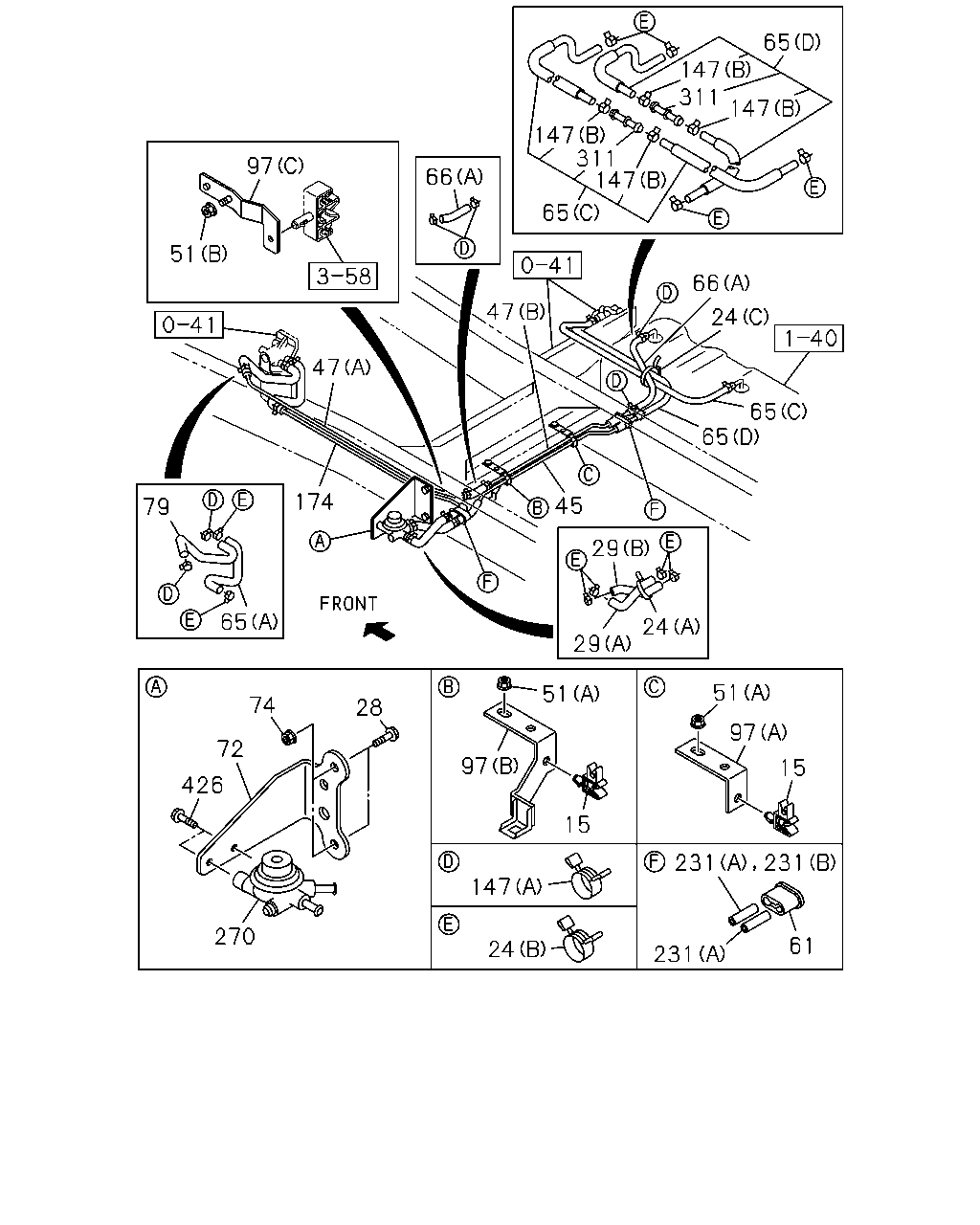

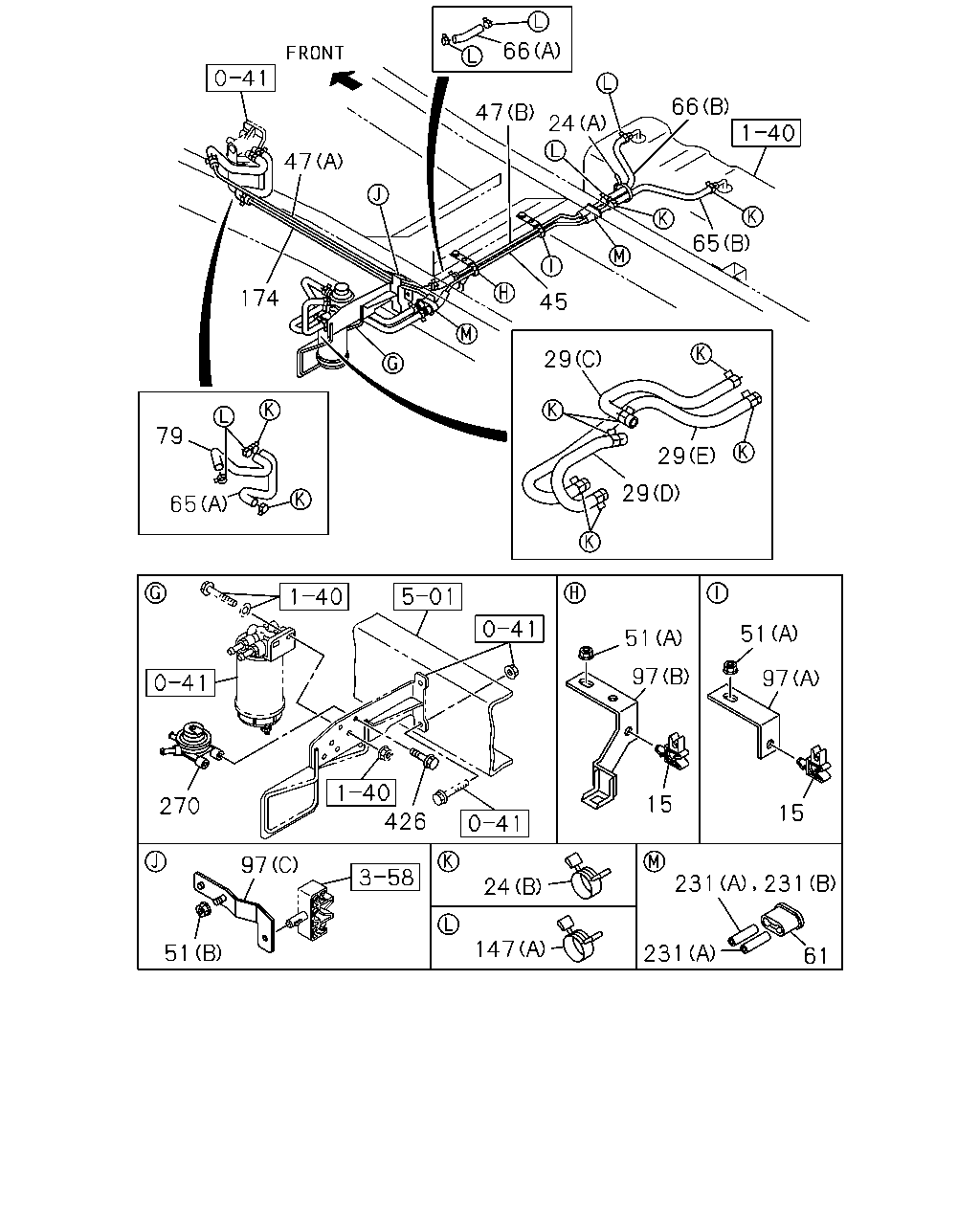

1-41 — FUEL PIPING; CHASSIS (#52118) — 339 parça

627 313 629 629 628 639 628 629 629

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
313	03.163 COOLER ASM; FUEL	8-98141-558-0	01	1	0907-
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 00.685 M6X25 FLANGE	0-28650-625-0	04	1	0907-0909
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	0910-1003
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1004-1308
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1004-1308
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1309-1510
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/ NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13) SPARE WHEEL CARRIER<P10> 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1309-1510
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) AUSTRALIA EQUIPMENT(B13) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-
627	03.162 BOLT; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-
627	03.162 BOLT; FUEL CLR SPARE WHEEL CARRIER<P10> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-
627	03.162 BOLT; FUEL CLR EXC. SPARE WHEEL CARRIER<P10> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1511-
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	0907-0909
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	0907-0909
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	0910-0910
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	0910-0910
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	0911-1003
627	03.162 BOLT; FUEL CLR WHEEL BASE 2800MM(28W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	0911-1003
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	0911-1003
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION -RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1004-1111
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1004-1111
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1004-1111
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION -RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1112-1308
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1112-1308
627	03.162 BOLT; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1112-1308
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1309-1510
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/ NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13) EXC. SPARE WHEEL CARRIER<P10> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1309-1510
627	03.162 BOLT; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1309-1510
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J -116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1511-
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1511-
627	03.162 BOLT; FUEL CLR SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1511-
628	03.162 NUT; FUEL CLR 01.062 M6 FLANGE	0-91180-106-0	04	1	0907-
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (A)	8-98142-068-1	01	1	1004-1308
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) (A)	8-98142-068-1	01	1	1309-
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/ NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) (A)	8-98142-068-1	01	1	1309-
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98142-069-1	01	1	1004-1308
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) (B)	8-98142-069-1	01	1	1309-1510
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/ NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) (B)	8-98142-069-1	01	1	1309-1510
629	03.162 BRACKET; FUEL CLR SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) (B)	8-98142-069-1	01	1	1511-
629	03.162 BRACKET; FUEL CLR (C)	8-98146-892-0	02	1	0907-
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> (A)	8-98142-066-0	01	1	0907-0909
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (A)	8-98142-066-0	01	1	0907-0909
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10> (A)	8-98142-066-0	01	1	0910-0910
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (A)	8-98142-066-0	01	1	0910-0910
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10> (A)	8-98142-066-1	01	1	0911-1003
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) (A)	8-98142-066-1	01	1	0911-1003
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (A)	8-98142-066-1	01	1	0911-1003
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION -RR UNDER SLUNG<V4U> (A)	8-98142-066-1	01	1	1004-1111
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T) (A)	8-98142-066-1	01	1	1004-1111
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98142-066-1	01	1	1004-1111
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION -RR UNDER SLUNG<V4U> (A)	8-98142-066-1	01	1	1112-1308
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T) (A)	8-98142-066-1	01	1	1112-1308
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98142-066-1	01	1	1112-1308
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10> (A)	8-98142-066-1	01	1	1309-
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/ NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13) EXC. SPARE WHEEL CARRIER<P10> (A)	8-98142-066-1	01	1	1309-
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (A)	8-98142-066-1	01	1	1309-
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> (B)	8-98142-067-0	01	1	0907-0909
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B)	8-98142-067-0	01	1	0907-0909
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10> (B)	8-98142-067-0	01	1	0910-0910
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B)	8-98142-067-0	01	1	0910-0910
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10> (B)	8-98142-067-1	01	1	0911-1003
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) (B)	8-98142-067-1	01	1	0911-1003
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B)	8-98142-067-1	01	1	0911-1003
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION -RR UNDER SLUNG<V4U> (B)	8-98142-067-1	01	1	1004-1111
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T) (B)	8-98142-067-1	01	1	1004-1111
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98142-067-1	01	1	1004-1111
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION -RR UNDER SLUNG<V4U> (B)	8-98142-067-1	01	1	1112-1308
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE WHEEL CARRIER<P10>,REAR WIDE TREAD(V4T) (B)	8-98142-067-1	01	1	1112-1308
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98142-067-1	01	1	1112-1308
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10> (B)	8-98142-067-1	01	1	1309-1510
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/ NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13) EXC. SPARE WHEEL CARRIER<P10> (B)	8-98142-067-1	01	1	1309-1510
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B)	8-98142-067-1	01	1	1309-1510
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) AUSTRALIA EQUIPMENT(B13) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B)	8-98142-067-1	01	1	1511-
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> (B)	8-98142-067-1	01	1	1511-
629	03.162 BRACKET; FUEL CLR SPARE WHEEL CARRIER<P10> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) (B)	8-98142-067-1	01	1	1511-
629	03.162 BRACKET; FUEL CLR EXC. SPARE WHEEL CARRIER<P10> (B)	8-98142-067-1	01	1	1511-
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A)	8-98142-070-1	01	1	0907-0909
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (A)	8-98142-070-1	01	1	0910-1003
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98142-070-1	01	1	1004-1308
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (A)	8-98142-070-1	01	1	1309-
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/ NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (A)	8-98142-070-1	01	1	1309-
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (B)	8-98142-071-1	01	1	0907-0909
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B)	8-98142-071-1	01	1	0910-1003
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98142-071-1	01	1	1004-1308
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B)	8-98142-071-1	01	1	1309-
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/ NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B)	8-98142-071-1	01	1	1309-
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-0909
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-0909
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0910-0910
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0910-0910
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0911-1003
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2800MM(28W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0911-1003
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0911-1003
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION -RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1004-1111
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1004-1111
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1004-1111
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10>,SUSPENSION -RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1112-1308
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1112-1308
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1112-1308
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/ NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13) REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/ NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13) EXC. REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1309-1510
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) AUSTRALIA EQUIPMENT(B13) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-
639	03.162 BOLT; BRKT,FUEL CLR SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-
639	03.162 BOLT; BRKT,FUEL CLR REAR WIDE TREAD(V4T) EXC. SPARE WHEEL CARRIER<P10> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-
639	03.162 BOLT; BRKT,FUEL CLR EXC. REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1511-
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-0909
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0910-1003
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1004-1308
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1309-
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/ NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1309-

97 51 66 147 147 65 311 147 65 147 311 66 65 24 65 47 47 174 79 65 45 29 51 24 97 15 231 231 51 97 28 74 72 426 270 147 231 61 24 29 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0907-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (C) L=250	5-09707-030-1	01	1	0907-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0907-0910
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (A) L=140	5-09707-031-1	01	1	0907-0910
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0911-1003
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=140	5-09707-031-1	01	1	0911-1003
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1004-1111
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (A) L=140	5-09707-031-1	01	1	1004-1111
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1112-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=140	5-09707-031-1	01	1	1112-
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0907-0911
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (B)	8-98120-599-0	01	1	1005-1007
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (B)	8-98175-084-0	01	1	1008-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13) (D)	8-98138-300-0	01	1	1005-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13) (E)	8-98139-112-1	01	1	1005-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13) (C)	8-98139-113-1	01	1	1005-
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0907-1004
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. AUSTRALIA EQUIPMENT(B13) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1005-
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (A) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1005-1007
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (A) L=200	8-98133-838-0	01	1	1008-
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	0907-1004
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=200	8-98081-038-0	01	1	1005-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	0907-0910
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	0911-1003
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	1004-1004
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98099-502-0	01	1	1005-1111
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98099-502-0	01	1	1112-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	0907-0910
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	0911-1003
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	1004-1004
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (E)	8-98099-503-0	01	1	1005-1111
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (E)	8-98099-503-0	01	1	1112-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	0907-0910
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	0911-1003
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	1004-1004
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98105-710-0	01	1	1005-1111
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98105-710-0	01	1	1112-
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	1311-
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	0907-1310
45	03.163 PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-579-3	01	1	1311-
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=865	8-98137-016-0	01	1	1311-
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	0907-1003
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1004-1309
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1004-1309
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-
47	03.163 PIPE; FUEL,RETURN (B) L=984	8-98137-015-0	01	1	0907-1310
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=984	8-98137-015-0	01	1	1311-
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	0907-1003
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) L=994	8-98137-014-2	01	1	1004-1309
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A) L=994	8-98137-014-2	01	1	1310-
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0907-
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0907-
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	0907-
65	03.163 HOSE; FUEL,DELIVERY PIPE AUSTRALIA EQUIPMENT(B13) (A)	8-98120-600-0	01	1	1005-1007
65	03.163 HOSE; FUEL,DELIVERY PIPE AUSTRALIA EQUIPMENT(B13) (A)	8-98175-081-0	01	1	1008-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (C)	8-98139-110-1	01	1	1005-1007
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (C)	8-98175-082-0	01	1	1008-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (D)	8-98139-111-1	01	1	1005-1007
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (D)	8-98175-083-0	01	1	1008-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13) FUEL TANK 100 LITTER<N02> (B)	8-98120-597-0	01	1	1005-1011
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13) FUEL TANK 100 LITTER<N02> (B)	8-98181-254-0	01	1	1012-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (D)	8-98098-175-1	01	1	0907-1004
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98098-175-1	01	1	1005-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	0907-1004
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98098-176-1	01	1	1005-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0907-0910
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0911-0911
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W) (B)	8-97389-790-0	01	1	0911-0911
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0912-1003
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	1004-1004
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-97389-790-0	01	1	1005-1111
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-97389-790-0	01	1	1112-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0907-1004
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97389-772-0	01	1	1005-
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=500	8-98057-029-0	01	1	0907-0910
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=500	8-98057-029-0	01	1	0911-1003
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=500	8-98057-029-0	01	1	1004-1111
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=500	8-98057-029-0	01	1	1112-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W)	8-98107-370-0	01	1	0907-
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0907-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	0907-
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0907-
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0907-
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0907-
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	0912-1007
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=16	8-98008-098-0	04	1	1008-1008
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	1009-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	08	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	0912-
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	0907-1003
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1004-1309
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1004-1309
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-97389-589-1	01	1	1310-
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	0907-1003
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	1004-1309
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0907-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	0907-
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0907-1408
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	0907-1007
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W) EXC. AUSTRALIA EQUIPMENT(B13)	8-97353-668-0	02	1	1008-1008
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	1009-
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0907-

47 174 47 66 24 65 45 79 65 29 29 29 270 97 51 426 24 147 231 231 231 15 61 97 51 51 97 15 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0907-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (C) L=250	5-09707-030-1	01	1	0907-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0907-0910
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (A) L=140	5-09707-031-1	01	1	0907-0910
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0911-1003
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=140	5-09707-031-1	01	1	0911-1003
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1004-1111
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (A) L=140	5-09707-031-1	01	1	1004-1111
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1112-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) L=140	5-09707-031-1	01	1	1112-
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0907-0911
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (B)	8-98120-599-0	01	1	1005-1007
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (B)	8-98175-084-0	01	1	1008-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13) (D)	8-98138-300-0	01	1	1005-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13) (E)	8-98139-112-1	01	1	1005-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13) (C)	8-98139-113-1	01	1	1005-
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0907-1004
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. AUSTRALIA EQUIPMENT(B13) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1005-
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (A) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1005-1007
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (A) L=200	8-98133-838-0	01	1	1008-
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	0907-1004
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=200	8-98081-038-0	01	1	1005-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	0907-0910
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	0911-1003
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	1004-1004
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98099-502-0	01	1	1005-1111
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98099-502-0	01	1	1112-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	0907-0910
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	0911-1003
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	1004-1004
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (E)	8-98099-503-0	01	1	1005-1111
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (E)	8-98099-503-0	01	1	1112-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	0907-0910
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	0911-1003
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	1004-1004
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98105-710-0	01	1	1005-1111
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98105-710-0	01	1	1112-
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	1311-
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	0907-1310
45	03.163 PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-579-3	01	1	1311-
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=865	8-98137-016-0	01	1	1311-
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=971	8-98137-013-2	01	1	0907-1003
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1004-1309
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1004-1309
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> (A) L=971	8-98137-013-2	01	1	1310-
47	03.163 PIPE; FUEL,RETURN (B) L=984	8-98137-015-0	01	1	0907-1310
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=984	8-98137-015-0	01	1	1311-
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) L=994	8-98137-014-2	01	1	0907-1003
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A) L=994	8-98137-014-2	01	1	1004-1309
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A) L=994	8-98137-014-2	01	1	1310-
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0907-
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0907-
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	0907-
65	03.163 HOSE; FUEL,DELIVERY PIPE AUSTRALIA EQUIPMENT(B13) (A)	8-98120-600-0	01	1	1005-1007
65	03.163 HOSE; FUEL,DELIVERY PIPE AUSTRALIA EQUIPMENT(B13) (A)	8-98175-081-0	01	1	1008-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (C)	8-98139-110-1	01	1	1005-1007
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (C)	8-98175-082-0	01	1	1008-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (D)	8-98139-111-1	01	1	1005-1007
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13) (D)	8-98175-083-0	01	1	1008-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13) FUEL TANK 100 LITTER<N02> (B)	8-98120-597-0	01	1	1005-1011
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13) FUEL TANK 100 LITTER<N02> (B)	8-98181-254-0	01	1	1012-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (D)	8-98098-175-1	01	1	0907-1004
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98098-175-1	01	1	1005-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	0907-1004
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98098-176-1	01	1	1005-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0907-0910
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0911-0911
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W) (B)	8-97389-790-0	01	1	0911-0911
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0912-1003
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	1004-1004
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-97389-790-0	01	1	1005-1111
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-97389-790-0	01	1	1112-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0907-1004
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97389-772-0	01	1	1005-
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=500	8-98057-029-0	01	1	0907-0910
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=500	8-98057-029-0	01	1	0911-1003
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=500	8-98057-029-0	01	1	1004-1111
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=500	8-98057-029-0	01	1	1112-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0907-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	0907-
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0907-
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0907-
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0907-
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	0912-1007
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=16	8-98008-098-0	04	1	1008-1008
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	1009-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	08	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	0912-
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	0907-1003
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1004-1309
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1004-1309
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-97389-589-1	01	1	1310-
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB>	8-97389-589-1	01	1	1310-
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	0907-1003
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	1004-1309
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0907-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	0907-
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0907-1408
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
