1-31 — AIR DUCT (#52115) — 102 parça

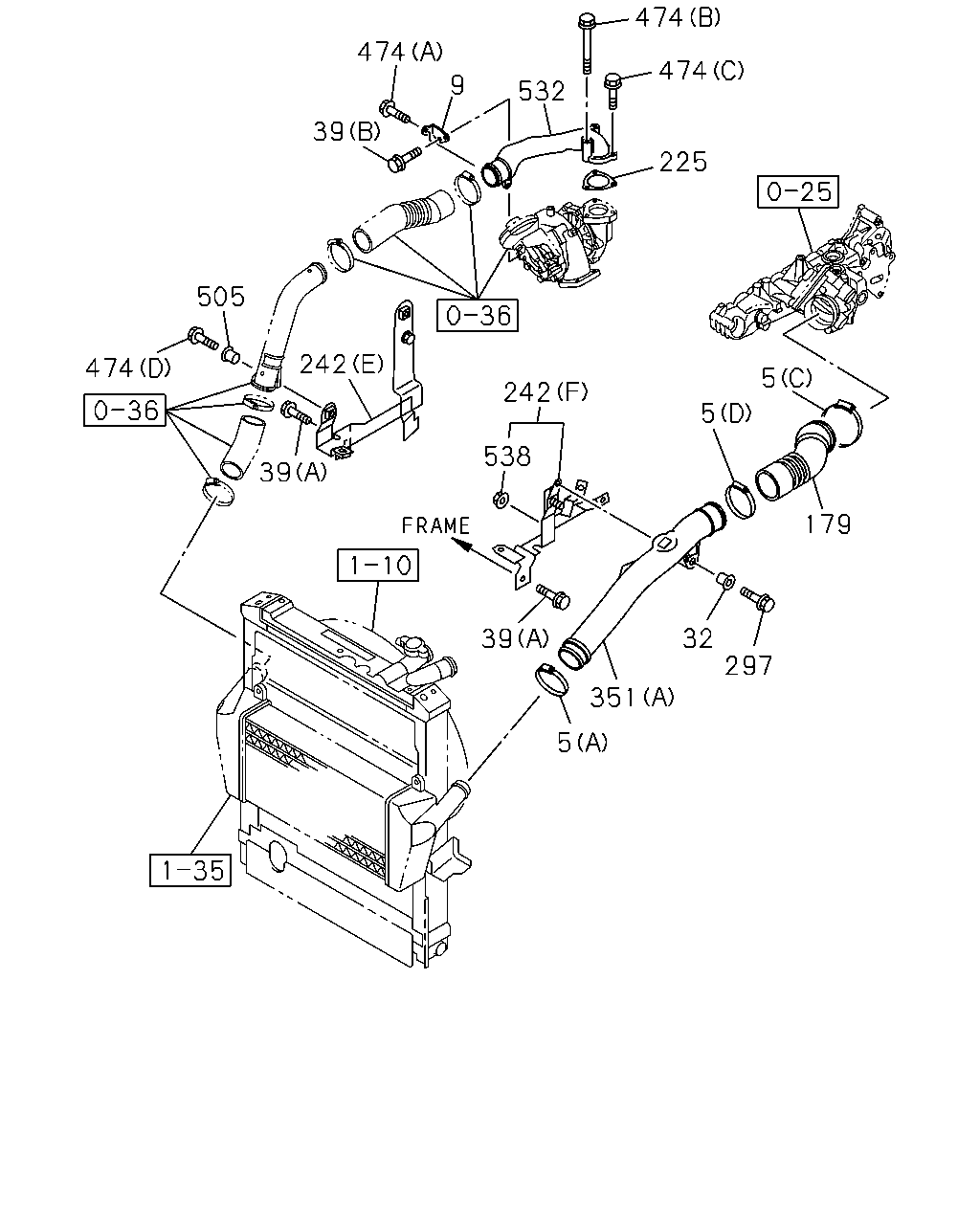

474 474 474 225 242 5 5 538 39 351 297 5 179 242 505 474 39 9 32 532 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (A) ID=45-65	8-98133-348-0	01	1	0907-0909
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1002-
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (D) ID=55-75	8-98133-349-0	01	1	0907-0909
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1002-
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (C) ID=65-85	8-98133-350-0	01	1	0907-0909
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	0907-
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (A) ID=58-79	1-09707-136-0	01	1	0907-0909
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FOR KD<6UT> (A) ID=58-79	1-09707-136-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=58-79	1-09707-136-0	01	1	1002-
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (D) ID=60-65	8-98096-418-0	01	1	0907-0909
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1002-
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (C) ID=70-90	8-98122-372-0	01	1	0907-0909
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-
9	03.417 BRACKET; INT PIPE	8-98009-086-0	01	1	0907-
32	03.417 RUBBER; AIR DUCT MTG 03.265 OD=23	8-97105-689-6	01	1	0907-
39	03.417 BOLT; BRKT 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0907-
39	03.417 BOLT; BRKT 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	0907-
179	03.417 HOSE; AIR INT	8-98050-920-2	01	1	0907-
225	03.417 GASKET; AIR PIPE 03.270 ID=47	8-97202-328-1	01	1	0907-
242	03.417 BRACKET; AIR DUCT (E)	8-97384-140-3	01	1	0907-
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	0907-
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	0907-
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	0907-
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	0907-
242	03.417 BRACKET; AIR DUCT (F)	8-98108-313-1	01	1	0907-
297	03.417 BOLT; DUCT 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0907-
351	03.407 DUCT; AIR 03.417 (A)	8-98067-267-0	01	1	0907-
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	0907-
474	03.417 BOLT; PIPE (B) M6X70 FLANGE	0-28050-670-0	02	1	0907-
474	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0907-
474	03.417 BOLT; PIPE 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	0907-
474	03.417 BOLT; PIPE 01.060 (D) M8X35 FLANGE	0-28650-835-0	01	1	0907-
505	03.406 RUBBER; MTG 03.265 OD=23	8-97105-689-6	01	1	0907-
532	03.417 PIPE; INTAKE	8-97385-203-1	01	1	0907-1303
532	03.417 PIPE; INTAKE	8-98237-771-1	01	1	1304-
538	03.417 NUT; PLATE,AIR DUCT 01.062 M6 FLANGE	0-91180-106-0	02	1	0907-

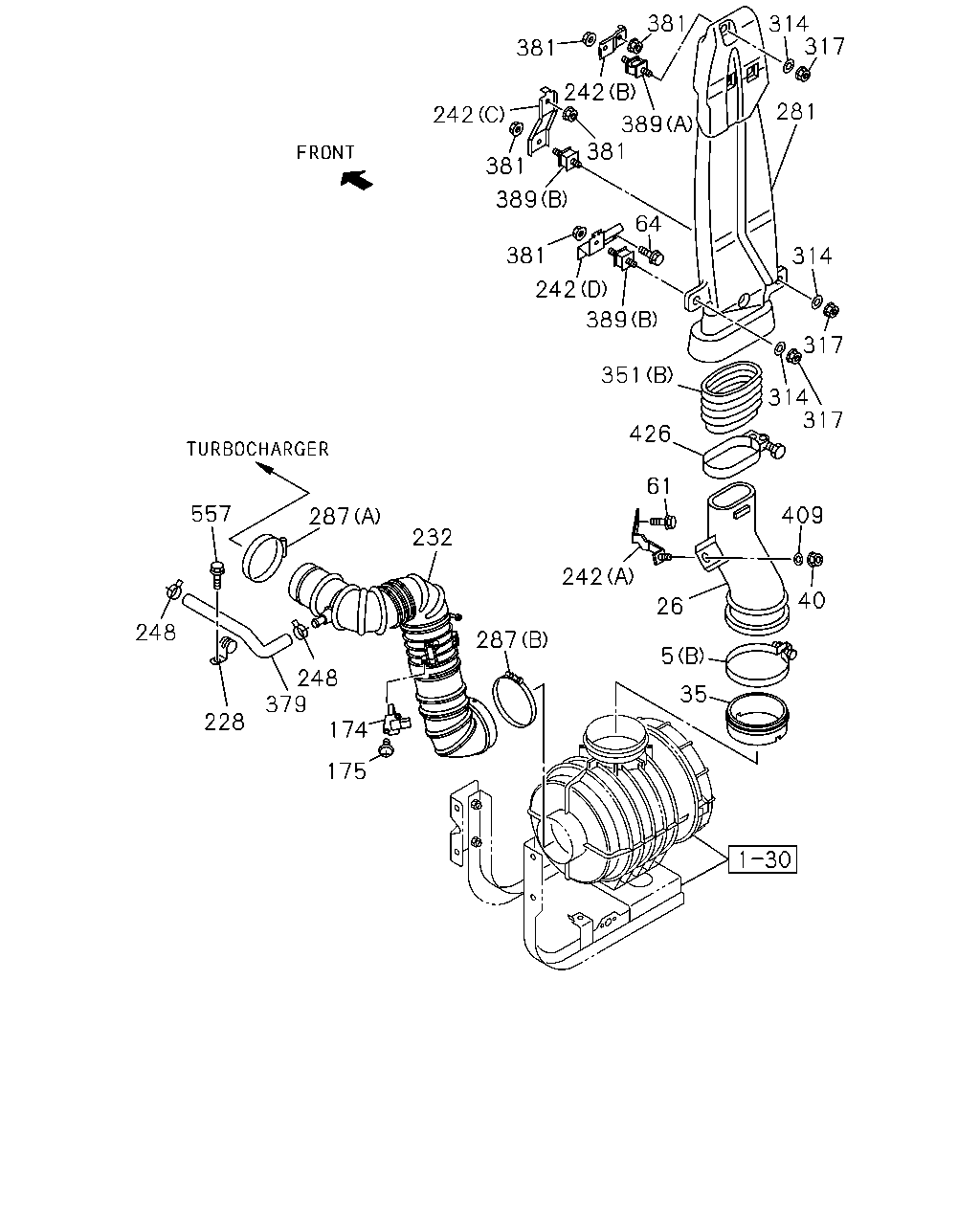

557 248 228 248 174 175 232 287 287 242 242 381 389 381 242 389 351 426 61 26 5 35 40 409 317 314 317 314 281 317 314 381 381 242 381 389 64 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (A) ID=45-65	8-98133-348-0	01	1	0907-0909
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1002-
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (D) ID=55-75	8-98133-349-0	01	1	0907-0909
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1002-
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (C) ID=65-85	8-98133-350-0	01	1	0907-0909
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	0907-
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (A) ID=58-79	1-09707-136-0	01	1	0907-0909
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FOR KD<6UT> (A) ID=58-79	1-09707-136-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=58-79	1-09707-136-0	01	1	1002-
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (D) ID=60-65	8-98096-418-0	01	1	0907-0909
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1002-
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ> (C) ID=70-90	8-98122-372-0	01	1	0907-0909
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0910-1001
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-
26	03.417 DUCT; AIR INT	8-98023-339-0	01	1	0907-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	0907-
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	0907-
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	0907-
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	0907-
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0907-
228	03.278 CLIP; PCV HOSE ID=24.5 H=29 L=25	8-98120-913-0	01	1	0907-
232	03.417 HOSE; CONN	8-98048-136-1	01	1	0907-1503
232	03.417 HOSE; CONN	8-98290-770-0	01	1	1504-
242	03.417 BRACKET; AIR DUCT (E)	8-97384-140-3	01	1	0907-
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	0907-
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	0907-
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	0907-
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	0907-
242	03.417 BRACKET; AIR DUCT (F)	8-98108-313-1	01	1	0907-
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	0907-
281	03.417 DUCT; AIR,VERTICAL INT	8-97369-706-0	01	1	0907-
287	03.417 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1002-
287	03.417 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> 03.407 (A) ID=65-85	8-98133-350-0	01	1	0907-1001
287	03.417 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1002-
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=117	9-09915-075-1	01	1	0907-
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0907-
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0907-
351	03.407 DUCT; AIR 03.417 (A)	8-98067-267-0	01	1	0907-
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	0907-
379	03.675 HOSE; RUBBER	8-98117-929-2	01	1	0907-0910
379	03.675 HOSE; RUBBER	8-98156-950-0	01	1	0911-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	0907-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	0907-
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0907-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	0907-
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0907-
426	03.417 CLIP; DUCT 03.407 D=101.6	9-09915-502-1	01	1	0907-
557	03.403 BOLT; HOSE CLIP 03.671 M6X10 FLANGE	0-28050-610-0	01	1	0907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
