◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#52113) — 15 parça

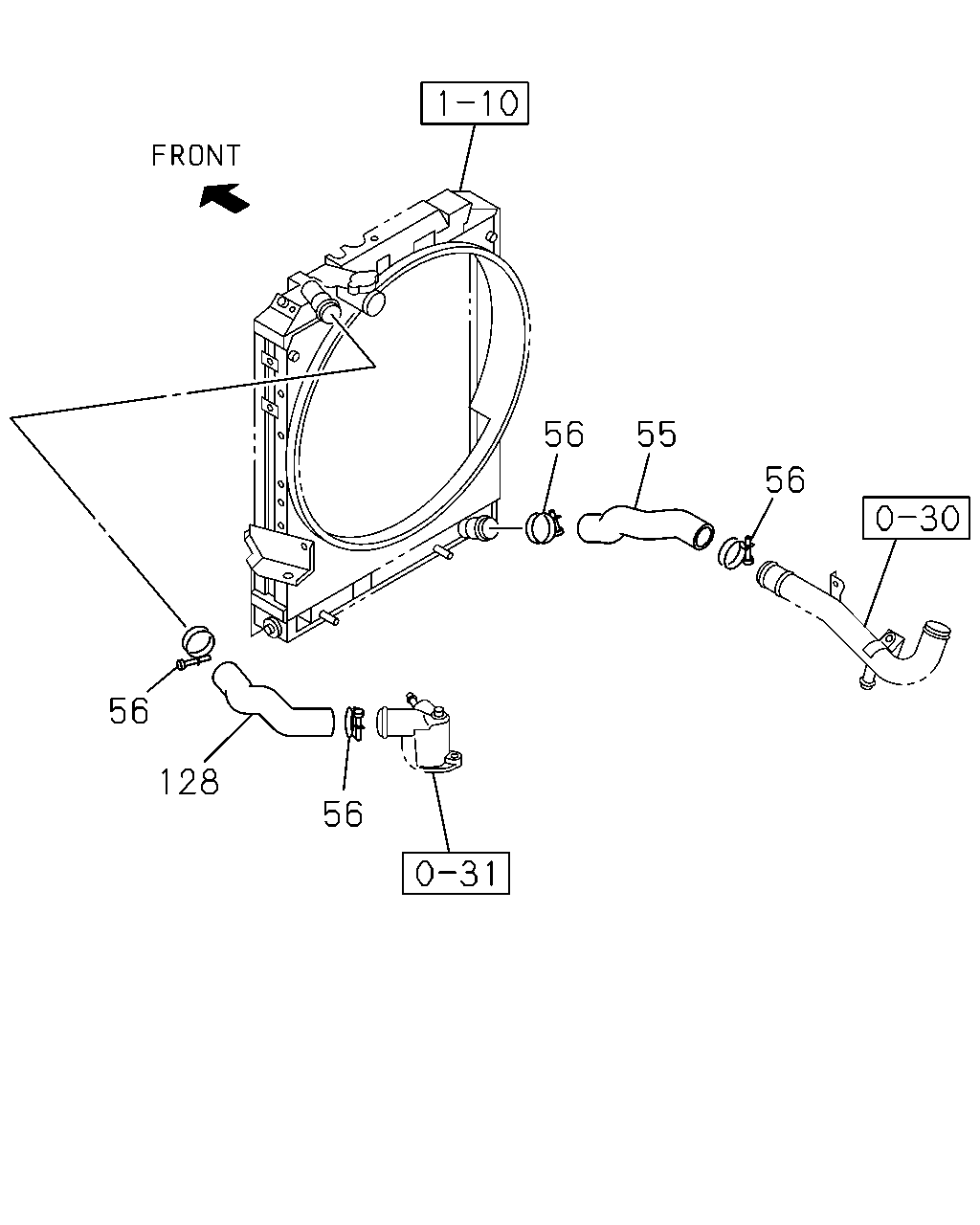

çizim 159599
56 55 56 56 128 56
BalonParca AdiParca NoAdetTipApplied Date
55 01.173 HOSE; WATER,RAD OUTLET 8-97383-814-1 01 1 0907-
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 04 1 0907-
128 01.159 HOSE; WATER,RAD INL 8-97383-812-1 01 1 0907-

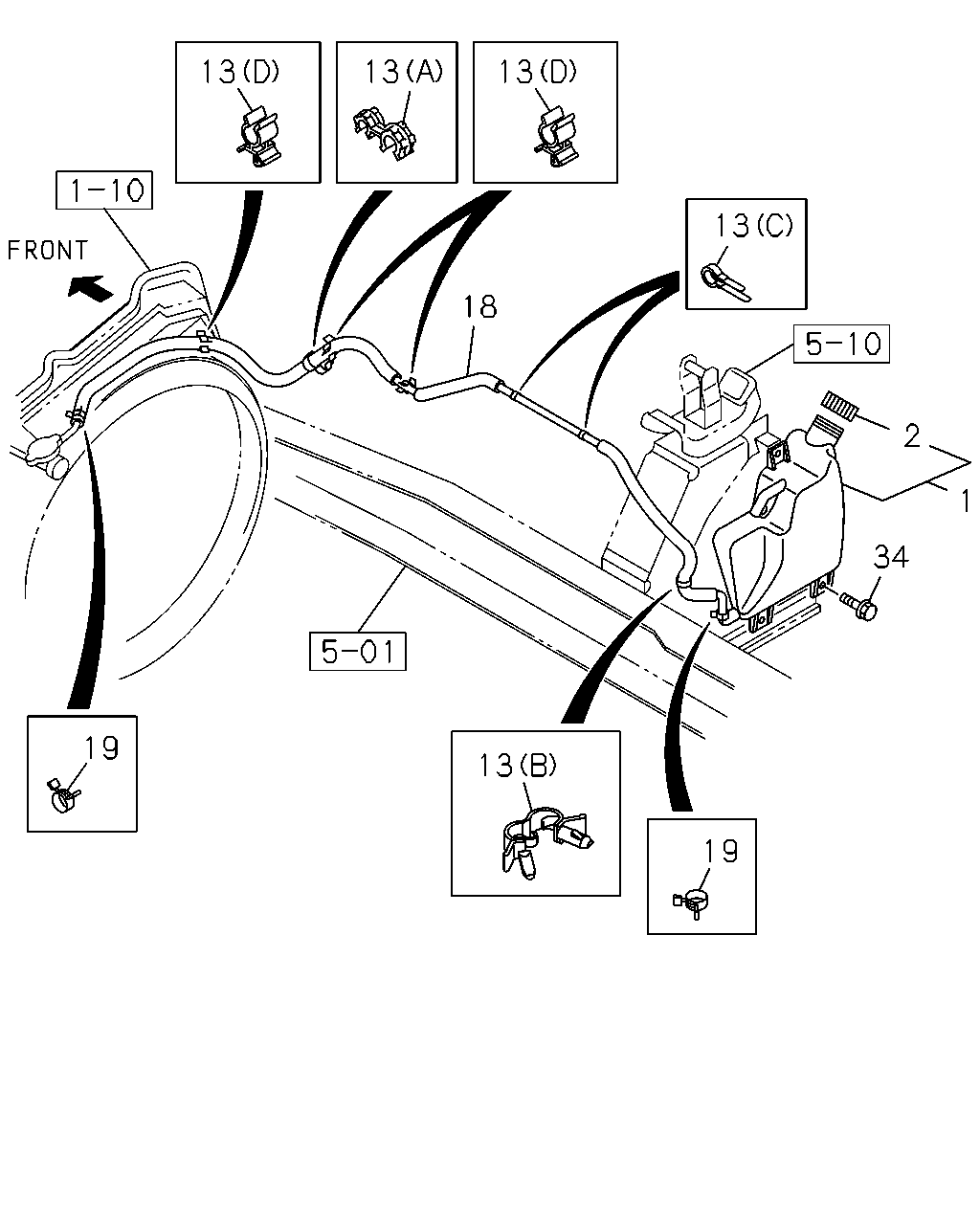

çizim 159616
13 13 13 18 13 2 1 34 19 13 19
BalonParca AdiParca NoAdetTipApplied Date
1 01.219 TANK; SURGE,RAD 8-97387-632-1 01 1 0907-1010
1 01.219 TANK; SURGE,RAD 8-98178-179-0 01 1 1011-
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0907-1010
2 01.203 CAP; SURGE TANK 8-98178-074-0 01 1 1011-
13 01.240 CLIP; HOSE,SURGE TANK
03.162 (B) ID=13-18 L=14.5 		1-09709-290-0 01 1 0907-
13 01.240 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 		5-09700-319-0 02 1 0907-
13 01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0907-
13 01.240 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98029-256-0 03 1 0907-
18 01.240 HOSE; RAD TO SURGE TANK 8-98065-255-0 01 1 0907-
19 01.240 CLIP; HOSE,SURGE TANK
01.219 ID=12 		8-94238-610-0 02 1 0907-0911
19 01.240 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 0912-
34 01.203 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 0907-
