◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51185 - NPR/NQR(LHD) EURO1 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#52109) — 9 parça

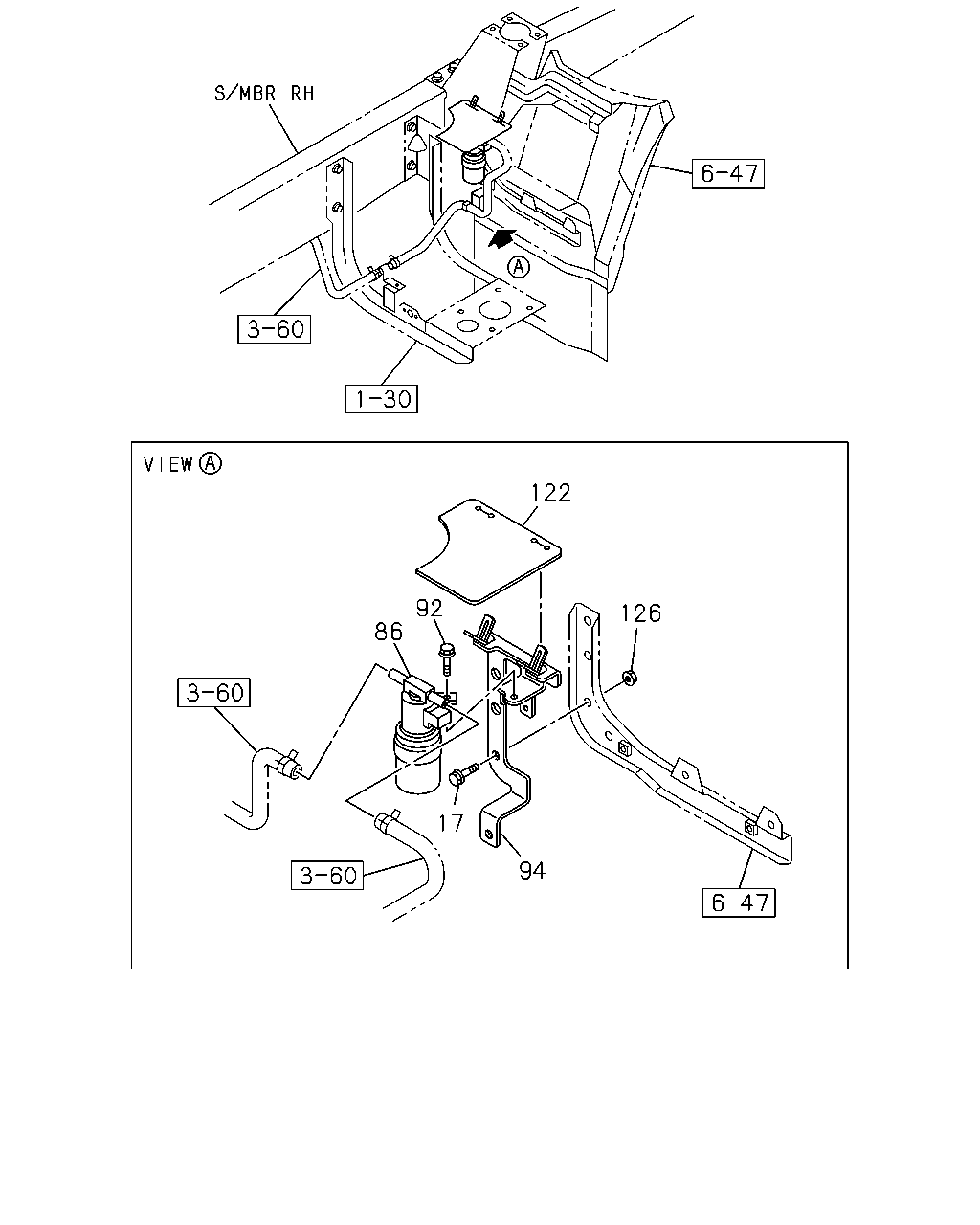

çizim 101337
122 92 126 86 17 94
BalonParca AdiParca NoAdetTipApplied Date A B
17 03.634 BOLT; BRKT
EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810- ● ●
86 03.636 VALVE; MAG,EXH BRK
EXHAUST BRAKE<NF8> 		8-98043-344-0 01 1 0810- ● ●
92 08.900 BOLT; MAG VLV
EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810- ● ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
EXHAUST BRAKE<NF8> 		8-98034-053-3 01 1 0810- ● ●
122 03.640 PROTECTOR; MAG VLV
EXHAUST BRAKE<NF8> 		8-98087-988-0 01 1 0810- ● ●
126 03.634 NUT; BRKT
EXHAUST BRAKE<NF8> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
çizim 101338
1 8 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.632 BRAKE UNIT; EXH
EXHAUST BRAKE<NF8> 		8-98033-200-1 01 1 0810- ● ●
5 03.634 GASKET; EXH BRAKE UNIT
EXHAUST BRAKE<NF8> ID=54 		8-94328-354-0 02 1 0810- ● ●
8 03.632 NUT; EXH BRAKE UNIT FIX
EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 0810- ● ●
