Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#52107) — 166 parça

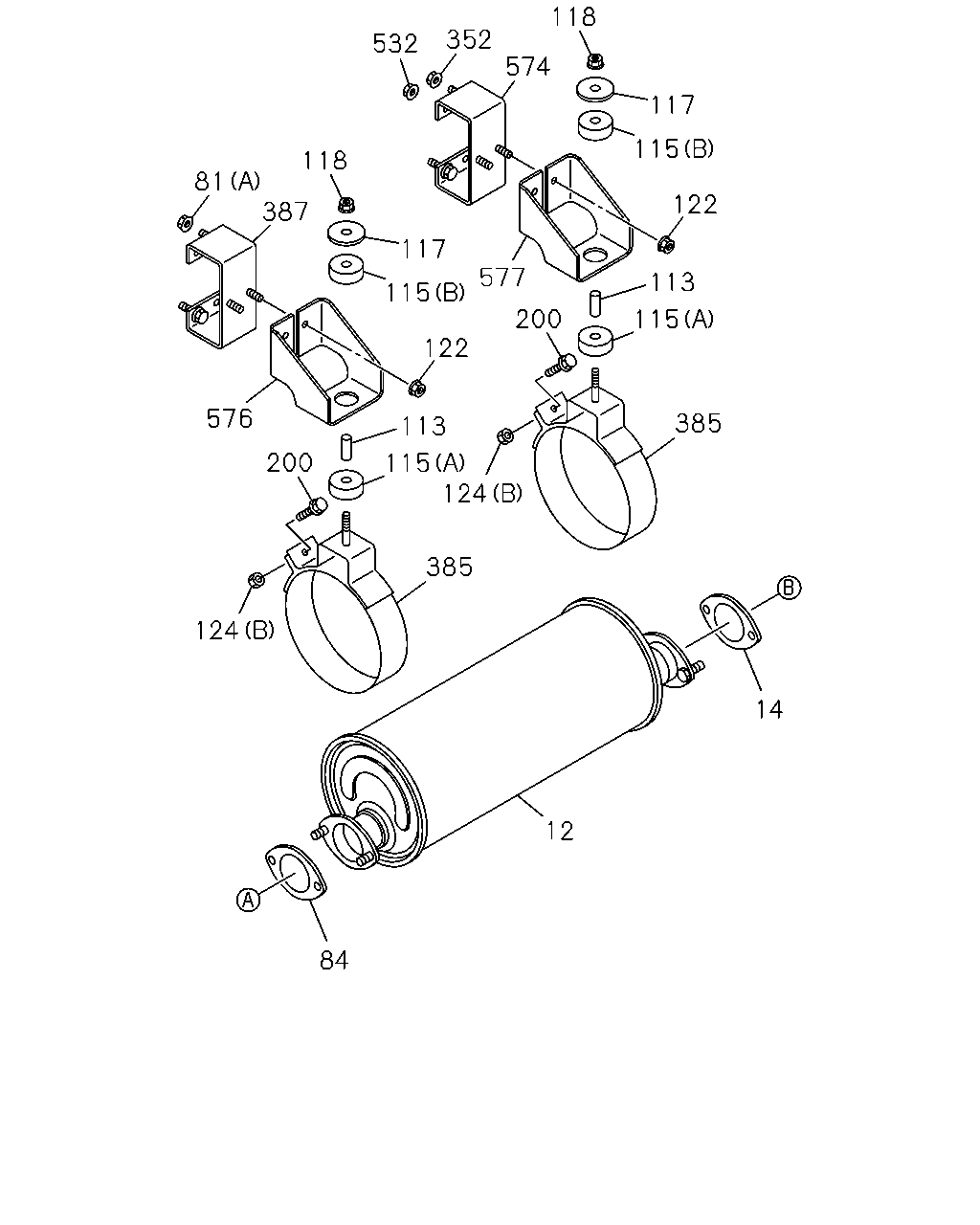

118 352 532 574 117 115 118 81 387 122 117 577 113 115 200 115 122 576 385 113 200 115 124 385 124 14 12 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98108-930-1	01	1	0810-	●	●
12	03.701 SILENCER ASM; EXH EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-518-0	01	1	0810-	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=64.7	8-94328-352-0	01	1	0810-	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0810-	●	●
81	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0810-	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	0810-1010	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 ID=64.7	8-94328-352-0	01	1	0810-1010	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1011-	●	●
84	03.611 GASKET; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 ID=64.7	8-94328-352-0	01	1	1011-	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0810-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	0810-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	0810-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0810-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0810-	●	●
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-	●	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0810-	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0810-	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (B) M8	0-91110-508-0	02	1	0810-	●	●
200	03.704 BOLT; SUPPORT RUBBER 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0810-0909	●	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-	●	●
385	03.704 BRACKET; SILENCER MTG 03.706	8-97076-020-0	02	1	0810-	●	●
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	0810-	●	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-	●	●
574	03.706 SPACER; DPD	8-98044-774-0	01	1	0810-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	0810-	●	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	0810-	●	●

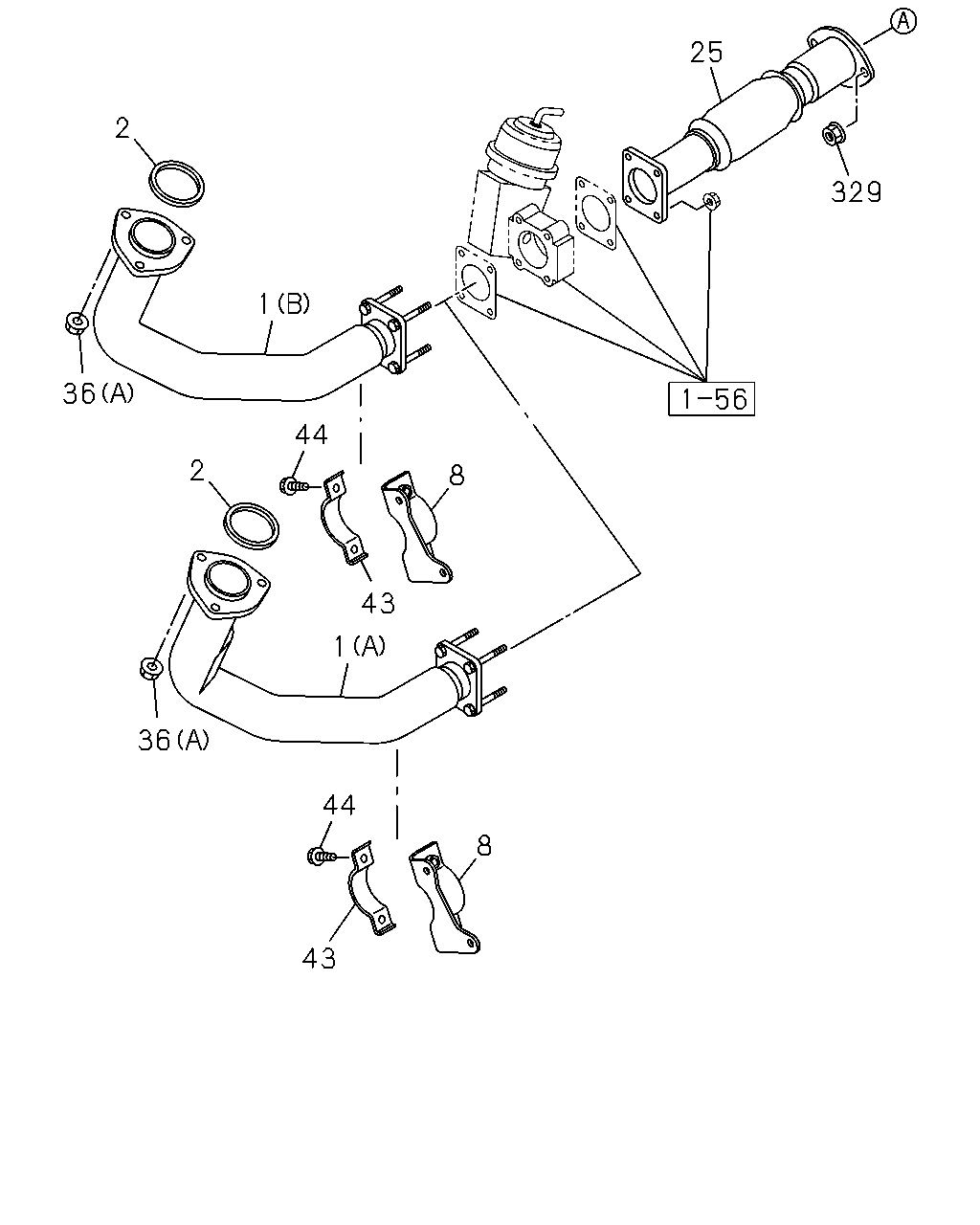

25 2 329 1 36 44 2 8 43 1 36 44 8 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH SAUDI ARABIA EQUIPMENT(GH3) EXHAUST BRAKE<NF8> (B)	8-98215-932-0	01	1	1206-1404	●
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> (B)	8-98215-932-0	01	1	1405-	●
1	03.609 PIPE; EXH EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98215-932-0	01	1	1405-		●
1	03.609 PIPE; EXH SAUDI ARABIA EQUIPMENT(GH3) EXC. EXHAUST BRAKE<NF8> (C)	8-98216-285-0	01	1	1206-1404	●
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8> (C)	8-98216-285-0	01	1	1405-	●
1	03.609 PIPE; EXH HYDRO BRAKE BOOSTER(7QQ) (A)	8-98108-161-0	01	1	0812-1404		●
1	03.609 PIPE; EXH HYDRO BRAKE BOOSTER(7QQ) (A)	8-98216-282-0	01	1	1405-		●
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> (B)	8-98108-160-0	01	1	0810-0811	●	●
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> (B)	8-98108-160-0	01	1	0812-1205	●
1	03.609 PIPE; EXH EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98108-160-0	01	1	0812-1205		●
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98108-160-0	01	1	1206-1404	●
1	03.609 PIPE; EXH EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98108-160-0	01	1	1206-1404		●
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8> (C)	8-98117-520-0	01	1	0810-1205	●
1	03.609 PIPE; EXH EXC. SAUDI ARABIA EQUIPMENT(GH3),EXHAUST BRAKE<NF8> (C)	8-98117-520-0	01	1	1206-1404	●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0810-	●	●
8	03.704 BRACKET; EXH PIPE 03.613	8-98020-555-0	01	1	0810-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER EXHAUST BRAKE<NF8>	8-98108-164-1	01	1	0810-	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0810-1010	●
36	03.613 NUT; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1011-	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0810-	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0810-	●	●
44	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-	●	●

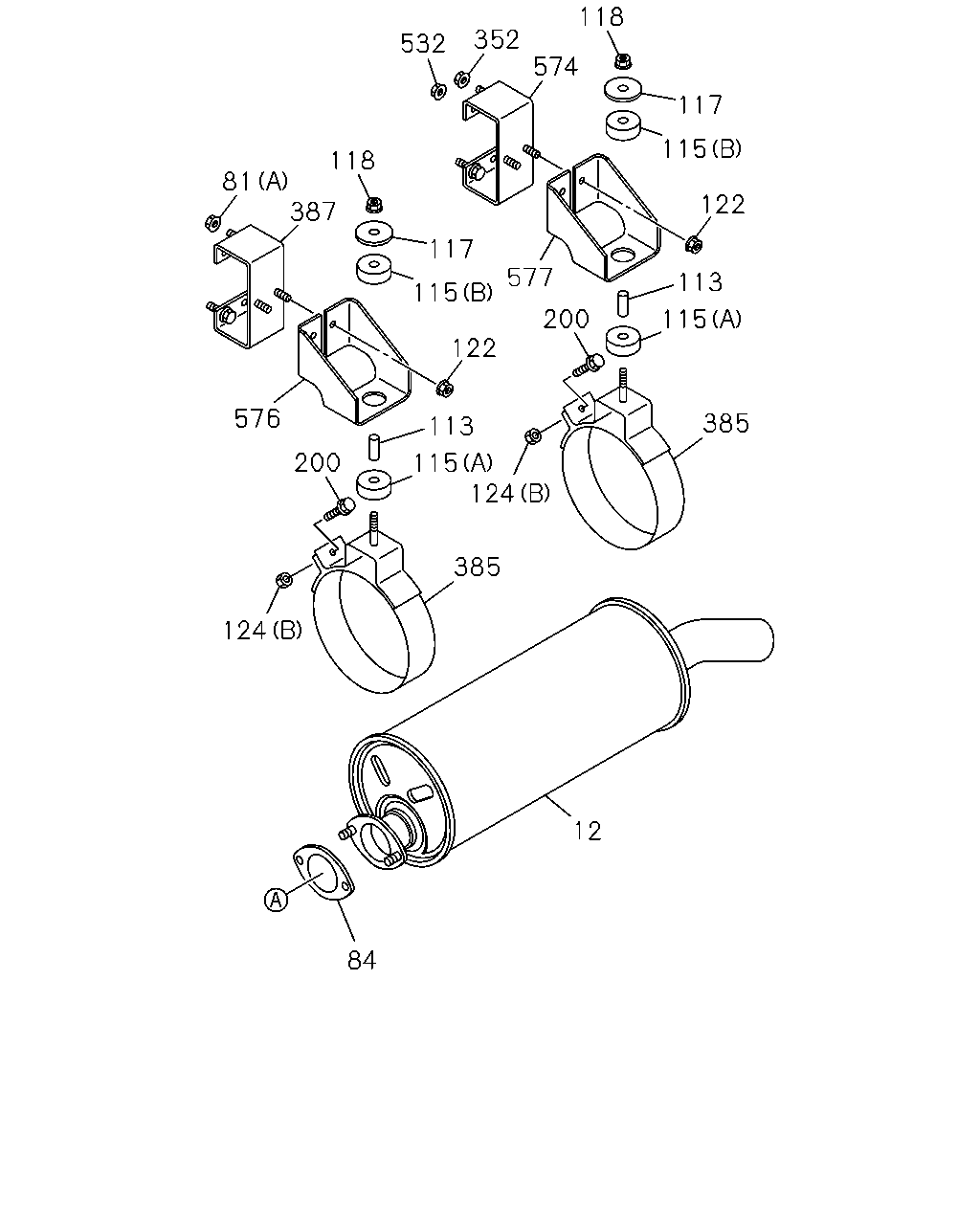

118 352 532 574 117 115 118 81 387 122 117 577 113 115 200 115 122 576 385 113 200 115 124 385 124 12 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98108-930-1	01	1	0810-	●	●
12	03.701 SILENCER ASM; EXH EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-518-0	01	1	0810-	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0810-	●	●
81	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0810-	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	0810-1010	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 ID=64.7	8-94328-352-0	01	1	0810-1010	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1011-	●	●
84	03.611 GASKET; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 ID=64.7	8-94328-352-0	01	1	1011-	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0810-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	0810-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	0810-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0810-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0810-	●	●
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-	●	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0810-	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0810-	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (B) M8	0-91110-508-0	02	1	0810-	●	●
200	03.704 BOLT; SUPPORT RUBBER 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0810-0909	●	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-	●	●
385	03.704 BRACKET; SILENCER MTG 03.706	8-97076-020-0	02	1	0810-	●	●
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	0810-	●	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-	●	●
574	03.706 SPACER; DPD	8-98044-774-0	01	1	0810-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	0810-	●	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	0810-	●	●

2 1 329 36 44 8 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH SAUDI ARABIA EQUIPMENT(GH3) EXHAUST BRAKE<NF8> (B)	8-98215-932-0	01	1	1206-1404	●
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> (B)	8-98215-932-0	01	1	1405-	●
1	03.609 PIPE; EXH EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98215-932-0	01	1	1405-		●
1	03.609 PIPE; EXH SAUDI ARABIA EQUIPMENT(GH3) EXC. EXHAUST BRAKE<NF8> (C)	8-98216-285-0	01	1	1206-1404	●
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8> (C)	8-98216-285-0	01	1	1405-	●
1	03.609 PIPE; EXH HYDRO BRAKE BOOSTER(7QQ) (A)	8-98108-161-0	01	1	0812-1404		●
1	03.609 PIPE; EXH HYDRO BRAKE BOOSTER(7QQ) (A)	8-98216-282-0	01	1	1405-		●
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> (B)	8-98108-160-0	01	1	0810-0811	●	●
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> (B)	8-98108-160-0	01	1	0812-1205	●
1	03.609 PIPE; EXH EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98108-160-0	01	1	0812-1205		●
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98108-160-0	01	1	1206-1404	●
1	03.609 PIPE; EXH EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98108-160-0	01	1	1206-1404		●
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8> (C)	8-98117-520-0	01	1	0810-1205	●
1	03.609 PIPE; EXH EXC. SAUDI ARABIA EQUIPMENT(GH3),EXHAUST BRAKE<NF8> (C)	8-98117-520-0	01	1	1206-1404	●
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0810-	●	●
8	03.704 BRACKET; EXH PIPE 03.613	8-98020-555-0	01	1	0810-	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0810-1010	●
36	03.613 NUT; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1011-	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0810-	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0810-	●	●
44	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-	●	●

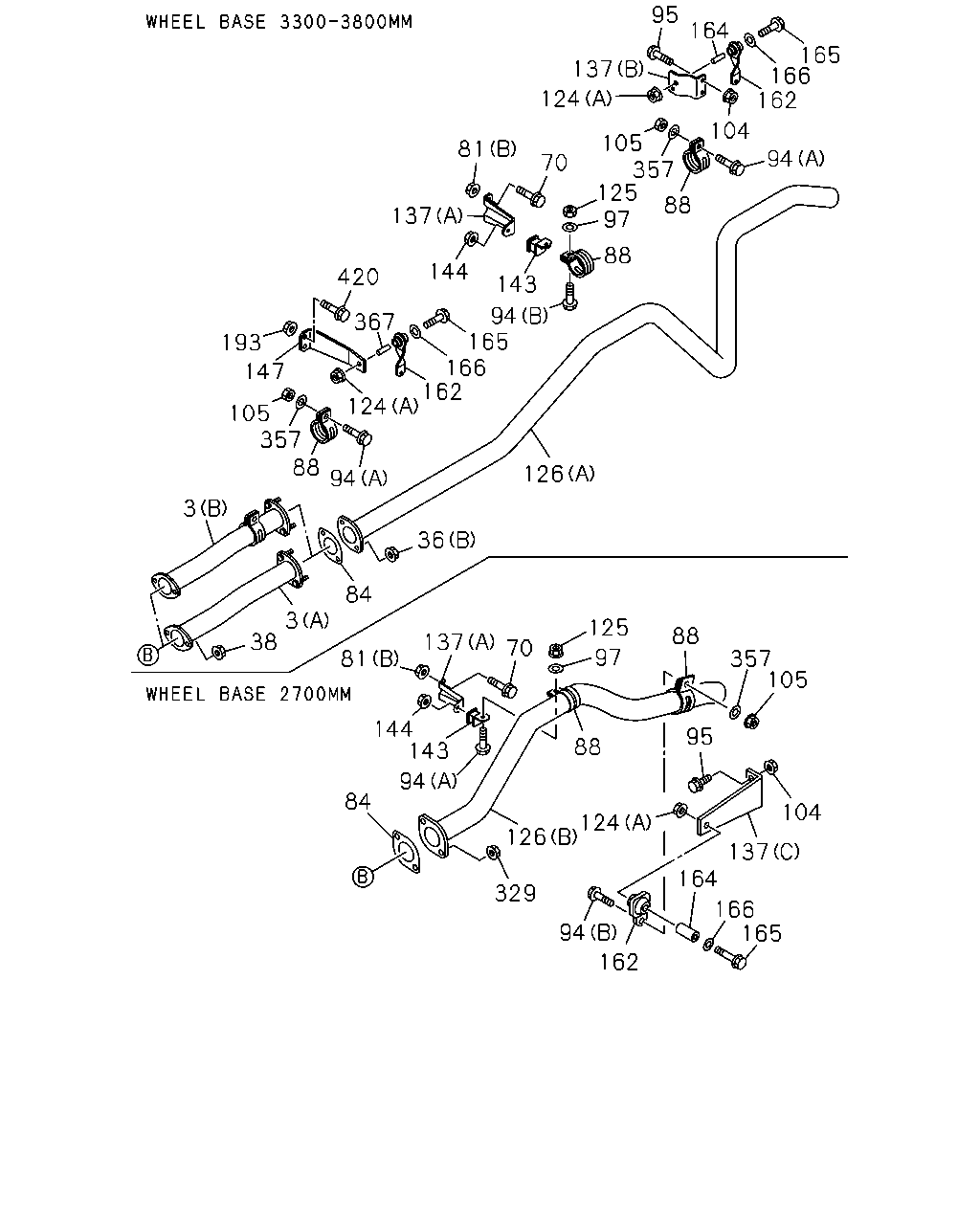

165 166 162 94 104 164 95 137 124 88 357 105 125 97 88 70 81 143 94 165 166 162 124 144 137 420 367 193 105 147 357 88 94 126 36 84 3 38 3 81 144 143 94 84 137 70 97 125 88 357 105 95 88 124 126 329 94 162 164 166 165 137 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3800MM(38W) STABILIZER REAR<GN1> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98283-852-0	01	1	1509-	●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98117-522-0	01	1	0810-1010	●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98117-522-0	01	1	1011-	●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98117-521-0	01	1	0810-1508	●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3800MM(38W) EXC. STABILIZER REAR<GN1>,TAILPIPE SINGLESHORT TYPE<8JJ> (A)	8-98117-521-0	01	1	1509-	●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0810-1010	●
36	03.613 NUT; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1011-	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0810-	●	●
38	00.002 NUT; SILENCER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-	●
70	03.706 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0810-	●	●
81	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0810-	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	0810-1010	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 ID=64.7	8-94328-352-0	01	1	0810-1010	●
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1011-	●	●
84	03.611 GASKET; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 ID=64.7	8-94328-352-0	01	1	1011-	●
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0810-1508	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0810-1508	●
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0810-1508	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3800MM(38W) EXC. STABILIZER REAR<GN1>,TAILPIPE SINGLESHORT TYPE<8JJ>	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1509-	●
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1509-	●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (B) M10X50 FLANGE	8-97301-165-0	01	1	0810-	●
95	03.708 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-	●
97	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-	●
104	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-	●
105	03.704 NUT; CLAMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0810-	●
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0810-	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0810-	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0810-	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (B) M8	0-91110-508-0	02	1	0810-	●	●
125	03.708 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0810-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3800MM(38W) STABILIZER REAR<GN1> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98134-798-0	01	1	1509-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98078-964-0	01	1	1011-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98090-128-1	01	1	0810-1508	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98090-128-1	01	1	1509-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3800MM(38W) EXC. STABILIZER REAR<GN1>,TAILPIPE SINGLESHORT TYPE<8JJ> (A)	8-98090-128-1	01	1	1509-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97169-014-0	01	1	1011-	●
137	03.706 BRACKET; TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.613 (A)	8-97096-651-0	01	1	0810-	●
137	03.706 BRACKET; TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-97116-588-2	01	1	0810-1010	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-97116-588-2	01	1	1011-	●
143	03.704 RUBBER; SUPPORT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98034-767-0	01	1	0810-	●
144	03.613 NUT; MTG RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-	●
147	03.704 BRACKET; VERTICAL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98117-604-0	01	1	0810-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2700MM(27W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98032-150-0	01	1	1011-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	0810-1010	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	0810-1010	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1011-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1011-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2700MM(27W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=23	8-98006-011-0	01	1	1011-	●
164	03.706 COLLAR; DIST,TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=37.5	9-22151-217-0	01	1	0810-1010	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=37.5	9-22151-217-0	01	1	1011-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2700MM(27W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1011-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE	0-28051-070-0	01	1	0810-1010	●
165	03.706 BOLT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE	0-28051-070-0	01	1	0810-1010	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE	0-28051-070-0	01	1	1011-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE	0-28051-070-0	01	1	1011-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0810-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0810-	●
193	03.704 NUT; BRKT,VERTICAL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-	●	●
357	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-	●
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.706 L=37.5	9-22151-217-0	01	1	0810-	●
420	03.704 BOLT; BRKT,VERTICAL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
