8 |
03.162 RUBBER; MTG
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0810- |
● |
● |
| |
15 |
03.162 CLIP; FUEL PIPE
EGYPT EQUIPMENT(B09)
02.559
(E)
ID=28 L=60
|
1-09700-585-1 |
01 |
1 |
0810- |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0810-0810 |
● |
● |
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
EXC. EGYPT EQUIPMENT(B09)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0810-0810 |
● |
● |
| |
15 |
03.162 CLIP; FUEL PIPE
EXC. EGYPT EQUIPMENT(B09),DUMP
CHASSIS(V4D)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0810-1010 |
● |
● |
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0810-1010 |
● |
● |
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
EXC. EGYPT EQUIPMENT(B09)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0810-1010 |
● |
● |
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
1011-1306 |
● |
● |
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
EXC. EGYPT EQUIPMENT(B09)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
1011-1306 |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
1011-1306 |
|
● |
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
1307- |
● |
● |
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
1307- |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. EGYPT EQUIPMENT(B09)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
1307- |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
EXC. EGYPT EQUIPMENT(B09)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
1307- |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
1307- |
|
● |
| |
15 |
03.162 CLIP; FUEL PIPE
04.686
(B)
ID=12 & 6.35 & 4.76
|
8-97202-954-1 |
02 |
1 |
0810- |
● |
● |
| |
15 |
03.162 CLIP; FUEL PIPE
EXC. EGYPT EQUIPMENT(B09)
(C)
ID=12 & 6.35
|
8-97215-437-0 |
02 |
1 |
0810- |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
(C)
ID=12 & 6.35
|
8-97215-437-0 |
02 |
1 |
0810- |
|
● |
| |
15 |
03.162 CLIP; FUEL PIPE
EXC. EGYPT EQUIPMENT(B09)
04.930
(D)
ID=10X2 OR 12X2 & 6.35
|
8-97326-157-1 |
01 |
1 |
0810- |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
04.930
(D)
ID=10X2 OR 12X2 & 6.35
|
8-97326-157-1 |
01 |
1 |
0810- |
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
(D)
L=140
|
5-09707-031-1 |
01 |
1 |
0810- |
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
02.559
(A)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0810- |
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
04.930
(B)
ID=16
|
8-94238-568-0 |
04 |
1 |
0810-0911 |
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
(B)
ID=16
|
8-98008-098-0 |
04 |
1 |
0912- |
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
01.219
(C)
ID=12
|
8-94238-610-0 |
02 |
1 |
0810-0911 |
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
01.240
(C)
ID=12
|
8-98150-358-0 |
02 |
1 |
0912- |
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. DUMP CHASSIS(V4D)
(D)
L=140
|
5-09707-031-1 |
03 |
1 |
0810-0810 |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
(D)
L=140
|
5-09707-031-1 |
03 |
1 |
0810-0810 |
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. DUMP CHASSIS(V4D)
(D)
L=140
|
5-09707-031-1 |
02 |
1 |
0810- |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
(D)
L=140
|
5-09707-031-1 |
02 |
1 |
0810- |
|
● |
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W)
EXC. EGYPT EQUIPMENT(B09),RR BODY FLAT
BED<RS6>
(E)
|
8-98149-363-1 |
01 |
1 |
1307- |
● |
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W)
(E)
|
8-98149-363-1 |
01 |
1 |
1307- |
|
● |
| |
29 |

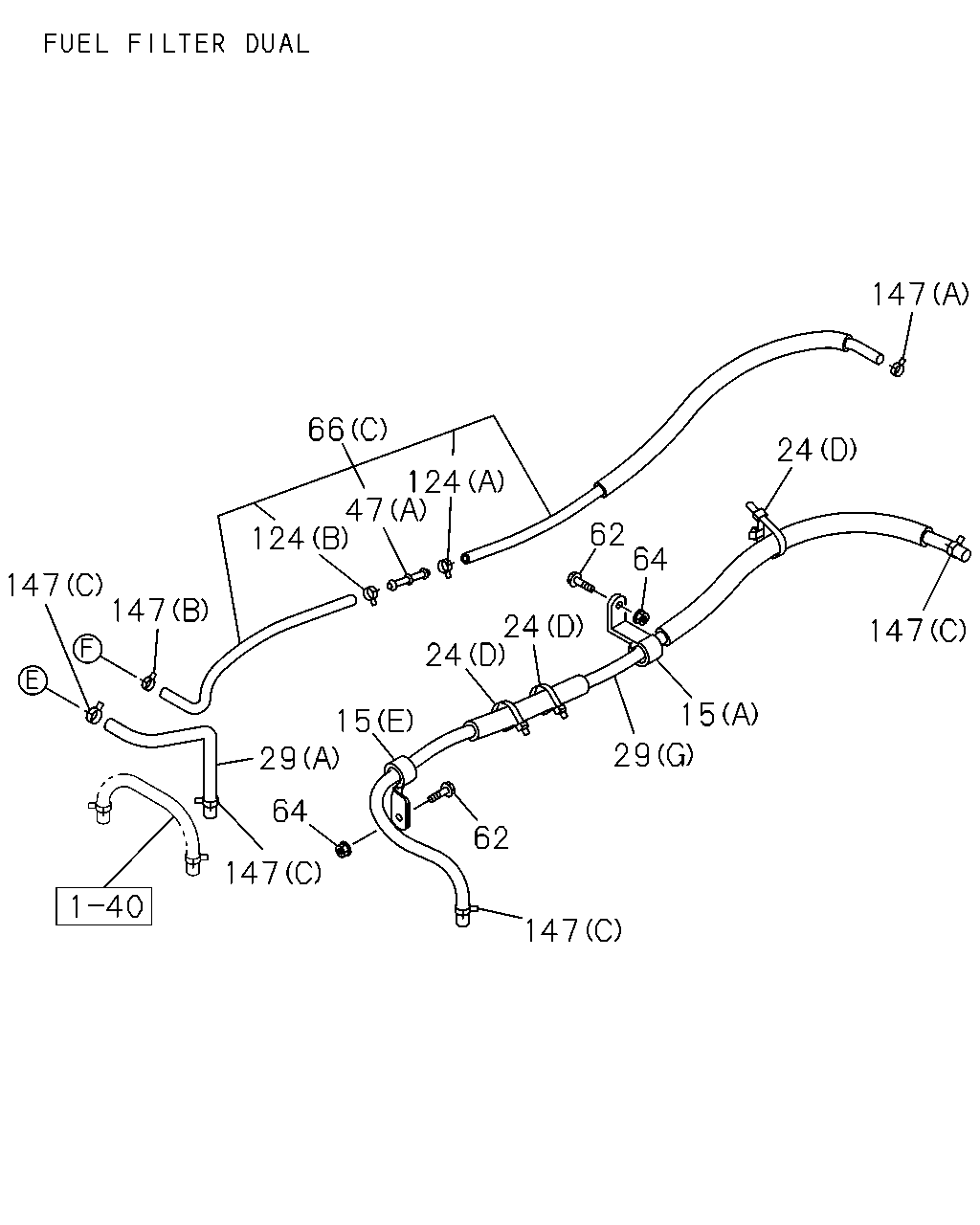

03.163 HOSE; FUEL
FUEL FILTER DUAL(S6B)
EXC. DUMP CHASSIS(V4D)
(A)
|
8-98130-342-0 |
01 |
1 |
0810- |
● |
● |
| |
29 |
03.163 HOSE; FUEL
EGYPT EQUIPMENT(B09)
(G)
|
8-98107-075-1 |
01 |
1 |
0810- |
● |
|
| |
29 |
03.163 HOSE; FUEL
FUEL FILTER DUAL(S6B)
DUMP CHASSIS(V4D)
(B)
|
8-98122-641-0 |
01 |
1 |
0810-1010 |
● |
|
| |
29 |
03.163 HOSE; FUEL
FUEL FILTER DUAL(S6B)
DUMP CHASSIS(V4D)
(B)
|
8-98145-016-0 |
01 |
1 |
1011- |
● |
|
| |
29 |
03.163 HOSE; FUEL
DUMP CHASSIS(V4D)
(C)
|
8-97389-794-0 |
01 |
1 |
0810- |
● |
|
| |
29 |
03.163 HOSE; FUEL
DUMP CHASSIS(V4D)
EXC. FUEL FILTER DUAL(S6B)
(D)
|
8-98057-028-0 |
01 |
1 |
0810- |
● |
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 2700MM(27W)
EXC. EGYPT EQUIPMENT(B09),DUMP
CHASSIS(V4D)
(E)
|
8-98067-565-1 |
01 |
1 |
0810- |
● |
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W)
EXC. EGYPT EQUIPMENT(B09)
(E)
|
8-98067-564-4 |
01 |
1 |
0810-1306 |
● |
● |
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. EGYPT EQUIPMENT(B09)
(E)
|
8-98067-564-4 |
01 |
1 |
1307- |
● |
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
EXC. EGYPT EQUIPMENT(B09)
(E)
|
8-98067-563-4 |
01 |
1 |
0810- |
● |
● |
| |
29 |
03.163 HOSE; FUEL
EXC. FUEL FILTER DUAL(S6B),DUMP
CHASSIS(V4D)
03.003
(F)
L=360
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0810- |
● |
● |
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
EXC. EGYPT EQUIPMENT(B09)
01.219
ID=12
|
8-94238-610-0 |
02 |
1 |
0810-0911 |
● |
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
01.219
ID=12
|
8-94238-610-0 |
02 |
1 |
0810-0911 |
|
● |
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
EXC. EGYPT EQUIPMENT(B09)
01.240
ID=12
|
8-98150-358-0 |
02 |
1 |
0912- |
● |
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
01.240
ID=12
|
8-98150-358-0 |
02 |
1 |
0912- |
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
EXC. EGYPT EQUIPMENT(B09)
|
8-98113-910-0 |
01 |
1 |
0810-1010 |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
|
8-98113-910-0 |
01 |
1 |
0810-1010 |
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
EXC. EGYPT EQUIPMENT(B09)
|
8-98136-891-0 |
01 |
1 |
1011- |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
|
8-98136-891-0 |
01 |
1 |
1011- |
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
EGYPT EQUIPMENT(B09)
(D)
|
8-98094-092-0 |
01 |
1 |
0810- |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
EXC. EGYPT EQUIPMENT(B09)
(A)
L=70
|
8-98036-483-0 |
01 |
1 |
0810- |
● |
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
WHEEL BASE 2700MM(27W)
(A)
L=70
|
8-98036-483-0 |
01 |
1 |
0810- |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
EGYPT EQUIPMENT(B09)
(A)
L=70
|
8-98036-483-0 |
01 |
1 |
0810- |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
EXC. EGYPT EQUIPMENT(B09)
(B)
|
8-98041-618-1 |
01 |
1 |
0810- |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
(B)
|
8-98041-618-1 |
01 |
1 |
0810- |
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
EXC. EGYPT EQUIPMENT(B09)
(C)
|
8-98113-911-1 |
01 |
1 |
0810-1010 |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
(C)
|
8-98113-911-1 |
01 |
1 |
0810-1010 |
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
EXC. EGYPT EQUIPMENT(B09)
(C)
|
8-98136-892-0 |
01 |
1 |
1011- |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
(C)
|
8-98136-892-0 |
01 |
1 |
1011- |
|
● |
| |
48 |
03.162 BOLT; BRKT
EXC. EGYPT EQUIPMENT(B09)
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0810- |
● |
|
| |
48 |
03.162 BOLT; BRKT
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0810- |
|
● |
| |
48 |
03.162 BOLT; BRKT
EXC. EGYPT EQUIPMENT(B09)
00.029
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0810- |
● |
|
| |
48 |
03.162 BOLT; BRKT
00.029
(B)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0810- |
|
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
02.343
ID=17
|
8-94128-319-2 |
02 |
1 |
0810- |
● |
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
EXC. EGYPT EQUIPMENT(B09),DUMP
CHASSIS(V4D)
02.343
ID=17
|
8-94128-319-2 |
01 |
1 |
0810- |
● |
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
02.343
ID=17
|
8-94128-319-2 |
01 |
1 |
0810- |
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
(B)
|
8-98122-642-0 |
01 |
1 |
0810- |
● |
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
EXC. EGYPT EQUIPMENT(B09)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0810- |
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0810- |
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W)
EXC. EGYPT EQUIPMENT(B09),RR BODY FLAT
BED<RS6>
(A)
|
8-98149-364-1 |
01 |
1 |
1307- |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W)
(A)
|
8-98149-364-1 |
01 |
1 |
1307- |
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EGYPT EQUIPMENT(B09)
(C)
|
8-98094-133-2 |
01 |
1 |
0810- |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 2700MM(27W)
(A)
|
8-98090-524-1 |
01 |
1 |
0810- |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W)
EXC. EGYPT EQUIPMENT(B09)
(A)
|
8-98067-567-2 |
01 |
1 |
0810-1306 |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED<RS6>
EXC. EGYPT EQUIPMENT(B09)
(A)
|
8-98067-567-2 |
01 |
1 |
1307- |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
EXC. EGYPT EQUIPMENT(B09)
(A)
|
8-98067-566-2 |
01 |
1 |
0810- |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EXC. EGYPT EQUIPMENT(B09)
(B)
L=150
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0810- |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(B)
L=150
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0810- |
|
● |
| |
97 |
03.162 BRACKET; CLIP
EXC. EGYPT EQUIPMENT(B09)
|
8-98057-653-0 |
02 |
1 |
0810- |
● |
|
| |
97 |
03.162 BRACKET; CLIP
|
8-98057-653-0 |
02 |
1 |
0810- |
|
● |
| |
106 |
03.162 NUT; FUEL PIPE
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0810- |
● |
● |
| |
106 |
03.162 NUT; FUEL PIPE
EXC. EGYPT EQUIPMENT(B09)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0810- |
● |
● |
| |
132 |
03.162 BOLT; FUEL HOSE
EXC. MANUAL TILT CAB<RWZ>
04.338
M8X20 FLANGE
|
0-28050-820-0 |
02 |
1 |
1002-1002 |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(A)
ID=13
|
8-94238-571-0 |
01 |
1 |
0810-0911 |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(A)
ID=13
|
8-98150-357-0 |
01 |
1 |
0912- |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(B)
ID=12
|
8-94238-610-0 |
01 |
1 |
0810-0911 |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.240
(B)
ID=12
|
8-98150-358-0 |
01 |
1 |
0912- |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0810-0810 |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. EGYPT EQUIPMENT(B09),DUMP
CHASSIS(V4D)
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0810-0810 |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FUEL FILTER DUAL(S6B)
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0810-0810 |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. EGYPT EQUIPMENT(B09)
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0810-0810 |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. EGYPT EQUIPMENT(B09),DUMP
CHASSIS(V4D)
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0810-0810 |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0811-0911 |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FUEL FILTER DUAL(S6B)
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0811-0911 |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. EGYPT EQUIPMENT(B09)
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0811-0911 |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. EGYPT EQUIPMENT(B09),DUMP
CHASSIS(V4D)
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0811-0911 |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
EXC. EGYPT EQUIPMENT(B09)
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0811-0911 |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2700MM(27W)
EXC. EGYPT EQUIPMENT(B09),DUMP
CHASSIS(V4D)
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0811-0911 |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(C)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FUEL FILTER DUAL(S6B)
(C)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. EGYPT EQUIPMENT(B09)
(C)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. EGYPT EQUIPMENT(B09),DUMP
CHASSIS(V4D)
(C)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
EXC. EGYPT EQUIPMENT(B09)
(C)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2700MM(27W)
EXC. EGYPT EQUIPMENT(B09),DUMP
CHASSIS(V4D)
(C)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
● |
|
| |
156 |
03.162 BRACKET; FUEL HOSE
EXC. MANUAL TILT CAB<RWZ>
(B)
|
8-98164-028-1 |
01 |
1 |
1002-1007 |
● |
● |
| |
156 |
03.162 BRACKET; FUEL HOSE
EXC. EGYPT EQUIPMENT(B09)
(A)
|
8-98041-250-2 |
01 |
1 |
0810- |
● |
|
| |
156 |
03.162 BRACKET; FUEL HOSE
(A)
|
8-98041-250-2 |
01 |
1 |
0810- |
|
● |
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
DUMP CHASSIS(V4D)
(A)
|
8-98057-566-0 |
01 |
1 |
0810- |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
EXC. EGYPT EQUIPMENT(B09),DUMP
CHASSIS(V4D)
(C)
|
8-98041-616-0 |
01 |
1 |
0810- |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
(C)
|
8-98041-616-0 |
01 |
1 |
0810- |
|
● |
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
EXC. DUMP CHASSIS(V4D)
(B)
|
8-98033-844-1 |
01 |
1 |
0810- |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
(B)
|
8-98033-844-1 |
01 |
1 |
0810- |
|
● |
| |
199 |
03.162 PROTECTOR; FUEL PIPE
OD=15 L=50
|
8-97077-629-0 |
01 |
1 |
0810- |
● |
● |
| |
199 |
03.162 PROTECTOR; FUEL PIPE
EXC. EGYPT EQUIPMENT(B09),DUMP
CHASSIS(V4D)
OD=15 L=50
|
8-97077-629-0 |
01 |
1 |
0810- |
● |
● |
| |
633 |
03.162 NUT; FUEL HOSE
EXC. MANUAL TILT CAB<RWZ>
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1002-1007 |
● |
● |
