1-31 — AIR DUCT (#52103) — 80 parça

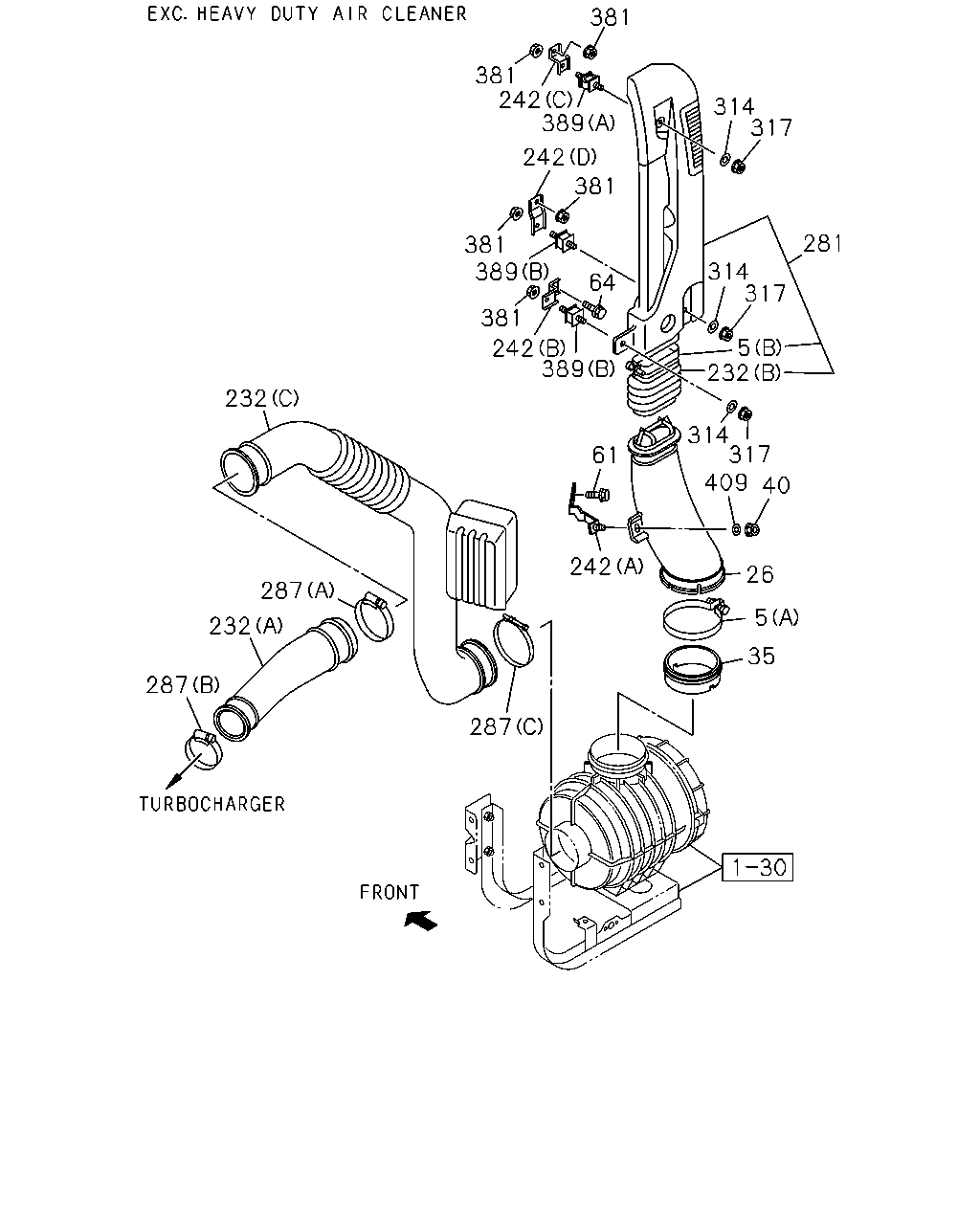

381 381 242 389 242 314 317 381 281 381 389 314 317 64 381 242 389 5 232 314 317 232 61 409 40 242 26 287 5 232 35 287 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	0810-	●	●
5	03.407 CLIP; AIR DUCT (B) D=101.6	9-09915-502-1	01	1	0810-0812	●	●
5	03.407 CLIP; AIR DUCT EXC. HEAVY DUTY AIR CLEANER<K46> (B) D=101.6	9-09915-502-1	01	1	0901-0901	●	●
5	03.407 CLIP; AIR DUCT (B) D=101.6	9-09915-502-1	01	1	0902-	●	●
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	0810-	●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	0810-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	0810-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-	●	●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	0810-	●	●
232	03.417 HOSE; CONN (A)	8-98131-538-1	01	1	0810-1405	●	●
232	03.417 HOSE; CONN SAUDI ARABIA EQUIPMENT(GH3) (A)	8-98131-538-1	01	1	1406-	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0810-0812	●	●
232	03.417 HOSE; CONN EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98082-535-0	01	1	0901-0901	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0902-1309	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●
232	03.417 HOSE; CONN (C)	8-98105-926-1	01	1	0810-	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	0810-1510	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1511-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	0810-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	0810-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98036-649-2	01	1	0810-	●	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46>	8-98080-929-2	01	1	0810-	●	●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	0810-	●	●
287	03.417 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (B) ID=44-60	8-94175-940-0	01	1	1002-1405	●	●
287	03.417 CLIP; AIR DUCT SAUDI ARABIA EQUIPMENT(GH3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (B) ID=44-60	8-94175-940-0	01	1	1406-	●
287	03.417 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1002-	●	●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=44-57	1-09707-207-0	01	1	0810-0810	●	●
287	03.417 CLIP; AIR DUCT (B) ID=40-50	8-98133-347-0	01	1	0811-1001	●	●
287	03.417 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=40-50	8-98133-347-0	01	1	1002-1405	●	●
287	03.417 CLIP; AIR DUCT SAUDI ARABIA EQUIPMENT(GH3) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=40-50	8-98133-347-0	01	1	1406-	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=68-85	1-09707-202-0	01	1	0810-0810	●	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=65-85	8-98133-350-0	01	1	0811-1001	●	●
287	03.417 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1002-	●	●
287	03.417 CLIP; AIR DUCT 03.407 (C) ID=112	9-09915-074-1	01	1	0810-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0810-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0810-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	05	1	0810-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0810-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	0810-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0810-	●	●

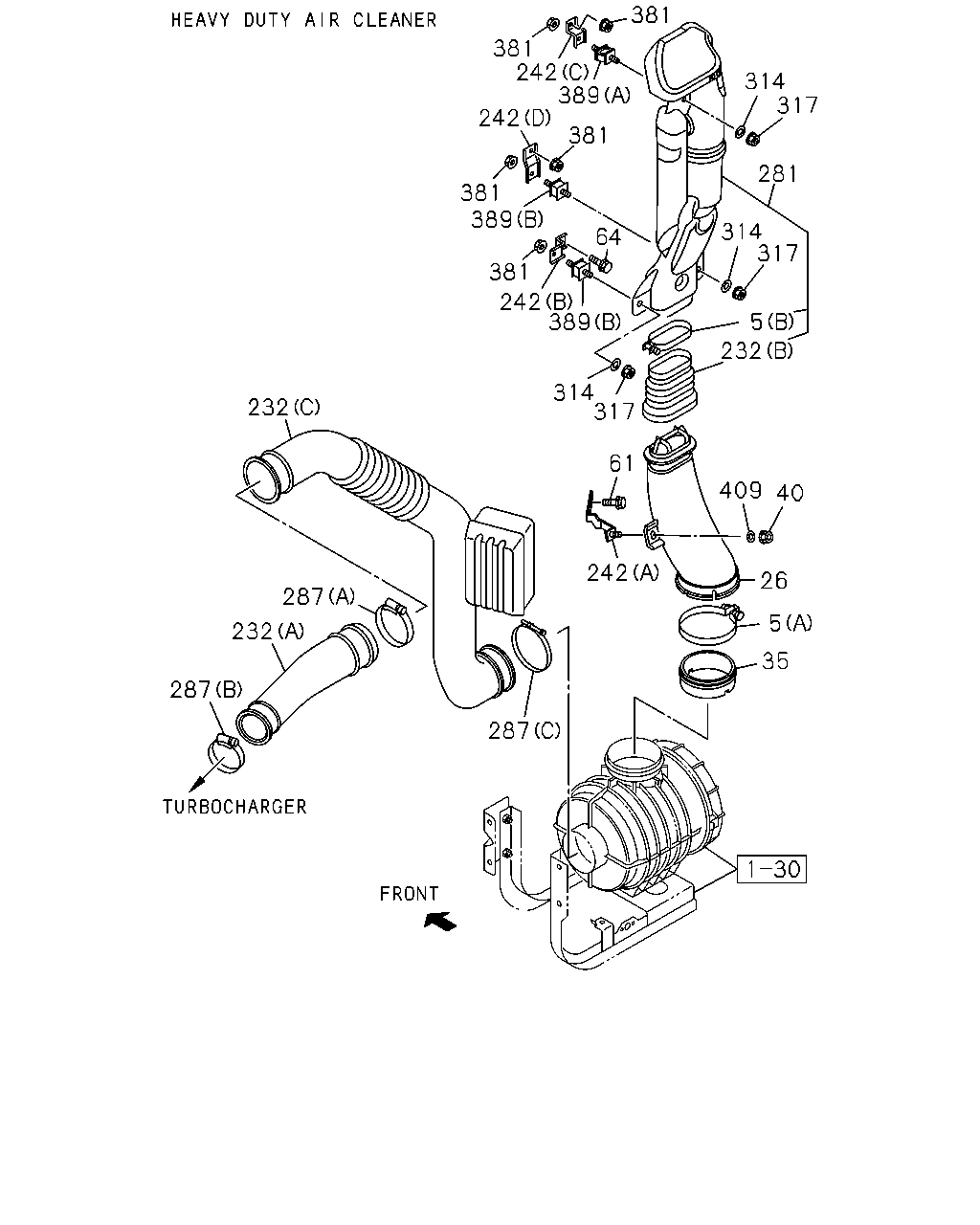

381 381 242 389 314 317 242 381 281 381 389 314 317 64 381 5 232 242 389 232 314 317 409 61 40 242 26 287 5 232 35 287 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	0810-	●	●
5	03.407 CLIP; AIR DUCT (B) D=101.6	9-09915-502-1	01	1	0810-0812	●	●
5	03.407 CLIP; AIR DUCT EXC. HEAVY DUTY AIR CLEANER<K46> (B) D=101.6	9-09915-502-1	01	1	0901-0901	●	●
5	03.407 CLIP; AIR DUCT (B) D=101.6	9-09915-502-1	01	1	0902-	●	●
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	0810-	●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	0810-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	0810-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-	●	●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	0810-	●	●
232	03.417 HOSE; CONN (A)	8-98131-538-1	01	1	0810-1405	●	●
232	03.417 HOSE; CONN SAUDI ARABIA EQUIPMENT(GH3) (A)	8-98131-538-1	01	1	1406-	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0810-0812	●	●
232	03.417 HOSE; CONN EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98082-535-0	01	1	0901-0901	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0902-1309	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●
232	03.417 HOSE; CONN (C)	8-98105-926-1	01	1	0810-	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	0810-1510	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1511-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	0810-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	0810-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98036-649-2	01	1	0810-	●	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46>	8-98080-929-2	01	1	0810-	●	●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	0810-	●	●
287	03.417 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (B) ID=44-60	8-94175-940-0	01	1	1002-1405	●	●
287	03.417 CLIP; AIR DUCT SAUDI ARABIA EQUIPMENT(GH3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (B) ID=44-60	8-94175-940-0	01	1	1406-	●
287	03.417 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1002-	●	●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=44-57	1-09707-207-0	01	1	0810-0810	●	●
287	03.417 CLIP; AIR DUCT (B) ID=40-50	8-98133-347-0	01	1	0811-1001	●	●
287	03.417 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=40-50	8-98133-347-0	01	1	1002-1405	●	●
287	03.417 CLIP; AIR DUCT SAUDI ARABIA EQUIPMENT(GH3) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=40-50	8-98133-347-0	01	1	1406-	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=68-85	1-09707-202-0	01	1	0810-0810	●	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=65-85	8-98133-350-0	01	1	0811-1001	●	●
287	03.417 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1002-	●	●
287	03.417 CLIP; AIR DUCT 03.407 (C) ID=112	9-09915-074-1	01	1	0810-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0810-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0810-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	05	1	0810-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0810-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	0810-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0810-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
