Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#52099) — 56 parça

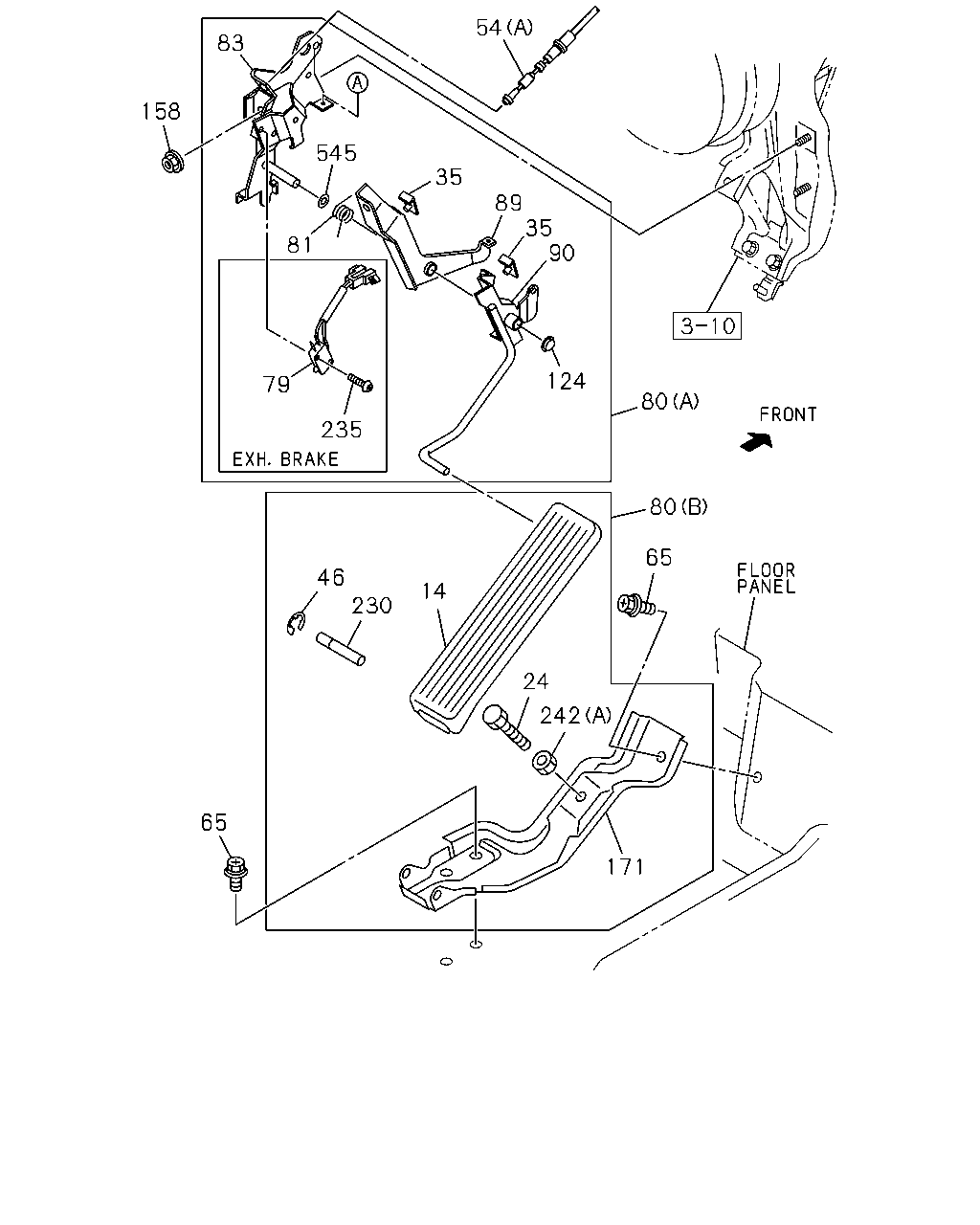

54 83 158 545 35 89 35 90 81 124 79 80 235 80 65 46 14 230 24 242 65 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0810-	●	●
24	03.483 BOLT; BRKT 09.173 M8X35 FLANGE	8-98049-562-0	01	1	0810-	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	0810-	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0810-	●	●
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0810-	●	●
54	03.430 CABLE; ENG CONT (A) L=2758	8-98099-703-4	01	1	0810-	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0810-	●	●
79	03.451 SWITCH; ACCEL PEDAL EXHAUST BRAKE<NF8> 03.636	8-97855-192-0	01	1	0810-	●
79	03.451 SWITCH; ACCEL PEDAL 03.636	8-97855-192-0	01	1	0810-		●
80	03.452 LINK ASM; ENG CONT EXC. EXHAUST BRAKE<NF8> (A)	8-98128-704-1	01	1	0810-	●
80	03.452 LINK ASM; ENG CONT 03.459 (B)	8-98006-714-1	01	1	0810-	●	●
80	03.452 LINK ASM; ENG CONT EXHAUST BRAKE<NF8> (A)	8-98038-417-2	01	1	0810-	●
80	03.452 LINK ASM; ENG CONT (A)	8-98038-417-2	01	1	0810-		●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-98031-665-0	01	1	0810-	●	●
83	03.452 BRACKET; CONT LINK	8-98093-897-0	01	1	0810-	●	●
89	03.454 LEVER; RELAY	8-97857-617-4	01	1	0810-	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-98093-899-1	01	1	0810-	●	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0810-	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0810-	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-98006-716-1	01	1	0810-	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-98026-806-0	01	1	0810-	●	●
235	03.452 SCREW; PEDAL TO SW EXHAUST BRAKE<NF8> 03.425 M3X16 TAPPING	0-71340-316-0	02	1	0810-	●
235	03.452 SCREW; PEDAL TO SW 03.425 M3X16 TAPPING	0-71340-316-0	02	1	0810-		●
242	03.483 NUT; ACCEL PEDAL (B) M18	8-97853-233-0	01	1	0810-	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8 FLANGE	8-98040-024-0	01	1	0810-	●	●
545	03.463 WASHER; NYLON 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0810-	●	●

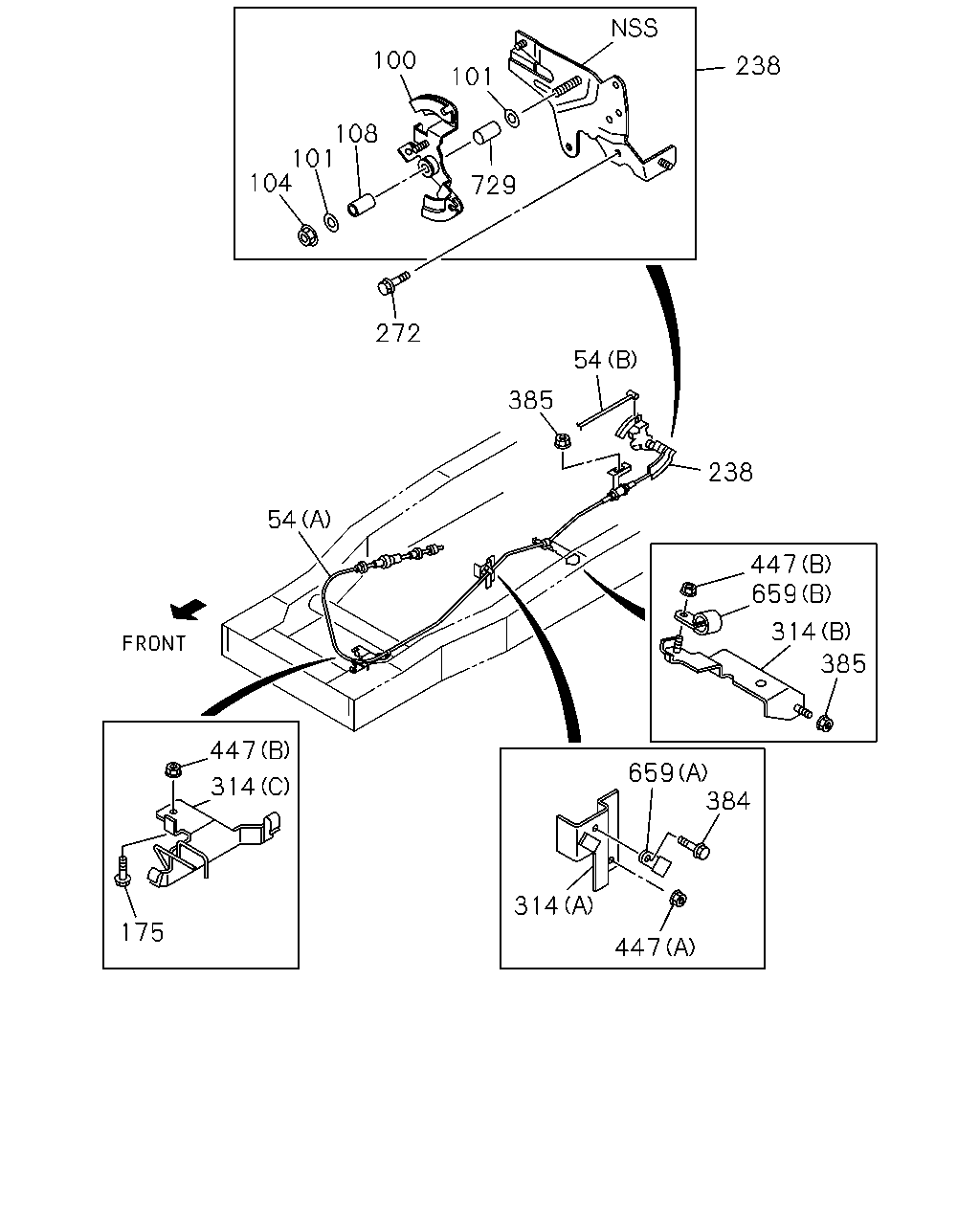

100 238 101 108 101 104 729 272 54 385 238 54 447 659 314 385 447 659 384 314 314 175 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0810-	●	●
54	03.430 CABLE; ENG CONT (A) L=2758	8-98099-703-4	01	1	0810-	●	●
100	03.463 SHAFT ASM; ENG CONT	8-97118-737-0	01	1	0810-	●	●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0810-	●	●
104	03.463 NUT; ENG CONT 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-	●	●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	0810-	●	●
175	03.483 BOLT; BRKT,ACCEL CABLE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-	●	●
238	03.463 LEVER; ACCEL CONT	8-97118-729-0	01	1	0810-	●	●
272	03.454 BOLT; LEVER 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0810-	●	●
314	03.481 BRACKET; ACCEL CABLE DUMP CHASSIS(V4D) (C)	8-98123-512-2	01	1	0810-0906	●
314	03.481 BRACKET; ACCEL CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (C)	8-98123-512-2	01	1	0810-0906	●
314	03.481 BRACKET; ACCEL CABLE PTO MANUAL CONTROL(6WC) (C)	8-98123-512-2	01	1	0810-0906		●
314	03.481 BRACKET; ACCEL CABLE (A)	8-98100-387-1	01	1	0810-	●	●
314	03.481 BRACKET; ACCEL CABLE (B)	8-98120-569-1	01	1	0810-	●	●
314	03.481 BRACKET; ACCEL CABLE EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (C)	8-98120-573-2	01	1	0810-0906	●	●
314	03.481 BRACKET; ACCEL CABLE (C)	8-98146-419-1	01	1	0907-	●	●
384	03.483 BOLT; CLIP,CONT CABLE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0810-	●	●
385	03.481 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0810-	●	●
447	03.452 NUT; BRKT,CONT WIRE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0810-	●	●
447	03.452 NUT; BRKT,CONT WIRE 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0810-	●	●
659	03.483 CLIP; ACCEL CONT CABLE 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	0810-	●	●
659	03.483 CLIP; ACCEL CONT CABLE 04.785 (A) ID=16 L=28	0-95235-552-0	01	1	0810-	●	●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0810-	●	●

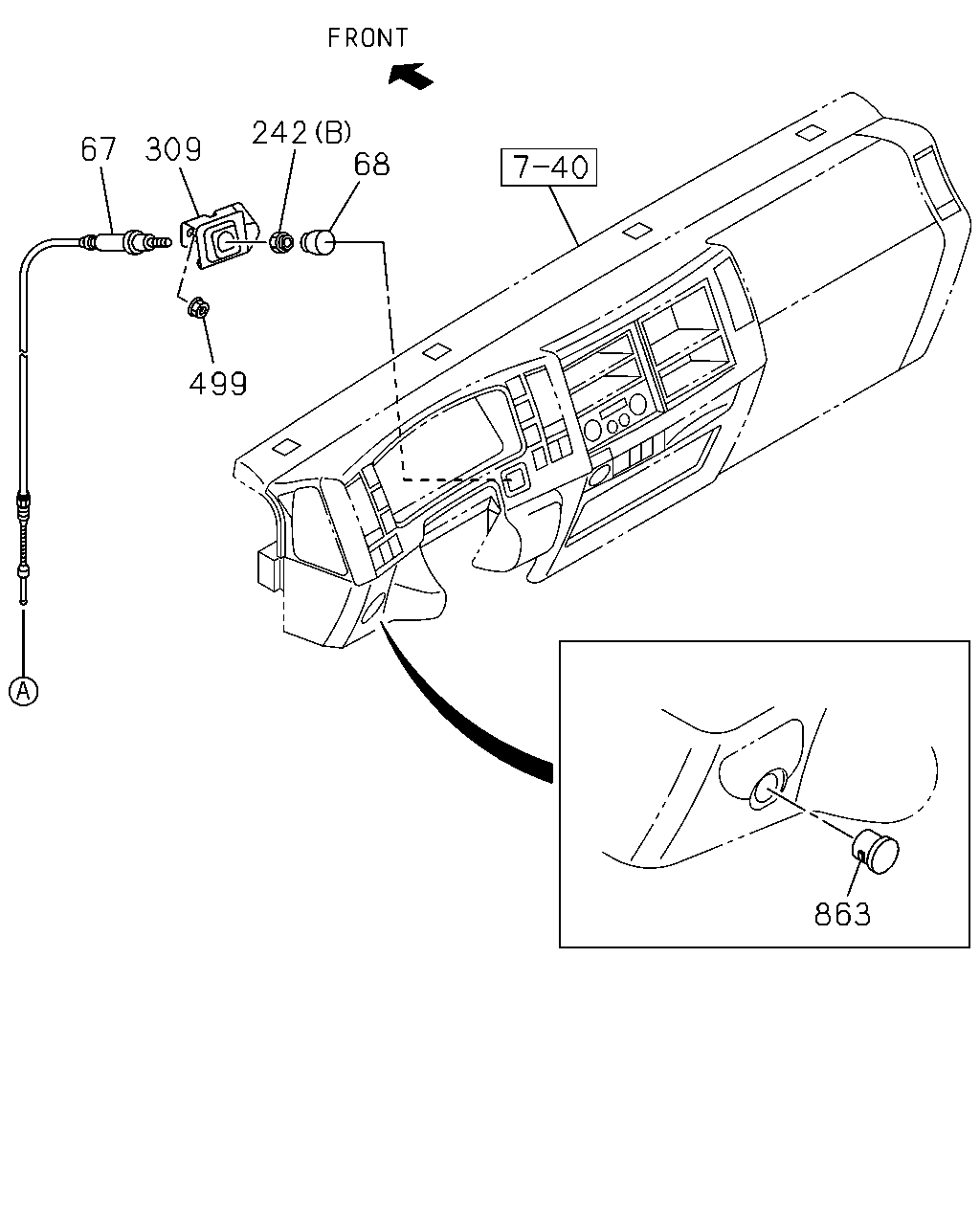

242 68 67 309 499 863

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
67	03.480 CABLE ASM; IDLE CONT	8-98124-109-3	01	1	0810-	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0810-	●	●
242	03.483 NUT; ACCEL PEDAL (B) M18	8-97853-233-0	01	1	0810-	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8 FLANGE	8-98040-024-0	01	1	0810-	●	●
309	03.483 BRACKET; IDLE CONT CABLE	8-98124-979-1	01	1	0810-	●	●
499	03.483 NUT; IDLE CONT CABLE 01.062 M6 FLANGE	0-91180-106-0	02	1	0810-	●	●
863	03.463 COVER; SENSOR GRAY	8-97408-816-0	01	1	0810-	●	●
