Isuzu WW
▶
TRUCKS
▶
NPR
▶
51185 - NPR/NQR(LHD) EURO1
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#52087) — 22 parça
◀

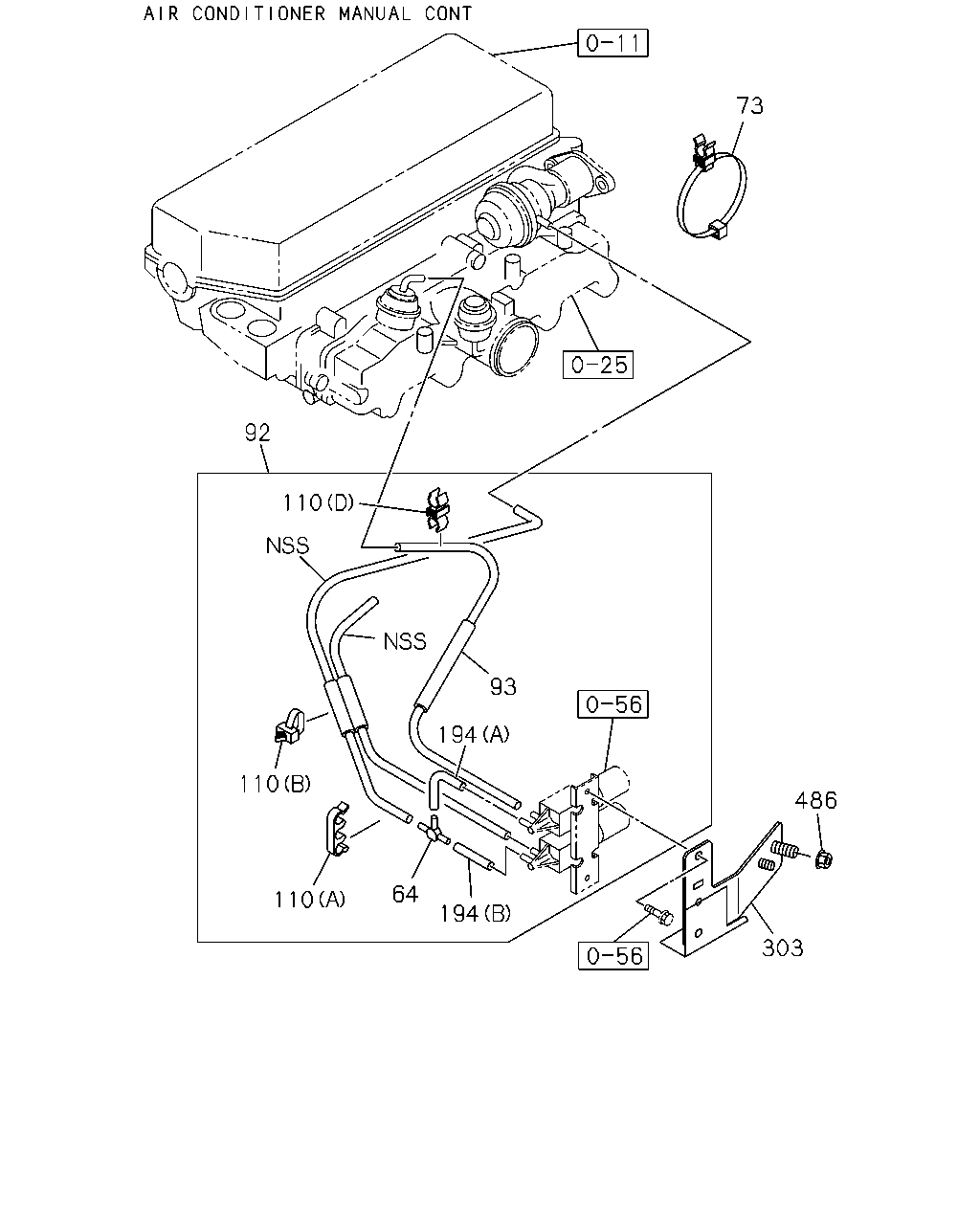

[057A] NO.2 (12 parça)

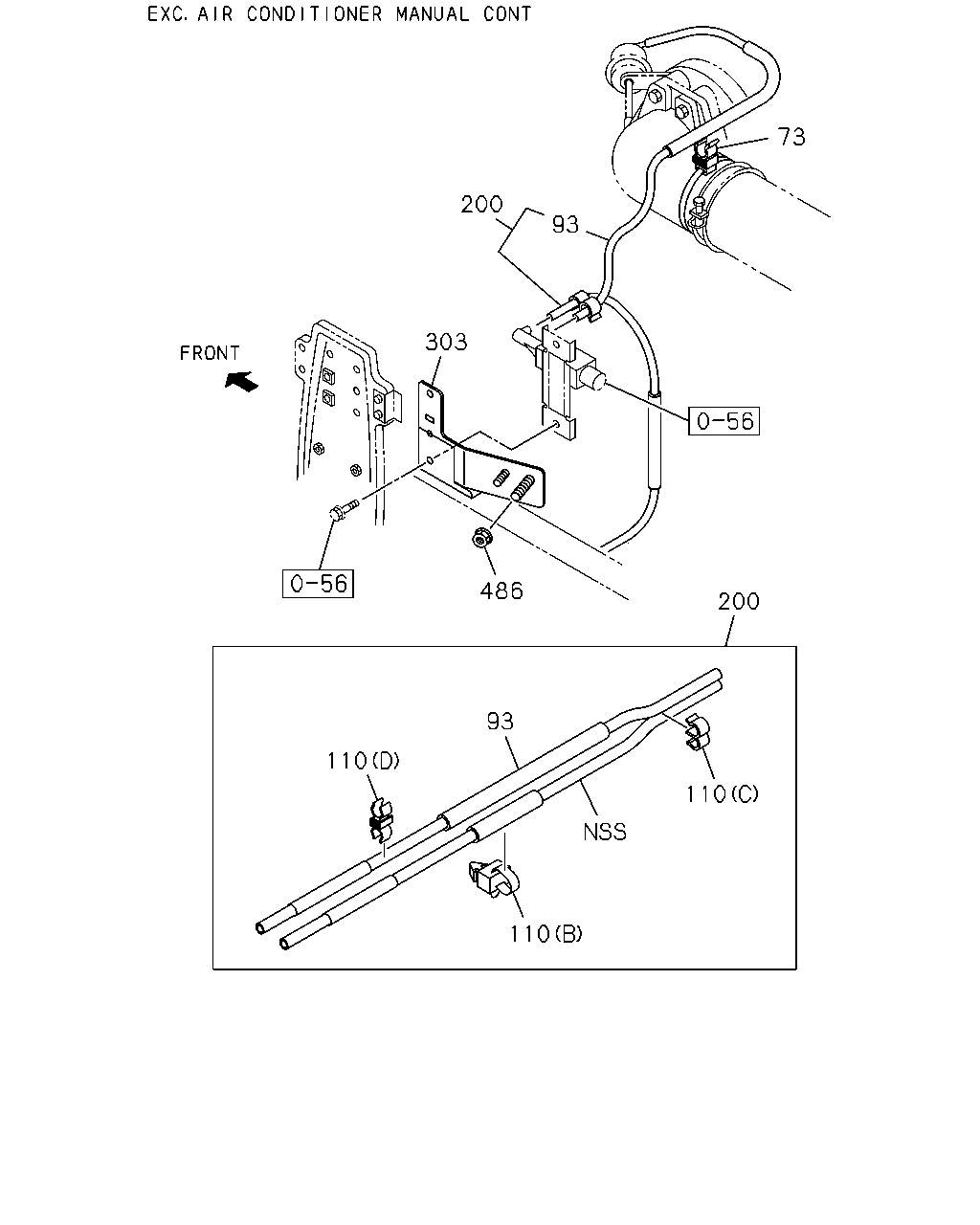

[057A] NO.1 (9 parça)

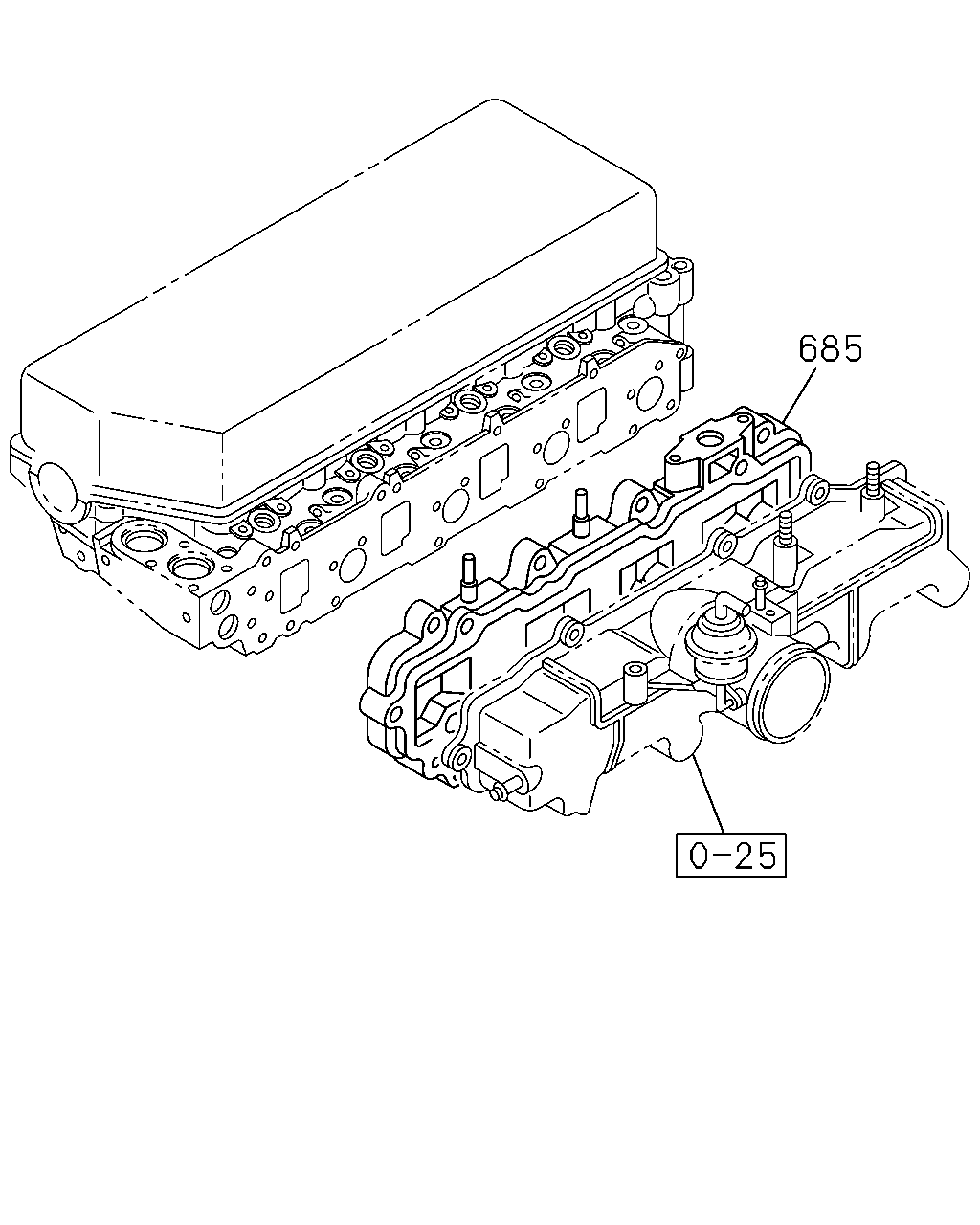

[057A] NO.3 (1 parça)
▶
73
92
110
93
194
110
486
64
110
194
303
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
03.680 JOINT; 3 WAY,VAC
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY
8-94208-695-0
01
1
0810-
73
03.680 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> L=350
8-97373-487-0
01
1
0810-
92
03.675 HOSE; VAC,THROTTLE BODY
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>
8-98118-239-2
01
1
0810-
93
03.675 HOSE ASM
EXHAUST BRAKE<NF8>
8-98118-171-2
01
1
0810-
110
03.671 CLIP; VAC HOSE
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.680 (A) ID=6.8 & 6.8 & 6.8
8-94208-734-0
01
1
0810-
110
03.671 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 03.680 (D) ID=7.5 & 7.5
8-97019-084-0
01
1
0810-
110
03.671 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 02.559 (B) L=109.5
8-97807-385-0
01
1
0810-
110
03.671 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) ID=6.8X2
8-94126-636-0
01
1
0810-
194
03.675 HOSE; VAC
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000
0-04730-300-0
01
1
0810-
194
03.675 HOSE; VAC
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000
0-04730-300-0
01
1
0810-
303
03.671 BRACKET; VAC SW
EXHAUST BRAKE<NF8>
8-98122-539-0
01
1
0810-
486
03.671 NUT; BRKT
EXHAUST BRAKE<NF8> 01.062 M8 FLANGE
0-91180-108-0
01
1
0810-
73
200
93
303
486
200
93
110
110
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
03.680 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> L=350
8-97373-487-0
01
1
0810-
93
03.675 HOSE ASM
EXHAUST BRAKE<NF8>
8-98118-171-2
01
1
0810-
110
03.671 CLIP; VAC HOSE
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.680 (A) ID=6.8 & 6.8 & 6.8
8-94208-734-0
01
1
0810-
110
03.671 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 03.680 (D) ID=7.5 & 7.5
8-97019-084-0
01
1
0810-
110
03.671 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 02.559 (B) L=109.5
8-97807-385-0
01
1
0810-
110
03.671 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) ID=6.8X2
8-94126-636-0
01
1
0810-
200
03.675 HOSE; VAC
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)
8-98118-238-2
01
1
0810-
303
03.671 BRACKET; VAC SW
EXHAUST BRAKE<NF8>
8-98122-539-0
01
1
0810-
486
03.671 NUT; BRKT
EXHAUST BRAKE<NF8> 01.062 M8 FLANGE
0-91180-108-0
01
1
0810-
685
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
685
03.680 CASE; INLET,EGR
8-97146-873-1
01
1
0810-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
