◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51185 - NPR/NQR(LHD) EURO1 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶

0-41 — FUEL FILTER AND BRACKET (#52081) — 43 parça

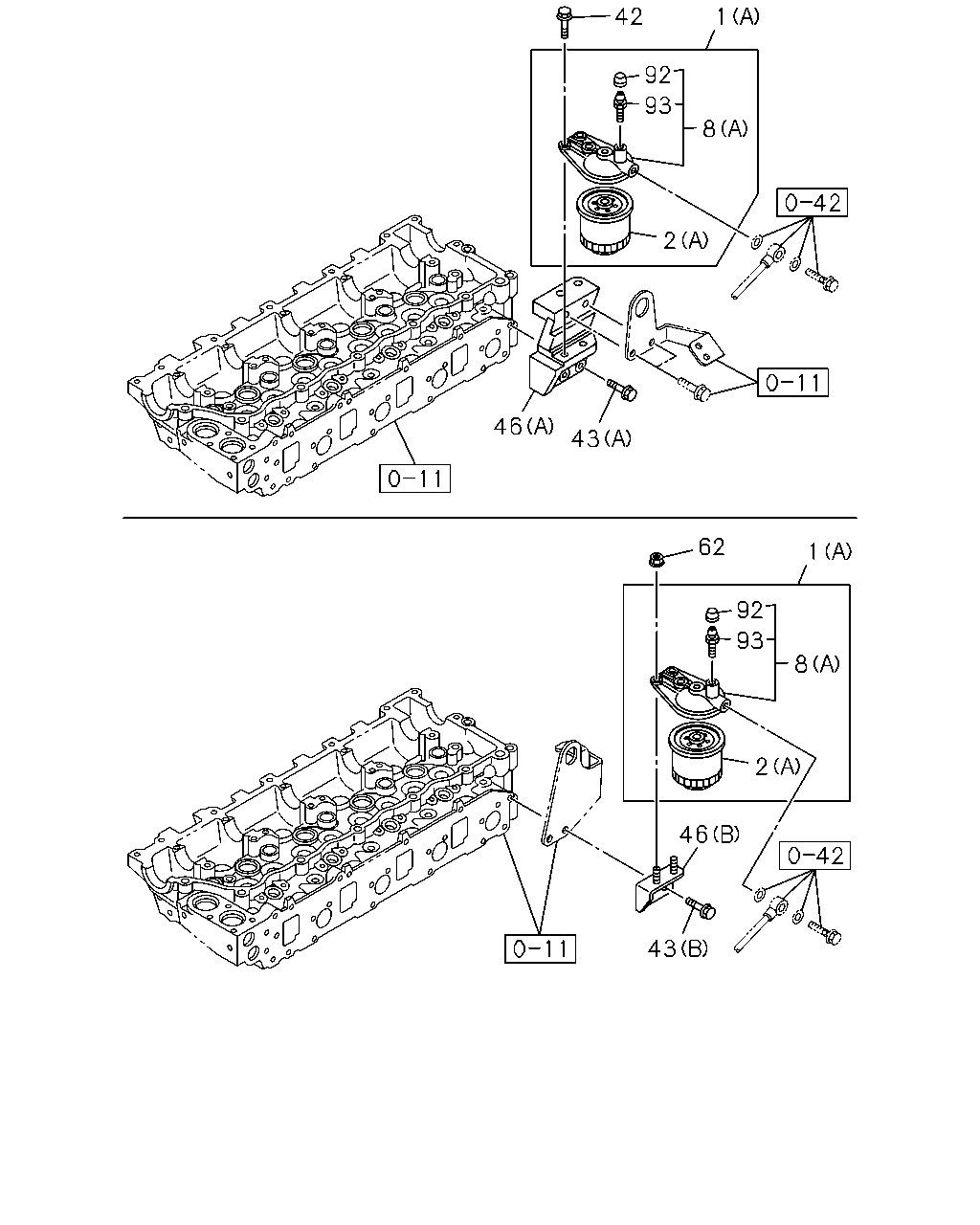

42 92 1 93 2 8 43 46 62 92 93 1 8 2 46 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B) (B)	8-98006-454-0	01	1	0810-
1	03.890 FILTER ASM; FUEL (A)	8-97171-451-2	01	1	0810-
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) (B)	8-97916-993-2	01	1	0810-
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-97172-549-1	01	1	0810-
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	5-87610-041-0	01	1	0810-
8	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B) (B)	8-97917-558-0	01	1	0810-
8	03.890 COVER; FUEL FILTER (A)	8-97172-543-1	01	1	0810-
42	03.890 BOLT; FUEL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	01	1	0810-0908
42	03.890 BOLT; FUEL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0909-1405
42	03.890 BOLT; FUEL FILTER NPR(NP***N) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> ANTI EROSION SPEC<7XK> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1406-
42	03.890 BOLT; FUEL FILTER NPR(NP***N) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> ANTI EROSION SPEC<7XK> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1406-
42	03.890 BOLT; FUEL FILTER NPR(NP***N) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC<7XK> EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1406-
43	03.890 BOLT; BRKT EXC. SAUDI ARABIA EQUIPMENT(GH3) 00.029 (B) M12X25 FLANGE	0-28151-225-0	02	1	1406-
43	03.890 BOLT; BRKT 00.029 (A) M12X28 FLANGE	0-28181-228-0	02	1	0810-1405
43	03.890 BOLT; BRKT NPR(NP***N) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> ANTI EROSION SPEC<7XK> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.029 (A) M12X28 FLANGE	0-28181-228-0	02	1	1406-
43	03.890 BOLT; BRKT NPR(NP***N) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> ANTI EROSION SPEC<7XK> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 00.029 (A) M12X28 FLANGE	0-28181-228-0	02	1	1406-
43	03.890 BOLT; BRKT NPR(NP***N) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC<7XK> EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> 00.029 (A) M12X28 FLANGE	0-28181-228-0	02	1	1406-
46	03.890 BRACKET EXC. SAUDI ARABIA EQUIPMENT(GH3) (B)	8-94313-323-2	01	1	1406-
46	03.890 BRACKET (A)	8-97061-452-0	01	1	0810-1405
46	03.890 BRACKET NPR(NP***N) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> ANTI EROSION SPEC<7XK> EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97061-452-0	01	1	1406-
46	03.890 BRACKET NPR(NP***N) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> ANTI EROSION SPEC<7XK> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97061-452-0	01	1	1406-
46	03.890 BRACKET NPR(NP***N) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC<7XK> EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> (A)	8-97061-452-0	01	1	1406-
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-1405
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	02	1	1406-
62	03.895 NUT; FUEL FILTER EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 M10 FLANGE	0-91180-110-0	02	1	1406-
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	0810-
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0810-

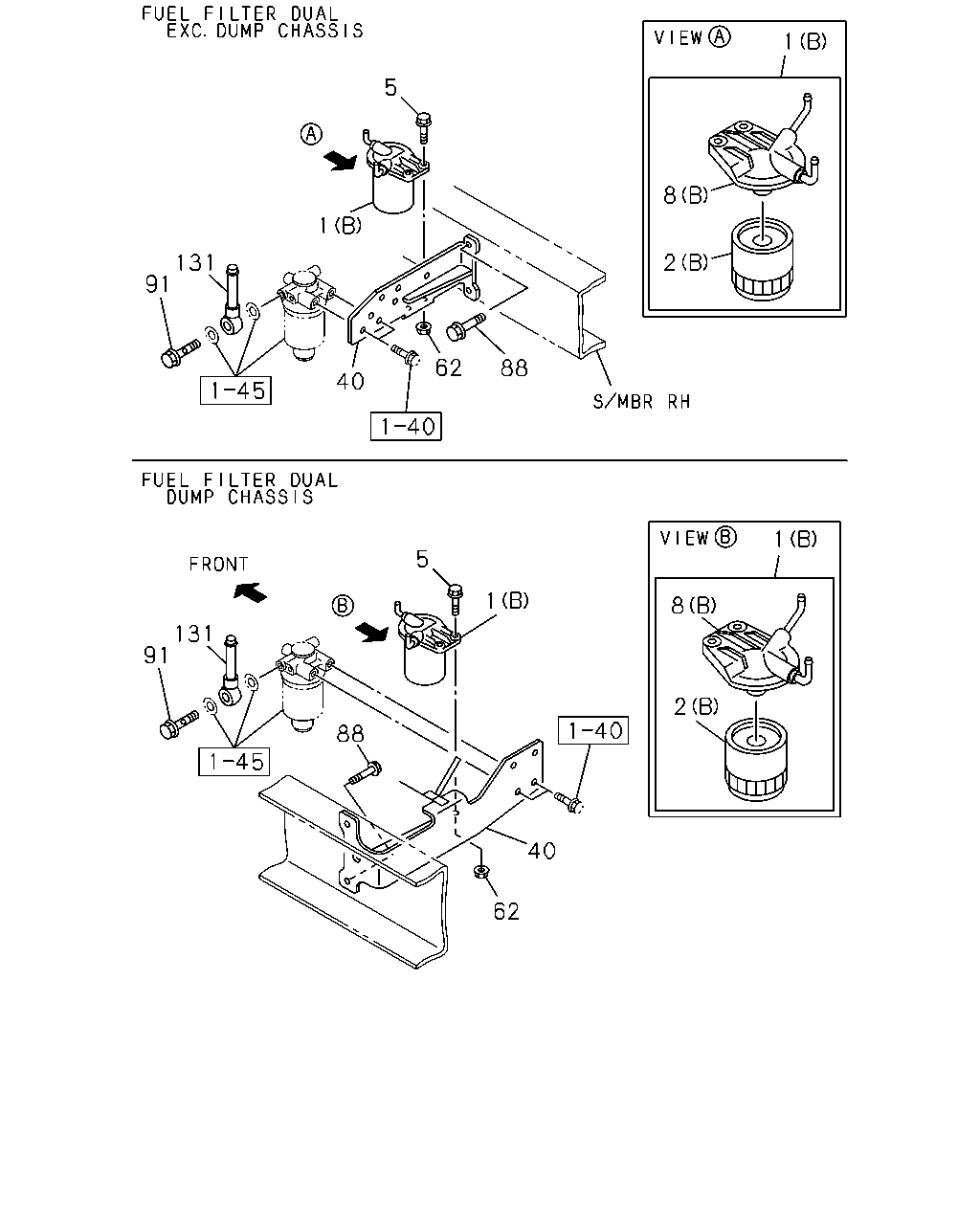

5 1 131 91 40 62 88 2 8 1 1 8 2 40 62 88 5 131 91 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B) (B)	8-98006-454-0	01	1	0810-
1	03.890 FILTER ASM; FUEL (A)	8-97171-451-2	01	1	0810-
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) (B)	8-97916-993-2	01	1	0810-
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-97172-549-1	01	1	0810-
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	5-87610-041-0	01	1	0810-
5	03.890 BOLT; FUEL FILTER FUEL FILTER DUAL(S6B) 03.613 M10X40 FLANGE	0-28651-040-0	02	1	0810-
8	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B) (B)	8-97917-558-0	01	1	0810-
8	03.890 COVER; FUEL FILTER (A)	8-97172-543-1	01	1	0810-
40	03.890 BRACKET; FUEL FILTER DUMP CHASSIS(V4D)	8-98121-708-0	01	1	0810-
40	03.890 BRACKET; FUEL FILTER EXC. DUMP CHASSIS(V4D)	8-98121-710-0	01	1	0810-
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-1405
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	02	1	1406-
62	03.895 NUT; FUEL FILTER EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 M10 FLANGE	0-91180-110-0	02	1	1406-
88	03.895 BOLT; BRKT,FUEL FILTER 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
91	03.890 BOLT; FUEL FILTER 03.162 M14X29 EYE-BOLT	9-09906-325-1	02	1	0810-
131	03.890 PIPE; FILTER 03.163	5-15411-223-1	02	1	0810-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
