◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51185 - NPR/NQR(LHD) EURO1 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#52080) — 62 parça

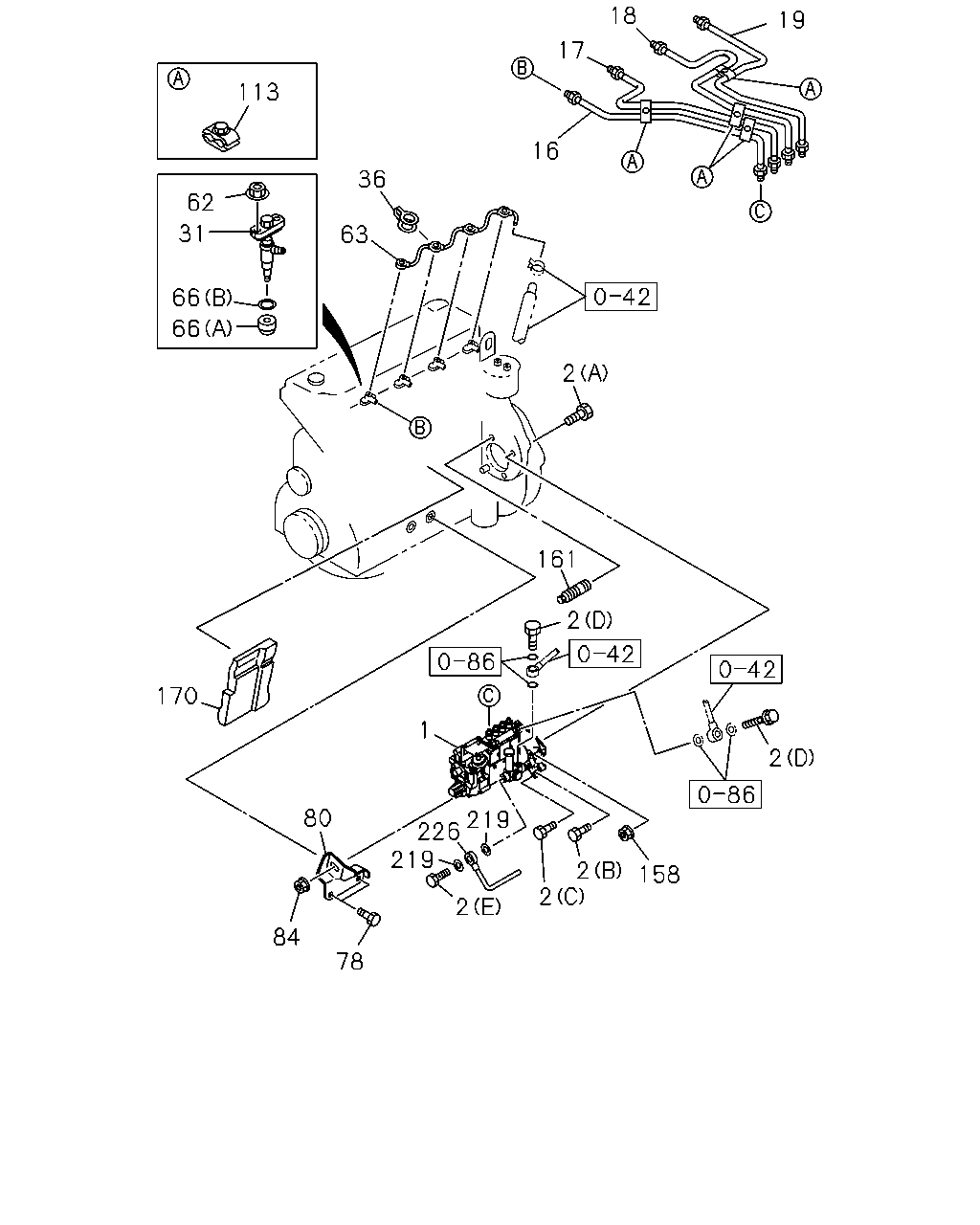

çizim 59027
18 19 17 113 16 36 62 31 63 66 66 2 161 2 170 1 2 219 226 219 80 2 2 158 2 84 78
BalonParca AdiParca NoAdetTipApplied Date
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97212-101-0 01 1 0810-0810
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97212-101-0 01 1 0811-1405
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NPR(NP***N) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC<7XK> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97212-101-0 01 1 1406-
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NQR(NP***S) HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97212-101-0 01 1 1406-
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NPR(NP***N) HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), SAUDI ARABIA EQUIPMENT(GH3) 		8-97212-101-0 01 1 1406-
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGHALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 0810-0810
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), HIGHALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 0811-1405
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NPR(NP***N) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC<7XK> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGHALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 1406-
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NQR(NP***S) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGHALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 1406-
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NPR(NP***N) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), HIGHALTITUDE COMPENSATOR(EE2),SAUDI ARABIA EQ UIPMENT(GH3) 		8-97212-102-0 01 1 1406-
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97385-476-0 01 1 0810-1405
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NPR(NP***N) AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> ANTI EROSION SPEC<7XK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),SAUDI ARABIA EQUIPMENT(GH3) 		8-97385-476-0 01 1 1406-
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NQR(NP***S) AIR CONDITIONER MANUAL CONT(C60) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97385-476-0 01 1 1406-
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NPR(NP***N) AIR CONDITIONER MANUAL CONT(C60) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> ANTI EROSION SPEC<7XK> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97385-476-0 01 1 1406-
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NPR(NP***N) AIR CONDITIONER MANUAL CONT(C60) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXHAUST BRAKE<NF8> EXC. HIGH ALTITUDE COMPENSATOR(EE2),SAUDI ARABIA EQUIPMENT(GH3),ANTI EROSION SPEC<7XK> 		8-97385-476-0 01 1 1406-
2 03.330 BOLT; INJ PUMP
02.277 (C) M10X70 FLANGE 		0-28151-070-0 01 1 0810-
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0810-
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0810-
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0810-
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0810-
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 0810-
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 0810-
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 0810-
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 0810-
31 03.332 NOZZLE ASM; INJ 8-97119-811-0 04 1 0810-
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-94395-214-0 04 1 0810-1312
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-98246-930-0 04 1 1401-
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE 		0-91180-108-0 08 1 0810-
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 0810-
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94326-439-0 04 1 0810-
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0810-
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0810-
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 0810-
84 03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 0810-
113 03.162 CLIP; INJ PIPE 8-97213-050-0 04 1 0810-
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0810-
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0810-0910
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0911-
170 03.332 INSULATOR; INJ PUMP
FAST GLOW SYSTEM<KM6> EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) EXC. EXHAUST BRAKE<NF8> 		8-97130-296-0 01 1 0810-0810
170 03.332 INSULATOR; INJ PUMP
SAUDI ARABIA EQUIPMENT(GH3) 		8-97130-296-2 01 1 0811-
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0810-1312
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 0810-
çizim 101214
31 32 34 58 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date
31 03.332 NOZZLE ASM; INJ 8-97119-811-0 04 1 0810-
32 03.332 HOLDER ASM; NOZZLE 8-94311-966-2 04 1 0810-
33 03.332 NOZZLE; INJ 8-97119-809-0 04 1 0810-
34 03.330 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 04 1 0810-
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 0810-
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 8-94329-555-0 04 1 0810-
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 0810-
46 03.330 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 0810-
58 03.332 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 0810-
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.10 		8-97027-432-0 AR 1 0810-
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.20 		8-97027-433-0 AR 1 0810-
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.30 		8-97027-434-0 AR 1 0810-
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.40 		8-97027-435-0 AR 1 0810-
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.50 		8-97027-436-0 AR 1 0810-
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.52 		8-97027-437-0 AR 1 0810-
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.54 		8-97027-438-0 AR 1 0810-
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.56 		8-97027-439-0 AR 1 0810-
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.58 		8-97027-440-0 AR 1 0810-
146 03.332 SPACER; NOZZLE 8-94344-439-0 04 1 0810-
