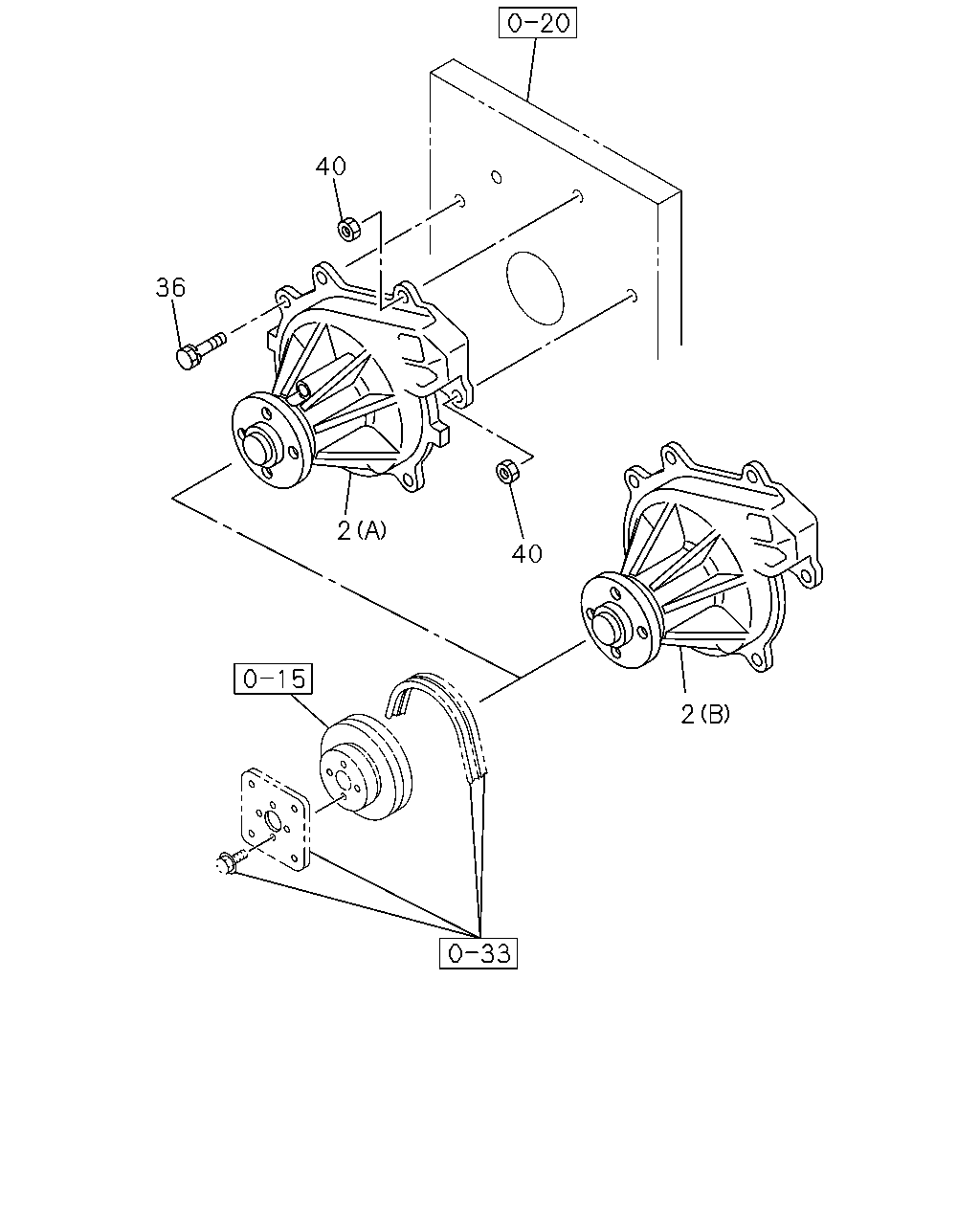

0-30 — WATER PUMP AND CORROSION RESISTOR (#52076) — 7 parça

40 36 2 40 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	01.069 PUMP ASM; WATER EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) (B)	8-97212-675-1	01	1	0810-1103
2	01.069 PUMP ASM; WATER ANTI EROSION SPEC<7XK> (B)	8-97212-675-2	01	1	1104-
2	01.069 PUMP ASM; WATER EXC. EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) (A)	8-97333-361-1	01	1	0810-1103
2	01.069 PUMP ASM; WATER EXC. ANTI EROSION SPEC<7XK> (A)	8-97333-361-1	01	1	1104-1510
2	01.069 PUMP ASM; WATER EXC. ANTI EROSION SPEC<7XK> (A)	8-98329-116-0	01	1	1511-
36	00.386 BOLT; WATER PUMP TO C/BL 00.685 M8X40 FLANGE	0-28650-840-0	06	1	0810-
40	07.874 NUT; WATER PUMP 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-
