◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51184 - NMR71-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#52052) — 15 parça

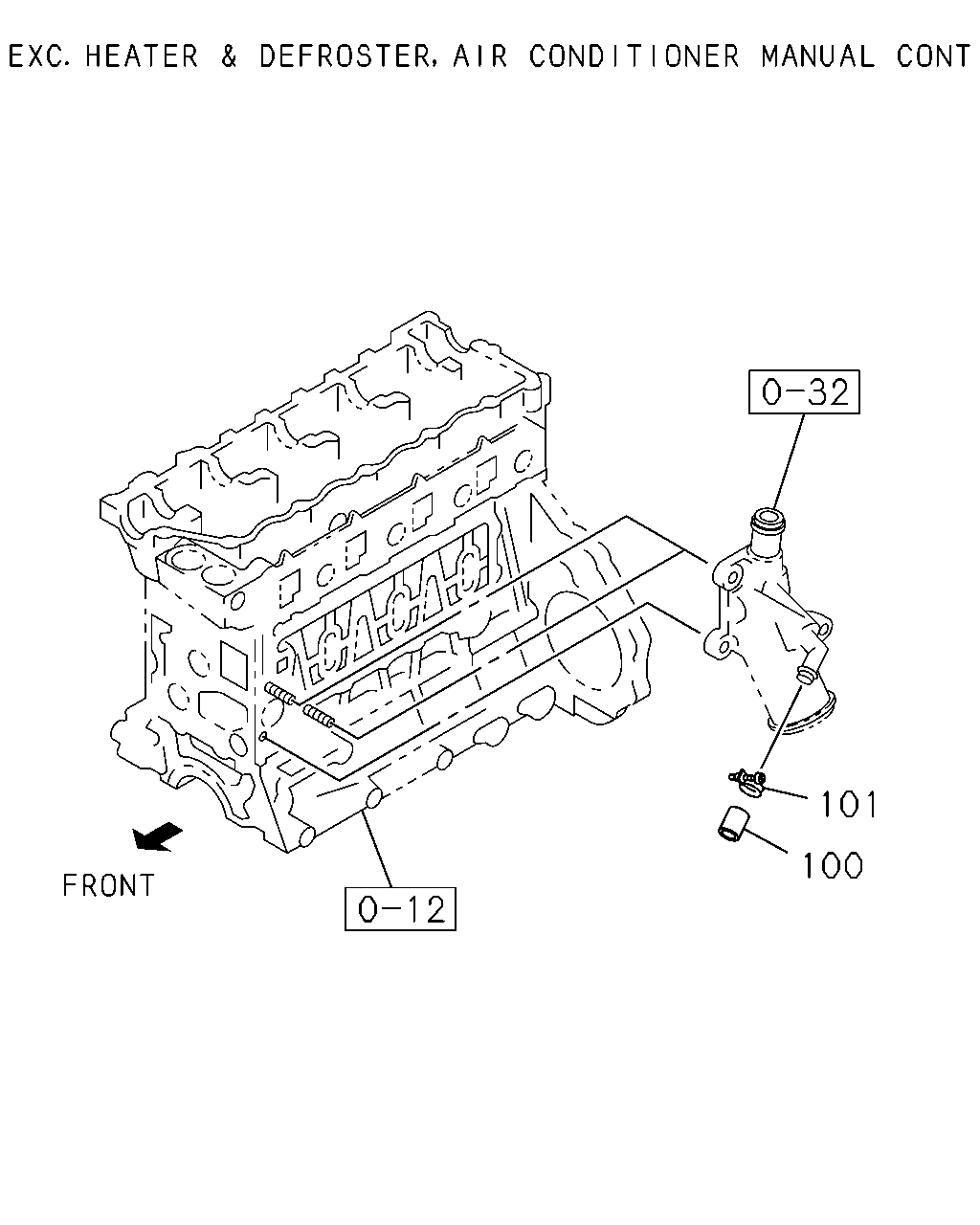

çizim 157871
101 100
BalonParca AdiParca NoAdetTipApplied Date
100 08.846 CAP; RUBBER,WATER PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 01 1 0810-1202
101 08.846 CLIP; CAP,WATER PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 01 1 0810-1202

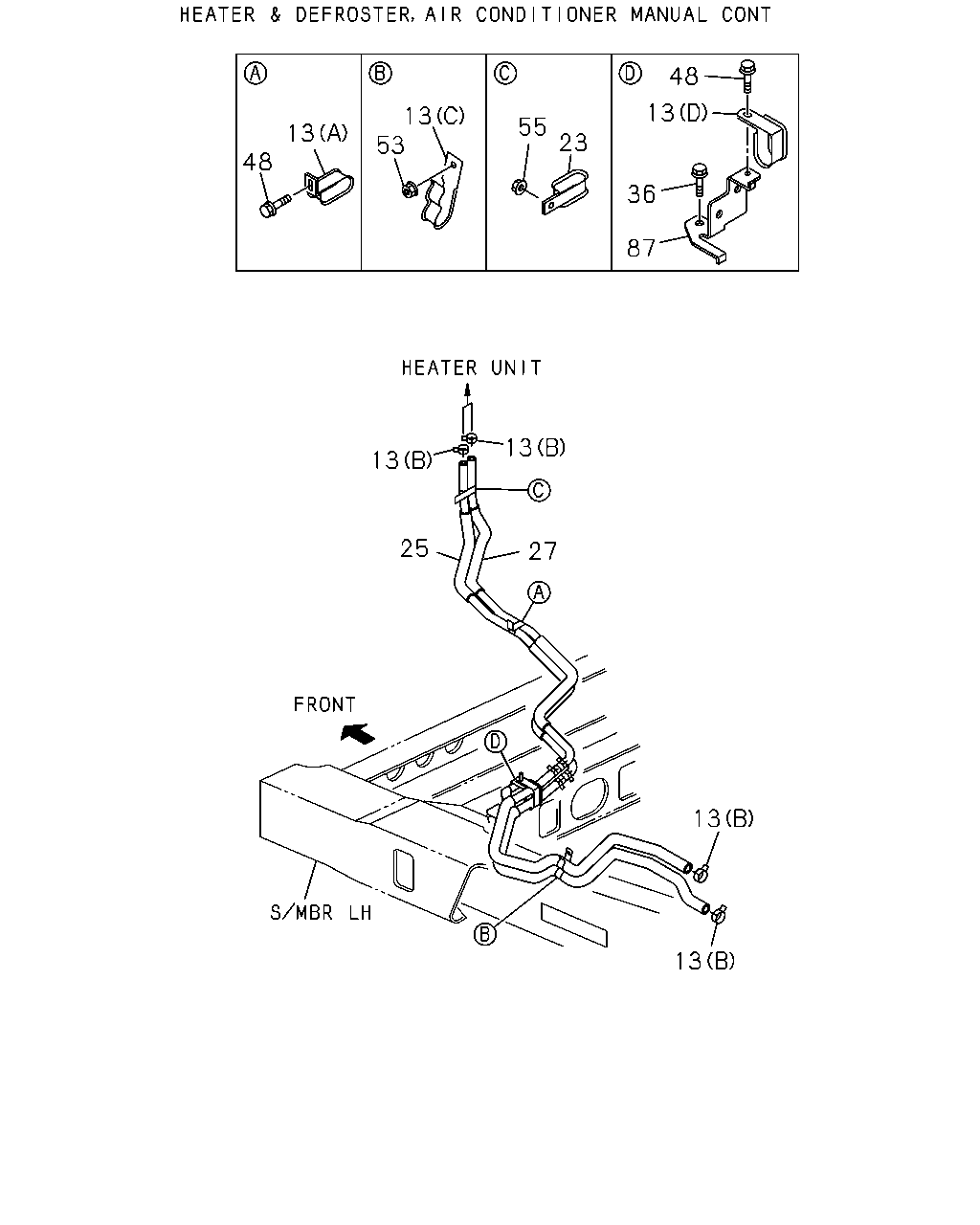

çizim 157872
48 13 13 53 55 13 23 48 36 87 13 13 25 27 13 13
BalonParca AdiParca NoAdetTipApplied Date
13 08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22 		8-97359-141-0 04 1 0810-
13 08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98029-677-0 01 1 0810-1308
13 08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14 		8-98029-678-0 01 1 0810-
13 08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98040-023-0 01 1 0810-
23 08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18 		8-97359-144-0 01 1 0810-1205
23 08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18 		8-98166-023-0 01 1 1206-
25 08.846 HOSE; WATER,ENG TO HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98115-487-0 01 1 0810-
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98100-096-1 01 1 0810-
36 08.846 BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810-
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0810-
53 08.845 NUT; HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0810-
55 08.845 NUT; CLAMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0810-
87 08.846 BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98009-465-3 01 1 0810-
