8-10 — WIRING HARNESS AND FUSE (#52045) — 98 parça

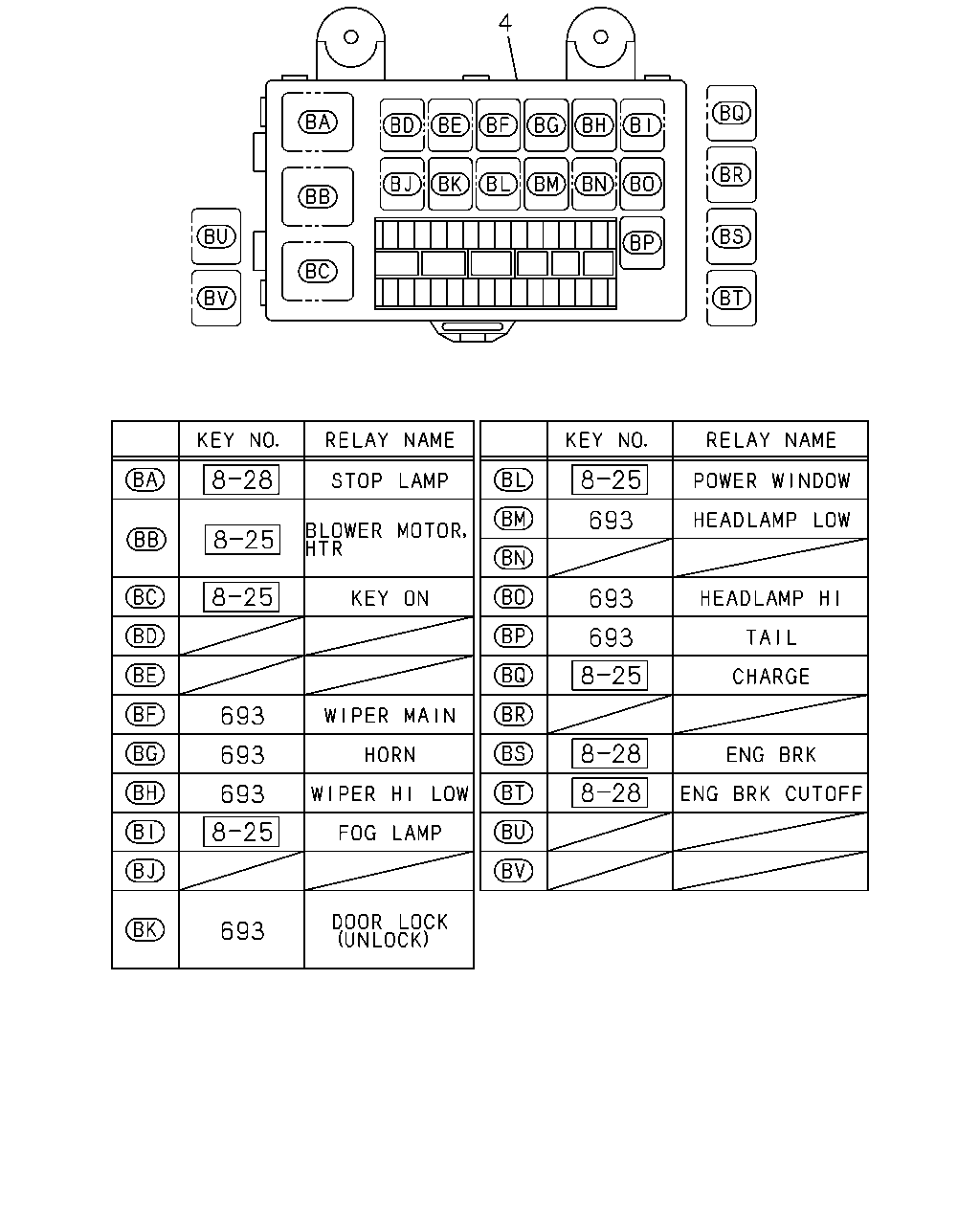

çizim 157838
4 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0810-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0810-

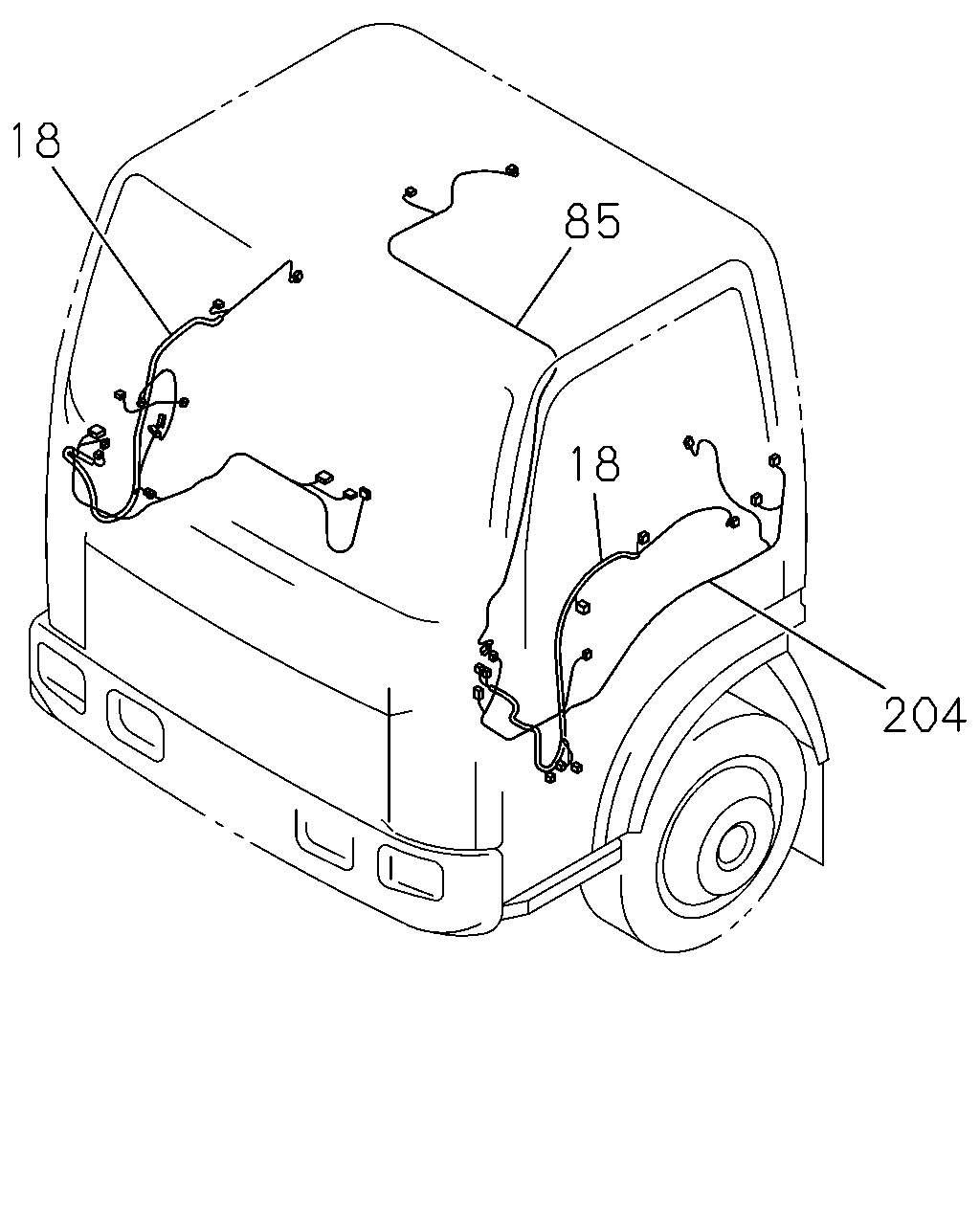

çizim 157844
204 18 85 18
BalonParca AdiParca NoAdetTipApplied Date
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> FRONT 		8-98046-746-5 01 1 0810-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> FRONT 		8-98077-596-3 01 1 0810-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> FRONT 		8-98071-076-2 01 1 0810-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> FRONT 		8-98071-084-3 01 1 0810-
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98046-744-2 01 1 0810-
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98046-749-2 01 1 0810-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> FRONT 		8-98071-075-2 01 1 0810-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> FRONT 		8-98071-083-2 01 1 0810-
85 06.495 HARNESS; ROOM LAMP 8-98049-963-3 01 1 0810-
204 02.559 HARNESS; CABLE,FLOOR 8-98070-787-4 01 1 0810-

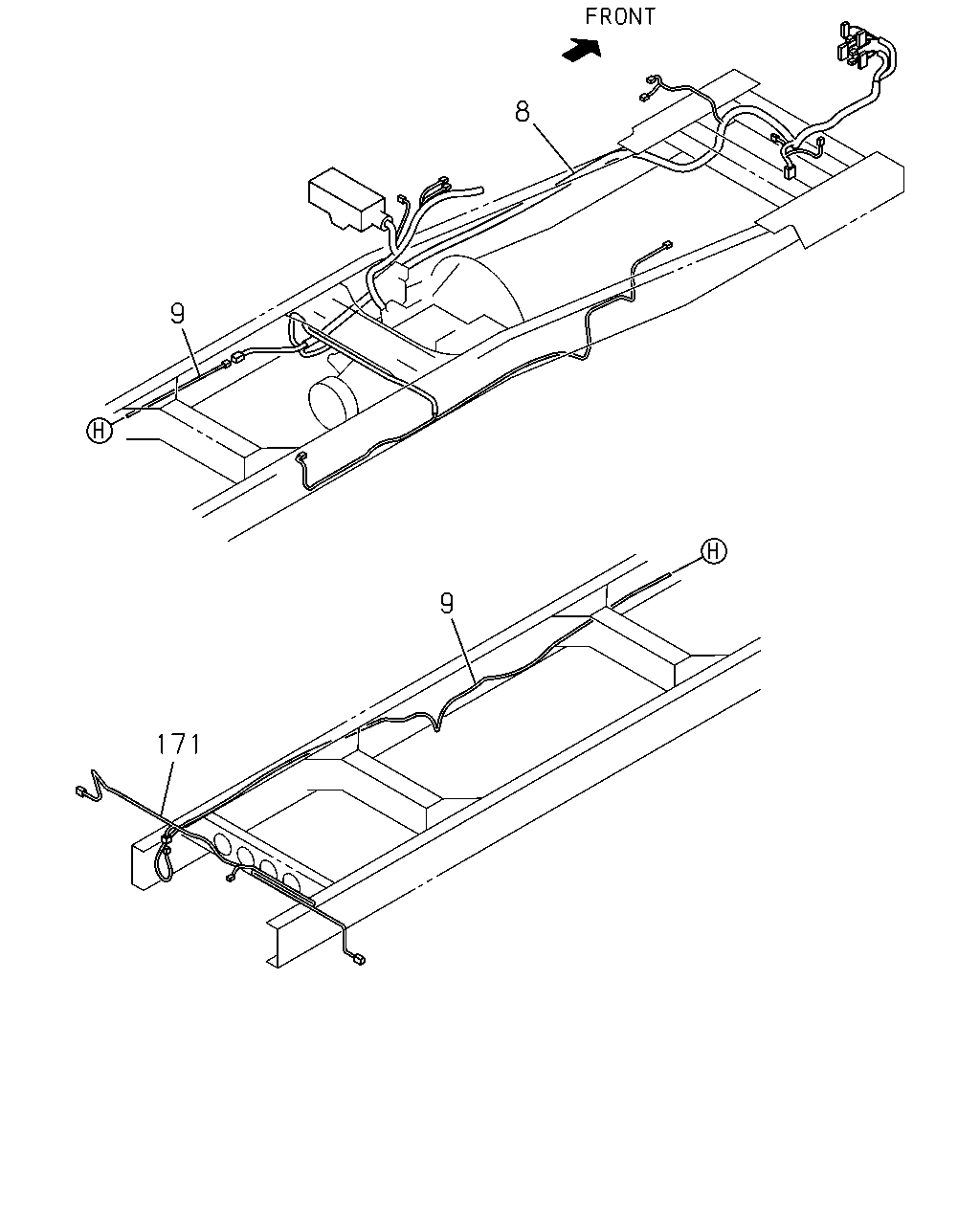

çizim 157845
9 171 9 8
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> 		8-98228-882-0 01 1 1302-1302
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> 		8-98228-883-0 01 1 1303-1309
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) 		8-98254-835-0 01 1 1310-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) 		8-98293-863-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> 		8-98228-883-0 01 1 1302-1302
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> 		8-98228-882-0 01 1 1303-1309
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) 		8-98254-823-0 01 1 1310-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) 		8-98293-862-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) 		8-98126-488-5 01 1 0810-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. HEAVY DUTY FRAME<6WB> 		8-98126-488-6 01 1 1302-1309
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) 		8-98106-297-6 01 1 0810-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> 		8-98106-297-7 01 1 1302-1309
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2400MM(24W) 		8-98048-412-2 01 1 0810-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 		8-98048-422-2 01 1 0810-
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98008-095-2 01 1 0810-0911
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 0912-

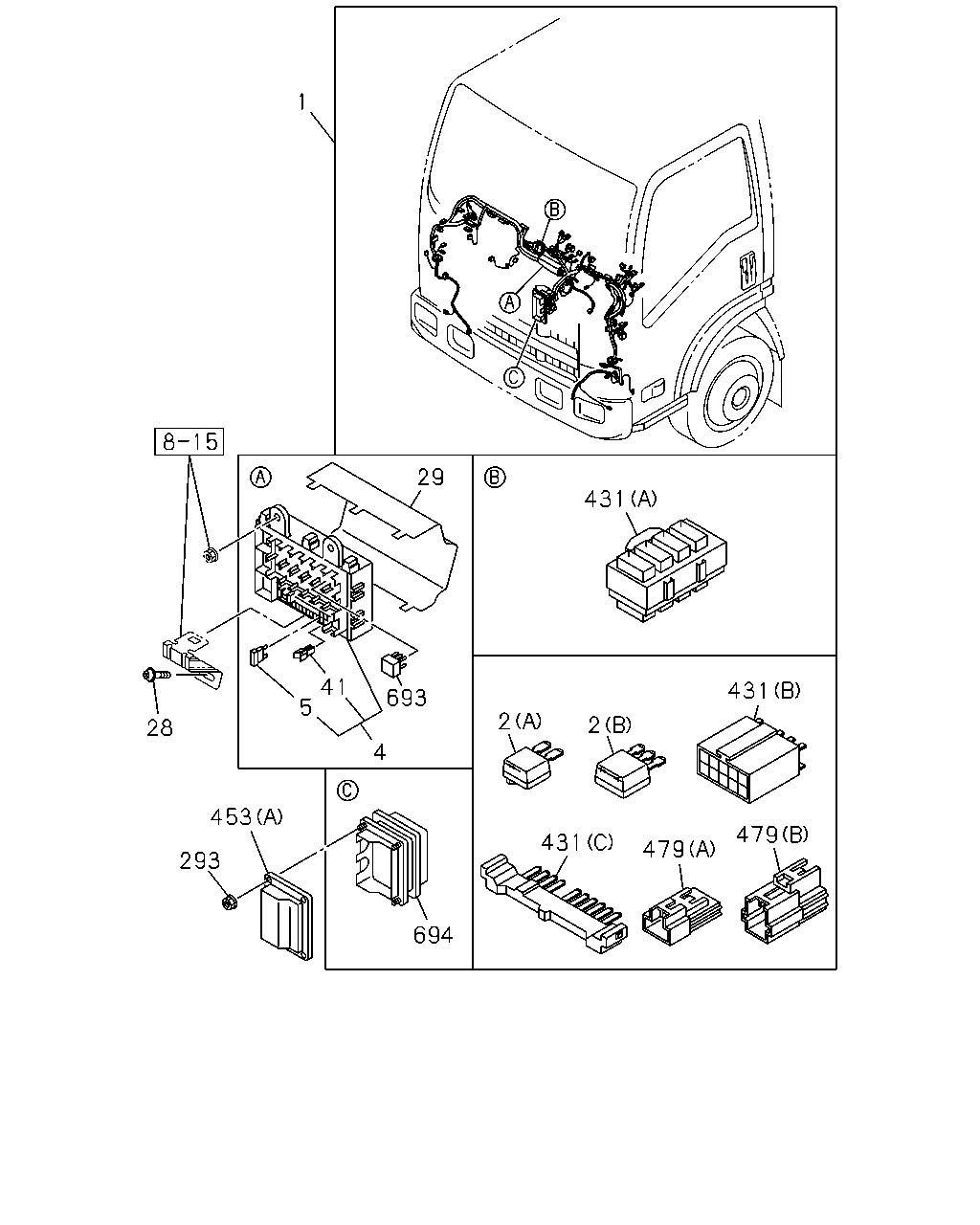

çizim 157847
1 29 431 41 5 431 693 2 2 28 4 453 479 431 479 293 694
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
INTERMITTENT WIPER<C13> EXC. FAST GLOW SYSTEM<KM6> 		8-98291-059-0 01 1 1504-
1 02.480 HARNESS; CAB
EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6> 		8-98298-771-0 01 1 1504-
1 02.480 HARNESS; CAB 8-98105-321-3 01 1 0810-1207
1 02.480 HARNESS; CAB 8-98210-940-0 01 1 1208-1503
1 02.480 HARNESS; CAB
FAST GLOW SYSTEM<KM6> 		8-98210-940-0 01 1 1504-
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0810-
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0810-
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0810-
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0810-
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0810-
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0810-
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0810-1101
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 0810-
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 0810-
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 0810-
431 02.530 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0810-1003
431 02.530 CONNECTOR; JOINT
(B) 10P 		8-97077-943-0 02 1 0810-1207
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-206-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(F) 		8-94482-169-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 03 1 0810-1301
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 04 1 1302-1409
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 03 1 1410-
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(A) 		8-98034-039-1 01 1 0810-
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 0810-
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 0810-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0810-
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 0810-

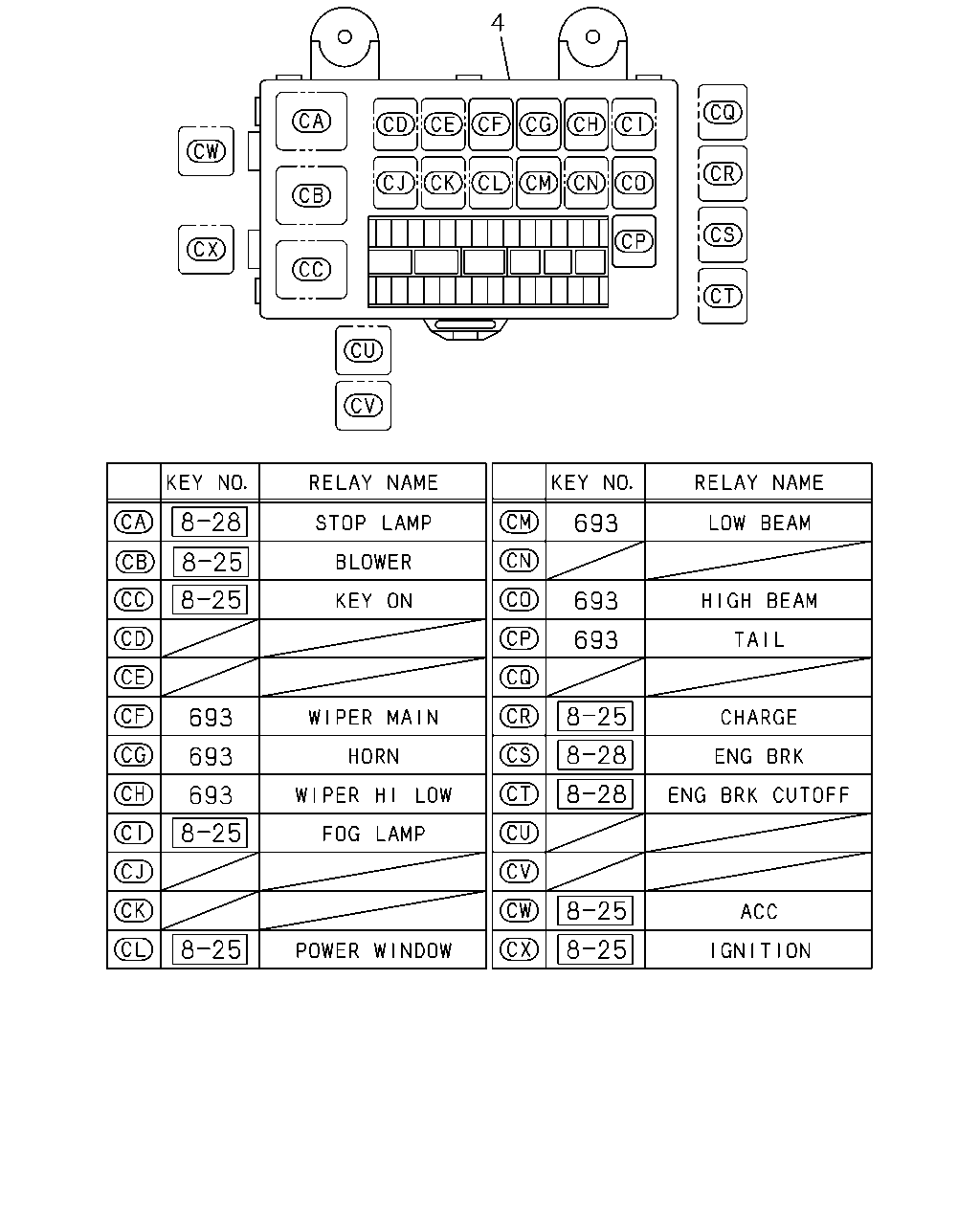

çizim 157849
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0810-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0810-

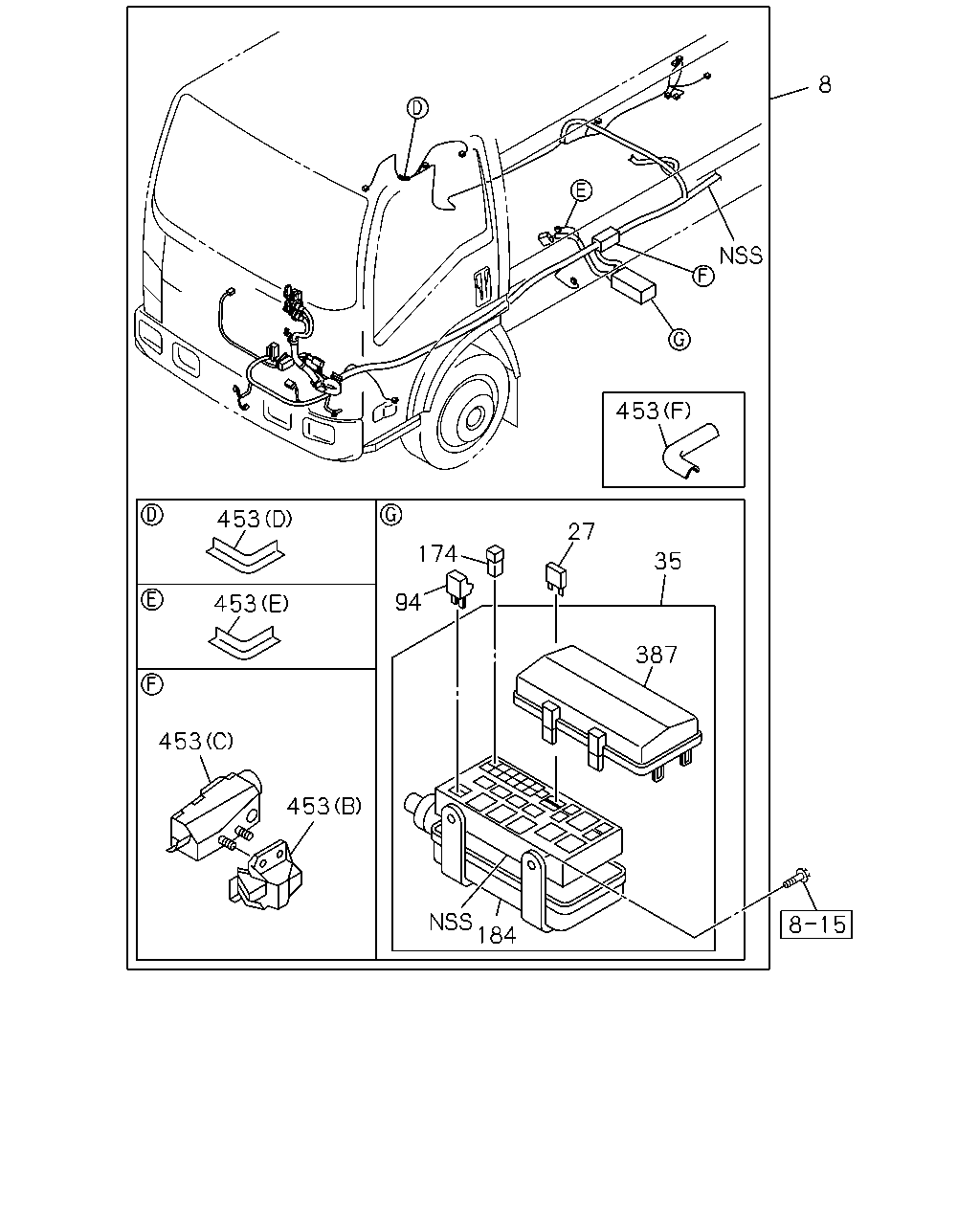

çizim 157851
8 453 35 27 174 94 387 184 453 453 453 453
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> 		8-98228-882-0 01 1 1302-1302
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> 		8-98228-883-0 01 1 1303-1309
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) 		8-98254-835-0 01 1 1310-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) 		8-98293-863-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> 		8-98228-883-0 01 1 1302-1302
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> 		8-98228-882-0 01 1 1303-1309
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) 		8-98254-823-0 01 1 1310-1409
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) 		8-98293-862-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) 		8-98126-488-5 01 1 0810-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. HEAVY DUTY FRAME<6WB> 		8-98126-488-6 01 1 1302-1309
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) 		8-98106-297-6 01 1 0810-1301
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> 		8-98106-297-7 01 1 1302-1309
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 0810-
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 0810-
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 0810-
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 0810-
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 0810-
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 0810-
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 0810-
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 0810-
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(F) 		8-94482-169-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 03 1 0810-1301
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 04 1 1302-1409
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 03 1 1410-
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 0810-
453 02.483 PROTECTOR; HARNESS
(A) 		8-98034-039-1 01 1 0810-

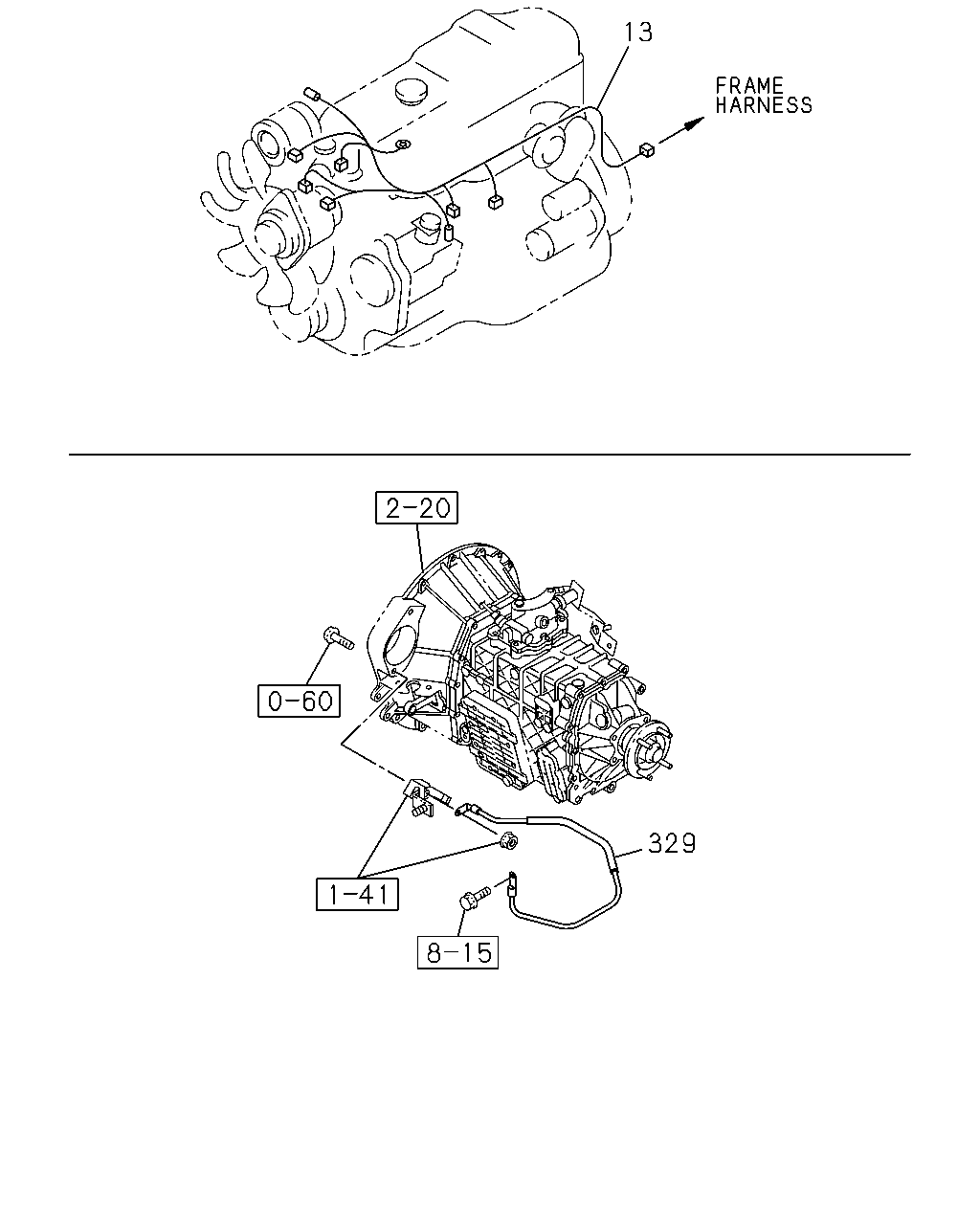

çizim 157854
13 329
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG 8-97356-988-1 01 1 0810-
329 02.480 CABLE; ENG TO FRAME
HEAVY DUTY FRAME<6WB> 		8-98174-803-0 01 1 1302-1309
329 02.480 CABLE; ENG TO FRAME 8-98174-803-0 01 1 1310-
329 02.480 CABLE; ENG TO FRAME 8-98124-724-0 01 1 0810-1106
329 02.480 CABLE; ENG TO FRAME 8-98140-006-0 01 1 1107-1301
329 02.480 CABLE; ENG TO FRAME
EXC. HEAVY DUTY FRAME<6WB> 		8-98140-006-0 01 1 1302-1309

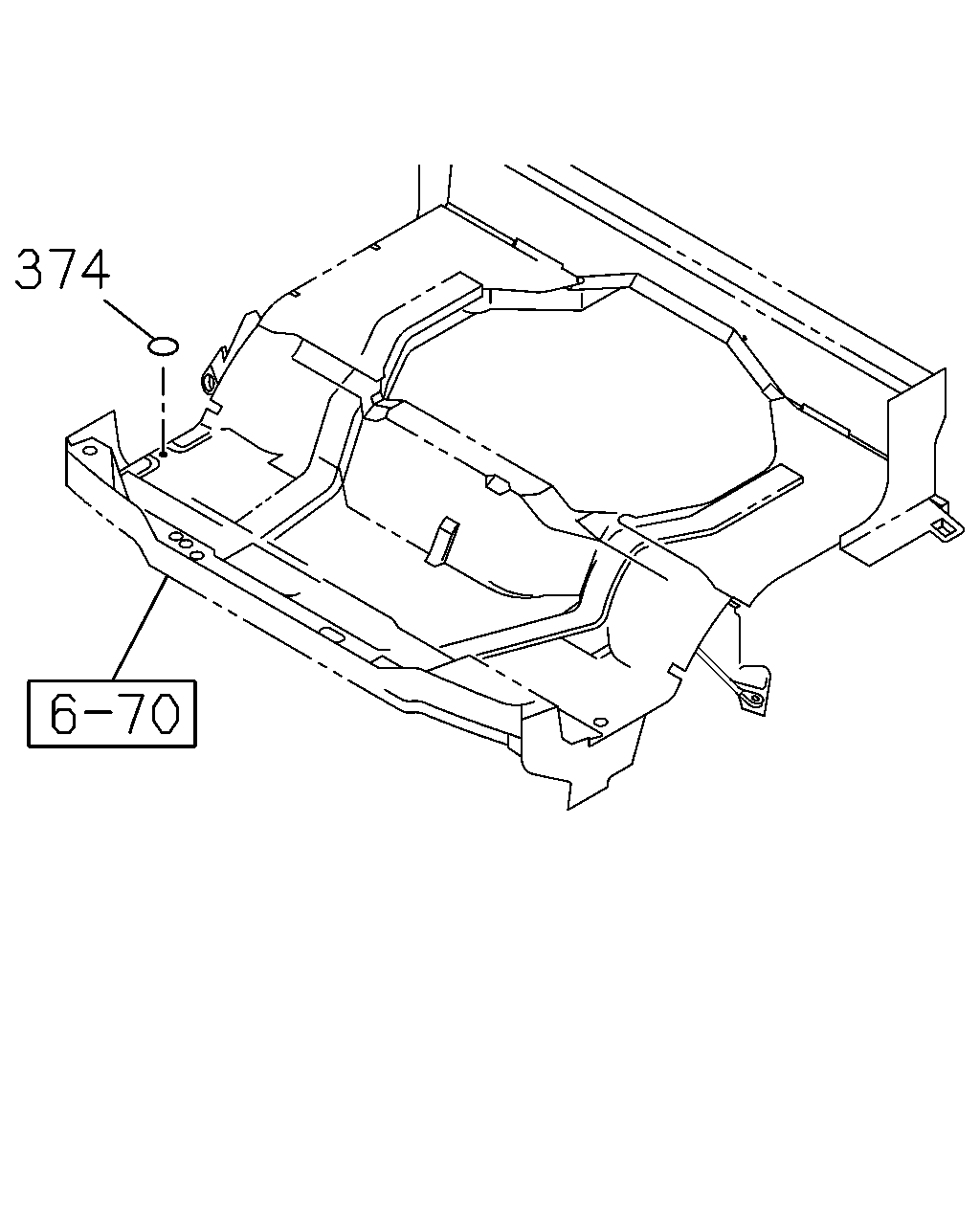

çizim 286542
374
BalonParca AdiParca NoAdetTipApplied Date
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 0810-
