7-50 — FRONT SEAT (#52040) — 78 parça

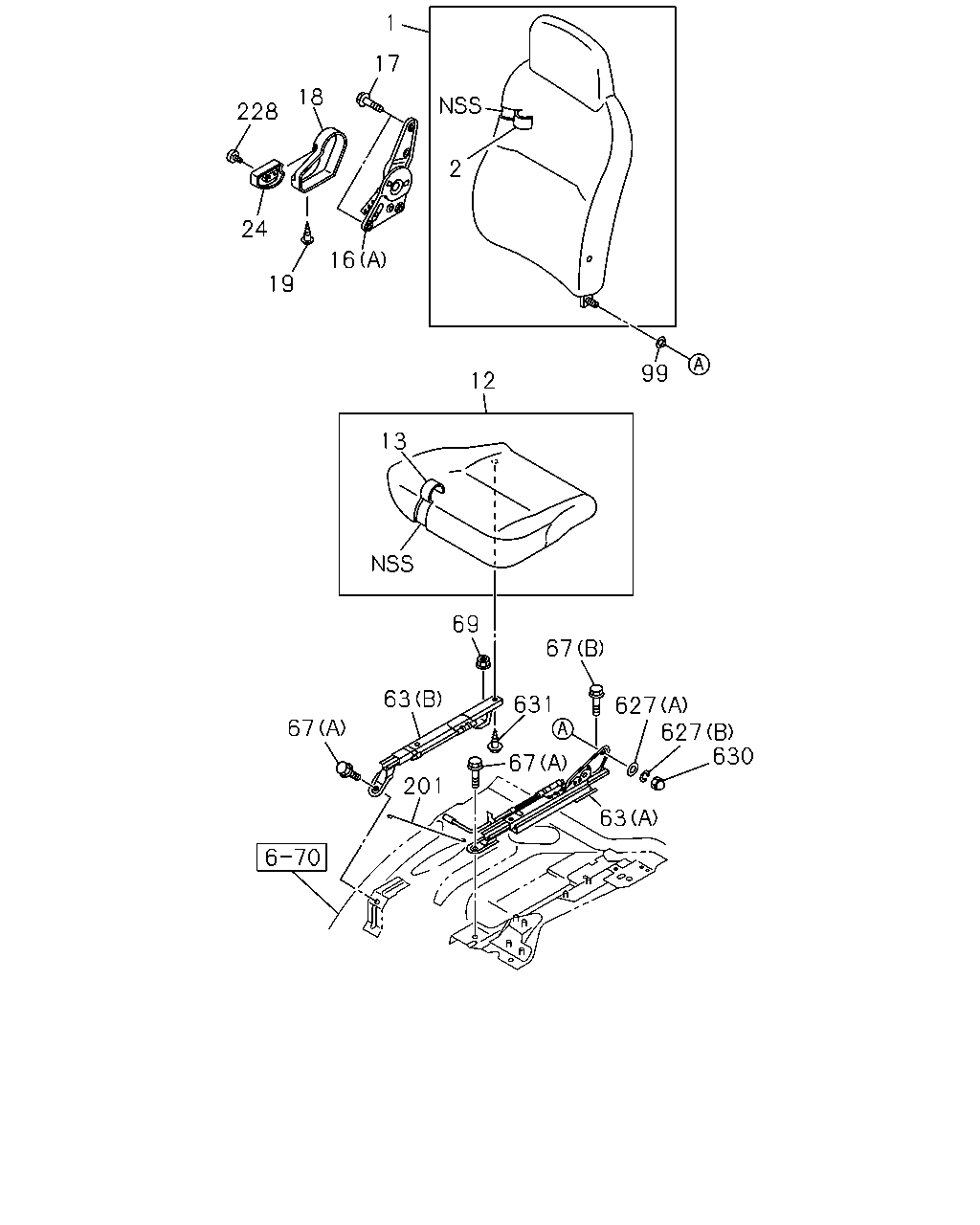

1 17 18 228 2 24 16 19 99 12 13 69 67 63 631 627 627 630 67 67 201 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-145-5	01	1	0810-1009
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-235-1	01	1	1010-
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-313-6	01	1	0810-1009
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-234-1	01	1	1010-
1	16.720 BACK ASM; SEAT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-142-7	01	1	0810-
1	16.720 BACK ASM; SEAT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-312-7	01	1	0810-
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-146-1	01	1	0810-1009
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-254-0	01	1	1010-
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-319-2	01	1	0810-1009
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-253-0	01	1	1010-
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-910-2	01	1	0810-
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-318-2	01	1	0810-
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-147-3	01	1	0810-0902
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97416-252-1	01	1	0903-1009
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-241-2	01	1	1010-
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-323-3	01	1	0810-0902
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97416-251-1	01	1	0903-1009
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-240-2	01	1	1010-
12	16.670 CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-143-4	01	1	0810-
12	16.670 CUSHION; SEAT,FRT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-322-4	01	1	0810-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-148-2	01	1	0810-0902
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97416-260-0	01	1	0903-1009
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-260-2	01	1	1010-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-329-3	01	1	0810-0902
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97416-259-0	01	1	0903-1009
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-259-2	01	1	1010-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-144-2	01	1	0810-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-328-2	01	1	0810-
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	0810-
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0810-
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0810-
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	0810-
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0810-
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	0810-
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-97382-800-2	01	1	0810-
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-97382-801-1	01	1	0810-
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0810-
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	0810-
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	0810-
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0810-
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0810-
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0810-
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0810-
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0810-
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0810-
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0810-
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0810-

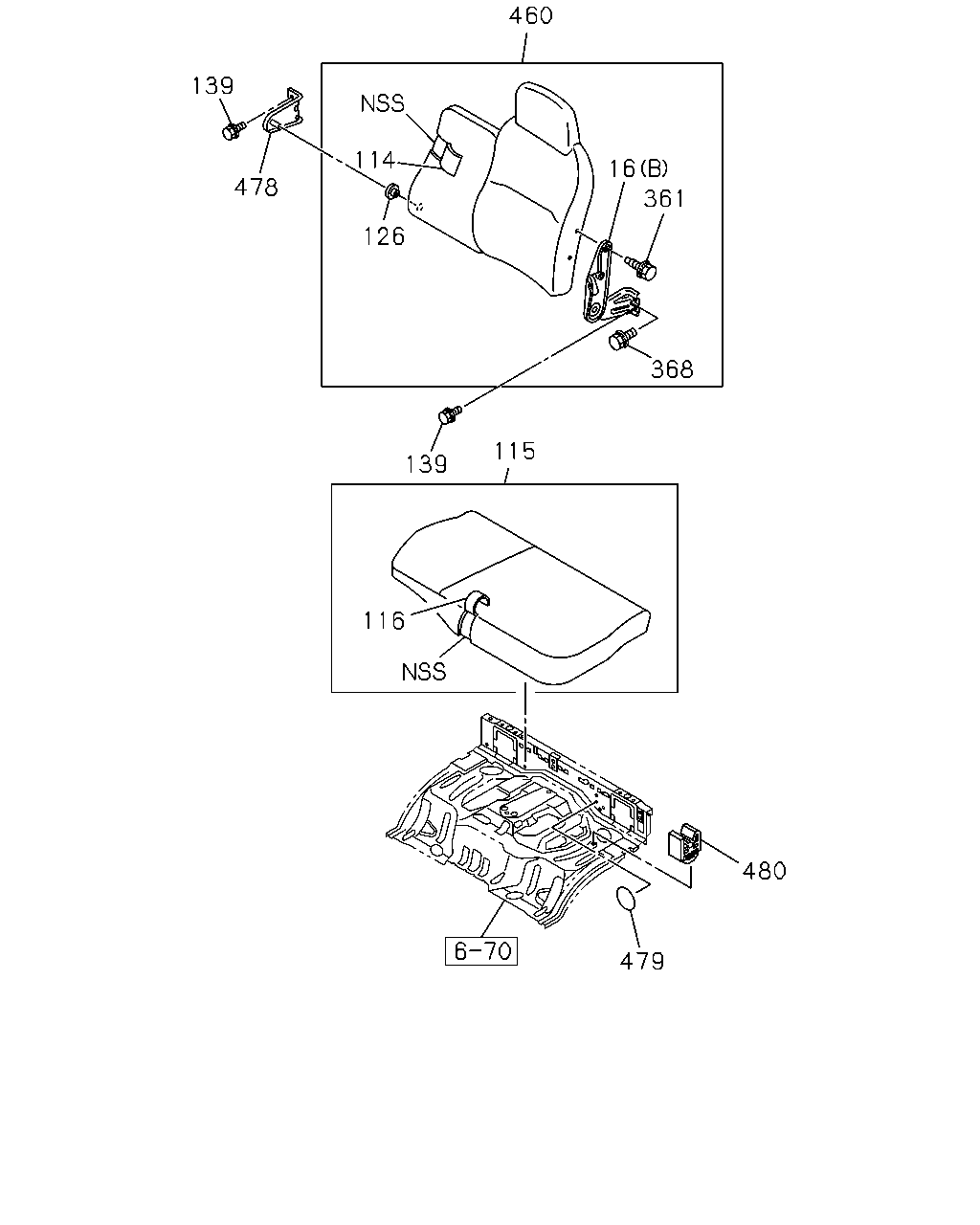

460 139 114 16 478 361 126 368 115 139 116 480 479

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	0810-
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0810-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97409-280-1	01	1	0810-0912
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97418-719-0	01	1	1001-1009
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-289-1	01	1	1010-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-279-1	01	1	0810-0912
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97418-718-0	01	1	1001-
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97406-353-4	01	1	0810-0902
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-270-0	01	1	0903-0912
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97418-704-0	01	1	1001-1009
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-316-2	01	1	1010-
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97406-352-4	01	1	0810-0912
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97418-703-1	01	1	1001-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> DARK GRAY	8-97409-302-2	01	1	0810-0902
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> DARK GRAY	8-97416-285-0	01	1	0903-0912
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> DARK GRAY	8-97418-733-0	01	1	1001-1009
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> DARK GRAY	8-97421-336-2	01	1	1010-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-301-2	01	1	0810-0912
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SEAT CLOTH<7FL> DARK GRAY	8-97418-732-1	01	1	1001-
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	01	1	0810-
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	03	1	0810-
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	0810-
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0810-
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97406-335-5	01	1	0810-0912
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97418-690-0	01	1	1001-1009
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-276-2	01	1	1010-
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97406-334-5	01	1	0810-0912
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97418-689-1	01	1	1001-
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-97868-186-0	01	1	0810-
479	16.716 PLUG; HINGE 16.165 OD=25 BLACK	1-76798-019-0	02	1	0810-
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	0810-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
