0-25 — INLET MANIFOLD (#5204) — 136 parça

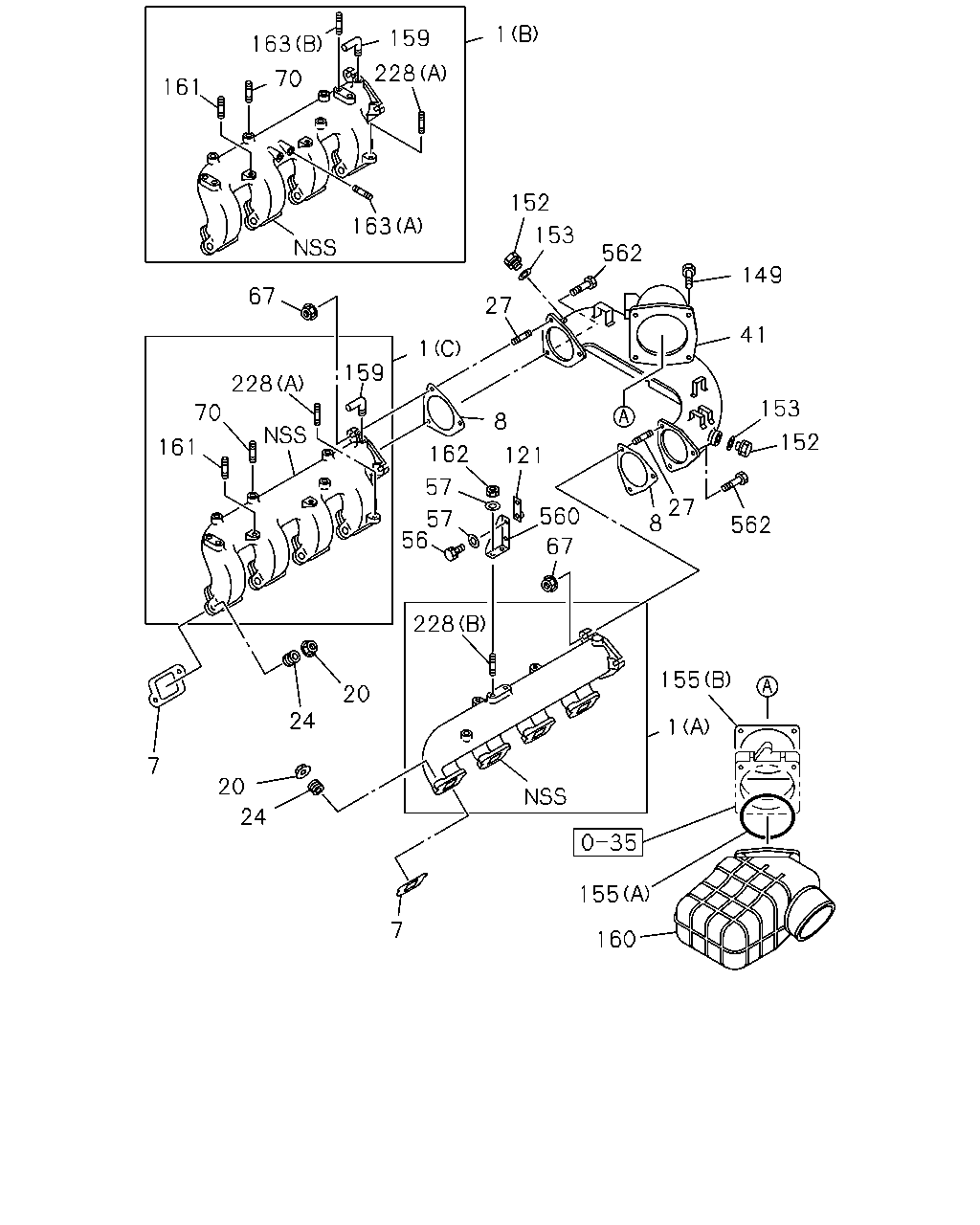

1 159 163 228 70 161 152 163 153 562 149 67 27 41 1 159 228 153 70 8 152 161 162 121 57 27 8 560 57 56 562 67 228 155 20 24 1 7 20 24 155 7 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL (A) LH BANK	1-14112-586-4	01	1	9604-	●
1	MANIFOLD; INL GOVERNOR CONTROL<W69> (B) RH BANK	1-14112-636-1	01	1	9604-9904	●
1	MANIFOLD; INL CONCRETE PUMP<RA5> (B) RH BANK	1-14112-636-1	01	1	9905-	●
1	MANIFOLD; INL EXC. GOVERNOR CONTROL<W69> (C) RH BANK	1-14112-585-1	01	1	9604-9904	●
1	MANIFOLD; INL EXC. CONCRETE PUMP<RA5> (C) RH BANK	1-14112-585-1	01	1	9905-	●
1	MANIFOLD; INL RH BANK	1-14112-583-1	01	1	9905-		●
1	MANIFOLD; INL LH BANK	1-14112-584-2	01	1	9905-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-026-0	08	1	9604-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-026-0	10	1	9905-		●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-078-0	02	1	9604-9904	●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-078-0	02	1	9905-	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	16	1	9604-	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	20	1	9905-		●
24	SPRING; INL MANIF	1-09580-156-0	16	1	9604-	●
24	SPRING; INL MANIF	1-09580-156-0	20	1	9905-		●
27	STUD; INL MANIF RH-2 PLACES,LH-1 PLACE M10X35 L=55	9-04311-035-0	03	1	9604-9904	●
27	STUD; INL MANIF M10X35 L=55	9-04311-035-0	03	1	9905-	●	●
41	DUCT; INT COVER	1-14134-101-4	01	1	9604-9605	●
41	DUCT; INT COVER	1-14134-203-2	01	1	9606-	●
41	DUCT; INT COVER	1-14134-204-2	01	1	9905-		●
56	BOLT; STAY AIR DUCT M10X20 W/LK&PL WASHER	0-50141-020-0	04	1	9604-9904	●
56	BOLT; STAY AIR DUCT M10X20 W/LK&PL WASHER	0-50141-020-0	04	1	9905-	●	●
57	WASHER; PL ID=10.5 OD=22	9-09160-610-0	02	1	9604-9904	●
57	WASHER; PL ID=10.5 OD=22	9-09160-610-0	02	1	9905-	●	●
57	WASHER; PL ID=10.5 OD=26	9-09160-710-0	04	1	9604-9904	●
57	WASHER; PL ID=10.5 OD=26	9-09160-710-0	04	1	9905-	●	●
67	NUT; INL DUCT M10 FLANGE	0-91150-110-0	03	1	9604-9904	●
67	NUT; INL DUCT M10 FLANGE	0-91150-110-0	03	1	9905-	●	●
70	STUD; WATER PIPE M8X16 L=28	9-04110-816-0	03	1	9604-	●
70	STUD; WATER PIPE M8X16 L=28	9-04110-816-0	02	1	9905-		●
121	BRACKET L=65	1-47476-513-0	01	1	9604-9904	●
121	BRACKET L=65	1-47476-513-0	01	1	9905-	●	●
149	BOLT; INT SHUTTER M10X60 FLANGE	0-28081-060-0	04	1	9604-9904	●
149	BOLT; INT SHUTTER M10X60 FLANGE	0-28081-060-0	04	1	9905-	●	●
152	PLUG; INT DUCT EXC. INTAKE HEATER<SL2> M22X12	1-09604-035-0	02	1	9604-9904	●
152	PLUG; INT DUCT EXC. INTAKE HEATER<SL2> M22X12	1-09604-035-0	02	1	9905-0001	●	●
152	PLUG; INT DUCT EXC. INTAKE HEATER<SL2>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M22X12	1-09604-035-0	02	1	0002-	●	●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INTAKE HEATER<SL2> ID=22.5	9-09571-422-0	02	1	9604-9904	●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INTAKE HEATER<SL2> ID=22.5	9-09571-422-0	02	1	9905-0001	●	●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INTAKE HEATER<SL2>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> ID=22.5	9-09571-422-0	02	1	0002-	●	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4	1-13213-012-0	01	1	9604-9904	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4	1-13213-012-0	01	1	9905-	●	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-14117-072-0	01	1	9604-9904	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-14117-072-0	01	1	9905-	●	●
159	PIPE; VENTILATOR	1-14119-381-0	01	1	9604-9904	●
159	PIPE; VENTILATOR	1-14119-381-0	01	1	9905-	●	●
160	DUCT; AIR	1-14134-139-4	01	1	9604-9904	●
160	DUCT; AIR	1-14134-139-4	01	1	9905-	●	●
161	STUD; BRKT,INJ PUMP GOVERNOR CONTROL<W69> M8X20 L=32	9-04110-820-0	02	1	9604-9904	●
161	STUD; BRKT,INJ PUMP M8X20 L=32	9-04110-820-0	04	1	9905-	●
161	STUD; BRKT,INJ PUMP EXC. CONCRETE PUMP<RA5> M8X20 L=32	9-04110-820-0	04	1	9905-	●
161	STUD; BRKT,INJ PUMP EXC. GOVERNOR CONTROL<W69> M8X20 L=32	9-04110-820-0	04	1	9604-9706	●
161	STUD; BRKT,INJ PUMP M8X20 L=32	9-04110-820-0	04	1	9707-9904	●
161	STUD; BRKT,INJ PUMP CONCRETE PUMP<RA5> M8X20 L=32	9-04110-820-0	02	1	9905-	●
161	STUD; BRKT,INJ PUMP M8X20 L=32	9-04110-820-0	08	1	9905-		●
162	NUT; STAY M10 FLANGE	0-91150-110-0	02	1	9604-9904	●
162	NUT; STAY M10 FLANGE	0-91150-110-0	02	1	9905-	●	●
163	STUD; BRKT,ENG SPD CONT GOVERNOR CONTROL<W69> (A) M10X16 L=31	9-04411-016-0	02	1	9604-9904	●
163	STUD; BRKT,ENG SPD CONT CONCRETE PUMP<RA5> (A) M10X16 L=31	9-04411-016-0	02	1	9905-	●
163	STUD; BRKT,ENG SPD CONT GOVERNOR CONTROL<W69> (B) M10X40 L=55	9-04411-040-0	03	1	9604-9904	●
163	STUD; BRKT,ENG SPD CONT CONCRETE PUMP<RA5> (B) M10X40 L=55	9-04411-040-0	03	1	9905-	●
163	STUD; BRKT,ENG SPD CONT M10X20 L=35	9-04411-020-0	02	1	9905-		●
228	STUD; INL COVER (A) M10X16 L=31	9-04411-016-0	01	1	9604-	●
228	STUD; INL COVER (B) M10X20 L=35	9-04411-020-0	02	1	9604-	●
560	BRACKET; AIR PIPE	1-14119-336-0	02	1	9604-9904	●
560	BRACKET; AIR PIPE	1-14119-336-0	02	1	9905-	●	●
562	BOLT; INL DUCT M10X40 FLANGE	0-28181-040-0	03	1	9604-9904	●
562	BOLT; INL DUCT M10X40 FLANGE	0-28181-040-0	03	1	9905-	●	●

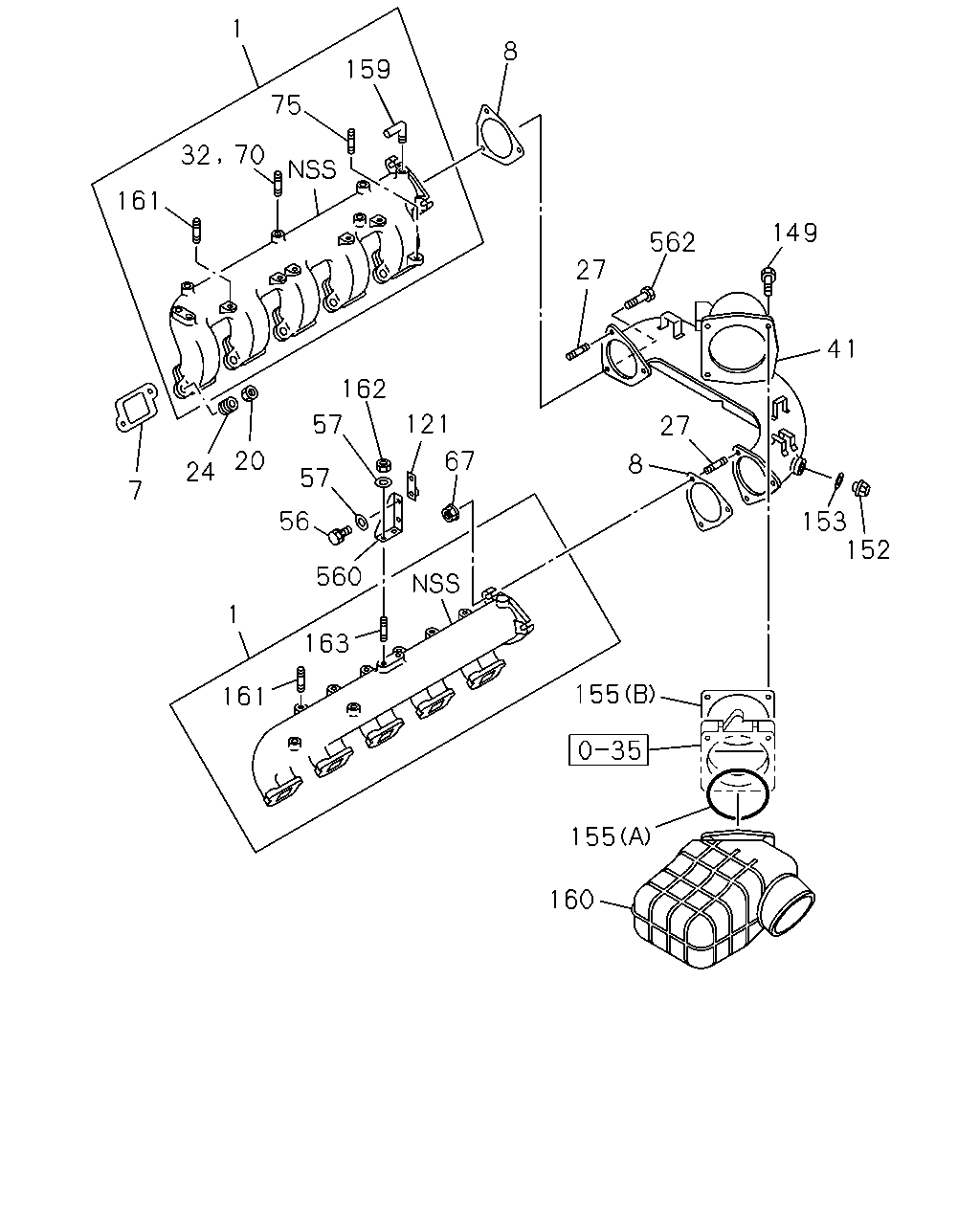

1 8 159 75 32 70 161 149 562 27 41 162 121 57 27 20 67 8 24 57 7 56 153 152 560 1 163 155 161 155 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL (A) LH BANK	1-14112-586-4	01	1	9604-	●
1	MANIFOLD; INL GOVERNOR CONTROL<W69> (B) RH BANK	1-14112-636-1	01	1	9604-9904	●
1	MANIFOLD; INL CONCRETE PUMP<RA5> (B) RH BANK	1-14112-636-1	01	1	9905-	●
1	MANIFOLD; INL EXC. GOVERNOR CONTROL<W69> (C) RH BANK	1-14112-585-1	01	1	9604-9904	●
1	MANIFOLD; INL EXC. CONCRETE PUMP<RA5> (C) RH BANK	1-14112-585-1	01	1	9905-	●
1	MANIFOLD; INL RH BANK	1-14112-583-1	01	1	9905-		●
1	MANIFOLD; INL LH BANK	1-14112-584-2	01	1	9905-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-026-0	08	1	9604-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-026-0	10	1	9905-		●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-078-0	02	1	9604-9904	●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-078-0	02	1	9905-	●	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	16	1	9604-	●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	20	1	9905-		●
24	SPRING; INL MANIF	1-09580-156-0	16	1	9604-	●
24	SPRING; INL MANIF	1-09580-156-0	20	1	9905-		●
27	STUD; INL MANIF RH-2 PLACES,LH-1 PLACE M10X35 L=55	9-04311-035-0	03	1	9604-9904	●
27	STUD; INL MANIF M10X35 L=55	9-04311-035-0	03	1	9905-	●	●
32	STUD; INL PIPE M8X16 L=28	9-04110-816-0	01	1	9905-		●
41	DUCT; INT COVER	1-14134-101-4	01	1	9604-9605	●
41	DUCT; INT COVER	1-14134-203-2	01	1	9606-	●
41	DUCT; INT COVER	1-14134-204-2	01	1	9905-		●
56	BOLT; STAY AIR DUCT M10X20 W/LK&PL WASHER	0-50141-020-0	04	1	9604-9904	●
56	BOLT; STAY AIR DUCT M10X20 W/LK&PL WASHER	0-50141-020-0	04	1	9905-	●	●
57	WASHER; PL ID=10.5 OD=22	9-09160-610-0	02	1	9604-9904	●
57	WASHER; PL ID=10.5 OD=22	9-09160-610-0	02	1	9905-	●	●
57	WASHER; PL ID=10.5 OD=26	9-09160-710-0	04	1	9604-9904	●
57	WASHER; PL ID=10.5 OD=26	9-09160-710-0	04	1	9905-	●	●
67	NUT; INL DUCT M10 FLANGE	0-91150-110-0	03	1	9604-9904	●
67	NUT; INL DUCT M10 FLANGE	0-91150-110-0	03	1	9905-	●	●
70	STUD; WATER PIPE M8X16 L=28	9-04110-816-0	03	1	9604-	●
70	STUD; WATER PIPE M8X16 L=28	9-04110-816-0	02	1	9905-		●
75	STUD; BRKT,AIR PIPE M10X16 L=31	9-04411-016-0	01	1	9905-		●
121	BRACKET L=65	1-47476-513-0	01	1	9604-9904	●
121	BRACKET L=65	1-47476-513-0	01	1	9905-	●	●
149	BOLT; INT SHUTTER M10X60 FLANGE	0-28081-060-0	04	1	9604-9904	●
149	BOLT; INT SHUTTER M10X60 FLANGE	0-28081-060-0	04	1	9905-	●	●
152	PLUG; INT DUCT EXC. INTAKE HEATER<SL2> M22X12	1-09604-035-0	02	1	9604-9904	●
152	PLUG; INT DUCT EXC. INTAKE HEATER<SL2> M22X12	1-09604-035-0	02	1	9905-0001	●	●
152	PLUG; INT DUCT EXC. INTAKE HEATER<SL2>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M22X12	1-09604-035-0	02	1	0002-	●	●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INTAKE HEATER<SL2> ID=22.5	9-09571-422-0	02	1	9604-9904	●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INTAKE HEATER<SL2> ID=22.5	9-09571-422-0	02	1	9905-0001	●	●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INTAKE HEATER<SL2>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> ID=22.5	9-09571-422-0	02	1	0002-	●	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4	1-13213-012-0	01	1	9604-9904	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4	1-13213-012-0	01	1	9905-	●	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-14117-072-0	01	1	9604-9904	●
155	GASKET; INL DUCT TO SHUTTER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-14117-072-0	01	1	9905-	●	●
159	PIPE; VENTILATOR	1-14119-381-0	01	1	9604-9904	●
159	PIPE; VENTILATOR	1-14119-381-0	01	1	9905-	●	●
160	DUCT; AIR	1-14134-139-4	01	1	9604-9904	●
160	DUCT; AIR	1-14134-139-4	01	1	9905-	●	●
161	STUD; BRKT,INJ PUMP GOVERNOR CONTROL<W69> M8X20 L=32	9-04110-820-0	02	1	9604-9904	●
161	STUD; BRKT,INJ PUMP M8X20 L=32	9-04110-820-0	04	1	9905-	●
161	STUD; BRKT,INJ PUMP EXC. CONCRETE PUMP<RA5> M8X20 L=32	9-04110-820-0	04	1	9905-	●
161	STUD; BRKT,INJ PUMP EXC. GOVERNOR CONTROL<W69> M8X20 L=32	9-04110-820-0	04	1	9604-9706	●
161	STUD; BRKT,INJ PUMP M8X20 L=32	9-04110-820-0	04	1	9707-9904	●
161	STUD; BRKT,INJ PUMP CONCRETE PUMP<RA5> M8X20 L=32	9-04110-820-0	02	1	9905-	●
161	STUD; BRKT,INJ PUMP M8X20 L=32	9-04110-820-0	08	1	9905-		●
162	NUT; STAY M10 FLANGE	0-91150-110-0	02	1	9604-9904	●
162	NUT; STAY M10 FLANGE	0-91150-110-0	02	1	9905-	●	●
163	STUD; BRKT,ENG SPD CONT GOVERNOR CONTROL<W69> (A) M10X16 L=31	9-04411-016-0	02	1	9604-9904	●
163	STUD; BRKT,ENG SPD CONT CONCRETE PUMP<RA5> (A) M10X16 L=31	9-04411-016-0	02	1	9905-	●
163	STUD; BRKT,ENG SPD CONT GOVERNOR CONTROL<W69> (B) M10X40 L=55	9-04411-040-0	03	1	9604-9904	●
163	STUD; BRKT,ENG SPD CONT CONCRETE PUMP<RA5> (B) M10X40 L=55	9-04411-040-0	03	1	9905-	●
163	STUD; BRKT,ENG SPD CONT M10X20 L=35	9-04411-020-0	02	1	9905-		●
560	BRACKET; AIR PIPE	1-14119-336-0	02	1	9604-9904	●
560	BRACKET; AIR PIPE	1-14119-336-0	02	1	9905-	●	●
562	BOLT; INL DUCT M10X40 FLANGE	0-28181-040-0	03	1	9604-9904	●
562	BOLT; INL DUCT M10X40 FLANGE	0-28181-040-0	03	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
