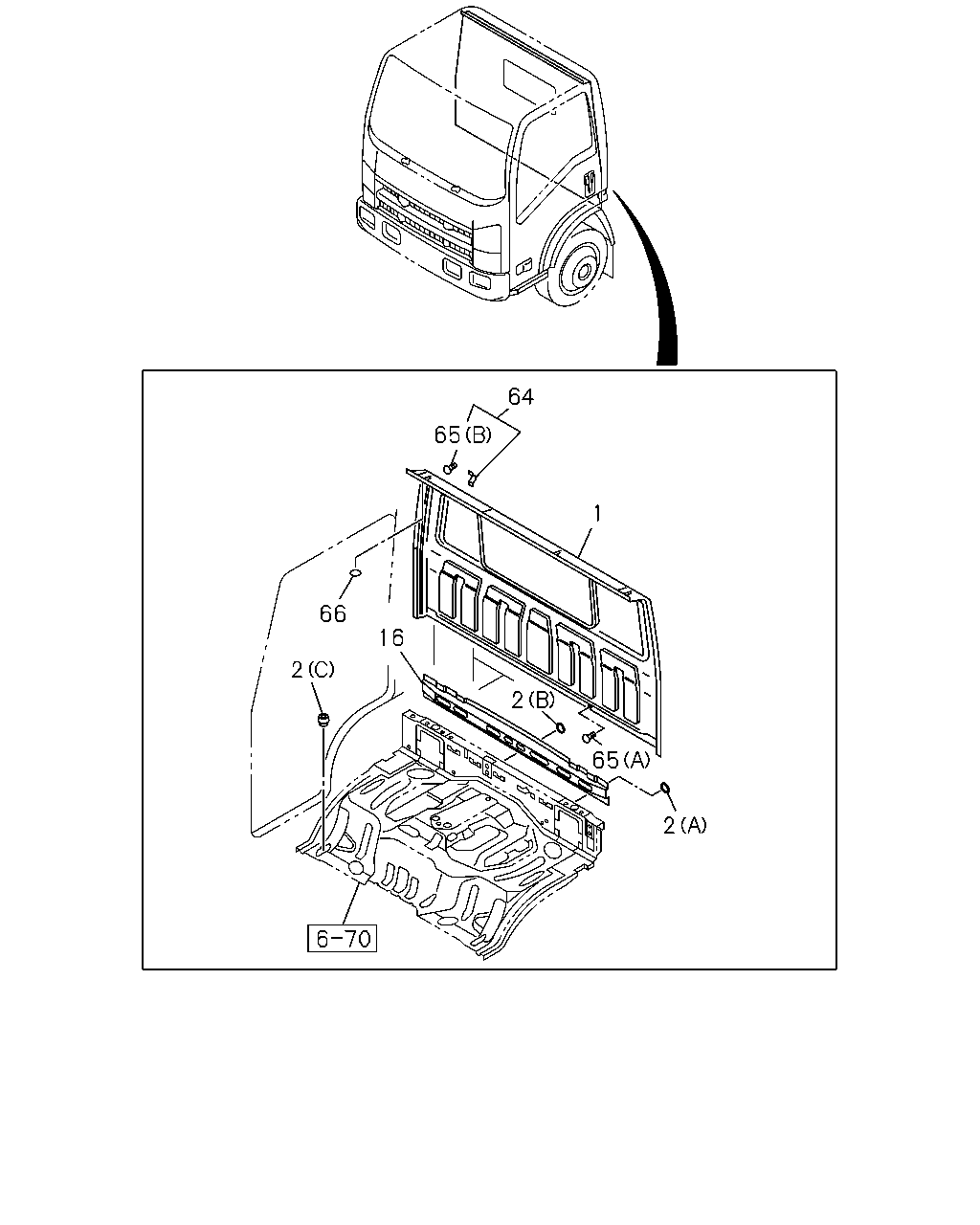

1 |
16.587 PANEL; BACK OUTER
WINDOW RR<8LF>
|
8-97584-300-3 |
01 |
1 |
0810- |
| |
1 |
16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF>
|
8-97584-303-4 |
01 |
1 |
0810- |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165
(A)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
0810- |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547
(C)
OD=12.1
|
8-97898-423-0 |
04 |
1 |
0810- |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545
(B)
OD=32 BLACK
|
8-98031-126-0 |
02 |
1 |
0810- |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545
(B)
OD=32 BLACK
|
8-98031-126-0 |
06 |
1 |
0810- |
| |
16 |
16.575 REINFORCEMENT; BACK OUTER PNL
EXC. WINDOW RR<8LF>
|
8-98313-204-0 |
01 |
1 |
1505- |
| |
16 |
16.575 REINFORCEMENT; BACK OUTER PNL
|
8-97584-607-3 |
01 |
1 |
0810-1504 |
| |
16 |
16.575 REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF>
|
8-97584-607-3 |
01 |
1 |
1505- |
| |
64 |
16.587 BRACKET; AIR INTAKE DUCT
16.570
|
8-97584-611-1 |
01 |
1 |
0810- |
| |
65 |
17.198 STUD; BACK PANEL
(A)
|
8-94389-701-0 |
01 |
1 |
0810- |
| |
65 |
17.198 STUD; BACK PANEL
16.588
(B)
M6X12
|
8-98013-112-0 |
04 |
1 |
0810-1001 |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729)
COAT HOOK<S9M>
16.570
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
03 |
1 |
0810-0903 |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR
ARCWHITE(729)
COAT HOOK<S9M>
16.570
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
03 |
1 |
0904- |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729)
EXC. COAT HOOK<S9M>
16.570
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
04 |
1 |
0810-0903 |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR
ARCWHITE(729)
EXC. COAT HOOK<S9M>
16.570
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
04 |
1 |
0904- |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR QUICK SILVER MET(998),BODY
COLOR TRANS BLUE(999)
COAT HOOK<S9M>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
03 |
1 |
0810-0810 |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS
BLUE(999)
COAT HOOK<S9M>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
03 |
1 |
0811-0903 |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL
GRAY(517),BODY COLOR PURPLISH BLUE(668),
BODY COLOR GERANIUM RED(681),BODY COLOR DARK
BLUE(695),BODY COLOR CARDINAL RED(736),BO
DY COLOR WOODLAND GREEN(807),BODY COLOR
WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIG
E(829),BODY COLOR MARINE BLUE(890),BODY
COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT
GREEN(989),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
COAT HOOK<S9M>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
03 |
1 |
0904- |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR QUICK SILVER MET(998),BODY
COLOR TRANS BLUE(999)
EXC. COAT HOOK<S9M>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
04 |
1 |
0810-0810 |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS
BLUE(999)
EXC. COAT HOOK<S9M>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
04 |
1 |
0811-0903 |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL
GRAY(517),BODY COLOR PURPLISH BLUE(668),
BODY COLOR GERANIUM RED(681),BODY COLOR DARK
BLUE(695),BODY COLOR CARDINAL RED(736),BO
DY COLOR WOODLAND GREEN(807),BODY COLOR
WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIG
E(829),BODY COLOR MARINE BLUE(890),BODY
COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT
GREEN(989),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
EXC. COAT HOOK<S9M>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
04 |
1 |
0904- |
