◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51184 - NMR71-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#52014) — 79 parça

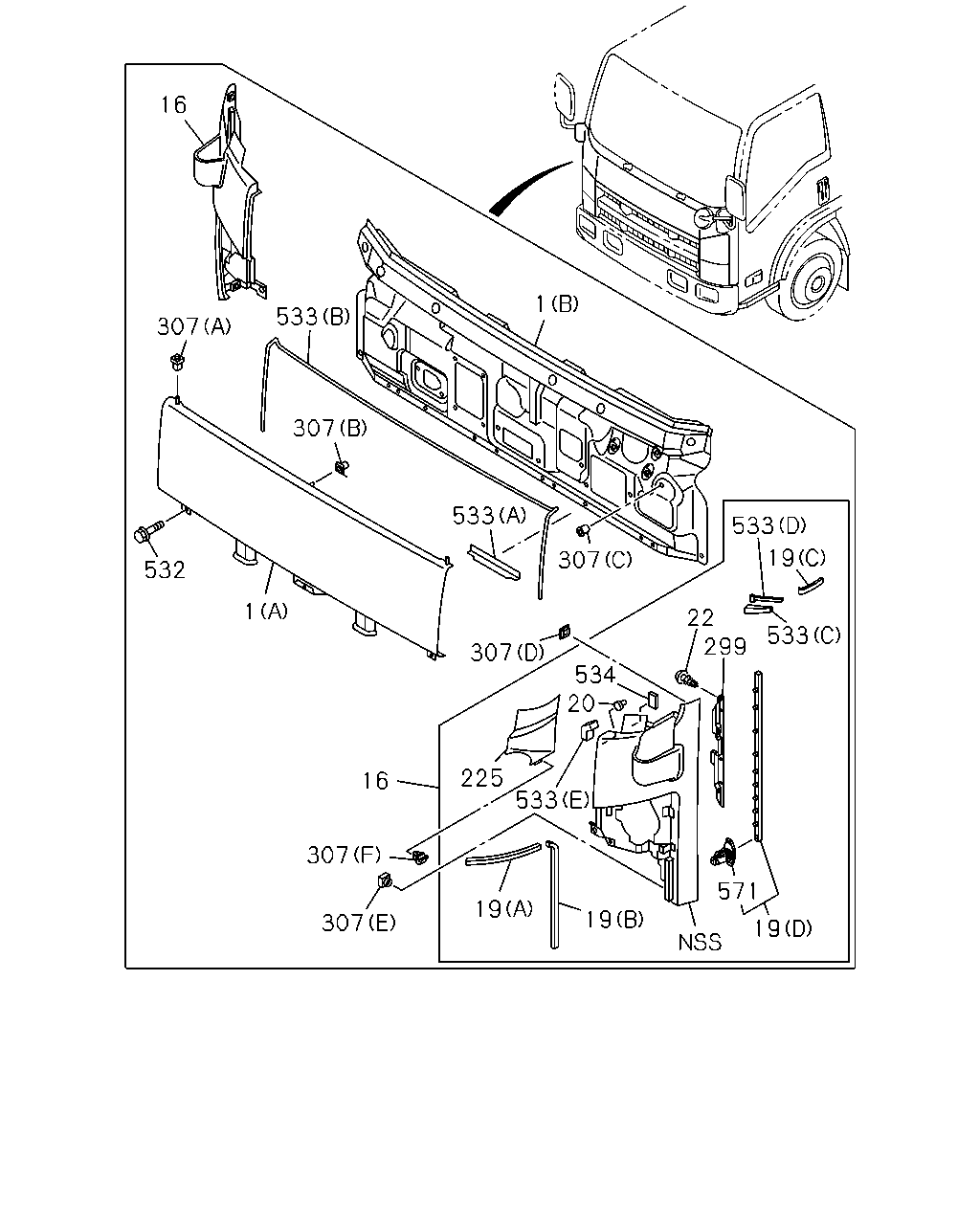

çizim 157840
16 1 533 307 307 533 533 307 19 532 1 22 299 533 307 534 20 225 16 533 307 571 19 19 307 19
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 0810-
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98049-844-5 01 1 0810-1103
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98186-849-0 01 1 1104-
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98021-581-5 01 1 0810-1103
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-848-0 01 1 1104-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-315-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-316-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-096-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-107-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-105-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-116-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-097-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-108-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-579-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-588-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-098-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-109-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-099-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-110-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-100-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-111-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-101-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-112-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-102-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-113-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-104-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-115-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-106-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-117-8 01 1 0904-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 0811-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-114-8 01 1 0811-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-621-8 01 1 0810-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-625-8 01 1 0810-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-619-8 01 1 0810-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-623-8 01 1 0810-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 0810-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-624-8 01 1 0810-
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 0810-
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 0810-
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 0810-
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 0810-
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 0810-
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 0810-
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0810-
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 0810-
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 0810-
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 0810-
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 0810-
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 0810-
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 0810-
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 0810-
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 0810-
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 0810-
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 0810-
307 16.125 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 0810-
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 0810-
533 08.143 SEAL; FRT PANEL
(A) 		8-98021-003-1 01 1 0810-
533 08.143 SEAL; FRT PANEL
(B) 		8-98030-961-4 01 1 0810-1506
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-763-0 01 1 1507-
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 0810-
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 0810-
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 0810-
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 0810-
534 16.550 FASTENER
20X30 		8-98059-208-1 02 1 0810-
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 20 1 0810-

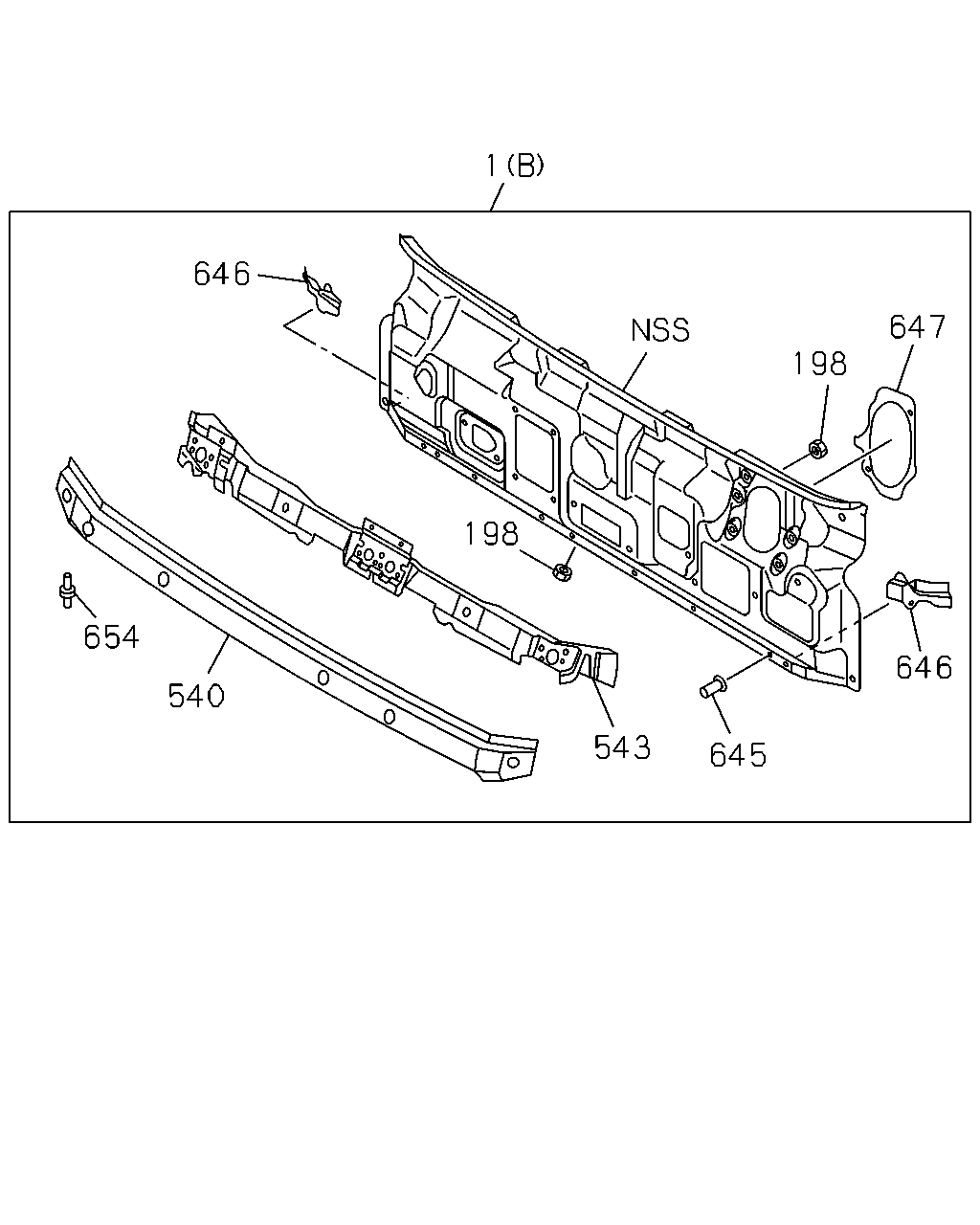

çizim 158053
1 646 647 198 198 654 646 540 543 645
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 0810-
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98049-844-5 01 1 0810-1103
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98186-849-0 01 1 1104-
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98021-581-5 01 1 0810-1103
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-848-0 01 1 1104-
198 16.125 NUT; PANEL
PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 08 1 0810-
198 16.125 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 0810-
540 16.588 PANEL; FRONT,OUTER 8-97585-962-3 01 1 0810-
543 16.570 CLOSING; FRT MTG RAIL 8-97585-988-2 01 1 0810-
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 0810-
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 0810-
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 0810-
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 0810-
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 0810-
