Isuzu WW
▶
TRUCKS
▶
NMR
▶
51184 - NMR71-RHD
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

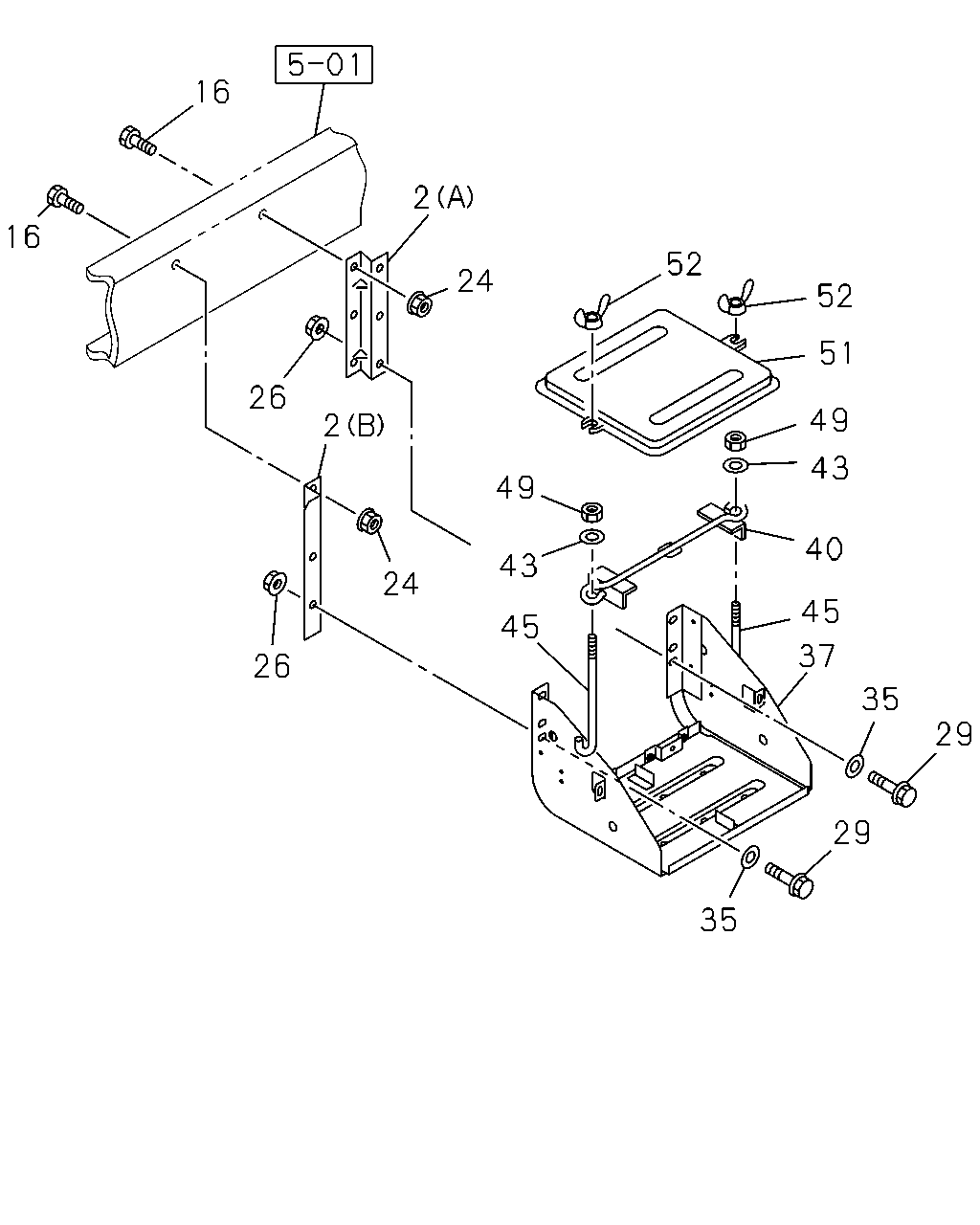

5-20 — BATTERY CARRIER
(#52009) — 17 parça
16
2
16
52
24
52
51
26
49
2
43
49
40
43
24
45
45
37
26
35
29
29
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
02.333 BRACKET; BATTERY
WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> (A)
8-97384-069-1
01
1
0810-
2
02.333 BRACKET; BATTERY
WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> (B)
8-97384-070-1
01
1
0810-
16
02.334 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE
0-28661-035-0
04
1
0810-0912
16
02.334 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 02.277 M10X35 FLANGE
0-28651-035-0
04
1
1001-
24
02.334 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 04.085 M10 FLANGE
0-91180-210-0
01
1
0810-0912
24
02.334 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 03.162 M10 FLANGE
0-91180-110-0
01
1
1001-
26
02.334 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
04
1
0810-
29
02.334 BOLT; BRKT TO FRAME
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE
0-28661-035-0
04
1
0810-
35
02.334 WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 04.046 ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0810-
37
02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1>
8-97384-067-2
01
1
0810-
37
02.333 BRACKET; BATTERY
BATTERY 75D23L<8LZ>
8-97384-068-2
01
1
0810-
40
02.335 CLAMP; BATTERY
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ>
5-53615-004-1
01
1
0810-
43
02.334 WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22
0-91614-708-0
02
1
0810-
45
02.334 ROD; TENSION,BATTERY
L=120
9-53616-615-0
02
1
0810-
49
02.334 NUT; ROD,BATTERY
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 01.062 M8 FLANGE
0-91180-108-0
02
1
0810-
51
02.335 COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ>
8-97120-747-0
01
1
0810-
52
02.335 NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> M8 WING NUT
0-91118-408-0
02
1
0810-
