5-01 — FRAME AND OTHER PARTS (#52006) — 82 parça

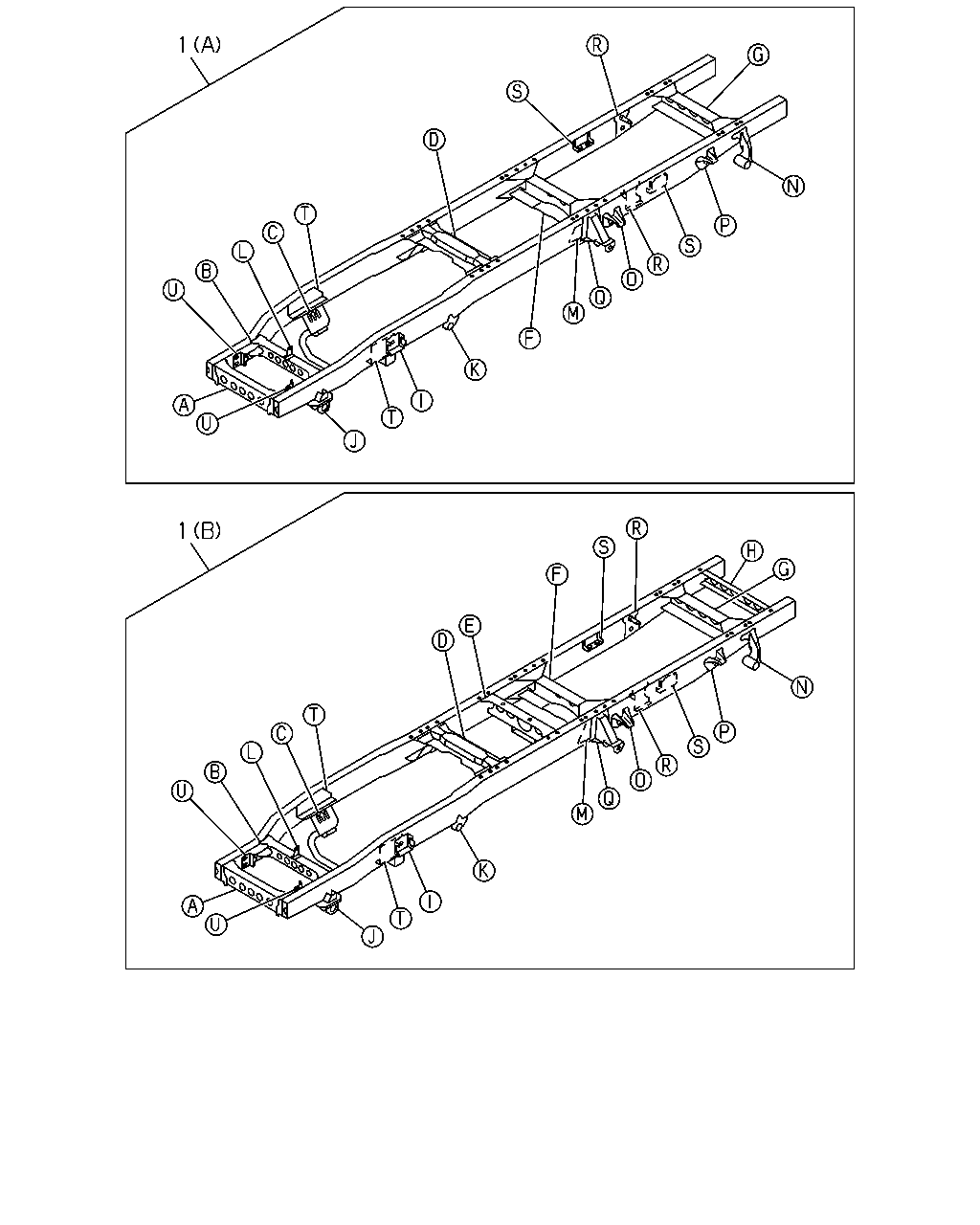

çizim 157799
1 1
BalonParca AdiParca NoAdetTipApplied Date
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> (A) 		8-98226-467-0 01 1 1302-1309
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) (A) 		8-98255-006-1 01 1 1310-
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (B) 		8-98226-468-0 01 1 1302-1309
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) (B) 		8-98255-007-1 01 1 1310-
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) (A) 		8-98105-286-2 01 1 0810-1301
1 07.003 FRAME ASM
WHEEL BASE 2400MM(24W) EXC. HEAVY DUTY FRAME<6WB> (A) 		8-98105-286-2 01 1 1302-1309
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) (B) 		8-98105-288-1 01 1 0810-1301
1 07.003 FRAME ASM
WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (B) 		8-98105-288-1 01 1 1302-1309
çizim 158028
376 376 376 376 376 376 376 376 376 376 376 376 376 376 40 60 176 176 118 62 67
BalonParca AdiParca NoAdetTipApplied Date
40 08.155 BOLT; BRKT TO FRAME
HEAVY DUTY FRAME<6WB> 04.338 M8X20 FLANGE 		0-28050-820-0 02 1 1302-1309
40 08.155 BOLT; BRKT TO FRAME
04.338 M8X20 FLANGE 		0-28050-820-0 02 1 1310-
60 05.601 BOLT; MBR
07.039 M10X30 		0-20851-030-0 04 1 0810-
62 05.601 NUT; MBR
04.085 M10 FLANGE 		0-91180-210-0 04 1 0810-
67 07.011 NUT; C/MBR
04.085 M10 FLANGE 		0-91180-210-0 04 1 0810-
118 07.529 NUT; STOPPER
M8 LOCK NUT 		0-91370-008-0 02 1 0810-
176 04.085 BOLT; C/MBR,ENG MTG
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> 03.890 (B) M10X30 FLANGE 		0-28051-030-0 06 1 1302-1309
176 04.085 BOLT; C/MBR,ENG MTG
WHEEL BASE 2400MM(24W) 03.890 (B) M10X30 FLANGE 		0-28051-030-0 06 1 1310-
176 04.085 BOLT; C/MBR,ENG MTG
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 02 1 1302-1309
176 04.085 BOLT; C/MBR,ENG MTG
WHEEL BASE 2400MM(24W) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 02 1 1310-
176 04.085 BOLT; C/MBR,ENG MTG
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> 07.395 (A) M10X35 FLANGE 		0-28061-035-0 02 1 1302-1309
176 04.085 BOLT; C/MBR,ENG MTG
WHEEL BASE 3300MM(33W) 07.395 (A) M10X35 FLANGE 		0-28061-035-0 02 1 1310-
176 04.085 BOLT; C/MBR,ENG MTG
EXC. HEAVY DUTY FRAME<6WB> (B) M10X30 FLANGE 		0-28061-030-0 08 1 1302-1309
176 04.085 BOLT; C/MBR,ENG MTG
(B) M10X30 FLANGE 		0-28061-030-0 08 1 0810-1301
176 04.085 BOLT; C/MBR,ENG MTG
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (B) M10X30 FLANGE 		0-28061-030-0 06 1 1302-1309
176 04.085 BOLT; C/MBR,ENG MTG
WHEEL BASE 3300MM(33W) (B) M10X30 FLANGE 		0-28061-030-0 06 1 1310-
376 07.039 RIVET; FRAME
07.011 (A) D8X22 TAPER END 		9-06750-822-0 AR 1 0810-
376 07.039 RIVET; FRAME
07.395 (B) D8X26 TAPER END 		9-06750-826-0 AR 1 0810-
376 07.039 RIVET; FRAME
(C) D10X22 TAPER END 		9-06751-022-0 AR 1 0810-
376 07.039 RIVET; FRAME
(D) D10X24 TAPER END 		9-06751-024-0 AR 1 0810-
376 07.039 RIVET; FRAME
(E) D10X26 TAPER END 		9-06751-026-0 AR 1 0810-
376 07.039 RIVET; FRAME
(F) D10X28 TAPER END 		9-06751-028-0 AR 1 0810-
376 07.039 RIVET; FRAME
(G) D10X30 TAPER END 		9-06751-030-0 AR 1 0810-
376 07.039 RIVET; FRAME
(H) D10X32 TAPER END 		9-06751-032-0 AR 1 0810-
376 07.039 RIVET; FRAME
(I) M10X34 TAPER END 		9-06751-034-0 AR 1 0810-
376 07.039 RIVET; FRAME
(J) D10X36 TAPER END 		9-06751-036-0 AR 1 0810-
376 07.039 RIVET; FRAME
07.105 (K) D12X30 TAPER END 		9-06751-230-0 AR 1 0810-
376 07.039 RIVET; FRAME
07.006 (L) D12X32 TAPER END 		9-06751-232-0 AR 1 0810-
376 07.039 RIVET; FRAME
07.535 (M) D12X34 TAPER END 		9-06751-234-0 AR 1 0810-
376 07.039 RIVET; FRAME
07.428 (N) D12X36 TAPER END 		9-06751-236-0 AR 1 0810-
çizim 158034
345 75 198 75 198 130 139 24 51 165 39
BalonParca AdiParca NoAdetTipApplied Date
24 07.105 BRACKET; FRT SPR,FRT 8-98029-126-0 01 1 0810-
24 07.105 BRACKET; FRT SPR,FRT 8-98029-127-0 01 1 0810-
39 07.112 BRACKET; FRT SPR,RR 8-94258-091-0 02 1 0810-
51 07.011 BRACKET; ENG SUPPORT,OUTER 8-98092-751-0 01 1 0810-
51 07.011 BRACKET; ENG SUPPORT,OUTER 8-98092-753-0 01 1 0810-
75 07.039 GUSSET; 5TH C/MBR 8-98011-863-0 04 1 0810-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W) 		8-98041-239-1 01 1 0810-
139 07.012 MEMBER; CROSS,6TH 8-97384-745-0 01 1 0810-
165 01.270 BRACKET; RAD STAY 8-98000-886-0 01 1 0810-
198 07.039 GUSSET; 6TH C/MBR
RH-LOWER & LH-UPPER 		8-94258-068-1 02 1 0810-
198 07.039 GUSSET; 6TH C/MBR
RH-UPPER & LH-LOWER 		8-94258-069-1 02 1 0810-
345 07.012 MEMBER; CROSS,5TH 8-98011-861-2 01 1 0810-
çizim 158036
173 173 215 105 215 103 147 446 103 147 101 140 140 217 356 356 533 533
BalonParca AdiParca NoAdetTipApplied Date

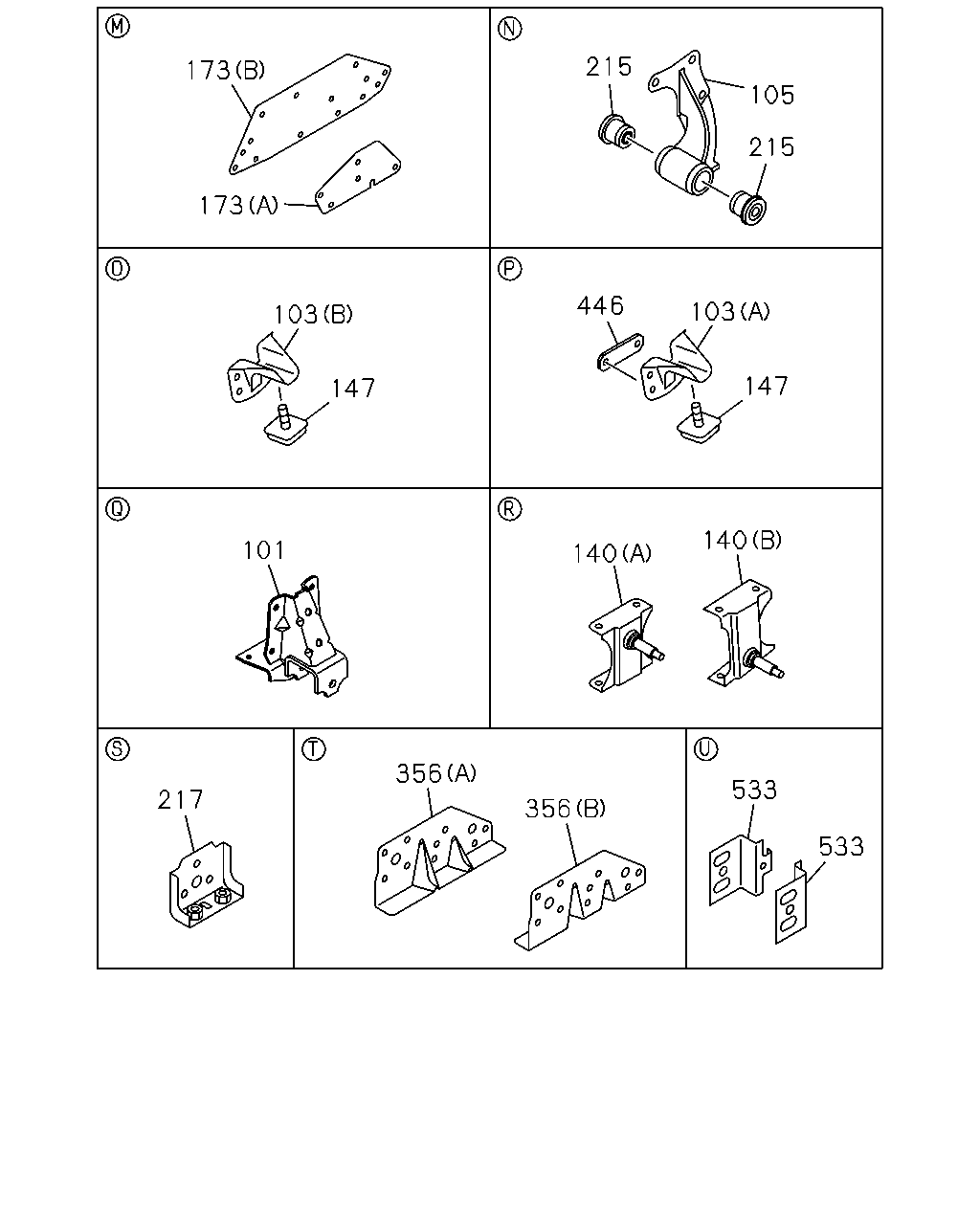

101 07.112 BRACKET; RR SPR,FRT 8-97034-156-1 02 1 0810-1309
101 07.112 BRACKET; RR SPR,FRT 8-98243-604-0 02 1 1310-
103 07.420 STOPPER; SUB SPR
(B) 		8-97223-748-0 02 1 0810-
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-750-0 02 1 0810-
105 07.112 BRACKET; RR SPR,RR 8-98032-488-0 01 1 0810-
105 07.112 BRACKET; RR SPR,RR 8-98032-489-0 01 1 0810-
140 07.112 BRACKET; S/ABS,RR
(B) 		8-98006-176-0 01 1 0810-
140 07.112 BRACKET; S/ABS,RR
(A) 		8-98006-180-0 01 1 0810-
147 07.535 RUBBER; SUB SPRING 8-97254-387-0 04 1 0810-
173 07.112 STIFFENER; RR SPRING
(B) 		8-98012-947-3 02 1 0810-
173 07.112 STIFFENER; RR SPRING
(A) 		8-98012-948-2 02 1 0810-
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 0810-
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-97202-417-0 02 1 0810-
356 07.011 BRACKET; ENG SUPPORT,INNER
(A) 		8-98062-610-1 01 1 0810-1301
356 07.011 BRACKET; ENG SUPPORT,INNER
EXC. HEAVY DUTY FRAME<6WB> (A) 		8-98062-610-1 01 1 1302-1309
356 07.011 BRACKET; ENG SUPPORT,INNER
(B) 		8-98062-611-1 01 1 0810-1301
356 07.011 BRACKET; ENG SUPPORT,INNER
EXC. HEAVY DUTY FRAME<6WB> (B) 		8-98062-611-1 01 1 1302-1309
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 3300MM(33W) 		8-98060-184-1 01 1 0810-
533 07.010 STIFFENER; REINFORCEMENT 8-98006-680-1 02 1 1310-
çizim 158051
148 2 148 20 534 534 42 34 344 188
BalonParca AdiParca NoAdetTipApplied Date

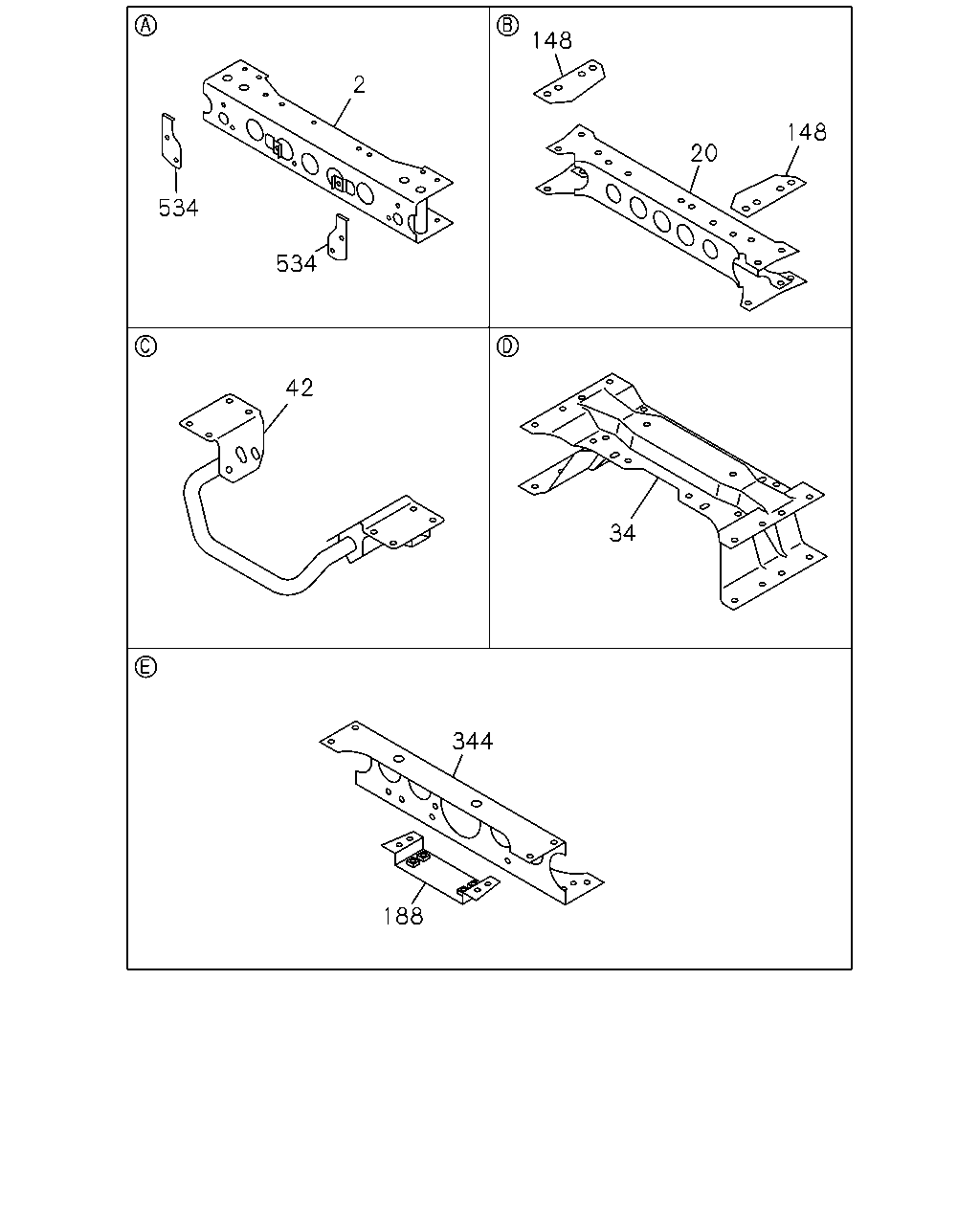

2 07.010 MEMBER; CROSS,1ST 8-97384-741-5 01 1 0810-
20 07.012 MEMBER; CROSS,2ND 8-98088-281-1 01 1 0810-
34 07.012 MEMBER; CROSS,3RD
HEAVY DUTY FRAME<6WB> 		8-97384-743-1 01 1 1302-1309
34 07.012 MEMBER; CROSS,3RD 8-97384-743-1 01 1 1310-
34 07.012 MEMBER; CROSS,3RD 8-98081-959-0 01 1 0810-1301
34 07.012 MEMBER; CROSS,3RD
EXC. HEAVY DUTY FRAME<6WB> 		8-98081-959-0 01 1 1302-1309
42 07.011 MEMBER; CROSS,ENG MTG 8-98092-533-0 01 1 0810-
148 07.105 SPACER; C/MBR 8-98081-958-0 04 1 0810-1301
148 07.105 SPACER; C/MBR
EXC. HEAVY DUTY FRAME<6WB> 		8-98081-958-0 04 1 1302-1309
188 07.039 BRACKET; SUPPORT,CTR BRG
WHEEL BASE 3300MM(33W) 		8-97083-157-1 01 1 0810-
344 07.012 MEMBER; CROSS,4TH
WHEEL BASE 3300MM(33W) 		8-98005-959-1 01 1 0810-
534 07.869 BRACKET; BACK BAR 8-98061-413-0 01 1 0810-
534 07.869 BRACKET; BACK BAR 8-98061-414-0 01 1 0810-
