◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51184 - NMR71-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#52004) — 19 parça

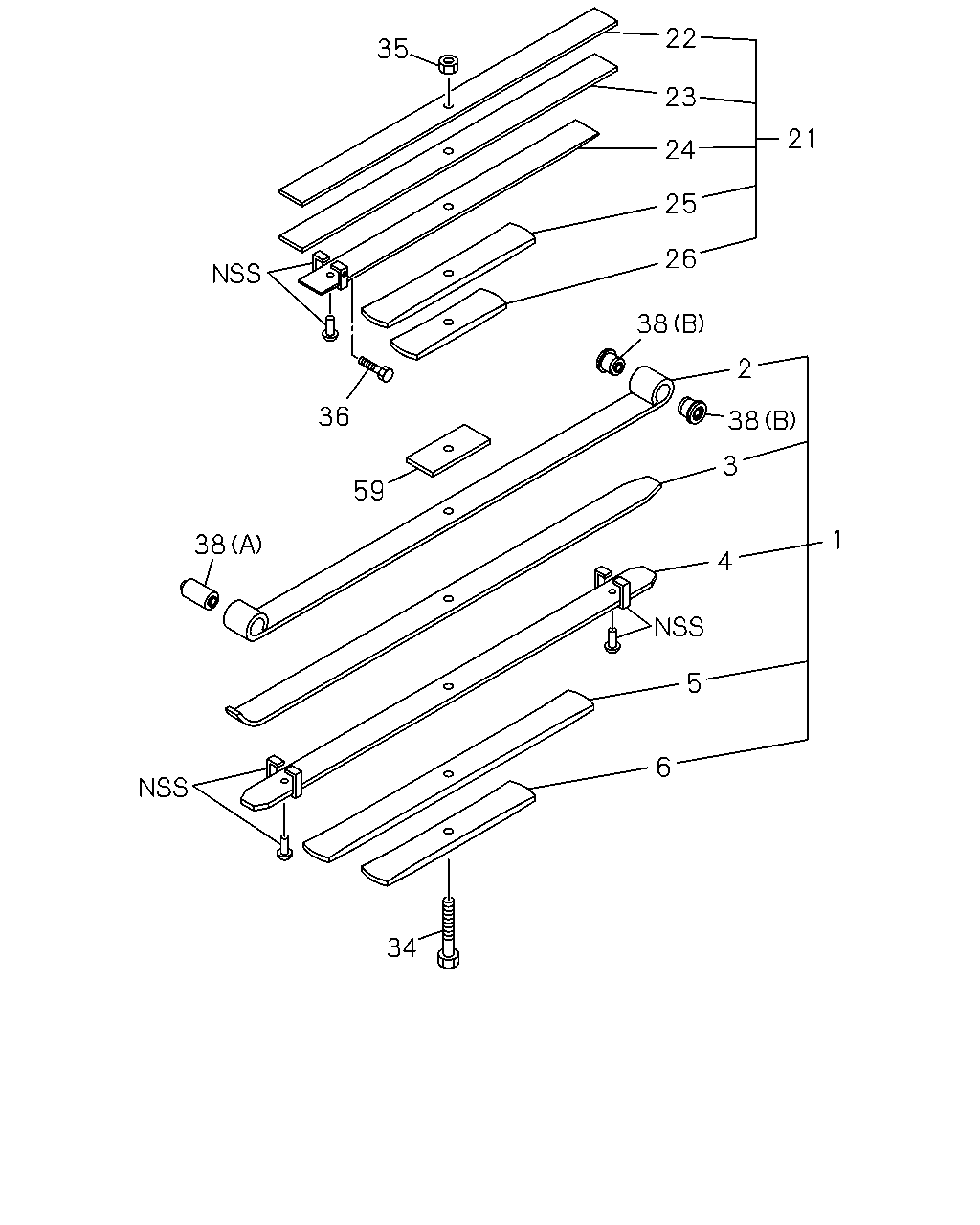

çizim 158041
22 35 23 21 24 25 26 38 2 36 38 3 59 1 38 4 5 6 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98022-373-0, 98022373 		8-98090-236-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98022-373-0, 98022373 		8-98090-237-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98022-373-0, 98022373 		8-98090-238-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98022-373-0, 98022373 		8-98090-239-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98022-373-0, 98022373 		8-98090-240-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98022-373-0, 98022373 		8-98090-241-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98022-373-0, 98022373 		8-98090-242-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98022-373-0, 98022373 		8-98090-243-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98022-373-0, 98022373 		8-98090-244-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-98022-373-0, 98022373 		8-98090-245-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-98022-373-0, 98022373 		8-98090-246-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-98022-373-0, 98022373 		8-98090-247-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=125 ASM PART: A = 8-98022-373-0, 98022373 		8-98037-584-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98022-373-0, 98022373 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X89 ASM PART: A = 8-98022-373-0, 98022373 		8-98040-332-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
BEST VALUE PARTS ASM PART: A = 8-98022-373-0, 98022373 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, OD=40 L=43.7 ASM PART: A = 8-98022-373-0, 98022373 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
OD=42 L=81 ASM PART: A = 8-98022-373-0, 98022373 		8-97074-826-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
07.518, T=6 ASM PART: A = 8-98022-373-0, 98022373 		8-94367-965-0 01 1 -
