◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51184 - NMR71-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#52003) — 12 parça

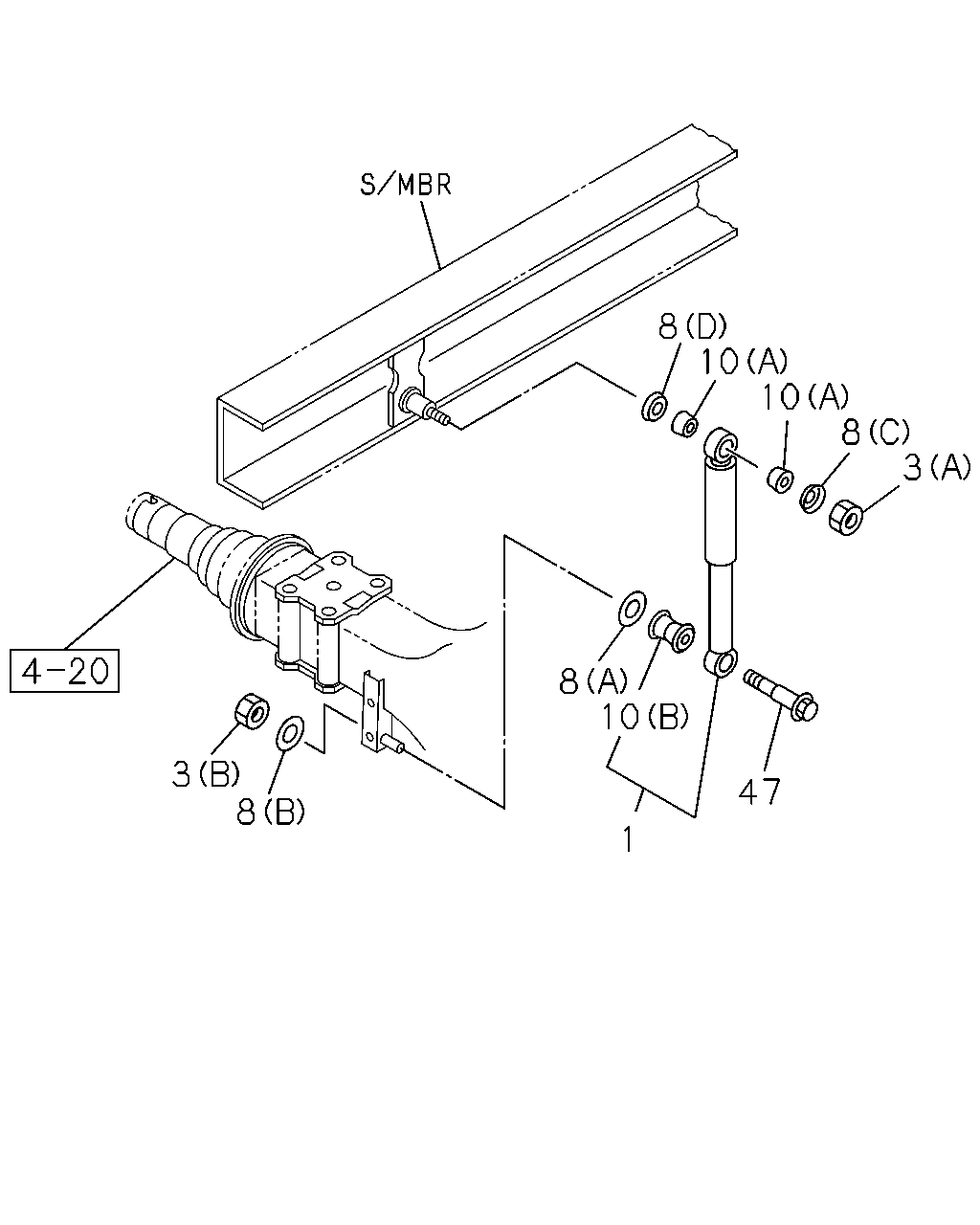

çizim 158033
8 10 10 8 3 8 10 3 8 47 1
BalonParca AdiParca NoAdetTipApplied Date
1 07.395 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) 		8-97253-651-2 02 1 0810-1506
1 07.395 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) BEST VALUE PARTS 		5-87610-132-0 02 1 1105-1506
1 07.395 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) 		8-98316-233-0 02 1 1507-
3 07.347 NUT; S/ABS
REAR WIDE TREAD(V4T) 00.785 (B) M16 		0-91111-516-0 02 1 0810-
3 07.347 NUT; S/ABS
07.833 (A) M14 		0-91110-514-0 02 1 0810-
8 07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.516 (A) ID=16.4 		8-97360-118-0 02 1 0810-
8 07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.427 (B) ID=16.5 		8-98011-489-0 02 1 0810-
8 07.347 WASHER; S/ABS
(C) ID=15 		8-97360-056-0 02 1 0810-
8 07.347 WASHER; S/ABS
(D) ID=20.0 		8-97360-057-0 02 1 0810-
10 07.388 BUSHING; RUBBER,S/ABS
REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 0810-
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0810-
47 07.347 PIN; S/ABS SETTING
REAR WIDE TREAD(V4T) 		8-97316-972-0 02 1 0810-
