◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51184 - NMR71-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#52002) — 20 parça

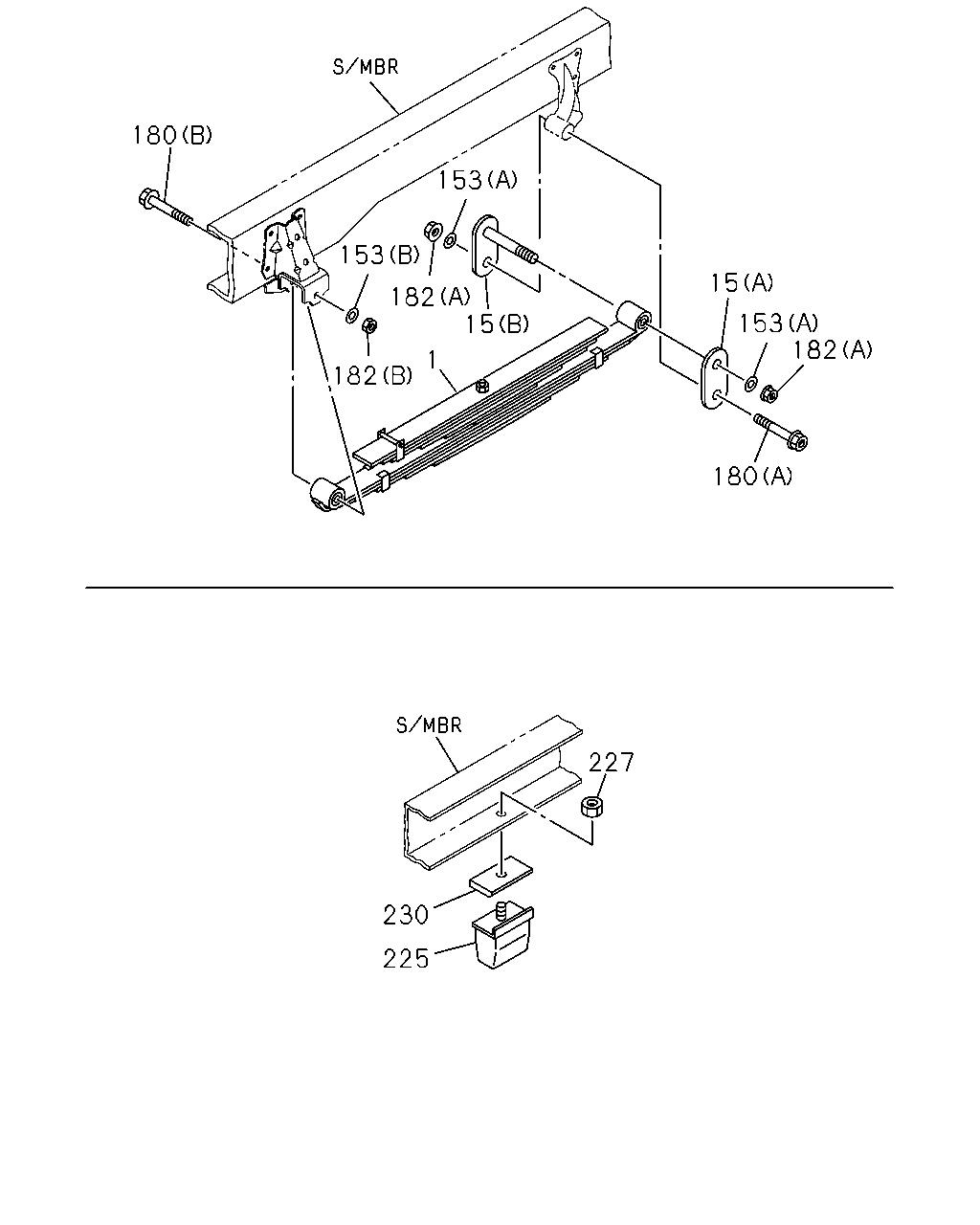

çizim 158030
180 153 153 15 182 15 153 182 1 182 180 227 230 225
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0810-
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0810-
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 0810-
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 		8-98011-489-0 04 1 0810-
153 07.529 WASHER; PL,SPRING PIN
(B) ID=19 		8-97360-119-0 02 1 0810-
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 0810-
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0810-
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0810-
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0810-
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 04 1 0810-
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0810-
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0810-
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 0810-
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0810-
230 07.518 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 0810-

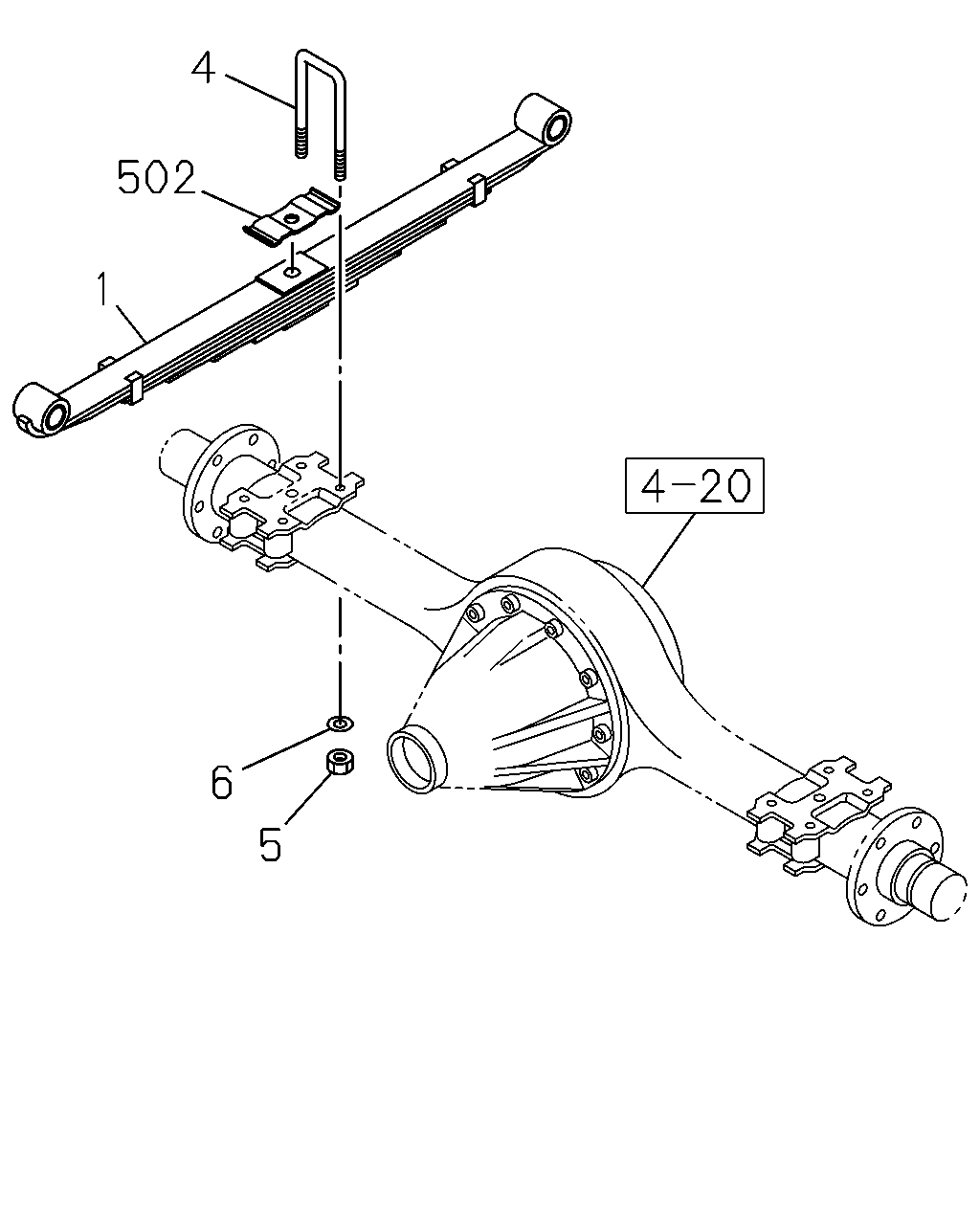

çizim 158040
4 502 1 6 5
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0810-
4 07.516 U-BOLT; RR SPR
REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 0810-
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 0810-
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0810-
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) 07.518 L=130 T=4.5 		8-94119-069-2 02 1 0810-
