4-55 — FRONT LEAF SPRING (#52001) — 17 parça

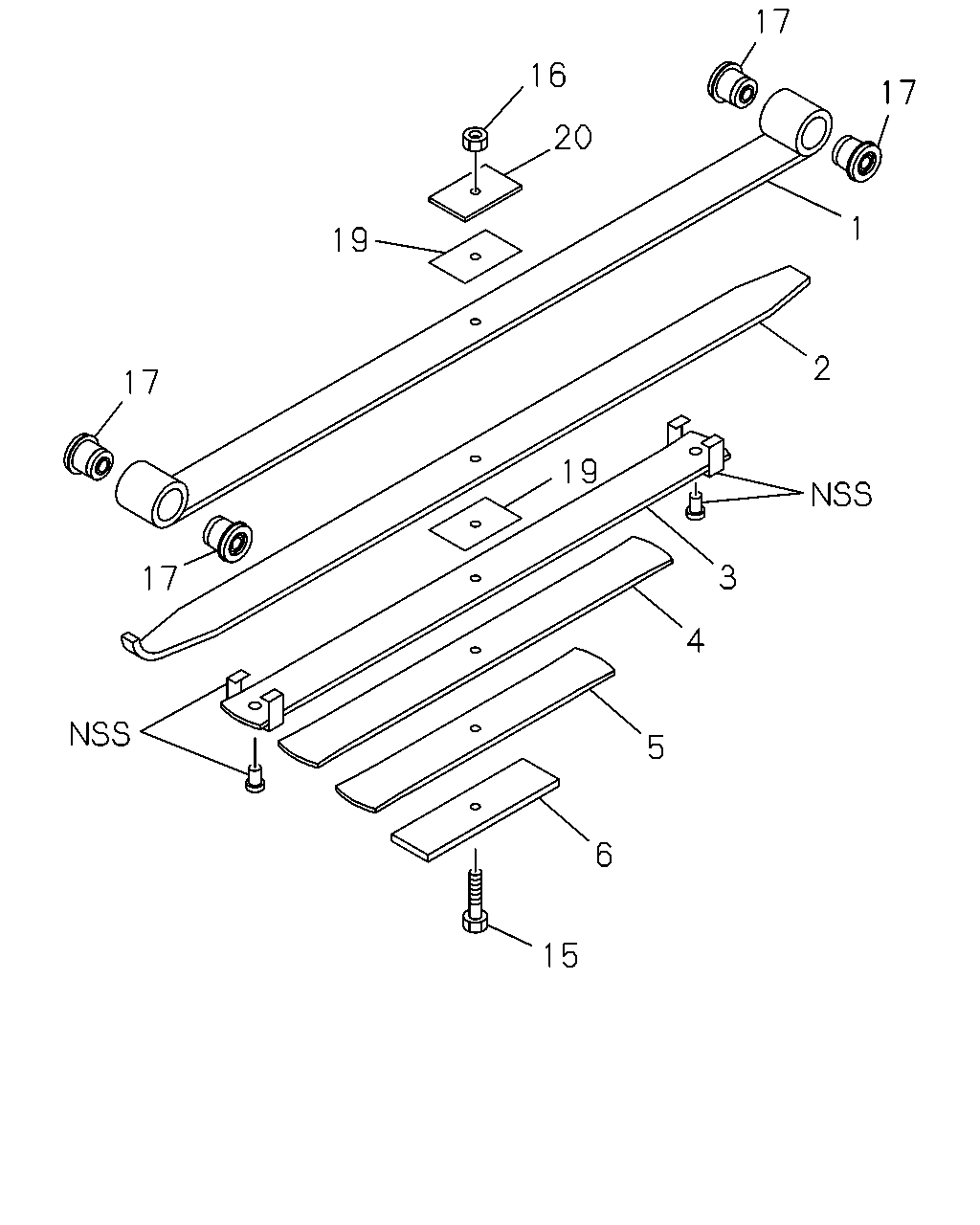

çizim 158027
17 16 17 20 1 19 2 17 19 3 17 4 5 6 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98001-533-0, 98001533 		8-98042-335-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98079-881-0, 98079881 		8-98090-248-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98001-533-0, 98001533 		8-98042-336-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98079-881-0, 98079881 		8-98090-249-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98001-533-0, 98001533 		8-98042-337-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98079-881-0, 98079881 		8-98090-250-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98001-533-0, 98001533 		8-98042-338-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-98079-881-0, 98079881 		8-98090-251-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98001-533-0, 98001533 		8-98042-339-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98079-881-0, 98079881 		8-98090-252-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: A = 8-98001-533-0, 98001533 		8-98042-340-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: B = 8-98079-881-0, 98079881 		8-98090-253-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=80 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881 		8-98041-353-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
OD=43.25 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881 		8-98040-327-0 04 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881 		8-94478-008-1 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881 		8-98041-369-0 01 1 -
