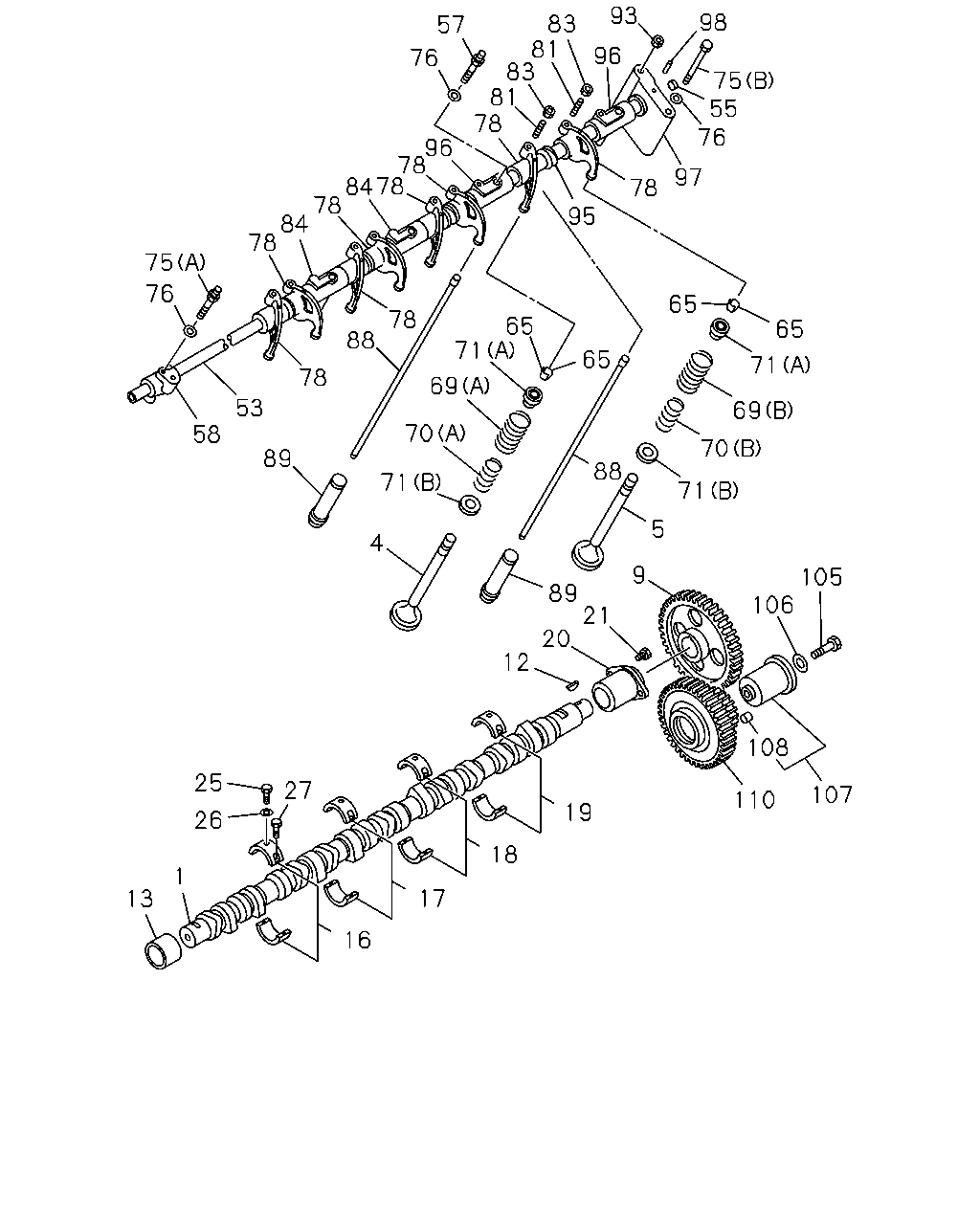

0-14 — CAMSHAFT AND VALVE (#5200) — 205 parça

98 83 81 83 75 93 76 57 76 78 81 97 78 55 78 95 84 78 78 96 95 75 76 96 78 65 65 58 53 55 71 65 65 88 69 71 78 78 70 69 88 89 71 70 71 4 89 5 20 12 9 21 107 105 108 1 27 106 13 19 110 25 26 18 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	1-12511-191-2	01	1	9604-	●
1	CAMSHAFT	1-12511-189-3	01	1	9905-		●
4	VALVE; INL	1-12551-136-1	08	1	9604-	●
4	VALVE; INL	1-12551-136-3	10	1	9905-		●
5	VALVE; EXH	1-12552-097-0	08	1	9604-	●
5	VALVE; EXH	1-12552-097-0	10	1	9905-		●
9	GEAR; CM/SHF Z=52	1-12522-033-2	01	1	9604-9904	●
9	GEAR; CM/SHF Z=52	1-12522-033-2	01	1	9905-	●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9604-9904	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9905-	●	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9604-9904	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9905-	●	●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9604-9904	●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9905-	●	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9604-9904	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9905-	●	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9604-9904	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9905-	●	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9604-9904	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9905-	●	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9604-9904	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9905-	●	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	04	1	9604-	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	05	1	9905-		●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9604-	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	05	1	9905-		●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	06	1	9604-	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	08	1	9905-		●
53	SHAFT; ROCKER ARM	1-12621-005-3	02	1	9604-	●
53	SHAFT; ROCKER ARM	1-12621-011-1	02	1	9905-		●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9604-9904	●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9905-	●	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-2	06	1	9604-	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-2	08	1	9905-		●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9604-9904	●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9905-	●	●
65	COLLAR; SPLIT	1-12565-007-0	32	1	9604-	●
65	COLLAR; SPLIT	1-12565-007-0	40	1	9905-		●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	08	1	9604-	●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	08	1	9604-	●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	10	1	9905-		●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	10	1	9905-		●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	08	1	9604-	●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	08	1	9604-	●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	10	1	9905-		●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	10	1	9905-		●
71	SEAT; SPR (B) LOWER INLET	1-12563-027-0	08	1	9604-	●
71	SEAT; SPR (B) LOWER EXHAUST	1-12563-034-1	08	1	9604-	●
71	SEAT; SPR (A) UPPER	1-12563-049-0	16	1	9604-0101	●
71	SEAT; SPR (A) UPPER	1-12563-059-1	16	1	0102-	●
71	SEAT; SPR (B) LOWER INLET	1-12563-027-0	10	1	9905-		●
71	SEAT; SPR (B) LOWER EXHAUST	1-12563-034-1	10	1	9905-		●
71	SEAT; SPR (A) UPPER	1-12563-049-0	20	1	9905-0101		●
71	SEAT; SPR (A) UPPER	1-12563-059-1	20	1	0102-		●
75	BOLT; BRKT (A) M8X13,M10X70 L=90	1-09029-024-1	02	1	9604-9904	●
75	BOLT; BRKT (A) M8X13,M10X70 L=90	1-09029-024-2	02	1	9905-	●	●
75	BOLT; BRKT (B) M10X70	9-01661-070-0	02	1	9604-9904	●
75	BOLT; BRKT (B) M10X70	9-01661-070-0	02	1	9905-	●	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	10	1	9604-	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	12	1	9905-		●
78	ARM; ROCKER INLET	1-12611-266-0	08	1	9604-9807	●
78	ARM; ROCKER INLET	1-12611-282-0	08	1	9808-	●
78	ARM; ROCKER EXHAUST	1-12611-267-0	08	1	9604-9807	●
78	ARM; ROCKER EXHAUST	1-12611-283-0	08	1	9808-	●
78	ARM; ROCKER INLET	1-12611-282-0	10	1	9905-		●
78	ARM; ROCKER EXHAUST	1-12611-283-0	10	1	9905-		●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	16	1	9604-	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	20	1	9905-		●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	16	1	9604-	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	20	1	9905-		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	02	1	9604-	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	04	1	9905-		●
88	ROD; PUSH	1-12575-048-1	16	1	9604-0012	●
88	ROD; PUSH	1-12575-061-0	16	1	0101-	●
88	ROD; PUSH	1-12575-048-1	20	1	9905-0012		●
88	ROD; PUSH	1-12575-061-0	20	1	0101-		●
89	TAPPET; VLV	1-12571-228-4	16	1	9604-9703	●
89	TAPPET; VLV	1-12571-241-0	16	1	9704-	●
89	TAPPET; VLV	1-12571-241-0	20	1	9905-		●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9604-9904	●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	08	1	9604-	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	10	1	9905-		●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9604-9904	●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9905-	●	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9604-9904	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9905-	●	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9604-9904	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9905-	●	●
105	BOLT; IDLE GEAR SHAFT M16X94 FLANGE	1-09070-031-1	01	1	9604-9904	●
105	BOLT; IDLE GEAR SHAFT M16X94 FLANGE	1-09070-031-1	01	1	9905-	●	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9604-9904	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9905-	●	●
107	SHAFT; IDLE GEAR	1-12531-057-0	01	1	9604-9904	●
107	SHAFT; IDLE GEAR	1-12531-057-0	01	1	9905-	●	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9604-9904	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9905-	●	●
110	GEAR ASM; IDLE Z=48-26	1-12523-206-3	01	1	9604-9904	●
110	GEAR ASM; IDLE Z=48-26	1-12523-206-3	01	1	9905-	●	●

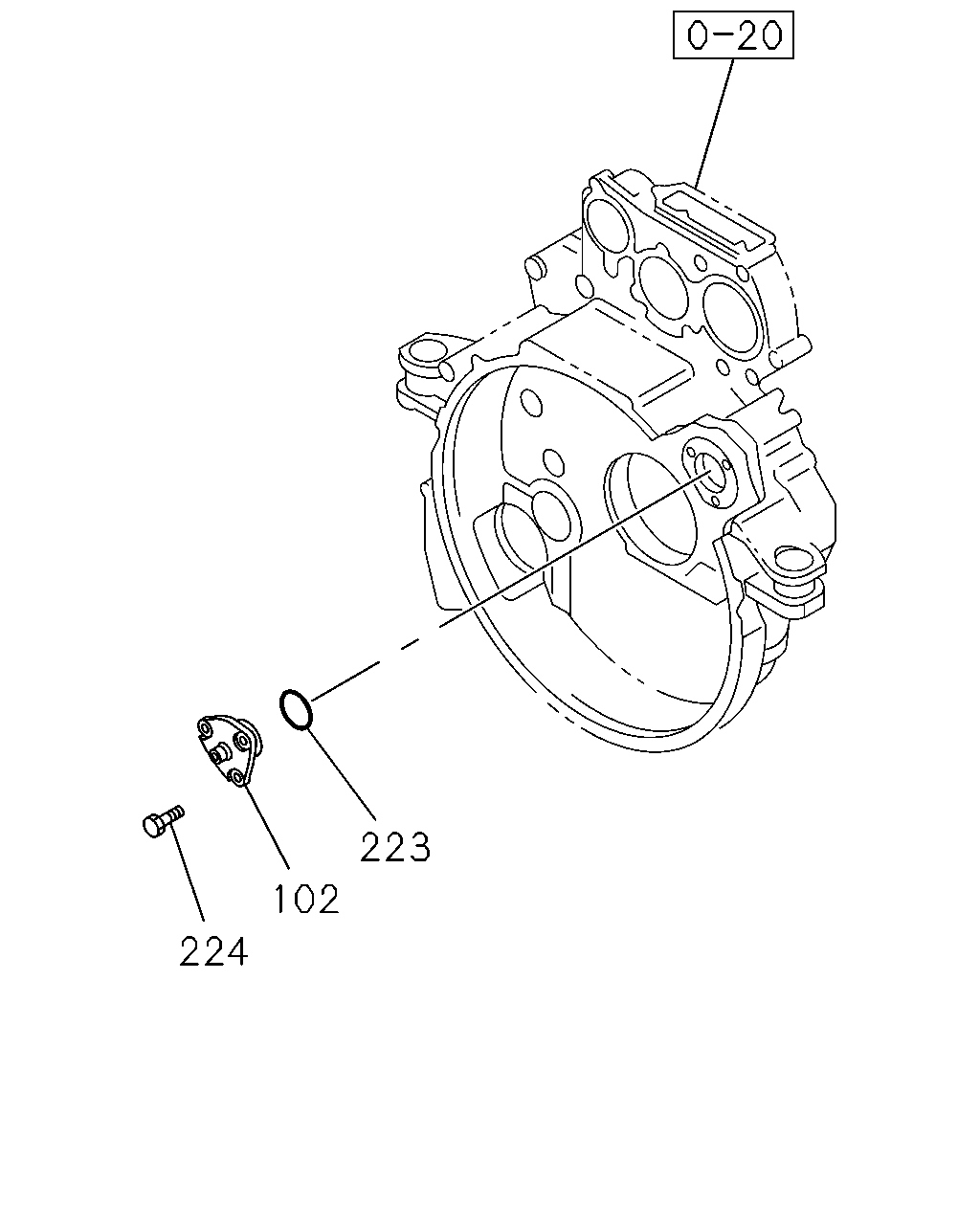

223 102 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	COVER; IDLE GEAR	1-11343-005-0	01	1	9604-9904	●
102	COVER; IDLE GEAR	1-11343-005-0	01	1	9905-	●	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-567-0	02	1	9604-	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-567-0	01	1	9905-		●
224	BOLT; COVER M10X20 W/LK WASHER	0-50051-020-0	03	1	9604-9904	●
224	BOLT; COVER M10X20 W/LK WASHER	0-50051-020-0	03	1	9905-	●	●

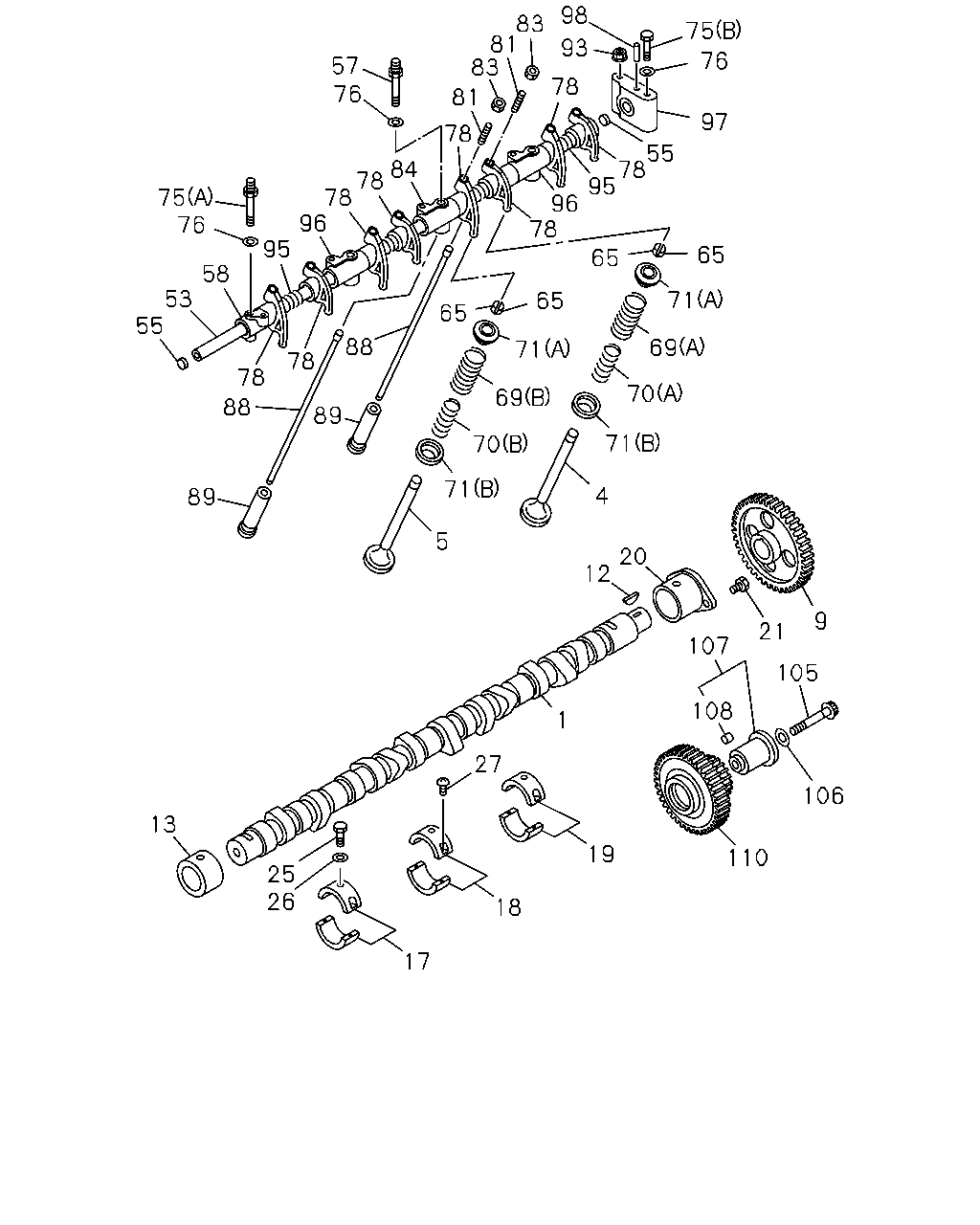

93 98 83 81 83 81 78 57 96 76 75 55 76 96 78 78 84 78 97 78 95 75 76 65 78 65 65 88 71 65 71 78 69 53 69 70 58 70 89 88 71 71 5 4 9 105 106 89 21 20 12 108 25 27 107 110 19 26 18 1 17 13 16 84 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	1-12511-191-2	01	1	9604-	●
1	CAMSHAFT	1-12511-189-3	01	1	9905-		●
4	VALVE; INL	1-12551-136-1	08	1	9604-	●
4	VALVE; INL	1-12551-136-3	10	1	9905-		●
5	VALVE; EXH	1-12552-097-0	08	1	9604-	●
5	VALVE; EXH	1-12552-097-0	10	1	9905-		●
9	GEAR; CM/SHF Z=52	1-12522-033-2	01	1	9604-9904	●
9	GEAR; CM/SHF Z=52	1-12522-033-2	01	1	9905-	●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9604-9904	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9905-	●	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9604-9904	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9905-	●	●
16	METAL; CM/SHF,NO 3	1-11617-007-1	01	1	9905-		●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9604-9904	●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9905-	●	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9604-9904	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9905-	●	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9604-9904	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9905-	●	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9604-9904	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9905-	●	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9604-9904	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9905-	●	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	04	1	9604-	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	05	1	9905-		●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9604-	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	05	1	9905-		●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	06	1	9604-	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	08	1	9905-		●
53	SHAFT; ROCKER ARM	1-12621-005-3	02	1	9604-	●
53	SHAFT; ROCKER ARM	1-12621-011-1	02	1	9905-		●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9604-9904	●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9905-	●	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-2	06	1	9604-	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-2	08	1	9905-		●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9604-9904	●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9905-	●	●
65	COLLAR; SPLIT	1-12565-007-0	32	1	9604-	●
65	COLLAR; SPLIT	1-12565-007-0	40	1	9905-		●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	08	1	9604-	●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	08	1	9604-	●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	10	1	9905-		●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	10	1	9905-		●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	08	1	9604-	●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	08	1	9604-	●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	10	1	9905-		●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	10	1	9905-		●
71	SEAT; SPR (B) LOWER INLET	1-12563-027-0	08	1	9604-	●
71	SEAT; SPR (B) LOWER EXHAUST	1-12563-034-1	08	1	9604-	●
71	SEAT; SPR (A) UPPER	1-12563-049-0	16	1	9604-0101	●
71	SEAT; SPR (A) UPPER	1-12563-059-1	16	1	0102-	●
71	SEAT; SPR (B) LOWER INLET	1-12563-027-0	10	1	9905-		●
71	SEAT; SPR (B) LOWER EXHAUST	1-12563-034-1	10	1	9905-		●
71	SEAT; SPR (A) UPPER	1-12563-049-0	20	1	9905-0101		●
71	SEAT; SPR (A) UPPER	1-12563-059-1	20	1	0102-		●
75	BOLT; BRKT (A) M8X13,M10X70 L=90	1-09029-024-1	02	1	9604-9904	●
75	BOLT; BRKT (A) M8X13,M10X70 L=90	1-09029-024-2	02	1	9905-	●	●
75	BOLT; BRKT (B) M10X70	9-01661-070-0	02	1	9604-9904	●
75	BOLT; BRKT (B) M10X70	9-01661-070-0	02	1	9905-	●	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	10	1	9604-	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	12	1	9905-		●
78	ARM; ROCKER INLET	1-12611-266-0	08	1	9604-9807	●
78	ARM; ROCKER INLET	1-12611-282-0	08	1	9808-	●
78	ARM; ROCKER EXHAUST	1-12611-267-0	08	1	9604-9807	●
78	ARM; ROCKER EXHAUST	1-12611-283-0	08	1	9808-	●
78	ARM; ROCKER INLET	1-12611-282-0	10	1	9905-		●
78	ARM; ROCKER EXHAUST	1-12611-283-0	10	1	9905-		●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	16	1	9604-	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	20	1	9905-		●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	16	1	9604-	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	20	1	9905-		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	02	1	9604-	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	04	1	9905-		●
88	ROD; PUSH	1-12575-048-1	16	1	9604-0012	●
88	ROD; PUSH	1-12575-061-0	16	1	0101-	●
88	ROD; PUSH	1-12575-048-1	20	1	9905-0012		●
88	ROD; PUSH	1-12575-061-0	20	1	0101-		●
89	TAPPET; VLV	1-12571-228-4	16	1	9604-9703	●
89	TAPPET; VLV	1-12571-241-0	16	1	9704-	●
89	TAPPET; VLV	1-12571-241-0	20	1	9905-		●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9604-9904	●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	08	1	9604-	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	10	1	9905-		●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9604-9904	●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9905-	●	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9604-9904	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9905-	●	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9604-9904	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9905-	●	●
105	BOLT; IDLE GEAR SHAFT M16X94 FLANGE	1-09070-031-1	01	1	9604-9904	●
105	BOLT; IDLE GEAR SHAFT M16X94 FLANGE	1-09070-031-1	01	1	9905-	●	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9604-9904	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9905-	●	●
107	SHAFT; IDLE GEAR	1-12531-057-0	01	1	9604-9904	●
107	SHAFT; IDLE GEAR	1-12531-057-0	01	1	9905-	●	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9604-9904	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9905-	●	●
110	GEAR ASM; IDLE Z=48-26	1-12523-206-3	01	1	9604-9904	●
110	GEAR ASM; IDLE Z=48-26	1-12523-206-3	01	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
