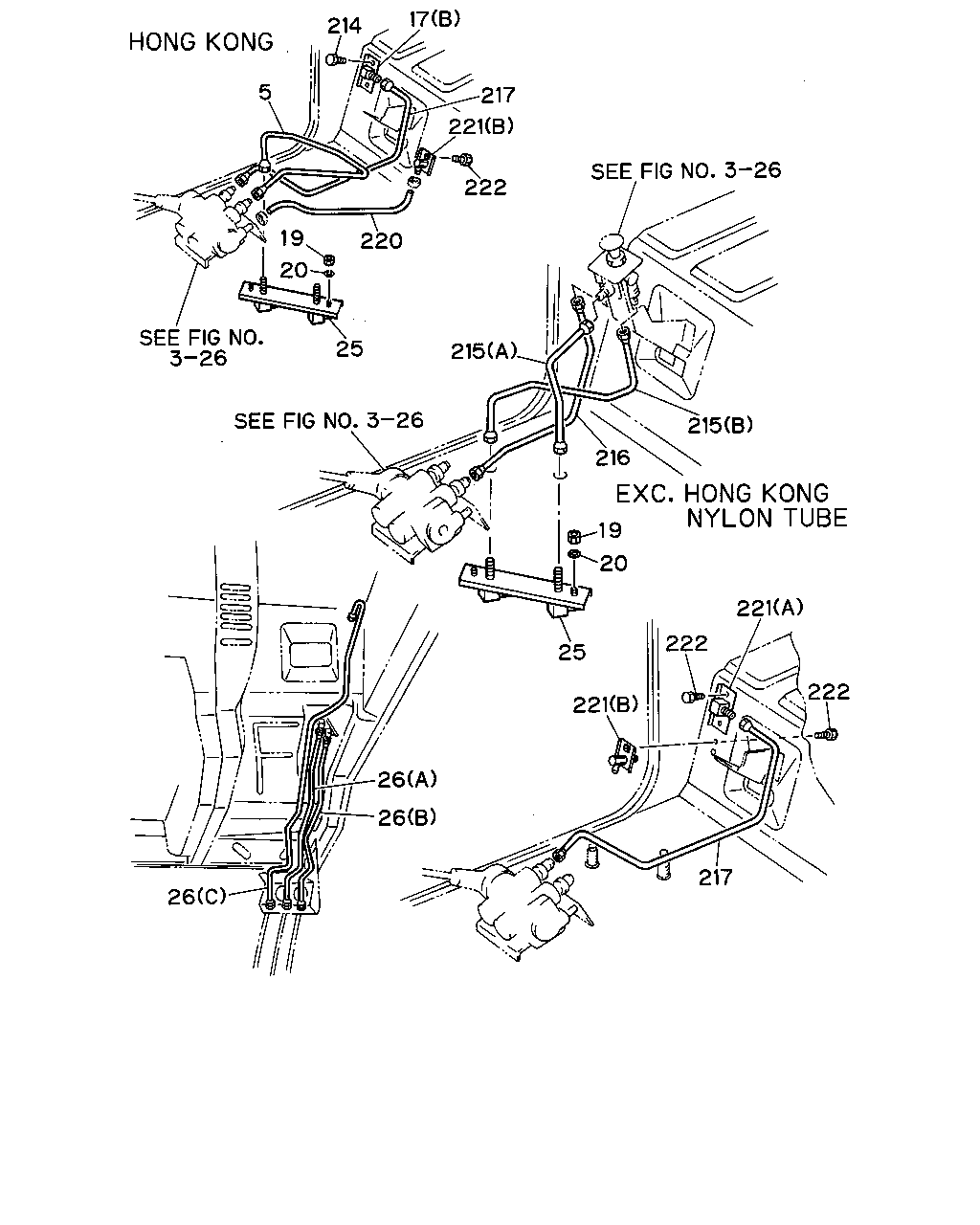

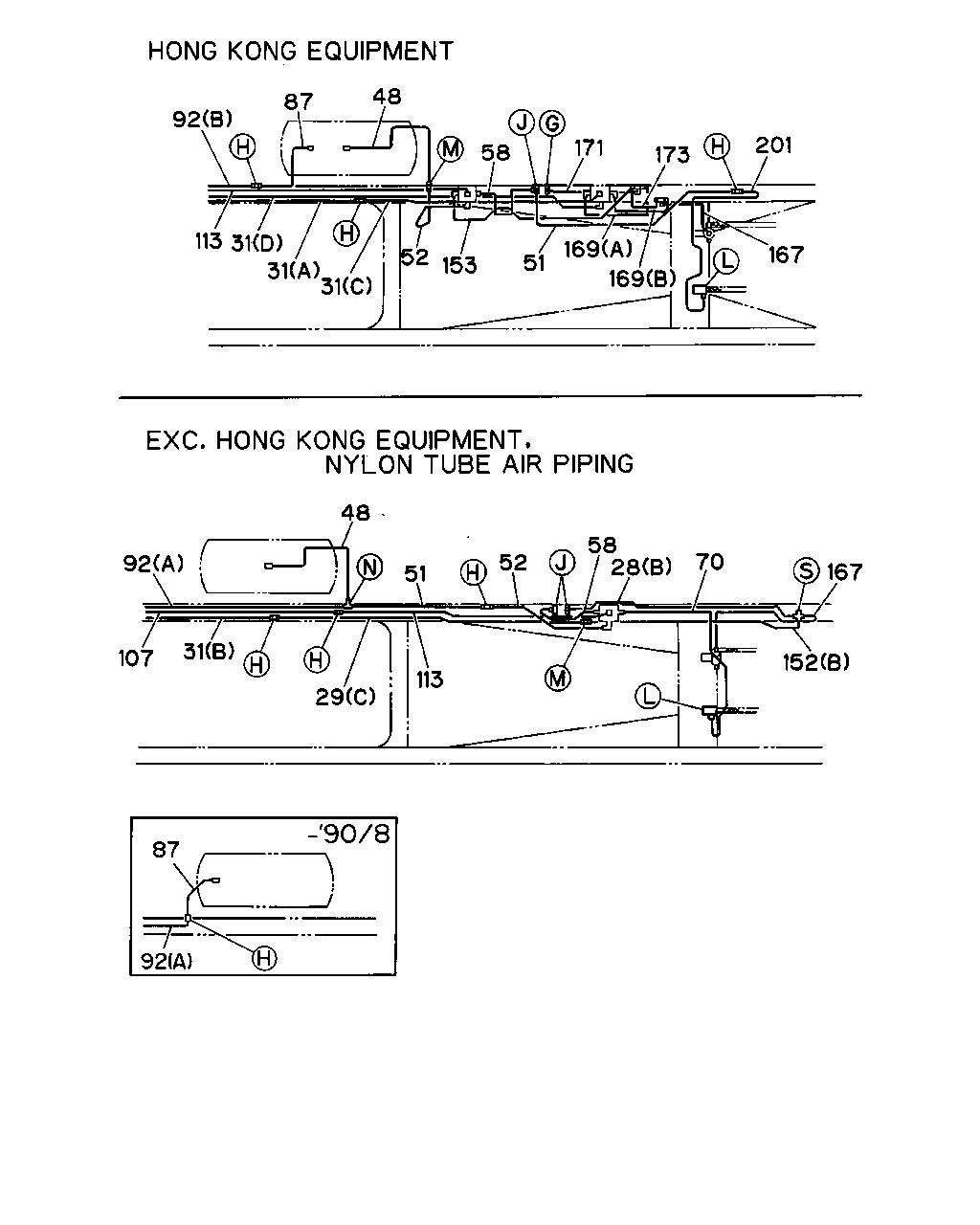

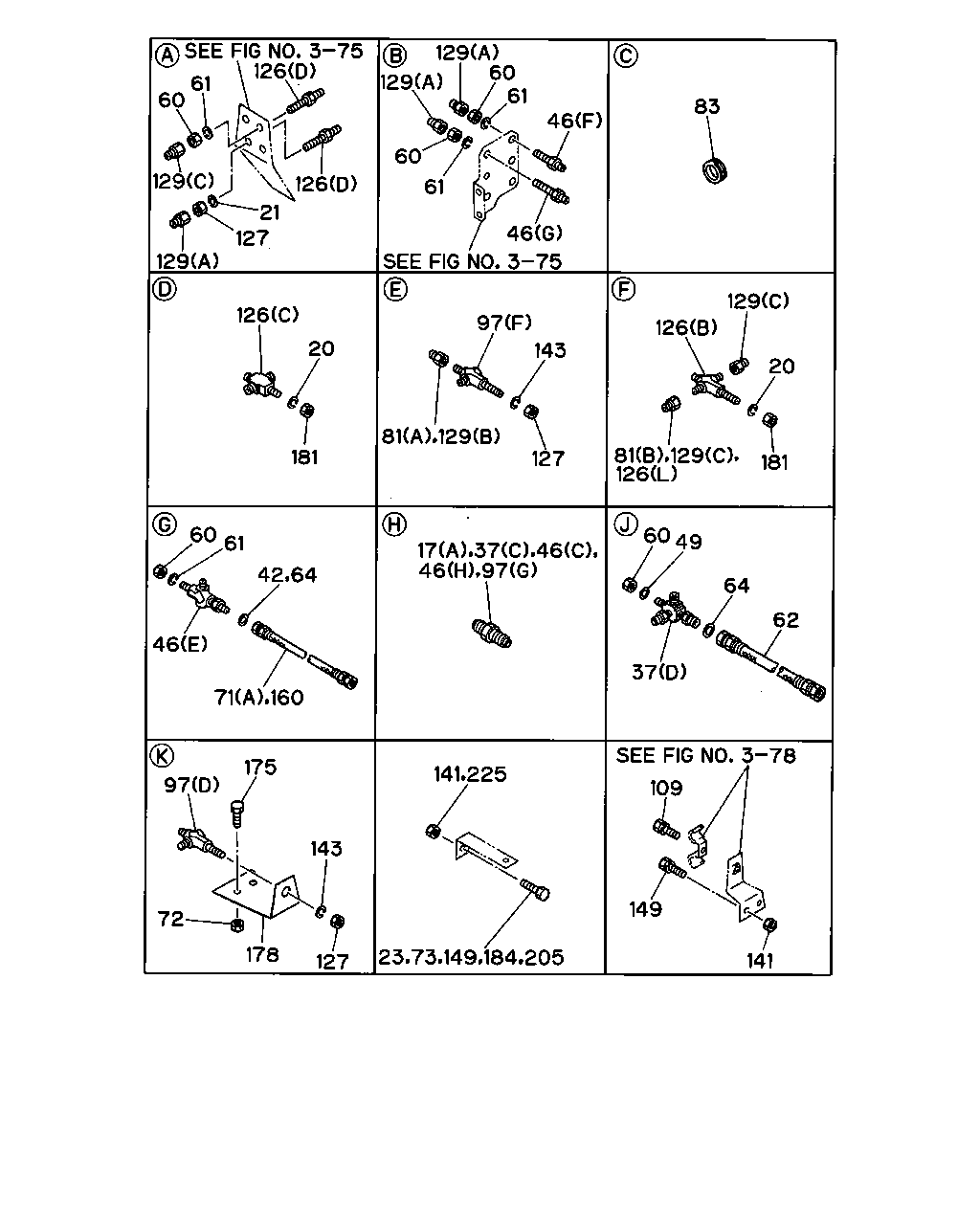

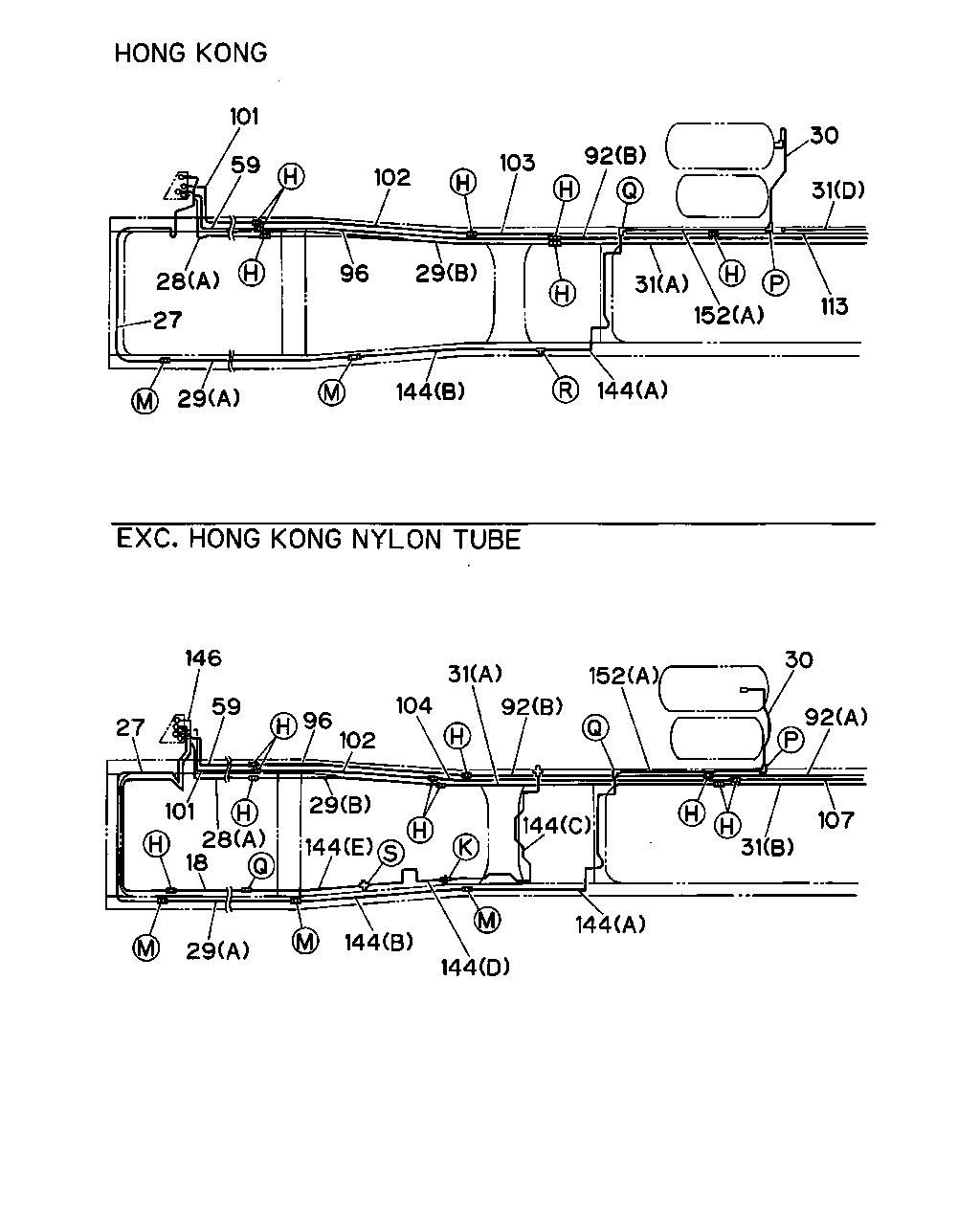

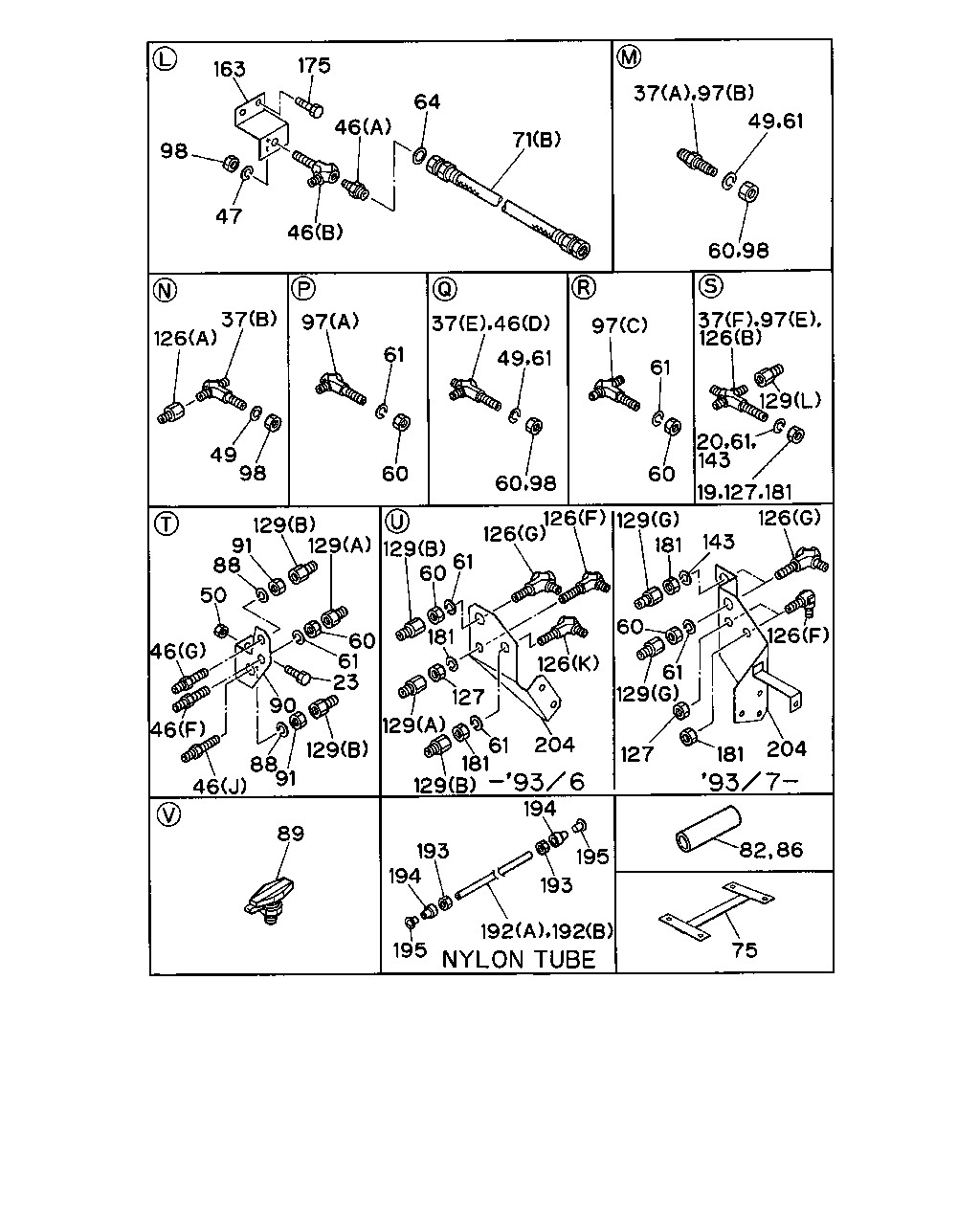

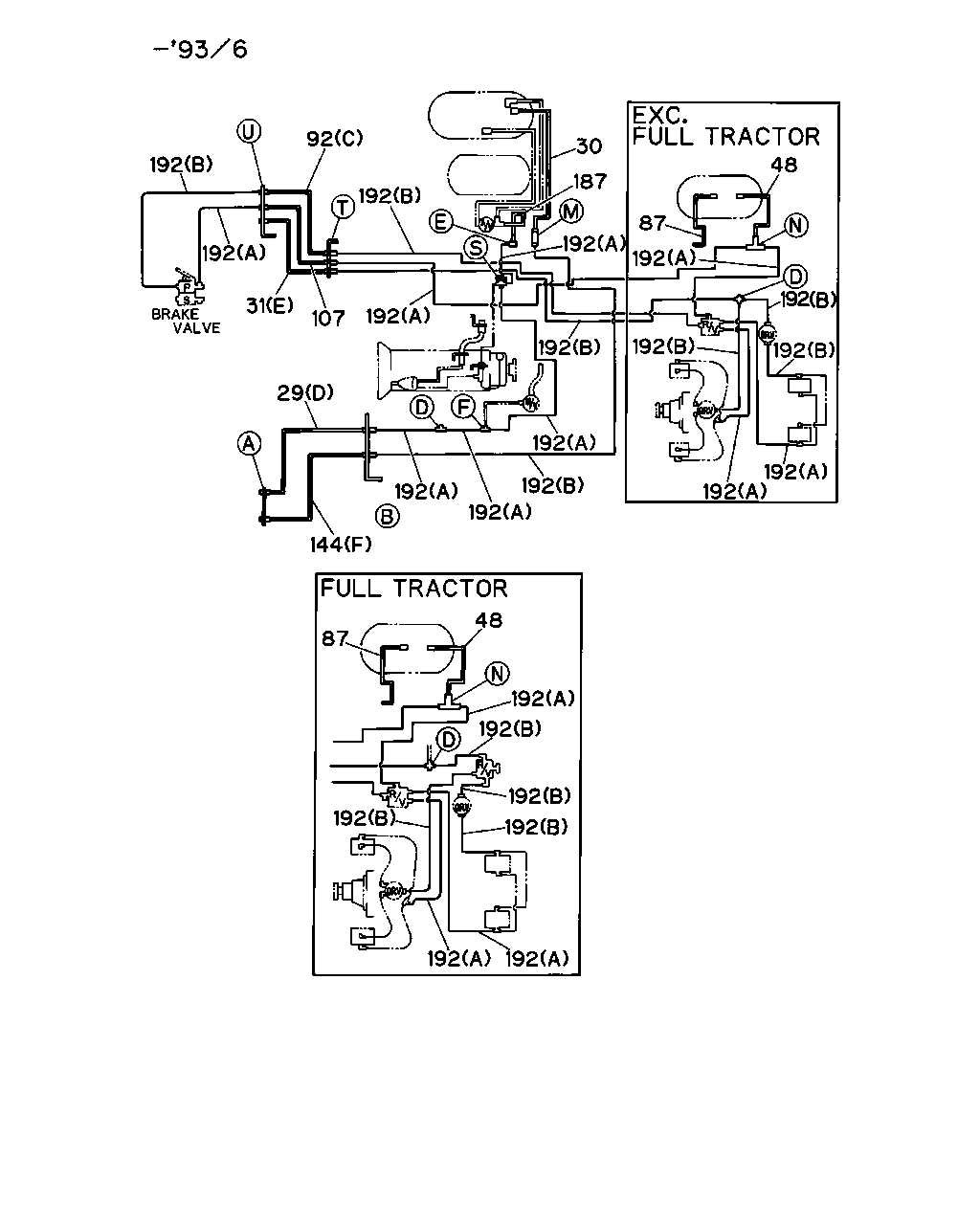

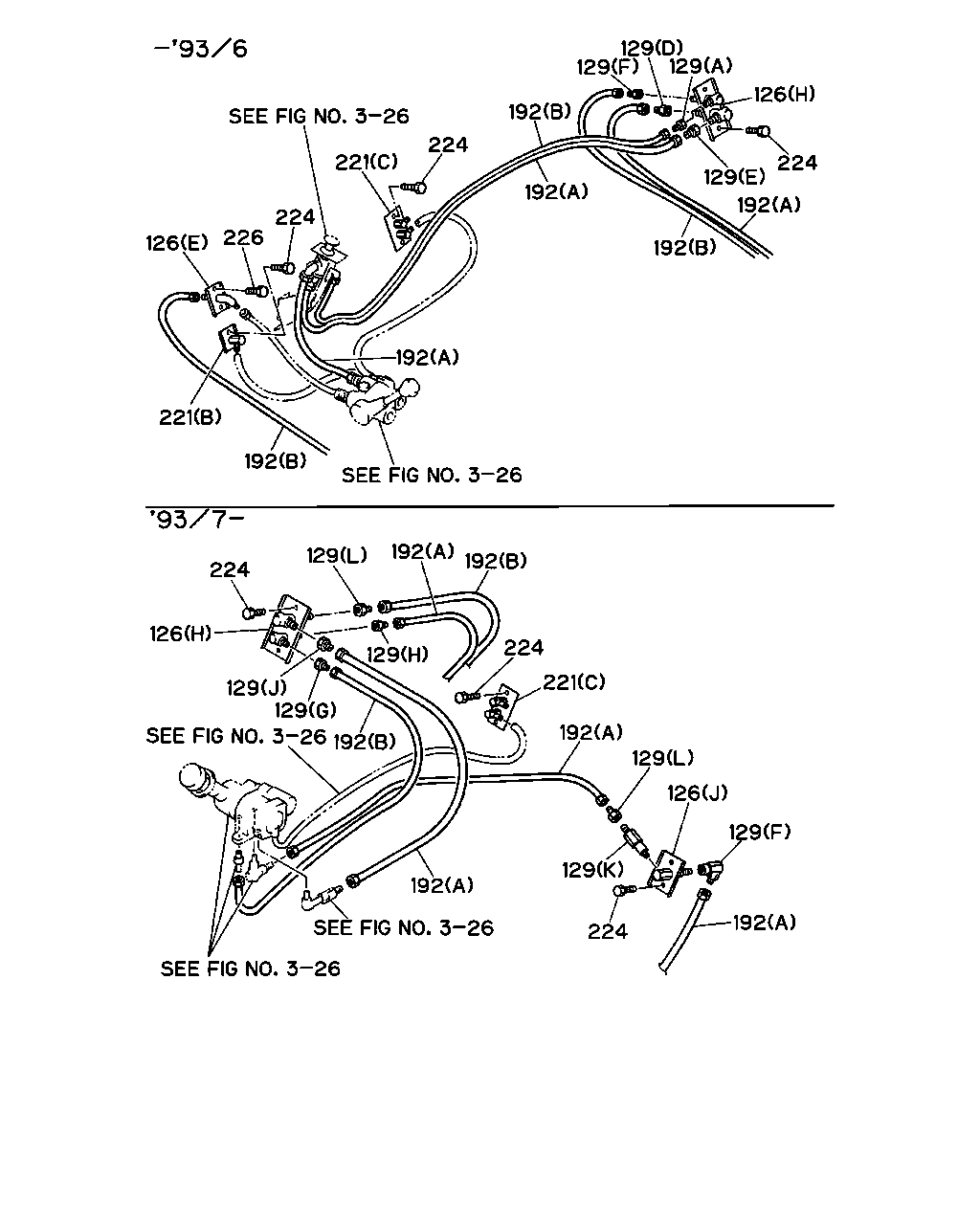

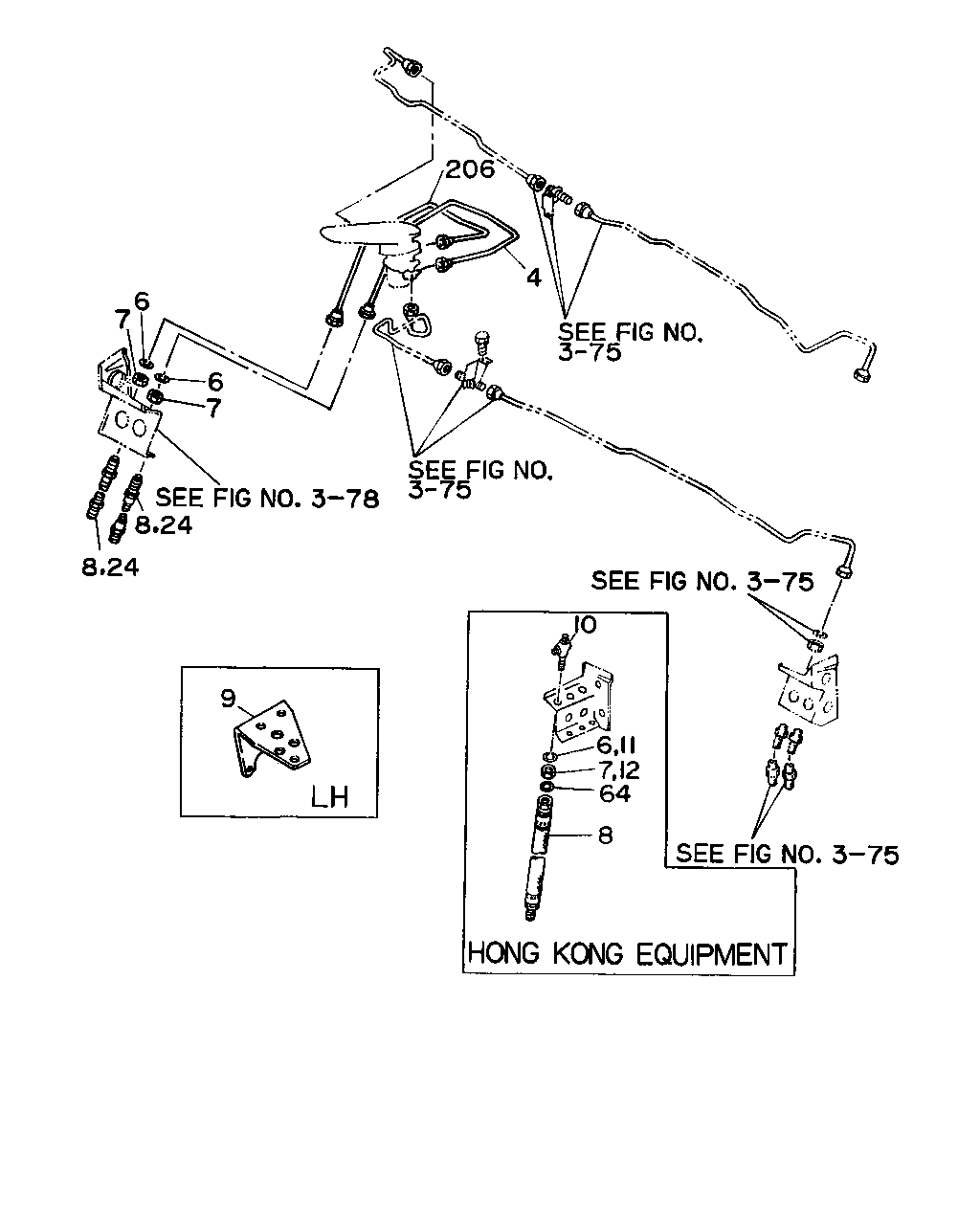

3-77 — BRAKE PIPING; AIR,REAR (#520) — 906 parça

37 97 49 61 60 98 71 64 46 175 163 98 47 46 126 37 49 98 97 61 60 37 46 49 61 60 98 97 61 60 37 97 126 129 20 61 143 19 127 181 126 129 181 143 60 129 61 127 181 204 126 82 86 75 195 194 193 194 195 193 192 192 89 129 181 61 204 126 126 126 61 60 129 181 127 129 129 129 91 88 50 46 60 61 23 90 46 129 88 91 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14	9-99110-414-0	01	1	8712-
19	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	02	1	8712-
19	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6	9-09111-406-0	02	1	8712-
19	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	8712-
20	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	04	1	8712-9306
20	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=6.1	9-09150-506-0	02	1	8712-
23	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01900-830-0	03	1	8712-9001
23	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28010-830-0	03	1	9002-9204
23	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	03	1	9205-
23	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204
23	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9306
23	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X45 W/LK WASHER	0-50040-845-0	01	1	9307-
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	05	1	8712-9001
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	05	1	9002-9204
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	05	1	9205-
23	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M10X35 W/LK WASHER	9-01911-035-0	02	1	8712-9002
23	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-9306
37	UNION; AIR PIPE (C) M20 STRAIGHT	9-09233-012-0	01	1	8712-9008
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M20 STRAIGHT	9-09233-012-0	01	1	8712-9008
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M20 STRAIGHT	9-09233-012-0	01	1	8712-9008
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (E) M16 2WAY	1-09650-182-1	01	1	8712-
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (D)	1-09656-549-0	01	1	8712-9002
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (D)	1-09656-169-1	01	1	9003-
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M20 STRAIGHT	9-09233-012-1	02	1	9009-
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M22	9-09233-315-1	01	1	9307-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B) M22	9-09235-215-0	01	1	8712-9008
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B)	9-09238-615-0	01	1	9009-9110
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-09656-288-1	01	1	9111-9306
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (E) M14 2WAY	1-09654-034-2	01	1	8712-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (F)	1-09656-358-1	01	1	8712-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M22	9-09233-015-1	01	1	8712-9306
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M20 STRAIGHT	9-09233-012-1	01	1	9009-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	1-09656-288-1	01	1	9307-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 L=42	9-09233-010-1	01	1	8712-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 L=42	9-09233-010-1	02	1	8712-
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (E)	1-09650-378-2	01	1	8712-
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (E)	1-09650-273-2	01	1	8712-9306
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D)	1-09656-357-1	01	1	8712-
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M14 STRAIGHT	9-09223-008-1	01	1	8712-
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M16 L=42	9-09233-010-1	01	1	8712-
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F) M14	9-09223-208-1	02	1	8712-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (G) M16 L=70 STRAIGHT	9-09233-210-1	02	1	8712-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (J) M20 L=77.5	9-09233-212-1	01	1	8712-9306
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	8712-
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09650-251-1	01	1	8712-
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M12 L=40	9-09223-006-1	01	1	8712-
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M14 STRAIGHT	9-09223-008-1	03	1	8712-
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (H) M20 STRAIGHT	9-09233-012-1	01	1	8712-
47	WASHER; LK,HOSE BRKT EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-
49	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	8712-9306
49	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=14.2	9-09150-514-0	01	1	8712-9312
49	WASHER; LK,PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	8712-9312
49	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	8712-
49	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-9312
50	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	8712-9306
60	NUT; NIPPLE,AIR PIPE HONG KONG EQUIPMENT(PQ1) M22	9-09111-422-0	01	1	8712-9005
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	8712-9005
60	NUT; NIPPLE,AIR PIPE HONG KONG EQUIPMENT(PQ1) M22	9-09111-422-0	01	1	9006-
60	NUT; NIPPLE,AIR PIPE HONG KONG EQUIPMENT(PQ1) M12	9-99111-412-0	01	1	8712-
60	NUT; NIPPLE,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) M14	9-99111-414-0	01	1	8712-9005
60	NUT; NIPPLE,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	8712-
60	NUT; NIPPLE,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9006-
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M14	9-99110-414-0	02	1	8712-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	02	1	8712-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	8712-
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	05	1	8712-9306
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	8712-9005
60	NUT; NIPPLE,AIR PIPE HONG KONG EQUIPMENT(PQ1) M20	9-99111-420-0	01	1	8712-9005
60	NUT; NIPPLE,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	8712-9005
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9006-
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9307-
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	01	1	9307-
61	WASHER; LK,NIPPLE HONG KONG EQUIPMENT(PQ1) ID=22.5	9-09150-522-0	01	1	9006-9312
61	WASHER; LK,NIPPLE EXC. HONG KONG EQUIPMENT(PQ1) ID=14.2	9-09150-514-0	01	1	8712-9005
61	WASHER; LK,NIPPLE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	8712-9005
61	WASHER; LK,NIPPLE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	9307-9312
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	8712-9005
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	9006-9306
61	WASHER; LK,NIPPLE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	9006-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	03	1	8712-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	8712-9005
61	WASHER; LK,NIPPLE HONG KONG EQUIPMENT(PQ1) ID=20.2	9-09150-520-0	01	1	8712-9005
61	WASHER; LK,NIPPLE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	8712-9005
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9006-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	9006-9306
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	8712-9312
64	GASKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) ID=11 OD=18	9-09572-510-0	01	1	8712-
64	GASKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	02	1	8712-
64	GASKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	04	1	8712-
64	GASKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) ID=17.5	9-09572-515-0	04	1	8712-
71	HOSE; FLEX,RWD RR HONG KONG EQUIPMENT(PQ1) (A) L=550	0-07909-550-0	01	1	8712-
71	HOSE; FLEX,RWD RR EXC. NYLON TUBE AIR PIPING<Z29> (B) L=670	0-07909-670-0	01	1	8712-9306
71	HOSE; FLEX,RWD RR EXC. NYLON TUBE AIR PIPING<Z29> (B) L=670	0-07909-670-0	02	1	9307-
75	PLATE; BRKT NYLON TUBE AIR PIPING<Z29> L=230	1-47476-076-0	01	1	8712-9206
75	PLATE; BRKT NYLON TUBE AIR PIPING<Z29> L=115	1-47476-077-0	01	1	8712-9206
82	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=17 OD=21 L=40	1-09337-012-0	01	1	9002-
82	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=29 OD=39 L=40	1-09337-013-0	01	1	9307-
82	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=150	1-09360-677-1	02	1	9307-
86	PROTECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=150	1-09360-677-1	01	1	9307-
88	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	8712-9306
88	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	8712-9306
89	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-47459-002-0	02	1	9307-
90	BRACKET; PIPE UNION NYLON TUBE AIR PIPING<Z29>	1-47476-087-1	01	1	8712-9306
91	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	8712-9306
91	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	8712-9306
97	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M16	1-09654-148-1	01	1	8712-
97	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M22	1-09656-099-1	01	1	8712-
97	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M16 L=42	9-09233-010-1	02	1	8712-
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (A) M14	9-09225-108-0	01	1	8712-9005
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (E)	1-09654-085-1	01	1	8712-
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D)	1-09656-423-1	01	1	8712-
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M14 STRAIGHT	9-09223-008-1	04	1	8712-
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M14	9-09225-108-1	01	1	9006-
97	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F)	9-09228-612-0	01	1	8712-9001
97	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F) M20	9-09238-912-0	01	1	9002-9005
97	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F) M20	9-09238-912-1	01	1	9006-9306
97	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (F) M20	9-09238-912-1	01	1	9006-9306
97	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (B) M20	9-09235-212-1	01	1	9006-9306
97	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (G) M20 STRAIGHT	9-09233-012-1	01	1	8712-
98	NUT; PIPE UNION M22	9-09111-422-0	01	1	8712-9306
98	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M14	9-99111-414-0	01	1	8712-
98	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	01	1	8712-
98	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-
98	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09654-085-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M18 & M22 STRAIGHT	1-09660-222-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M12X35	1-09664-075-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) L=1161	1-09664-077-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (L)	1-09664-128-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H)	1-47470-231-0	01	1	8712-9008
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H)	1-47470-302-0	01	1	9009-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E)	1-47470-241-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) M14	9-09223-208-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (K) M14	9-09225-108-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) M16 L=70 STRAIGHT	9-09233-210-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F) M16 ELBOW	9-09235-110-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M20 ELBOW	9-09235-112-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-09664-105-0	02	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H)	1-47470-312-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (J)	1-47470-313-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M20 ELBOW	9-09235-112-1	02	1	9307-
127	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	8712-9304
127	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306
127	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	8712-
127	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9307-
127	NUT; UNION NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	02	1	8712-9306
127	NUT; UNION NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	8712-9306
127	NUT; UNION NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	02	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M14 & M14 STRAIGHT	1-09660-219-0	05	1	8712-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M14 & M16 STRAIGHT	1-09660-220-0	02	1	8712-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M18 & M20 STRAIGHT	1-09660-221-0	04	1	8712-9008
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M18 & M20 STRAIGHT	1-09660-221-0	03	1	9009-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M16 & M18 STRAIGHT	1-09660-223-0	04	1	8712-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M14 & M20 STRAIGHT	1-09660-255-0	01	1	9006-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M18 & M22 STRAIGHT	1-09660-222-0	01	1	9009-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-583-1	01	1	9009-9302
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-698-0	01	1	9303-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-09660-584-1	01	1	9009-9302
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-09660-699-0	01	1	9303-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (J)	1-09650-373-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (K)	1-09660-335-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (L) 17/32" PT1/4	1-09660-573-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M20X36	1-09660-576-0	05	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-09660-606-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-09660-608-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H)	1-09660-609-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (E) M18 & M20 STRAIGHT	1-09660-221-0	01	1	9009-9306
143	WASHER; LK,UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	8712-9312
143	WASHER; LK,UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	8712-9312
143	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	8712-
163	BRACKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-540-1	01	1	8712-
175	BOLT; HOSE BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9204
175	BOLT; HOSE BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
175	BOLT; HOSE BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-
175	BOLT; HOSE BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	9-01900-835-0	02	1	8712-9204
175	BOLT; HOSE BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	0-50040-835-0	02	1	9205-9302
175	BOLT; HOSE BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X35 FLANGE	0-28080-835-0	02	1	9303-
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	8712-9306
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	04	1	8712-9306
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	01	1	9307-
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) OD=12 L=30000	1-09369-544-0	AR	1	8712-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) OD=8 L=30000	1-09369-578-0	AR	1	8712-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) GREEN SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) GREEN SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) ORANGE SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-
193	NUT; SLEEVE OD=3/8"	1-09660-557-0	04	1	9307-
193	NUT; SLEEVE OD=1/2"	1-09660-558-0	04	1	9307-
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	8712-9306
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	8712-9306
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	AR	1	9307-
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	AR	1	9307-
194	SLEEVE; TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	04	1	9307-
194	SLEEVE; TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	04	1	9307-
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	8712-9306
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	8712-9306
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9307-
195	RING; INSERT OD=1/2"	1-09669-107-0	04	1	9307-
195	RING; INSERT OD=3/8"	1-09669-108-0	04	1	9307-
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	8712-9306
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	8712-9306
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	AR	1	9307-
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	AR	1	9307-
204	BRACKET; TUBE UNION NYLON TUBE AIR PIPING<Z29>	1-47476-086-0	01	1	8712-9306
204	BRACKET; TUBE UNION NYLON TUBE AIR PIPING<Z29>	1-47476-870-0	01	1	9307-

126 61 60 129 129 127 21 126 129 129 60 61 46 60 61 46 83 129 126 20 181 81 129 126 60 49 64 62 37 109 149 141 141 225 127 143 178 72 97 175 23 73 149 184 205 71 160 46 60 61 42 64 181 20 126 97 143 127 81 129 17 37 46 46 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B)	1-47470-205-1	01	1	8712-
17	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M16 L=42	9-09233-010-1	01	1	8712-
20	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	04	1	8712-9306
20	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=6.1	9-09150-506-0	02	1	8712-
21	WASHER; LK,UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	8712-
21	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	8712-
23	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01900-830-0	03	1	8712-9001
23	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28010-830-0	03	1	9002-9204
23	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	03	1	9205-
23	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204
23	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9306
23	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X45 W/LK WASHER	0-50040-845-0	01	1	9307-
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	05	1	8712-9001
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	05	1	9002-9204
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	05	1	9205-
23	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M10X35 W/LK WASHER	9-01911-035-0	02	1	8712-9002
23	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-9306
37	UNION; AIR PIPE (C) M20 STRAIGHT	9-09233-012-0	01	1	8712-9008
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M20 STRAIGHT	9-09233-012-0	01	1	8712-9008
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M20 STRAIGHT	9-09233-012-0	01	1	8712-9008
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (E) M16 2WAY	1-09650-182-1	01	1	8712-
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (D)	1-09656-549-0	01	1	8712-9002
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (D)	1-09656-169-1	01	1	9003-
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M20 STRAIGHT	9-09233-012-1	02	1	9009-
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M22	9-09233-315-1	01	1	9307-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B) M22	9-09235-215-0	01	1	8712-9008
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B)	9-09238-615-0	01	1	9009-9110
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-09656-288-1	01	1	9111-9306
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (E) M14 2WAY	1-09654-034-2	01	1	8712-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (F)	1-09656-358-1	01	1	8712-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M22	9-09233-015-1	01	1	8712-9306
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M20 STRAIGHT	9-09233-012-1	01	1	9009-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	1-09656-288-1	01	1	9307-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 L=42	9-09233-010-1	01	1	8712-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 L=42	9-09233-010-1	02	1	8712-
42	GASKET; CONNECTOR NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	01	1	8712-
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (E)	1-09650-378-2	01	1	8712-
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (E)	1-09650-273-2	01	1	8712-9306
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D)	1-09656-357-1	01	1	8712-
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M14 STRAIGHT	9-09223-008-1	01	1	8712-
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M16 L=42	9-09233-010-1	01	1	8712-
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F) M14	9-09223-208-1	02	1	8712-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (G) M16 L=70 STRAIGHT	9-09233-210-1	02	1	8712-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (J) M20 L=77.5	9-09233-212-1	01	1	8712-9306
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	8712-
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09650-251-1	01	1	8712-
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M12 L=40	9-09223-006-1	01	1	8712-
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M14 STRAIGHT	9-09223-008-1	03	1	8712-
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (H) M20 STRAIGHT	9-09233-012-1	01	1	8712-
49	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	8712-9306
49	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=14.2	9-09150-514-0	01	1	8712-9312
49	WASHER; LK,PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	8712-9312
49	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	8712-
49	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-9312
60	NUT; NIPPLE,AIR PIPE HONG KONG EQUIPMENT(PQ1) M22	9-09111-422-0	01	1	8712-9005
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	8712-9005
60	NUT; NIPPLE,AIR PIPE HONG KONG EQUIPMENT(PQ1) M22	9-09111-422-0	01	1	9006-
60	NUT; NIPPLE,AIR PIPE HONG KONG EQUIPMENT(PQ1) M12	9-99111-412-0	01	1	8712-
60	NUT; NIPPLE,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) M14	9-99111-414-0	01	1	8712-9005
60	NUT; NIPPLE,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	8712-
60	NUT; NIPPLE,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9006-
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M14	9-99110-414-0	02	1	8712-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	02	1	8712-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	8712-
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	05	1	8712-9306
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	8712-9005
60	NUT; NIPPLE,AIR PIPE HONG KONG EQUIPMENT(PQ1) M20	9-99111-420-0	01	1	8712-9005
60	NUT; NIPPLE,AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	8712-9005
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9006-
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9307-
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	01	1	9307-
61	WASHER; LK,NIPPLE HONG KONG EQUIPMENT(PQ1) ID=22.5	9-09150-522-0	01	1	9006-9312
61	WASHER; LK,NIPPLE EXC. HONG KONG EQUIPMENT(PQ1) ID=14.2	9-09150-514-0	01	1	8712-9005
61	WASHER; LK,NIPPLE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	8712-9005
61	WASHER; LK,NIPPLE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	9307-9312
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	8712-9005
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	9006-9306
61	WASHER; LK,NIPPLE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	9006-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	03	1	8712-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	8712-9005
61	WASHER; LK,NIPPLE HONG KONG EQUIPMENT(PQ1) ID=20.2	9-09150-520-0	01	1	8712-9005
61	WASHER; LK,NIPPLE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	8712-9005
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9006-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	9006-9306
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	8712-9312
62	HOSE; FLEX,FWD RR EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	8712-
64	GASKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) ID=11 OD=18	9-09572-510-0	01	1	8712-
64	GASKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	02	1	8712-
64	GASKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	04	1	8712-
64	GASKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) ID=17.5	9-09572-515-0	04	1	8712-
71	HOSE; FLEX,RWD RR HONG KONG EQUIPMENT(PQ1) (A) L=550	0-07909-550-0	01	1	8712-
71	HOSE; FLEX,RWD RR EXC. NYLON TUBE AIR PIPING<Z29> (B) L=670	0-07909-670-0	01	1	8712-9306
71	HOSE; FLEX,RWD RR EXC. NYLON TUBE AIR PIPING<Z29> (B) L=670	0-07909-670-0	02	1	9307-
72	NUT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	8712-
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	02	1	8712-9204
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	02	1	9307-
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	04	1	8712-9204
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	04	1	9303-9404
73	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	06	1	9405-
81	CONNECTOR; NYLON TUBE,FRAME FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (B) M18 & M20 STRAIGHT	1-09660-221-0	01	1	8712-9005
81	CONNECTOR; NYLON TUBE,FRAME NYLON TUBE AIR PIPING<Z29> (A)	1-09660-216-0	01	1	8712-9306
81	CONNECTOR; NYLON TUBE,FRAME NYLON TUBE AIR PIPING<Z29> (A)	1-09660-550-0	01	1	9307-
81	CONNECTOR; NYLON TUBE,FRAME NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (B) M14 & M20 STRAIGHT	1-09660-255-0	01	1	8712-9005
81	CONNECTOR; NYLON TUBE,FRAME NYLON TUBE AIR PIPING<Z29> (B) M14 & M20 STRAIGHT	1-09660-255-0	01	1	9006-9306
83	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	04	1	9307-
97	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M16	1-09654-148-1	01	1	8712-
97	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M22	1-09656-099-1	01	1	8712-
97	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M16 L=42	9-09233-010-1	02	1	8712-
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (A) M14	9-09225-108-0	01	1	8712-9005
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (E)	1-09654-085-1	01	1	8712-
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D)	1-09656-423-1	01	1	8712-
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M14 STRAIGHT	9-09223-008-1	04	1	8712-
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M14	9-09225-108-1	01	1	9006-
97	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F)	9-09228-612-0	01	1	8712-9001
97	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F) M20	9-09238-912-0	01	1	9002-9005
97	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F) M20	9-09238-912-1	01	1	9006-9306
97	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (F) M20	9-09238-912-1	01	1	9006-9306
97	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (B) M20	9-09235-212-1	01	1	9006-9306
97	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (G) M20 STRAIGHT	9-09233-012-1	01	1	8712-
109	BOLT; PIPE BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9204
109	BOLT; PIPE BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
109	BOLT; PIPE BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09654-085-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M18 & M22 STRAIGHT	1-09660-222-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M12X35	1-09664-075-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) L=1161	1-09664-077-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (L)	1-09664-128-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H)	1-47470-231-0	01	1	8712-9008
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H)	1-47470-302-0	01	1	9009-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E)	1-47470-241-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) M14	9-09223-208-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (K) M14	9-09225-108-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) M16 L=70 STRAIGHT	9-09233-210-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F) M16 ELBOW	9-09235-110-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M20 ELBOW	9-09235-112-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-09664-105-0	02	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H)	1-47470-312-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (J)	1-47470-313-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M20 ELBOW	9-09235-112-1	02	1	9307-
127	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	8712-9304
127	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306
127	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	8712-
127	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9307-
127	NUT; UNION NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	02	1	8712-9306
127	NUT; UNION NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	8712-9306
127	NUT; UNION NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	02	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M14 & M14 STRAIGHT	1-09660-219-0	05	1	8712-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M14 & M16 STRAIGHT	1-09660-220-0	02	1	8712-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M18 & M20 STRAIGHT	1-09660-221-0	04	1	8712-9008
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M18 & M20 STRAIGHT	1-09660-221-0	03	1	9009-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M16 & M18 STRAIGHT	1-09660-223-0	04	1	8712-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M14 & M20 STRAIGHT	1-09660-255-0	01	1	9006-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M18 & M22 STRAIGHT	1-09660-222-0	01	1	9009-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-583-1	01	1	9009-9302
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-698-0	01	1	9303-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-09660-584-1	01	1	9009-9302
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-09660-699-0	01	1	9303-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (J)	1-09650-373-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (K)	1-09660-335-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (L) 17/32" PT1/4	1-09660-573-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M20X36	1-09660-576-0	05	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-09660-606-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-09660-608-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H)	1-09660-609-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (E) M18 & M20 STRAIGHT	1-09660-221-0	01	1	9009-9306
141	NUT; PIPE BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	8712-9306
141	NUT; PIPE BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9307-
141	NUT; PIPE BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9009-9306
143	WASHER; LK,UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	8712-9312
143	WASHER; LK,UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	8712-9312
143	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	8712-
149	BOLT; PIPE BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	01	1	9009-9204
149	BOLT; PIPE BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9306
149	BOLT; PIPE BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	8712-
160	HOSE; FLEX,SPR CHAMBER EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	8712-
175	BOLT; HOSE BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9204
175	BOLT; HOSE BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
175	BOLT; HOSE BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-
175	BOLT; HOSE BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	9-01900-835-0	02	1	8712-9204
175	BOLT; HOSE BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X35 W/LK WASHER	0-50040-835-0	02	1	9205-9302
175	BOLT; HOSE BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X35 FLANGE	0-28080-835-0	02	1	9303-
178	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47475-563-2	01	1	8712-
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	8712-9306
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	04	1	8712-9306
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	01	1	9307-
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9307-
184	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9204
184	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
205	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6X20 W/LK&PL WASHER	1-09980-493-0	07	1	8712-8906
205	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	8907-9306
205	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-
205	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9307-9409
205	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9410-
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6 FLANGE	1-09984-141-0	02	1	8712-
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	06	1	8712-9404
225	NUT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	08	1	9405-

35 32 32 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK HONG KONG EQUIPMENT(PQ1) L=1084 SERVICED BY L=1100	1-47434-387-0	01	1	8712-9006
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK HONG KONG EQUIPMENT(PQ1) L=1061 SERVICED BY L=1100	1-47434-387-0	01	1	9007-
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1090 SERVICED BY L=1100	1-47434-387-0	01	1	8712-9110
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1083 SERVICED BY L=1100	1-47434-387-0	01	1	9111-
35	PIPE; AIR,UNION TO UNION,DIFF LOCK HONG KONG EQUIPMENT(PQ1) L=1630 SERVICED BY L=1700	1-47434-393-0	01	1	8712-9306
35	PIPE; AIR,UNION TO UNION,DIFF LOCK HONG KONG EQUIPMENT(PQ1) L=1654 SERVICED BY L=1700	1-47426-357-0	01	1	9307-
35	PIPE; AIR,UNION TO UNION,DIFF LOCK EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2035 SERVICED BY L=2200	1-47434-396-0	01	1	8712-9001
35	PIPE; AIR,UNION TO UNION,DIFF LOCK EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1264 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306
35	PIPE; AIR,UNION TO UNION,DIFF LOCK EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1264 SERVICED BY L=1370	1-47426-354-0	01	1	9307-

129 129 192 192 129 126 224 129 192 192 224 221 224 226 126 221 192 224 129 192 192 224 129 129 126 129 192 221 192 129 126 129 192 129 224 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09654-085-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M18 & M22 STRAIGHT	1-09660-222-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M12X35	1-09664-075-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) L=1161	1-09664-077-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (L)	1-09664-128-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H)	1-47470-231-0	01	1	8712-9008
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H)	1-47470-302-0	01	1	9009-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E)	1-47470-241-0	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) M14	9-09223-208-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (K) M14	9-09225-108-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) M16 L=70 STRAIGHT	9-09233-210-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F) M16 ELBOW	9-09235-110-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M20 ELBOW	9-09235-112-1	01	1	8712-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-09664-105-0	02	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H)	1-47470-312-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (J)	1-47470-313-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M20 ELBOW	9-09235-112-1	02	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M14 & M14 STRAIGHT	1-09660-219-0	05	1	8712-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M14 & M16 STRAIGHT	1-09660-220-0	02	1	8712-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M18 & M20 STRAIGHT	1-09660-221-0	04	1	8712-9008
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M18 & M20 STRAIGHT	1-09660-221-0	03	1	9009-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M16 & M18 STRAIGHT	1-09660-223-0	04	1	8712-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M14 & M20 STRAIGHT	1-09660-255-0	01	1	9006-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M18 & M22 STRAIGHT	1-09660-222-0	01	1	9009-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-583-1	01	1	9009-9302
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-698-0	01	1	9303-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-09660-584-1	01	1	9009-9302
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-09660-699-0	01	1	9303-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (J)	1-09650-373-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (K)	1-09660-335-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (L) 17/32" PT1/4	1-09660-573-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M20X36	1-09660-576-0	05	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-09660-606-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-09660-608-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H)	1-09660-609-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> (E) M18 & M20 STRAIGHT	1-09660-221-0	01	1	9009-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) OD=12 L=30000	1-09369-544-0	AR	1	8712-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) OD=8 L=30000	1-09369-578-0	AR	1	8712-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) GREEN SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) GREEN SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) ORANGE SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-
221	CONNECTOR; EXH FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C)	1-47470-166-0	01	1	8712-9312
221	CONNECTOR; EXH NYLON TUBE AIR PIPING<Z29> (C)	1-47470-336-0	01	1	9401-
221	CONNECTOR; EXH HONG KONG EQUIPMENT(PQ1) (B)	1-47470-195-0	01	1	8712-9312
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),FULL TRACTOR TRUCK<RD6> (B)	1-47470-195-0	01	1	8712-9312
221	CONNECTOR; EXH EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47470-195-0	01	1	9401-
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47470-205-1	01	1	8712-
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	02	1	8712-9204
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	04	1	9307-9312
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X20 FLANGE	0-28080-620-0	04	1	9401-
226	BOLT; UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	01	1	8712-9204
226	BOLT; UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301
226	BOLT; UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302
226	BOLT; UNION NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	01	1	9303-9306

101 59 102 103 92 30 31 113 152 31 144 144 29 96 28 27 29 27 146 59 96 102 104 31 92 152 30 92 107 31 144 144 144 144 29 18 101 28 144 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=904 SERVICED BY L=1000	1-47434-476-0	01	1	8712-9306
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=904 SERVICED BY L=1000	1-47426-414-0	01	1	9307-
27	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=2553 SERVICED BY L=2600	1-47437-973-0	01	1	8712-8801
27	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=2542 SERVICED BY L=2600	1-47437-973-0	01	1	8802-9306
27	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=2545 SERVICED BY L=2900	1-47426-425-0	01	1	9307-
27	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2239 SERVICED BY L=2400	1-47437-959-0	01	1	8712-9306
27	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2381 SERVICED BY L=2400	1-47426-395-0	01	1	9307-
28	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1677 SERVICED BY L=1700	1-47434-412-0	01	1	8712-8801
28	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1651 SERVICED BY L=1700	1-47434-412-0	01	1	8802-8805
28	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1642 SERVICED BY L=1700	1-47434-412-0	01	1	8806-9306
28	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1552 SERVICED BY L=1700	1-47426-391-0	01	1	9307-
28	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1377 SERVICED BY L=1400	1-47434-411-0	01	1	8712-9306
28	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1482 SERVICED BY L=1550	1-47437-957-0	01	1	8712-9306
28	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1377 SERVICED BY L=1550	1-47426-390-0	01	1	9307-
28	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1383 SERVICED BY L=1550	1-47426-390-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1928 SERVICED BY L=1950	1-47434-414-0	01	1	8712-8801
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1937 SERVICED BY L=2100	1-47437-972-0	01	1	8712-8801
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1946 SERVICED BY L=1950	1-47434-414-0	01	1	8802-9306
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1932 SERVICED BY L=2150	1-47426-394-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1763 SERVICED BY L=1900	1-47437-971-0	01	1	8802-9306
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1763 SERVICED BY L=1900	1-47426-421-0	01	1	9307-9309
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1763 SERVICED BY L=1900	1-47426-421-0	01	1	9310-
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1343 SERVICED BY L=1400	1-47434-411-0	01	1	8712-9306
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1332 SERVICED BY L=1400	1-47426-389-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1614 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9306
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1440 SERVICED BY L=1550	1-47437-957-0	01	1	8712-9110
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1433 SERVICED BY L=1550	1-47437-957-0	01	1	9111-9306
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1433 SERVICED BY L=1550	1-47426-390-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1614 SERVICED BY L=1800	1-47426-392-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (D) L=1395 SERVICED BY L=1400	1-47437-969-0	01	1	8712-9306
30	PIPE; AIR,AIR TANK TO JOINT HONG KONG EQUIPMENT(PQ1) L=801 SERVICED BY L=1000	1-47434-491-0	01	1	8712-9306
30	PIPE; AIR,AIR TANK TO JOINT HONG KONG EQUIPMENT(PQ1) L=801	1-47485-480-0	01	1	9307-
30	PIPE; AIR,AIR TANK TO JOINT EXC. HONG KONG EQUIPMENT(PQ1) L=738 SERVICED BY L=800	1-47434-406-0	01	1	8712-9005
30	PIPE; AIR,AIR TANK TO JOINT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=738 SERVICED BY L=800	1-47434-406-0	01	1	9006-9306
30	PIPE; AIR,AIR TANK TO JOINT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=738 SERVICED BY L=800	1-47426-383-0	01	1	9307-
30	PIPE; AIR,AIR TANK TO JOINT NYLON TUBE AIR PIPING<Z29> L=729 SERVICED BY L=800	1-49111-441-0	01	1	9006-9306
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1323 SERVICED BY L=1400	1-47434-411-0	01	1	8712-9001
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2694 SERVICED BY L=2700	1-47434-415-0	01	1	8712-8801
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2773 SERVICED BY L=3000	1-47437-960-0	01	1	8802-9001
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (D)	1-47489-657-0	01	1	8712-
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1246 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1247 SERVICED BY L=1400	1-47426-389-0	01	1	9307-
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2773 SERVICED BY L=3000	1-47437-960-0	01	1	9002-9306
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2828 SERVICED BY L=3000	1-47426-397-0	01	1	9307-
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1637 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9306
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=2001 SERVICED BY L=2150	1-47437-958-0	01	1	8712-9001
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=2050 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=2063 SERVICED BY L=2150	1-47426-394-0	01	1	9307-
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1637 SERVICED BY L=1800	1-47426-392-0	01	1	9307-
31	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (E) L=732 SERVICED BY L=800	1-47434-406-0	01	1	8712-8910
31	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (E) L=696 SERVICED BY L=730	1-47437-955-0	01	1	8911-9306
59	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=1539 SERVICED BY L=1600	1-47437-985-0	01	1	8712-9306
59	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=1541 SERVICED BY L=1600	1-49111-448-0	01	1	9307-
59	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1540 SERVICED BY L=1600	1-47437-985-0	01	1	8712-9306
59	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1542 SERVICED BY L=1800	1-49111-449-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2195 SERVICED BY L=2250	1-47437-987-0	01	1	8712-8712
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2175 SERVICED BY L=2250	1-47437-987-0	01	1	8801-8801
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2201 SERVICED BY L=2250	1-47437-987-0	01	1	8802-8805
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2204 SERVICED BY L=2250	1-47437-987-0	01	1	8806-9306
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2204 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1692 SERVICED BY L=1800	1-47434-487-0	01	1	8712-9306
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1692 SERVICED BY L=1800	1-49111-449-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1369 SERVICED BY L=1450	1-47437-984-0	01	1	8712-9001
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1052 SERVICED BY L=1100	1-47437-982-0	01	1	9002-9008
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1943 SERVICED BY L=2000	1-47437-986-0	01	1	9009-9306
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1943 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (C) L=485 SERVICED BY L=500	1-47434-472-0	01	1	8712-9306
96	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=2070 SERVICED BY L=2250	1-47437-987-0	01	1	8712-8712
96	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=2076 SERVICED BY L=2250	1-47437-987-0	01	1	8801-9001
96	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=2076 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9306
96	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=2078 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
96	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1635 SERVICED BY L=1800	1-47434-487-0	01	1	8712-9306
96	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1635 SERVICED BY L=1800	1-49111-449-0	01	1	9307-
101	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1522 SERVICED BY L=1550	1-47437-957-0	01	1	8712-9005
101	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1506 SERVICED BY L=1550	1-47437-957-0	01	1	9006-9306
101	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1580 SERVICED BY L=1700	1-47434-478-0	01	1	8712-9306
101	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1511 SERVICED BY L=1700	1-47426-420-0	01	1	9307-
101	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1527 SERVICED BY L=1700	1-47426-420-0	01	1	9307-
102	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1336 SERVICED BY L=1400	1-47437-969-0	01	1	8712-9306
102	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1346 SERVICED BY L=1550	1-47426-419-0	01	1	9307-9412
102	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1331 SERVICED BY L=1400	1-47426-418-0	01	1	9501-
102	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1282 SERVICED BY L=1400	1-47437-969-0	01	1	8712-9306
102	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1262 SERVICED BY L=1400	1-47426-418-0	01	1	9307-
103	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=486 SERVICED BY L=2100	1-47437-972-0	01	1	8712-9306
103	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=2059 SERVICED BY L=2500	1-47426-423-0	01	1	9307-
104	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2055 SERVICED BY L=2100	1-47437-972-0	01	1	8712-9001
104	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2069 SERVICED BY L=2100	1-47437-972-0	01	1	9002-9306
104	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2090 SERVICED BY L=2500	1-47426-423-0	01	1	9307-
107	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1881 SERVICED BY L=1900	1-47437-971-0	01	1	8712-9306
107	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1881 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
107	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> L=550 SERVICED BY L=600	1-47437-977-0	01	1	8712-9008
107	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> L=545 SERVICED BY L=550	1-47437-976-0	01	1	9009-9306
113	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) L=1905 SERVICED BY L=2100	1-47437-972-0	01	1	8712-9306
113	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) L=1905 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
113	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1288 SERVICED BY L=1400	1-47437-969-0	01	1	8712-9001
113	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1288 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9110
113	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1280 SERVICED BY L=1400	1-47437-969-0	01	1	9111-9306
113	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1280 SERVICED BY L=1400	1-47426-418-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1010 SERVICED BY L=1100	1-47437-967-0	01	1	8712-9306
144	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1010	1-49111-008-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1351 SERVICED BY L=1400	1-47437-969-0	01	1	8712-9306
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1104 SERVICED BY L=1250	1-47434-410-0	01	1	8712-9306
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1104 SERVICED BY L=1250	1-47426-388-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1729 SERVICED BY L=1800	1-47434-413-0	01	1	8712-9306
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1455 SERVICED BY L=1550	1-47437-957-0	01	1	8712-9306
144	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1351 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) L=661 SERVICED BY L=730	1-47437-965-0	01	1	8712-9306
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (E) L=1155 SERVICED BY L=1250	1-47437-968-0	01	1	8712-9306
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (E) L=1155 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1729 SERVICED BY L=1950	1-47426-393-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) L=661 SERVICED BY L=700	1-47426-410-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1418 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (F) L=1407 SERVICED BY L=1550	1-47437-957-0	01	1	8712-9306
146	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2350 SERVICED BY L=2600	1-47437-973-0	01	1	8712-9306
146	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2410 SERVICED BY L=2500	1-47426-423-0	01	1	9307-
152	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1010 SERVICED BY L=1100	1-47437-967-0	01	1	8712-9306
152	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1010	1-49111-003-0	01	1	9307-
152	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1048 SERVICED BY L=1100	1-47434-409-0	01	1	8712-9001
152	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1058 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306
152	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1058 SERVICED BY L=1100	1-47426-387-0	01	1	9307-
152	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1207 SERVICED BY L=1250	1-47434-410-0	01	1	8712-9306
152	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1207 SERVICED BY L=1250	1-47426-388-0	01	1	9307-

26 26 26 221 25 222 221 222 217 20 19 216 215 215 222 220 25 20 19 5 214 17 217 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) L=548 SERVICED BY L=550	1-47437-963-0	01	1	8712-9306
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) L=548 SERVICED BY L=600	1-47426-408-0	01	1	9307-9307
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1)	1-49112-617-0	01	1	9308-
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B)	1-47470-205-1	01	1	8712-
17	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M16 L=42	9-09233-010-1	01	1	8712-
19	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14	9-99110-414-0	01	1	8712-
19	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	02	1	8712-
19	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6	9-09111-406-0	02	1	8712-
19	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	8712-
20	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	04	1	8712-9306
20	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=6.1	9-09150-506-0	02	1	8712-
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1)	1-47470-185-2	01	1	8712-
25	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47470-177-1	01	1	8712-
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1677	1-47481-086-0	01	1	8712-9306
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1677	1-47495-973-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1038 SERVICED BY L=1100	1-47434-409-0	01	1	8712-9306
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1038 SERVICED BY L=1100	1-47426-387-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1662 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9306
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1662 SERVICED BY L=1700	1-47426-391-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) L=935	1-47447-729-1	01	1	8712-9306
26	PIPE; AIR,FLEX HOSE TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) L=935	1-47495-962-0	01	1	9307-
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50000-616-0	02	1	8712-9204
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	02	1	9303-
215	PIPE; AIR,UNION TO SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	1-47449-575-0	01	1	8712-9105
215	PIPE; AIR,UNION TO SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=400 SERVICED BY L=450	1-47426-405-0	01	1	9106-9306
215	PIPE; AIR,UNION TO SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=221 SERVICED BY L=350	9-47415-377-0	01	1	8712-9105
215	PIPE; AIR,UNION TO SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=269 SERVICED BY L=300	1-47426-372-0	01	1	9106-9106
215	PIPE; AIR,UNION TO SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=244 SERVICED BY L=250	1-47426-371-0	01	1	9107-9306
215	PIPE; AIR,UNION TO SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=244 SERVICED BY L=250	1-47426-371-0	01	1	9307-
215	PIPE; AIR,UNION TO SUPPLY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=400 SERVICED BY L=450	1-47426-405-0	01	1	9307-
216	PIPE; AIR,SUPPLY VLV TO PARKING BRK VL EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=422 SERVICED BY L=450	1-47437-962-0	01	1	8712-9105
216	PIPE; AIR,SUPPLY VLV TO PARKING BRK VL EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=433 SERVICED BY L=450	1-47426-405-0	01	1	9106-9306
216	PIPE; AIR,SUPPLY VLV TO PARKING BRK VL EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=433 SERVICED BY L=450	1-47426-405-0	01	1	9307-
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=552 SERVICED BY L=600	9-47415-382-0	01	1	8712-9306
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=552 SERVICED BY L=570	1-47426-378-0	01	1	9307-9307
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1)	1-49112-618-0	01	1	9308-
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47483-658-0	01	1	8712-9306
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-49111-338-0	01	1	9307-9310
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=552 SERVICED BY L=570	1-47426-378-0	01	1	9311-
220	HOSE; VINYL,EXH,PARKING BRK VLV HONG KONG EQUIPMENT(PQ1) L=480 SERVICED BY L=10000	9-09914-701-0	01	1	8712-9312
220	HOSE; VINYL,EXH,PARKING BRK VLV HONG KONG EQUIPMENT(PQ1) L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9401-
220	HOSE; VINYL,EXH,PARKING BRK VLV NYLON TUBE AIR PIPING<Z29> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9401-
221	CONNECTOR; EXH FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (C)	1-47470-166-0	01	1	8712-9312
221	CONNECTOR; EXH NYLON TUBE AIR PIPING<Z29> (C)	1-47470-336-0	01	1	9401-
221	CONNECTOR; EXH HONG KONG EQUIPMENT(PQ1) (B)	1-47470-195-0	01	1	8712-9312
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),FULL TRACTOR TRUCK<RD6> (B)	1-47470-195-0	01	1	8712-9312
221	CONNECTOR; EXH EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47470-195-0	01	1	9401-
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47470-205-1	01	1	8712-
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	9-01910-820-0	01	1	8712-9005
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),FULL TRACTOR TRUCK<RD6> M8X20 W/LK WASHER	9-01910-820-0	01	1	8712-9005
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9302
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),FULL TRACTOR TRUCK<RD6> M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9302
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	01	1	9303-9312
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),FULL TRACTOR TRUCK<RD6> M8X20 FLANGE	0-28080-820-0	01	1	9303-9312
222	BOLT; CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9401-
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	02	1	8712-9204
222	BOLT; CONNECTOR FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	02	1	8712-9204
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301
222	BOLT; CONNECTOR FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302
222	BOLT; CONNECTOR FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306
222	BOLT; CONNECTOR FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9307-
222	BOLT; CONNECTOR NYLON TUBE AIR PIPING<Z29> M6X20 FLANGE	0-28080-620-0	02	1	9401-

192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) OD=12 L=30000	1-09369-544-0	AR	1	8712-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) OD=8 L=30000	1-09369-578-0	AR	1	8712-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) GREEN SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) GREEN SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) ORANGE SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-

48 192 192 192 192 192 192 87 192 187 30 192 192 192 192 192 144 48 87 192 192 192 192 192 192 192 29 192 107 31 192 192 92 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1928 SERVICED BY L=1950	1-47434-414-0	01	1	8712-8801
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1937 SERVICED BY L=2100	1-47437-972-0	01	1	8712-8801
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1946 SERVICED BY L=1950	1-47434-414-0	01	1	8802-9306
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1932 SERVICED BY L=2150	1-47426-394-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1763 SERVICED BY L=1900	1-47437-971-0	01	1	8802-9306
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1763 SERVICED BY L=1900	1-47426-421-0	01	1	9307-9309
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1763 SERVICED BY L=1900	1-47426-421-0	01	1	9310-
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1343 SERVICED BY L=1400	1-47434-411-0	01	1	8712-9306
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1332 SERVICED BY L=1400	1-47426-389-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1614 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9306
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1440 SERVICED BY L=1550	1-47437-957-0	01	1	8712-9110
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1433 SERVICED BY L=1550	1-47437-957-0	01	1	9111-9306
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1433 SERVICED BY L=1550	1-47426-390-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1614 SERVICED BY L=1800	1-47426-392-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (D) L=1395 SERVICED BY L=1400	1-47437-969-0	01	1	8712-9306
30	PIPE; AIR,AIR TANK TO JOINT HONG KONG EQUIPMENT(PQ1) L=801 SERVICED BY L=1000	1-47434-491-0	01	1	8712-9306
30	PIPE; AIR,AIR TANK TO JOINT HONG KONG EQUIPMENT(PQ1) L=801	1-47485-480-0	01	1	9307-
30	PIPE; AIR,AIR TANK TO JOINT EXC. HONG KONG EQUIPMENT(PQ1) L=738 SERVICED BY L=800	1-47434-406-0	01	1	8712-9005
30	PIPE; AIR,AIR TANK TO JOINT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=738 SERVICED BY L=800	1-47434-406-0	01	1	9006-9306
30	PIPE; AIR,AIR TANK TO JOINT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=738 SERVICED BY L=800	1-47426-383-0	01	1	9307-
30	PIPE; AIR,AIR TANK TO JOINT NYLON TUBE AIR PIPING<Z29> L=729 SERVICED BY L=800	1-49111-441-0	01	1	9006-9306
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1323 SERVICED BY L=1400	1-47434-411-0	01	1	8712-9001
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2694 SERVICED BY L=2700	1-47434-415-0	01	1	8712-8801
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2773 SERVICED BY L=3000	1-47437-960-0	01	1	8802-9001
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (D)	1-47489-657-0	01	1	8712-
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1246 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1247 SERVICED BY L=1400	1-47426-389-0	01	1	9307-
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2773 SERVICED BY L=3000	1-47437-960-0	01	1	9002-9306
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2828 SERVICED BY L=3000	1-47426-397-0	01	1	9307-
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1637 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9306
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=2001 SERVICED BY L=2150	1-47437-958-0	01	1	8712-9001
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=2050 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=2063 SERVICED BY L=2150	1-47426-394-0	01	1	9307-
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1637 SERVICED BY L=1800	1-47426-392-0	01	1	9307-
31	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (E) L=732 SERVICED BY L=800	1-47434-406-0	01	1	8712-8910
31	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (E) L=696 SERVICED BY L=730	1-47437-955-0	01	1	8911-9306
48	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=603 SERVICED BY L=1000	1-47434-491-0	01	1	8712-8801
48	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=515 SERVICED BY L=1000	1-47434-491-0	01	1	8712-9001
48	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=701 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
48	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=683 SERVICED BY L=1000	1-47434-491-0	01	1	8802-
48	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=701 SERVICED BY L=1000	1-47434-491-0	01	1	9307-
87	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=561 SERVICED BY L=600	1-47437-977-0	01	1	9002-9306
87	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=561 SERVICED BY L=600	1-49111-437-0	01	1	9307-
87	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=1016 SERVICED BY L=1100	1-47437-982-0	01	1	8712-9001
87	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=538 SERVICED BY L=550	1-47437-976-0	01	1	9002-9008
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2195 SERVICED BY L=2250	1-47437-987-0	01	1	8712-8712
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2175 SERVICED BY L=2250	1-47437-987-0	01	1	8801-8801
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2201 SERVICED BY L=2250	1-47437-987-0	01	1	8802-8805
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2204 SERVICED BY L=2250	1-47437-987-0	01	1	8806-9306
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2204 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1692 SERVICED BY L=1800	1-47434-487-0	01	1	8712-9306
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1692 SERVICED BY L=1800	1-49111-449-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1369 SERVICED BY L=1450	1-47437-984-0	01	1	8712-9001
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1052 SERVICED BY L=1100	1-47437-982-0	01	1	9002-9008
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1943 SERVICED BY L=2000	1-47437-986-0	01	1	9009-9306
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1943 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (C) L=485 SERVICED BY L=500	1-47434-472-0	01	1	8712-9306
107	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1881 SERVICED BY L=1900	1-47437-971-0	01	1	8712-9306
107	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1881 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
107	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> L=550 SERVICED BY L=600	1-47437-977-0	01	1	8712-9008
107	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> L=545 SERVICED BY L=550	1-47437-976-0	01	1	9009-9306
144	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1010 SERVICED BY L=1100	1-47437-967-0	01	1	8712-9306
144	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1010	1-49111-008-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1351 SERVICED BY L=1400	1-47437-969-0	01	1	8712-9306
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1104 SERVICED BY L=1250	1-47434-410-0	01	1	8712-9306
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1104 SERVICED BY L=1250	1-47426-388-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1729 SERVICED BY L=1800	1-47434-413-0	01	1	8712-9306
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1455 SERVICED BY L=1550	1-47437-957-0	01	1	8712-9306
144	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1351 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) L=661 SERVICED BY L=730	1-47437-965-0	01	1	8712-9306
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (E) L=1155 SERVICED BY L=1250	1-47437-968-0	01	1	8712-9306
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (E) L=1155 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1729 SERVICED BY L=1950	1-47426-393-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D) L=661 SERVICED BY L=700	1-47426-410-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1418 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
144	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (F) L=1407 SERVICED BY L=1550	1-47437-957-0	01	1	8712-9306
187	PIPE; AIR,AIR VLV TO UNION NYLON TUBE AIR PIPING<Z29> L=665 SERVICED BY L=730	1-47437-979-0	01	1	8712-9001
187	PIPE; AIR,AIR VLV TO UNION NYLON TUBE AIR PIPING<Z29> L=535 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) OD=12 L=30000	1-09369-544-0	AR	1	8712-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) OD=8 L=30000	1-09369-578-0	AR	1	8712-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) GREEN SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) GREEN SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) ORANGE SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-

206 4 7 6 6 7 8 24 8 24 10 6 11 12 7 64 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	PIPE; AIR,UNION TO BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=502 SERVICED BY L=550	1-47437-976-0	01	1	8712-9306
4	PIPE; AIR,UNION TO BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=502 SERVICED BY L=550	1-49111-436-0	01	1	9307-
6	WASHER; LK,FLEX HOSE HONG KONG EQUIPMENT(PQ1) ID=20.2	9-09150-520-0	01	1	8712-
6	WASHER; LK,FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	8712-
6	WASHER; LK,FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	8712-
7	NUT; FLEX HOSE HONG KONG EQUIPMENT(PQ1) M20	9-99111-420-0	01	1	8712-
7	NUT; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	8712-
7	NUT; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	8712-
8	HOSE; FLEX,AIR,CAB SIDE HONG KONG EQUIPMENT(PQ1) L=850	0-07424-850-0	01	1	8712-9408
8	HOSE; FLEX,AIR,CAB SIDE HONG KONG EQUIPMENT(PQ1) L=830	0-07424-830-0	01	1	9409-
8	HOSE; FLEX,AIR,CAB SIDE HONG KONG EQUIPMENT(PQ1) L=770	1-09363-329-4	01	1	8712-
8	HOSE; FLEX,AIR,CAB SIDE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=960	0-07424-960-0	01	1	8712-
8	HOSE; FLEX,AIR,CAB SIDE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=960	0-07706-960-0	01	1	8712-8804
8	HOSE; FLEX,AIR,CAB SIDE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=910	0-07706-910-0	01	1	8805-
9	BRACKET; FLEX HOSE,CAB SIDE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-422-2	01	1	8712-8807
9	BRACKET; FLEX HOSE,CAB SIDE EXC. NYLON TUBE AIR PIPING<Z29>	1-47476-302-0	01	1	8808-9306
9	BRACKET; FLEX HOSE,CAB SIDE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-410-3	01	1	9307-
10	CONNECTOR; FLEX HOSE HONG KONG EQUIPMENT(PQ1)	1-09656-359-1	01	1	8712-
11	WASHER; LK,CONNECTOR HONG KONG EQUIPMENT(PQ1) ID=20.2	9-09150-520-0	01	1	8712-
12	NUT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M20	9-99111-420-0	01	1	8712-
24	HOSE; FLEX,PARKING BRK CAB UP +50MM<W60> EXC. NYLON TUBE AIR PIPING<Z29> L=700	0-07424-700-0	01	1	8712-
24	HOSE; FLEX,PARKING BRK EXC. CAB UP +50MM<W60>,NYLON TUBE AIR PIPING<Z29> L=580	0-07404-580-0	01	1	8712-
24	HOSE; FLEX,PARKING BRK EXC. CAB UP +50MM<W60>,NYLON TUBE AIR PIPING<Z29> L=590	0-07424-590-0	01	1	8712-
24	HOSE; FLEX,PARKING BRK EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=700	0-07404-700-0	01	1	8712-
24	HOSE; FLEX,PARKING BRK CAB UP +50MM<W60> EXC. NYLON TUBE AIR PIPING<Z29> L=700	0-07404-700-0	01	1	8712-
64	GASKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) ID=11 OD=18	9-09572-510-0	01	1	8712-
64	GASKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	02	1	8712-
64	GASKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	04	1	8712-
64	GASKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) ID=17.5	9-09572-515-0	04	1	8712-
206	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29>	1-47445-575-1	01	1	8712-9306
206	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29>	1-47495-944-0	01	1	9307-

92 87 48 58 171 173 201 167 169 169 51 153 52 31 31 113 31 92 48 51 52 58 28 70 167 152 113 29 31 107 87 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1677 SERVICED BY L=1700	1-47434-412-0	01	1	8712-8801
28	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1651 SERVICED BY L=1700	1-47434-412-0	01	1	8802-8805
28	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1642 SERVICED BY L=1700	1-47434-412-0	01	1	8806-9306
28	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1552 SERVICED BY L=1700	1-47426-391-0	01	1	9307-
28	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1377 SERVICED BY L=1400	1-47434-411-0	01	1	8712-9306
28	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1482 SERVICED BY L=1550	1-47437-957-0	01	1	8712-9306
28	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1377 SERVICED BY L=1550	1-47426-390-0	01	1	9307-
28	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1383 SERVICED BY L=1550	1-47426-390-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1928 SERVICED BY L=1950	1-47434-414-0	01	1	8712-8801
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1937 SERVICED BY L=2100	1-47437-972-0	01	1	8712-8801
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1946 SERVICED BY L=1950	1-47434-414-0	01	1	8802-9306
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1932 SERVICED BY L=2150	1-47426-394-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1763 SERVICED BY L=1900	1-47437-971-0	01	1	8802-9306
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1763 SERVICED BY L=1900	1-47426-421-0	01	1	9307-9309
29	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1763 SERVICED BY L=1900	1-47426-421-0	01	1	9310-
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1343 SERVICED BY L=1400	1-47434-411-0	01	1	8712-9306
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1332 SERVICED BY L=1400	1-47426-389-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1614 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9306
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1440 SERVICED BY L=1550	1-47437-957-0	01	1	8712-9110
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1433 SERVICED BY L=1550	1-47437-957-0	01	1	9111-9306
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=1433 SERVICED BY L=1550	1-47426-390-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1614 SERVICED BY L=1800	1-47426-392-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (D) L=1395 SERVICED BY L=1400	1-47437-969-0	01	1	8712-9306
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1323 SERVICED BY L=1400	1-47434-411-0	01	1	8712-9001
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2694 SERVICED BY L=2700	1-47434-415-0	01	1	8712-8801
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2773 SERVICED BY L=3000	1-47437-960-0	01	1	8802-9001
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (D)	1-47489-657-0	01	1	8712-
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1246 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1247 SERVICED BY L=1400	1-47426-389-0	01	1	9307-
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2773 SERVICED BY L=3000	1-47437-960-0	01	1	9002-9306
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2828 SERVICED BY L=3000	1-47426-397-0	01	1	9307-
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1637 SERVICED BY L=1700	1-47434-412-0	01	1	8712-9306
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=2001 SERVICED BY L=2150	1-47437-958-0	01	1	8712-9001
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=2050 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=2063 SERVICED BY L=2150	1-47426-394-0	01	1	9307-
31	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1637 SERVICED BY L=1800	1-47426-392-0	01	1	9307-
31	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (E) L=732 SERVICED BY L=800	1-47434-406-0	01	1	8712-8910
31	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (E) L=696 SERVICED BY L=730	1-47437-955-0	01	1	8911-9306
48	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=603 SERVICED BY L=1000	1-47434-491-0	01	1	8712-8801
48	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=515 SERVICED BY L=1000	1-47434-491-0	01	1	8712-9001
48	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=701 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
48	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=683 SERVICED BY L=1000	1-47434-491-0	01	1	8802-
48	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=701 SERVICED BY L=1000	1-47434-491-0	01	1	9307-
51	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1334 SERVICED BY L=1450	1-47437-984-0	01	1	8712-9005
51	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1352 SERVICED BY L=1450	1-47437-984-0	01	1	9006-9306
51	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1365 SERVICED BY L=1450	1-49111-447-0	01	1	9307-
51	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1564 SERVICED BY L=1650	1-47437-996-0	01	1	8712-9306
52	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) L=529 SERVICED BY L=1000	1-47434-491-0	01	1	8712-9306
52	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) L=529	1-47485-721-0	01	1	9307-
52	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=529 SERVICED BY L=1500	1-47434-492-0	01	1	8712-9001
52	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1368 SERVICED BY L=1500	1-47434-492-0	01	1	9002-9110
52	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1280 SERVICED BY L=1350	1-47437-995-0	01	1	9111-
58	PIPE; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=433 SERVICED BY L=500	1-49111-435-0	01	1	9307-
58	PIPE; AIR,RELAY VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=520	1-47439-194-1	01	1	8712-9001
58	PIPE; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=433 SERVICED BY L=550	1-47437-976-0	01	1	8712-9306
58	PIPE; AIR,RELAY VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=520 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306
58	PIPE; AIR,RELAY VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=520 SERVICED BY L=550	1-49111-436-0	01	1	9307-
70	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47447-464-0	01	1	8712-9001
70	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1340 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
70	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1359 SERVICED BY L=1450	1-49111-447-0	01	1	9307-
87	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=561 SERVICED BY L=600	1-47437-977-0	01	1	9002-9306
87	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=561 SERVICED BY L=600	1-49111-437-0	01	1	9307-
87	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=1016 SERVICED BY L=1100	1-47437-982-0	01	1	8712-9001
87	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=538 SERVICED BY L=550	1-47437-976-0	01	1	9002-9008
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2195 SERVICED BY L=2250	1-47437-987-0	01	1	8712-8712
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2175 SERVICED BY L=2250	1-47437-987-0	01	1	8801-8801
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2201 SERVICED BY L=2250	1-47437-987-0	01	1	8802-8805
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2204 SERVICED BY L=2250	1-47437-987-0	01	1	8806-9306
92	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2204 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1692 SERVICED BY L=1800	1-47434-487-0	01	1	8712-9306
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1692 SERVICED BY L=1800	1-49111-449-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1369 SERVICED BY L=1450	1-47437-984-0	01	1	8712-9001
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1052 SERVICED BY L=1100	1-47437-982-0	01	1	9002-9008
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1943 SERVICED BY L=2000	1-47437-986-0	01	1	9009-9306
92	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1943 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (C) L=485 SERVICED BY L=500	1-47434-472-0	01	1	8712-9306
107	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1881 SERVICED BY L=1900	1-47437-971-0	01	1	8712-9306
107	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1881 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
107	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> L=550 SERVICED BY L=600	1-47437-977-0	01	1	8712-9008
107	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> L=545 SERVICED BY L=550	1-47437-976-0	01	1	9009-9306
113	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) L=1905 SERVICED BY L=2100	1-47437-972-0	01	1	8712-9306
113	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) L=1905 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
113	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1288 SERVICED BY L=1400	1-47437-969-0	01	1	8712-9001
113	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1288 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9110
113	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1280 SERVICED BY L=1400	1-47437-969-0	01	1	9111-9306
113	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1280 SERVICED BY L=1400	1-47426-418-0	01	1	9307-
152	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1010 SERVICED BY L=1100	1-47437-967-0	01	1	8712-9306
152	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1010	1-49111-003-0	01	1	9307-
152	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1048 SERVICED BY L=1100	1-47434-409-0	01	1	8712-9001
152	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1058 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306
152	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1058 SERVICED BY L=1100	1-47426-387-0	01	1	9307-
152	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1207 SERVICED BY L=1250	1-47434-410-0	01	1	8712-9306
152	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1207 SERVICED BY L=1250	1-47426-388-0	01	1	9307-
153	PIPE; AIR,RELAY VLV TO DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) L=1264 SERVICED BY L=1400	1-47437-969-0	01	1	8712-8802
153	PIPE; AIR,RELAY VLV TO DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) L=1265 SERVICED BY L=1400	1-47437-969-0	01	1	8803-9005
153	PIPE; AIR,RELAY VLV TO DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) L=1261 SERVICED BY L=1400	1-47437-969-0	01	1	9006-9306
153	PIPE; AIR,RELAY VLV TO DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) L=1276 SERVICED BY L=1300	1-47426-417-0	01	1	9307-
167	PIPE; AIR,QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) L=532 SERVICED BY L=550	1-47437-953-0	01	1	8712-8805
167	PIPE; AIR,QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) L=539 SERVICED BY L=550	1-47437-953-0	01	1	8806-9306
167	PIPE; AIR,QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) L=539 SERVICED BY L=570	1-47426-378-0	01	1	9307-
167	PIPE; AIR,QUICK RELEASE VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=867 SERVICED BY L=900	1-47434-407-0	01	1	8712-9306
167	PIPE; AIR,QUICK RELEASE VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=867 SERVICED BY L=900	1-47426-384-0	01	1	9307-
169	PIPE; AIR,DBL CHECK VLV TO RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) L=474 SERVICED BY L=500	9-47415-380-0	01	1	8712-9306
169	PIPE; AIR,DBL CHECK VLV TO RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) L=474 SERVICED BY L=500	1-47426-376-0	01	1	9307-
169	PIPE; AIR,DBL CHECK VLV TO RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) L=551 SERVICED BY L=600	9-47415-382-0	01	1	8712-8802
169	PIPE; AIR,DBL CHECK VLV TO RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) L=521 SERVICED BY L=550	1-47437-953-0	01	1	8803-9306
169	PIPE; AIR,DBL CHECK VLV TO RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) L=521 SERVICED BY L=550	1-47426-377-0	01	1	9307-
171	PIPE; AIR,DBL CHECK VLV TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=723 SERVICED BY L=730	1-47437-955-0	01	1	8712-8802
171	PIPE; AIR,DBL CHECK VLV TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=714 SERVICED BY L=730	1-47437-955-0	01	1	8803-9306
171	PIPE; AIR,DBL CHECK VLV TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=697 SERVICED BY L=730	1-47426-382-0	01	1	9307-
173	PIPE; AIR,DBL CHECK VLV TO DBL CHECK V HONG KONG EQUIPMENT(PQ1) L=263 SERVICED BY L=350	9-47415-377-0	01	1	8712-8802
173	PIPE; AIR,DBL CHECK VLV TO DBL CHECK V HONG KONG EQUIPMENT(PQ1) L=243 SERVICED BY L=350	9-47415-377-0	01	1	8803-8805
173	PIPE; AIR,DBL CHECK VLV TO DBL CHECK V HONG KONG EQUIPMENT(PQ1) L=241 SERVICED BY L=350	9-47415-377-0	01	1	8806-9306
173	PIPE; AIR,DBL CHECK VLV TO DBL CHECK V HONG KONG EQUIPMENT(PQ1) L=242 SERVICED BY L=300	1-47426-372-0	01	1	9307-
201	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1431 SERVICED BY L=1550	1-47437-957-0	01	1	8712-8802
201	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1407 SERVICED BY L=1450	1-47437-984-0	01	1	8803-9306
201	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1407 SERVICED BY L=1600	1-49111-448-0	01	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
