4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#52) — 66 parça

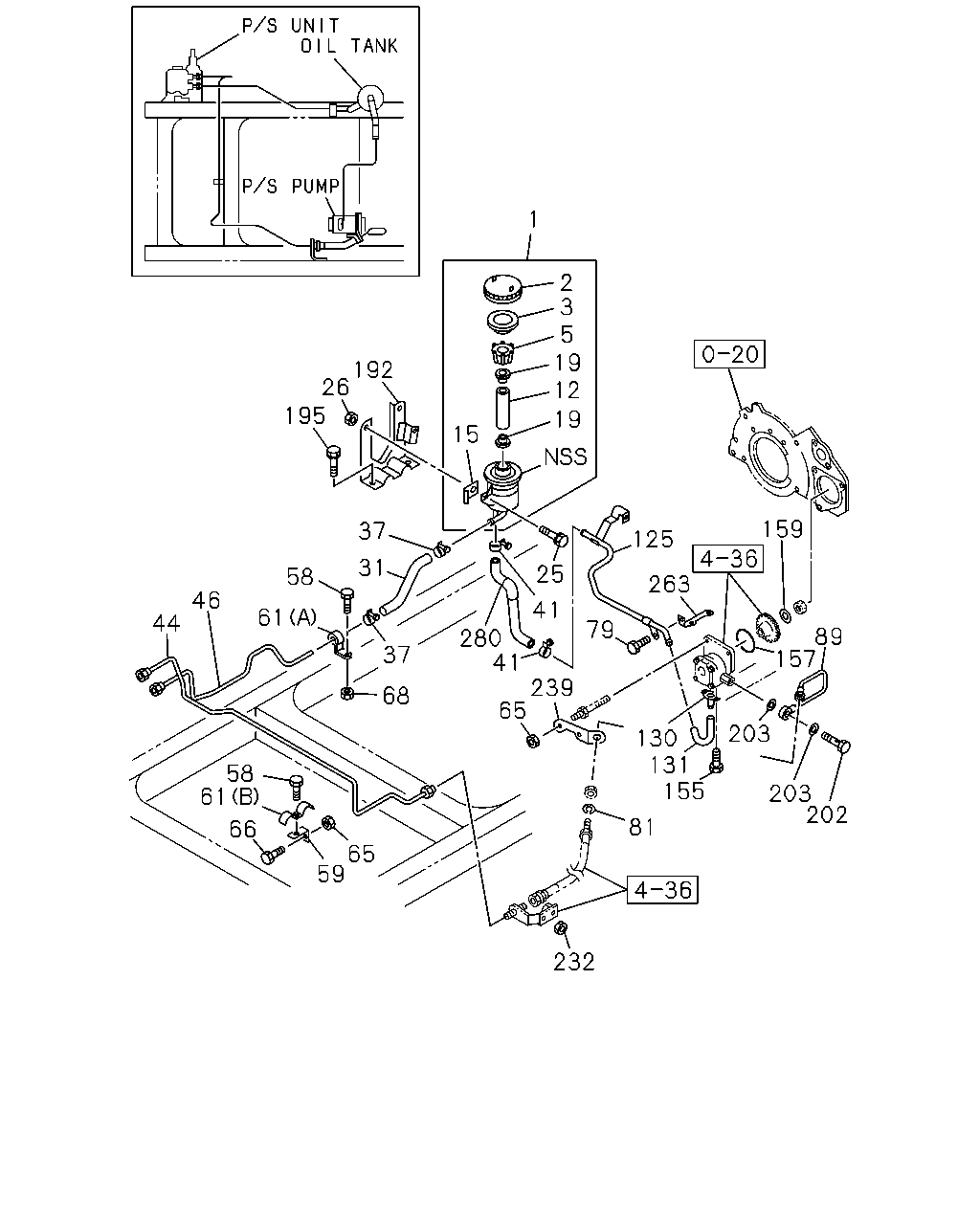

çizim 27466
1 2 3 5 19 12 192 26 195 19 15 125 159 37 263 31 25 58 46 41 61 44 79 89 157 280 41 37 239 65 68 203 130 131 155 58 61 203 202 81 66 65 59 232
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S
POWER STEERING(N40) 		1-21210-205-0 01 1 9202- ● ●
2 CAP; OIL TANK,P/S
POWER STEERING(N40) 		1-21241-004-3 01 1 9202- ● ●
3 GASKET; OIL TANK,P/S
POWER STEERING(N40) 		1-21249-003-1 01 1 9202- ● ●
5 STRAINER; OIL TANK,P/S
POWER STEERING(N40) 		1-21235-007-1 01 1 9202- ● ●
12 FILTER; MICROBON,OIL TANK,P/S
POWER STEERING(N40) 		1-21235-011-0 01 1 9202- ● ●
15 PLATE; FILTER,OIL TANK
POWER STEERING(N40) 		1-21249-007-1 02 1 9202- ● ●
19 SEAT; OIL TANK
POWER STEERING(N40) 		1-21249-004-0 02 1 9202- ● ●
25 BOLT; OIL TANK BRKT
POWER STEERING(N40) M8X18 		0-28010-818-0 02 1 9202-9204 ● ●
25 BOLT; OIL TANK BRKT
POWER STEERING(N40) M8X18 FLANGE 		0-28080-818-0 02 1 9205-9207 ● ●
25 BOLT; OIL TANK BRKT
POWER STEERING(N40) M8X20 FLANGE 		0-28080-820-0 02 1 9208- ● ●
26 NUT; OIL TANK TO BRKT
POWER STEERING(N40) M8 		9-09110-408-0 02 1 9202- ● ●
31 HOSE; P/S OIL TANK,INL
POWER STEERING(N40) 		1-21113-591-1 01 1 9202- ● ●
37 CLIP; HOSE,P/S
POWER STEERING(N40) ID=26 		1-09704-082-0 02 1 9202- ● ●
41 CLIP; HOSE,P/S
POWER STEERING(N40) ID=32 		1-09704-085-0 02 1 9202- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
POWER STEERING(N40) L=1262 		1-21113-388-0 01 1 9202-9203 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
POWER STEERING(N40) L=1270 		1-21114-304-0 01 1 9204-9211 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
POWER STEERING(N40) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1270 		1-21114-304-0 01 1 9212-9212 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
POWER STEERING(N40) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1270 		1-21114-304-0 01 1 9212-9212 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
POWER STEERING(N40) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1270 		1-21114-748-0 01 1 9301- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
POWER STEERING(N40) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1270 		1-21114-748-0 01 1 9301- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
POWER STEERING(N40) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1280 		1-21114-783-0 01 1 9212-9212 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
POWER STEERING(N40) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1280 		1-21114-784-0 01 1 9301- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING(N40) L=635 		1-21113-921-1 01 1 9204-9211 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING(N40) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=635 		1-21113-921-1 01 1 9212-9308 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING(N40) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=635 		1-21113-921-1 01 1 9212-9308 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING(N40) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-21114-980-0 01 1 9309- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING(N40) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-21114-980-0 01 1 9309- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING(N40) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=638 		1-21114-786-0 01 1 9212- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING(N40) L=788 		1-21113-564-0 01 1 9202-9203 ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING(N40) L=788 		1-21113-564-0 01 1 9204-9211 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING(N40) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=788 		1-21113-564-0 01 1 9212- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING(N40) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=788 		1-21113-564-0 01 1 9212- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING(N40) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=800 		1-21114-785-0 01 1 9212- ●
58 BOLT; CLIP
POWER STEERING(N40) M8X16 FLANGE 		0-28010-816-0 01 1 9202-9204 ● ●
58 BOLT; CLIP
POWER STEERING(N40) M8X16 FLANGE 		0-28080-816-0 01 1 9205- ● ●
58 BOLT; CLIP
POWER STEERING(N40) M8X25 FLANGE 		0-28010-825-0 01 1 9202-9204 ● ●
58 BOLT; CLIP
POWER STEERING(N40) M8X25 FLANGE 		0-28080-825-0 01 1 9205- ● ●
59 BRACKET; CLIP,OIL PIPE
POWER STEERING(N40) L=60 		1-47475-455-0 01 1 9202- ● ●
61 CLIP; OIL PIPE
POWER STEERING(N40) (A) 		1-09700-606-0 01 1 9202- ● ●
61 CLIP; OIL PIPE
POWER STEERING(N40) (B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 9202- ● ●
65 NUT; BRKT
POWER STEERING(N40) M10 FLANGE 		5-09440-006-0 02 1 9202- ● ●
65 NUT; BRKT
POWER STEERING(N40) M8 		9-09110-408-0 01 1 9202- ● ●
66 BOLT; BRKT,OIL PIPE
POWER STEERING(N40) M8X20 FLANGE 		0-28010-820-0 01 1 9202-9204 ● ●
66 BOLT; BRKT,OIL PIPE
POWER STEERING(N40) M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ●
68 NUT; CLIP,OIL PIPE
POWER STEERING(N40) M8 		9-09110-408-0 01 1 9202- ● ●
79 BOLT; BRKT
POWER STEERING(N40) M8X12 FLANGE 		0-28080-812-0 02 1 9202- ● ●
81 WASHER; LK,FLEX HOSE
POWER STEERING(N40) ID=20.2 		9-09150-520-0 01 1 9202- ● ●
89 PIPE; OIL,P/S OIL PUMP TO FLEX HOSE
POWER STEERING(N40) 		1-21113-506-0 01 1 9202-9212 ● ●
89 PIPE; OIL,P/S OIL PUMP TO FLEX HOSE
POWER STEERING(N40) 		1-21114-561-0 01 1 9301- ● ●
125 CONNECTOR; P/S PUMP
POWER STEERING(N40) 		8-94393-982-0 01 1 9202-9202 ● ●
125 CONNECTOR; P/S PUMP
POWER STEERING(N40) 		8-94394-446-0 01 1 9203-9307 ● ●
125 CONNECTOR; P/S PUMP
POWER STEERING(N40) 		8-94394-614-0 01 1 9308- ● ●
130 ADAPTER; P/S PUMP
POWER STEERING(N40) 		8-94396-340-1 01 1 9202- ● ●
131 HOSE; RUBBER,P/S
POWER STEERING(N40) 		8-94396-331-1 01 1 9202- ● ●
155 BOLT; CONNECTOR
POWER STEERING(N40) M8X16 		0-28080-816-0 02 1 9202- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING(N40) 		8-94396-678-0 01 1 9202- ● ●
159 WASHER; PL,ADAPTER
POWER STEERING(N40) 		1-09503-099-1 01 1 9202-9308 ● ●
192 BRACKET; P/S OIL TANK
POWER STEERING(N40) 		1-21119-115-5 01 1 9202- ● ●
195 BOLT; BRKT
POWER STEERING(N40) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9202- ● ●
202 BOLT; EYE,OIL PIPE
POWER STEERING(N40) M18X36 		1-09675-059-0 01 1 9202-9310 ● ●
202 BOLT; EYE,OIL PIPE
POWER STEERING(N40) M18X36 		1-09675-205-0 01 1 9311- ● ●
203 GASKET; EYE BOLT
POWER STEERING(N40) ID=18 		9-09571-418-0 02 1 9202- ● ●
232 NUT; BRKT
POWER STEERING(N40) M8 		9-09110-408-0 02 1 9202- ● ●
239 BRACKET; FLEX HOSE
POWER STEERING(N40) 		1-21119-131-0 01 1 9202- ● ●
263 BRACKET; P/S PIPE
POWER STEERING(N40) 		8-94393-981-0 01 1 9202- ● ●
280 HOSE; P/S OIL PUMP,INL
POWER STEERING(N40) 		1-21113-592-2 01 1 9202- ● ●
