1 |

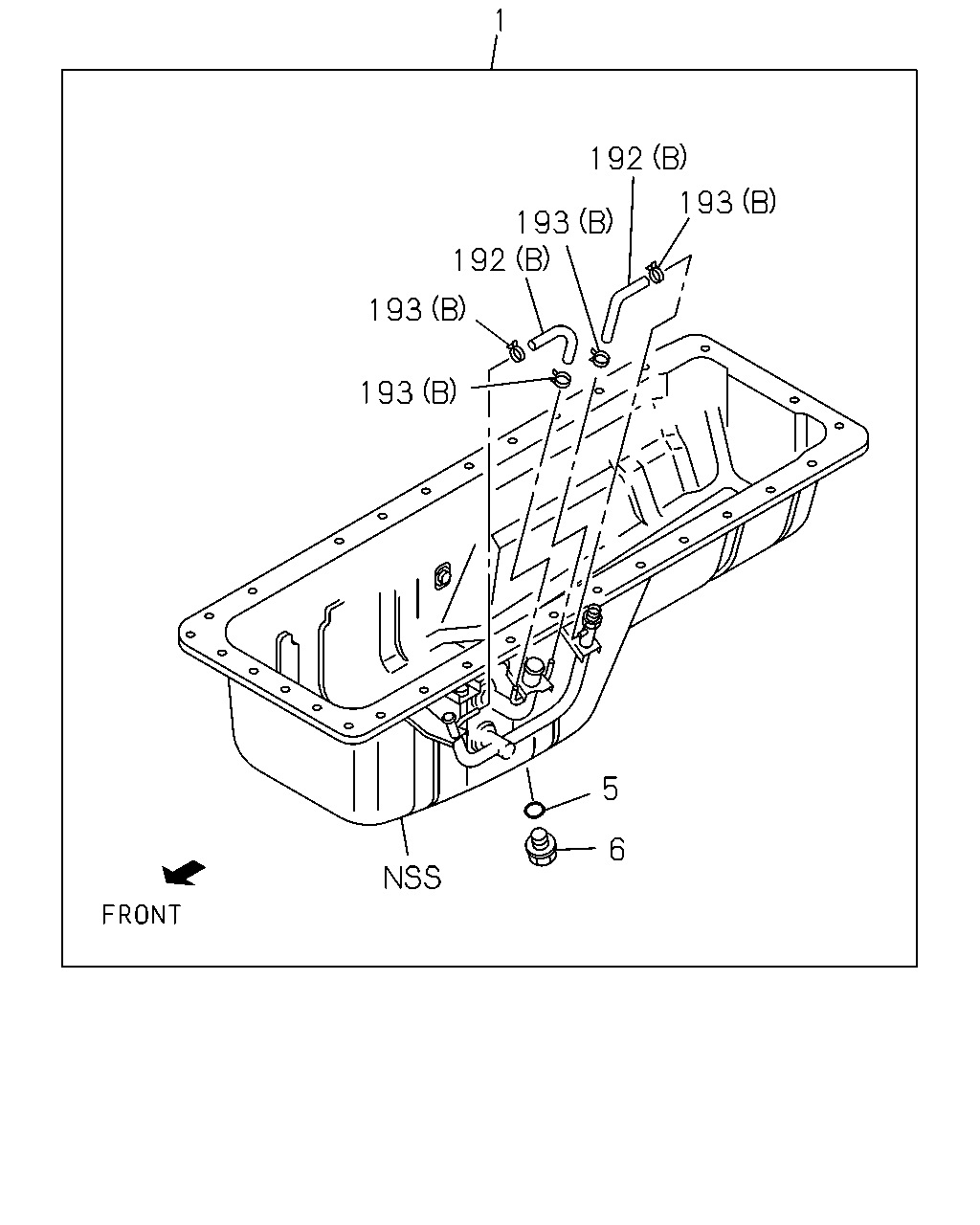

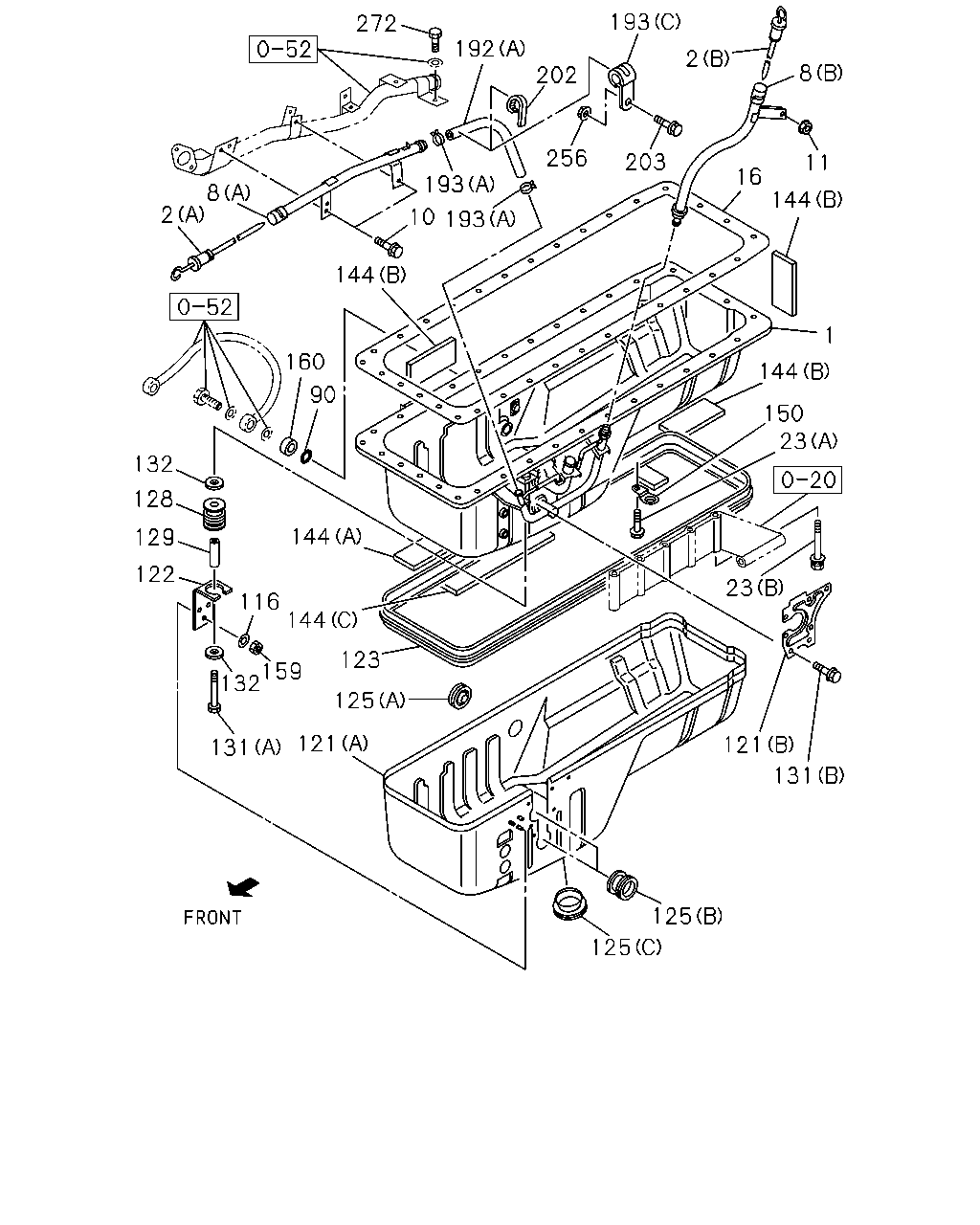

PAN ASM; OIL
|
1-11360-827-1 |
01 |
1 |
9604-9705 |
● |
|
| |
1 |
PAN ASM; OIL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
|
1-11360-827-2 |
01 |
1 |
9706-9904 |
● |
|
| |
1 |
PAN ASM; OIL
|
1-11360-848-0 |
01 |
1 |
9905-0001 |
|
● |
| |
1 |
PAN ASM; OIL
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
|
1-11360-848-1 |
01 |
1 |
0002- |
|
● |
| |
1 |
PAN ASM; OIL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
|
1-11360-850-0 |
01 |
1 |
9706-9904 |
● |
|
| |
1 |
PAN ASM; OIL
|
1-11360-850-1 |
01 |
1 |
9905- |
● |
|
| |
1 |
PAN ASM; OIL
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>
|
1-11360-826-3 |
01 |
1 |
0002- |
|
● |
| |
2 |
GAUGE; OIL LEVEL
(B)
|
1-11760-394-1 |
01 |
1 |
9604-9904 |
● |
|
| |
2 |
GAUGE; OIL LEVEL
(B)
|
1-11760-394-1 |
01 |
1 |
9905- |
● |
● |
| |
2 |
GAUGE; OIL LEVEL
(A)
|
1-11760-403-0 |
01 |
1 |
9604-9904 |
● |
|
| |
2 |
GAUGE; OIL LEVEL
(A)
|
1-11760-403-0 |
01 |
1 |
9905- |
● |
● |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
|
1-11766-419-2 |
01 |
1 |
9604- |
● |
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
|
1-11766-430-2 |
01 |
1 |
9604- |
● |
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
|
1-11766-429-2 |
01 |
1 |
9905- |
|
● |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
|
1-11766-458-1 |
01 |
1 |
9905- |
|
● |
| |
10 |
BOLT; GUIDE TUBE
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9604-9606 |
● |
● |
| |
10 |
BOLT; GUIDE TUBE
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9607- |
● |
● |
| |
11 |
NUT; GUIDE,OIL LEVEL GAUGE
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9604-9904 |
● |
|
| |
11 |
NUT; GUIDE,OIL LEVEL GAUGE
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905- |
● |
● |
| |
16 |
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-11367-107-0 |
01 |
1 |
9604- |
● |
|
| |
16 |
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-11367-105-0 |
01 |
1 |
9905- |
|
● |
| |
23 |
BOLT; OIL PAN
(A)
M8X18 W/LK&PL WASHER
|
1-09030-004-0 |
18 |
1 |
9604- |
● |
|
| |
23 |
BOLT; OIL PAN
(B)
M8X90 W/LK&PL WASHER
|
1-09030-078-0 |
10 |
1 |
9604-9904 |
● |
|
| |
23 |
BOLT; OIL PAN
(B)
M8X90 W/LK&PL WASHER
|
1-09030-078-0 |
10 |
1 |
9905- |
● |
● |
| |
23 |
BOLT; OIL PAN
(A)
M8X18 W/LK&PL WASHER
|
1-09030-004-0 |
22 |
1 |
9905- |
|
● |
| |
90 |
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-588-0 |
01 |
1 |
9604-9904 |
● |
|
| |
90 |
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-588-0 |
01 |
1 |
9905- |
● |
● |
| |
116 |
WASHER; LK,COVER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
ID=6.1
|
9-09150-506-0 |
03 |
1 |
9604-9904 |
● |
|
| |
116 |
WASHER; LK,COVER
ID=6.1
|
9-09150-506-0 |
03 |
1 |
9905- |
● |
|
| |
116 |
WASHER; LK,COVER
ID=6.1
|
9-09150-506-0 |
04 |
1 |
9905-0003 |
|
● |
| |
116 |
WASHER; LK,COVER
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
ID=6.1
|
9-09150-506-0 |
04 |
1 |
0004- |
|
● |
| |
121 |
COVER; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
|
1-19381-348-0 |
01 |
1 |
9604-9705 |
● |
|
| |
121 |
COVER; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
|
1-19381-380-0 |
01 |
1 |
9706-9904 |
● |
|
| |
121 |
COVER; OIL PAN
(A)
|
1-19381-380-0 |
01 |
1 |
9905- |
● |
|
| |
121 |
COVER; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
|
1-19381-350-0 |
01 |
1 |
9604-9904 |
● |
|
| |
121 |
COVER; OIL PAN
(B)
|
1-19381-350-0 |
01 |
1 |
9905- |
● |
|
| |
121 |
COVER; OIL PAN
(B)
|
1-19381-357-0 |
01 |
1 |
9905-0003 |
|
● |
| |
121 |
COVER; OIL PAN
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
(B)
|
1-19381-357-0 |
01 |
1 |
0004- |
|
● |
| |
121 |
COVER; OIL PAN
(A)
|
1-19381-378-0 |
01 |
1 |
9905-0003 |
|
● |
| |
121 |
COVER; OIL PAN
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
(A)
|
1-19381-378-0 |
01 |
1 |
0004- |
|
● |
| |
122 |
BRACKET; OIL PAN COVER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
|
1-19389-171-0 |
01 |
1 |
9604-9904 |
● |
|
| |
122 |
BRACKET; OIL PAN COVER
|
1-19389-171-0 |
01 |
1 |
9905-0001 |
● |
● |
| |
122 |
BRACKET; OIL PAN COVER
|
1-19389-171-0 |
01 |
1 |
0004- |
● |
|
| |
122 |
BRACKET; OIL PAN COVER
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
|
1-19389-171-0 |
01 |
1 |
0004- |
|
● |
| |
123 |
RUBBER; SEAL OIL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
|
1-19387-043-1 |
01 |
1 |
9604-9904 |
● |
|
| |
123 |
RUBBER; SEAL OIL
|
1-19387-043-1 |
01 |
1 |
9905- |
● |
|
| |
123 |
RUBBER; SEAL OIL
|
1-19387-042-1 |
01 |
1 |
9905-0003 |
|
● |
| |
123 |
RUBBER; SEAL OIL
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
|
1-19387-042-1 |
01 |
1 |
0004- |
|
● |
| |
125 |
GROMMET; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
ID=34
|
1-09333-032-0 |
01 |
1 |
9604-9904 |
● |
|
| |
125 |
GROMMET; OIL PAN
(A)
ID=34
|
1-09333-032-0 |
01 |
1 |
9905-0001 |
● |
● |
| |
125 |
GROMMET; OIL PAN
(A)
ID=34
|
1-09333-032-0 |
01 |
1 |
0002- |
● |
|
| |
125 |
GROMMET; OIL PAN
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
(A)
ID=34
|
1-09333-032-0 |
01 |
1 |
0002- |
|
● |
| |
125 |
GROMMET; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
ID=18
|
1-09333-056-0 |
03 |
1 |
9604-9904 |
● |
|
| |
125 |
GROMMET; OIL PAN
(B)
ID=18
|
1-09333-056-0 |
03 |
1 |
9905- |
● |
|
| |
125 |
GROMMET; OIL PAN
(B)
ID=18
|
1-09333-056-0 |
02 |
1 |
9905-0003 |
|
● |
| |
125 |
GROMMET; OIL PAN
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
(B)
ID=18
|
1-09333-056-0 |
02 |
1 |
0004- |
|
● |
| |
125 |
GROMMET; OIL PAN
(C)
ID=60
|
1-09333-090-0 |
01 |
1 |
9905-0003 |
|
● |
| |
125 |
GROMMET; OIL PAN
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
(C)
ID=60
|
1-09333-090-0 |
01 |
1 |
0004- |
|
● |
| |
128 |
RUBBER; MTG,OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
|
1-09337-004-0 |
06 |
1 |
9604-9904 |
● |
|
| |
128 |
RUBBER; MTG,OIL PAN
|
1-09337-004-0 |
06 |
1 |
9905-0001 |
● |
● |
| |
128 |
RUBBER; MTG,OIL PAN
|
1-09337-004-0 |
06 |
1 |
0002- |
● |
|
| |
128 |
RUBBER; MTG,OIL PAN
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
|
1-09337-004-0 |
06 |
1 |
0002- |
|
● |
| |
129 |
TUBE; DIST
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
M8X10
|
1-11369-081-0 |
03 |
1 |
9604-9904 |
● |
|
| |
129 |
TUBE; DIST
M8X10
|
1-11369-081-0 |
03 |
1 |
9905-0001 |
● |
● |
| |
129 |
TUBE; DIST
M8X10
|
1-11369-081-0 |
03 |
1 |
0002- |
● |
|
| |
129 |
TUBE; DIST
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
M8X10
|
1-11369-081-0 |
03 |
1 |
0002- |
|
● |
| |
131 |
BOLT; COVER NOISE SHIELD
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
M8X50
|
0-10805-850-0 |
03 |
1 |
9604-9904 |
● |
|
| |
131 |
BOLT; COVER NOISE SHIELD
(A)
M8X50
|
0-10805-850-0 |
03 |
1 |
9905-0001 |
● |
● |
| |
131 |
BOLT; COVER NOISE SHIELD
(A)
M8X50
|
0-10805-850-0 |
03 |
1 |
0002- |
● |
|
| |
131 |
BOLT; COVER NOISE SHIELD
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
(A)
M8X50
|
0-10805-850-0 |
03 |
1 |
0002- |
|
● |
| |
131 |
BOLT; COVER NOISE SHIELD
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
M6X10 FLANGE
|
0-28080-610-0 |
04 |
1 |
9604-9904 |
● |
|
| |
131 |
BOLT; COVER NOISE SHIELD
(B)
M6X10 FLANGE
|
0-28080-610-0 |
04 |
1 |
9905- |
● |
|
| |
131 |
BOLT; COVER NOISE SHIELD
(B)
M6X10 FLANGE
|
0-28080-610-0 |
06 |
1 |
9905-0003 |
|
● |
| |
131 |
BOLT; COVER NOISE SHIELD
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
(B)
M6X10 FLANGE
|
0-28080-610-0 |
06 |
1 |
0004- |
|
● |
| |
132 |
WASHER; PL,OIL PAN COVER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
ID=8.4 OD=26
|
9-09164-808-0 |
06 |
1 |
9604-9904 |
● |
|
| |
132 |
WASHER; PL,OIL PAN COVER
ID=8.4 OD=26
|
9-09164-808-0 |
06 |
1 |
9905-0001 |
● |
● |
| |
132 |
WASHER; PL,OIL PAN COVER
ID=8.4 OD=26
|
9-09164-808-0 |
06 |
1 |
0002- |
● |
|
| |
132 |
WASHER; PL,OIL PAN COVER
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
ID=8.4 OD=26
|
9-09164-808-0 |
06 |
1 |
0002- |
|
● |
| |
144 |
INSULATOR; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
80X200
|
1-19389-157-0 |
05 |
1 |
9604-9705 |
● |
|
| |
144 |
INSULATOR; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
80X200
|
1-19389-192-0 |
05 |
1 |
9706-9904 |
● |
|
| |
144 |
INSULATOR; OIL PAN
(B)
80X200
|
1-19389-192-0 |
05 |
1 |
9905- |
● |
|
| |
144 |
INSULATOR; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
80X300
|
1-19389-163-0 |
03 |
1 |
9604-9705 |
● |
|
| |
144 |
INSULATOR; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
80X300
|
1-19389-193-0 |
03 |
1 |
9706-9904 |
● |
|
| |
144 |
INSULATOR; OIL PAN
(A)
80X300
|
1-19389-193-0 |
03 |
1 |
9905- |
● |
|
| |
144 |
INSULATOR; OIL PAN
(B)
80X200
|
1-19389-192-0 |
07 |
1 |
9905-0003 |
|
● |
| |
144 |
INSULATOR; OIL PAN
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
(B)
80X200
|
1-19389-192-0 |
07 |
1 |
0004- |
|
● |
| |
144 |
INSULATOR; OIL PAN
(C)
80X300
|
1-19389-193-0 |
01 |
1 |
9905-0003 |
|
● |
| |
144 |
INSULATOR; OIL PAN
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
(C)
80X300
|
1-19389-193-0 |
01 |
1 |
0004- |
|
● |
| |
144 |
INSULATOR; OIL PAN
(A)
80X400
|
1-19389-194-0 |
02 |
1 |
9905-0003 |
|
● |
| |
144 |
INSULATOR; OIL PAN
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
(A)
80X400
|
1-19389-194-0 |
02 |
1 |
0004- |
|
● |
| |
150 |
CLIP; WATER,OIL DRAIN
|
9-11229-070-0 |
01 |
1 |
9604-9904 |
● |
|
| |
150 |
CLIP; WATER,OIL DRAIN
|
9-11229-070-0 |
01 |
1 |
9905- |
● |
● |
| |
159 |
NUT; PLATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
M6
|
9-09110-406-0 |
03 |
1 |
9604-9904 |
● |
|
| |
159 |
NUT; PLATE
M6
|
9-09110-406-0 |
03 |
1 |
9905- |
● |
|
| |
159 |
NUT; PLATE
M6
|
9-09110-406-0 |
04 |
1 |
9905-0003 |
|
● |
| |
159 |
NUT; PLATE
EXC. INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR<YC4>
M6
|
9-09110-406-0 |
04 |
1 |
0004- |
|
● |
| |
160 |
ADAPTER
|
1-11369-126-0 |
01 |
1 |
9604-9904 |
● |
|
| |
160 |
ADAPTER
|
1-11369-126-0 |
01 |
1 |
9905- |
● |
● |
| |
192 |
HOSE; GUIDE TUBE
(A)
L=620
SERVICED BY L=3000
|
0-02365-300-0 |
01 |
1 |
9604- |
● |
|
| |
192 |
HOSE; GUIDE TUBE
(B)
|
1-09360-297-0 |
02 |
1 |
9604-9904 |
● |
|
| |
192 |
HOSE; GUIDE TUBE
(B)
|
1-09360-297-0 |
02 |
1 |
9905- |
● |
● |
| |
192 |
HOSE; GUIDE TUBE
(A)
L=580
SERVICED BY L=3000
|
0-02365-300-0 |
01 |
1 |
9905- |
|
● |
| |
193 |
CLIP; HOSE,GUIDE TUBE
(B)
ID=11.6
|
1-09707-087-0 |
04 |
1 |
9604-9904 |
● |
|
| |
193 |
CLIP; HOSE,GUIDE TUBE
(B)
ID=11.6
|
1-09707-087-0 |
04 |
1 |
9905- |
● |
● |
| |
193 |
CLIP; HOSE,GUIDE TUBE
(A)
ID=20.8
|
8-94125-862-1 |
02 |
1 |
9604- |
● |
● |
| |
193 |
CLIP; HOSE,GUIDE TUBE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONTROL(C60)
(C)
ID=26 L=26
|
1-09701-236-0 |
01 |
1 |
9607- |
● |
● |
| |
202 |
CLIP; BAND,RUBBER COVER
L=250
|
5-09707-030-0 |
01 |
1 |
9604-9606 |
● |
● |
| |
202 |
CLIP; BAND,RUBBER COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
L=250
|
5-09707-030-1 |
01 |
1 |
9607- |
● |
● |
| |
203 |
BOLT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONTROL(C60)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9607- |
● |
● |
| |
256 |
NUT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607- |
● |
● |
| |
272 |
BOLT; STAY
M8X30
|
1-09009-020-1 |
01 |
1 |
9604- |
● |
● |
