◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51184 - NMR71-RHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#51984) — 14 parça

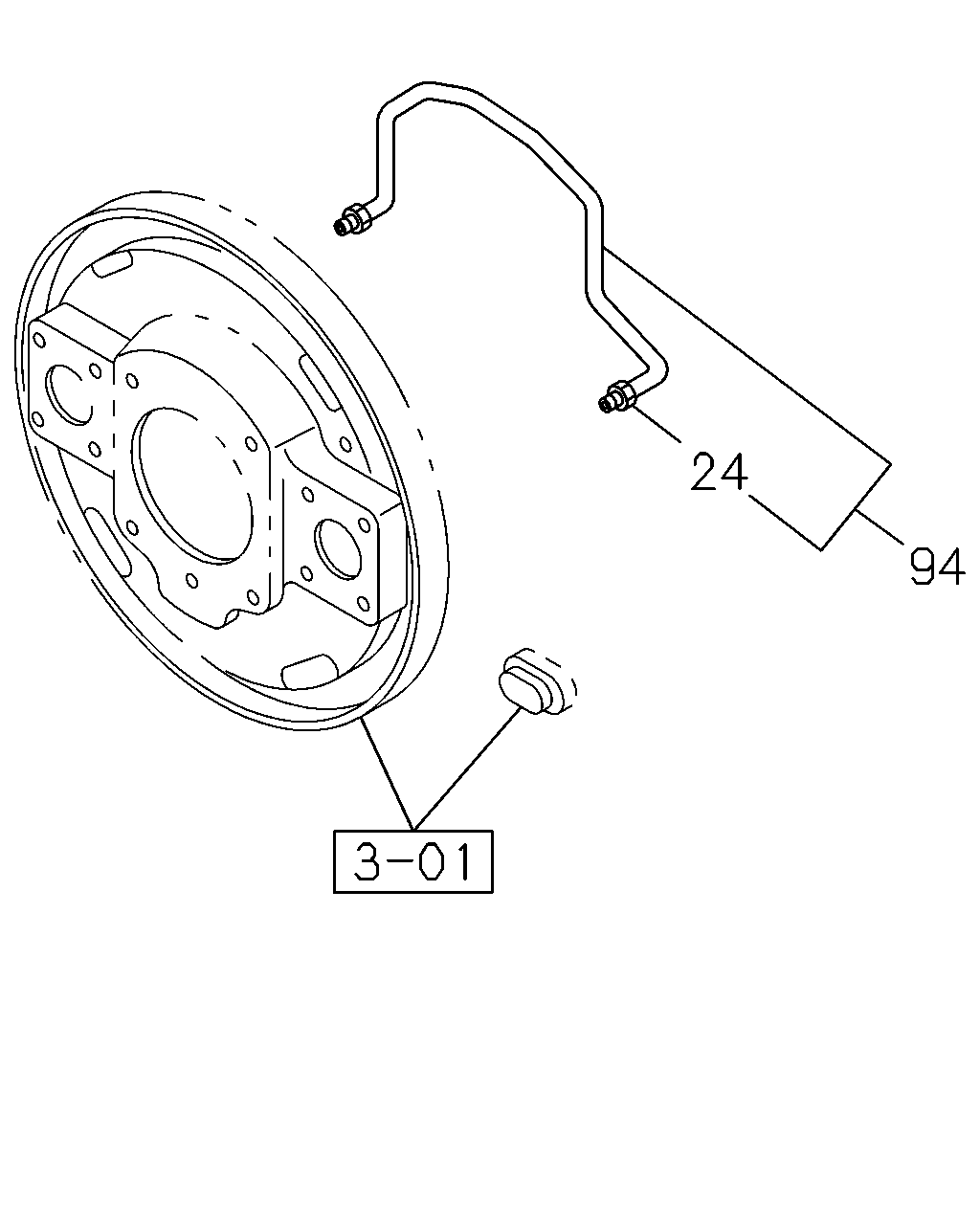

çizim 158004
24 94
BalonParca AdiParca NoAdetTipApplied Date
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0810-
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0810-
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0810-

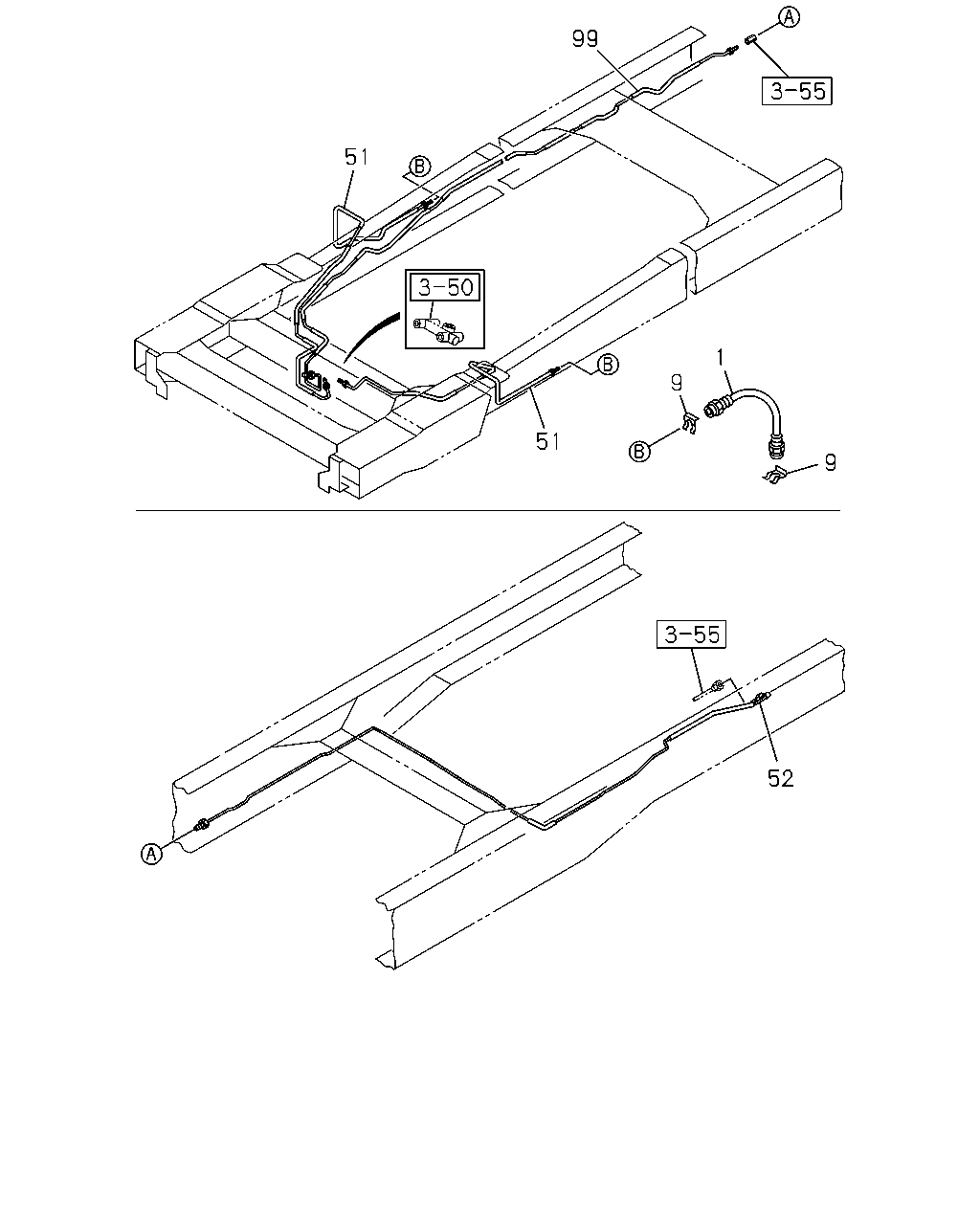

çizim 158008
99 51 1 9 51 9 52
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,FRT BRK 8-97042-976-0 02 1 0810-
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0810-
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0810-
51 04.685 PIPE; BRK
6WAY TO FRONT 		8-98054-530-0 01 1 0810-
51 04.685 PIPE; BRK
6WAY TO FRONT 		8-98054-531-1 01 1 0810-
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 2WAY TO REAR 		8-98054-694-0 01 1 0810-
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 2WAY TO REAR 		8-98054-696-0 01 1 0810-
99 04.686 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> 		8-98051-512-1 01 1 1302-1309
99 04.686 PIPE ASM; 4/5/6 WAY 8-98051-512-1 01 1 1310-
99 04.686 PIPE ASM; 4/5/6 WAY 8-98131-078-0 01 1 0810-1301
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. HEAVY DUTY FRAME<6WB> 		8-98131-078-0 01 1 1302-1309
