Sayfa 0-12 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶

0-12 — CYLINDER BLOCK (#5198) — 192 parça

1 80 30 157 35 34 155 157 83 156 83 155 155 1 30 157 155 69 15 137 162 158 96 256 95 101 161 161 69 15 46 56 169 168 170 164 166 167 164 170 171 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	1-11210-586-7	01	1	9604-	●
1	BLOCK ASM; CYL	1-11210-584-7	01	1	9905-		●
15	PLUG; OIL GALLERY M30X20	1-09609-019-0	02	1	9604-9904	●
15	PLUG; OIL GALLERY M30X20	1-09609-019-0	02	1	9905-	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9604-9904	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9905-	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9604-9904	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9905-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9604-9904	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9905-	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	08	1	9604-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	10	1	9905-		●
56	JET; OIL,PISTON COOLING	1-13342-135-1	08	1	9604-	●
56	JET; OIL,PISTON COOLING	1-13342-135-1	10	1	9905-		●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	06	1	9604-	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9707-	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	02	1	9905-		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-1	08	1	9604-	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-1	10	1	9905-		●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9604-9904	●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9905-	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9604-9904	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9905-	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9604-9904	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9905-	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9604-9904	●
101	CUP; SEALING CAM END	1-09600-022-1	01	1	9905-	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9604-9904	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9905-	●	●
155	PLUG; OIL GALLERY END (C) PT3/4	1-09605-020-0	02	1	9604-9904	●
155	PLUG; OIL GALLERY END (C) PT3/4	1-09605-020-0	02	1	9905-	●	●
155	PLUG; OIL GALLERY END (A) PT1	1-09605-021-0	02	1	9604-9904	●
155	PLUG; OIL GALLERY END (A) PT1	1-09605-021-0	02	1	9905-	●	●
155	PLUG; OIL GALLERY END (B) M30X20	1-09609-019-0	02	1	9604-	●
156	PLUG; IDLE GEAR PT1/4	1-09605-019-0	02	1	9604-9904	●
156	PLUG; IDLE GEAR PT1/4	1-09605-019-0	02	1	9905-	●	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	06	1	9604-	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	08	1	9905-		●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9604-9904	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9905-	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9604-9904	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9905-	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9604-9904	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9905-	●	●
164	BOLT; COVER BLOCK SKIRT (A) M10X28 FLANGE	0-28181-028-0	03	1	9905-0003		●
164	BOLT; COVER BLOCK SKIRT EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A) M10X28 FLANGE	0-28181-028-0	03	1	0004-		●
164	BOLT; COVER BLOCK SKIRT (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9905-0003		●
164	BOLT; COVER BLOCK SKIRT EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	0004-		●
165	COVER; C/BL SKIRT	1-19381-320-1	01	1	9905-0003		●
165	COVER; C/BL SKIRT EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-19381-320-1	01	1	0004-		●
166	MOUNT; COVER BLOCK SKIRT	1-09337-020-0	06	1	9905-0003		●
166	MOUNT; COVER BLOCK SKIRT EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-09337-020-0	06	1	0004-		●
167	TUBE; DIST,SIDE COVER	5-23332-003-0	06	1	9905-0003		●
167	TUBE; DIST,SIDE COVER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	5-23332-003-0	06	1	0004-		●
168	BRACKET; SIDE COVER	1-19386-012-3	03	1	9905-0003		●
168	BRACKET; SIDE COVER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-19386-012-3	03	1	0004-		●
169	INSULATOR; SIDE COVER	1-19389-197-0	01	1	9905-0003		●
169	INSULATOR; SIDE COVER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-19389-197-0	01	1	0004-		●
170	WASHER; COVER ID=10.5 OD=26	9-09160-710-0	06	1	9905-0003		●
170	WASHER; COVER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> ID=10.5 OD=26	9-09160-710-0	06	1	0004-		●
171	NUT; COVER & BRKT M10	9-09110-410-0	03	1	9905-0003		●
171	NUT; COVER & BRKT EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M10	9-09110-410-0	03	1	0004-		●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9604-9904	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-	●	●

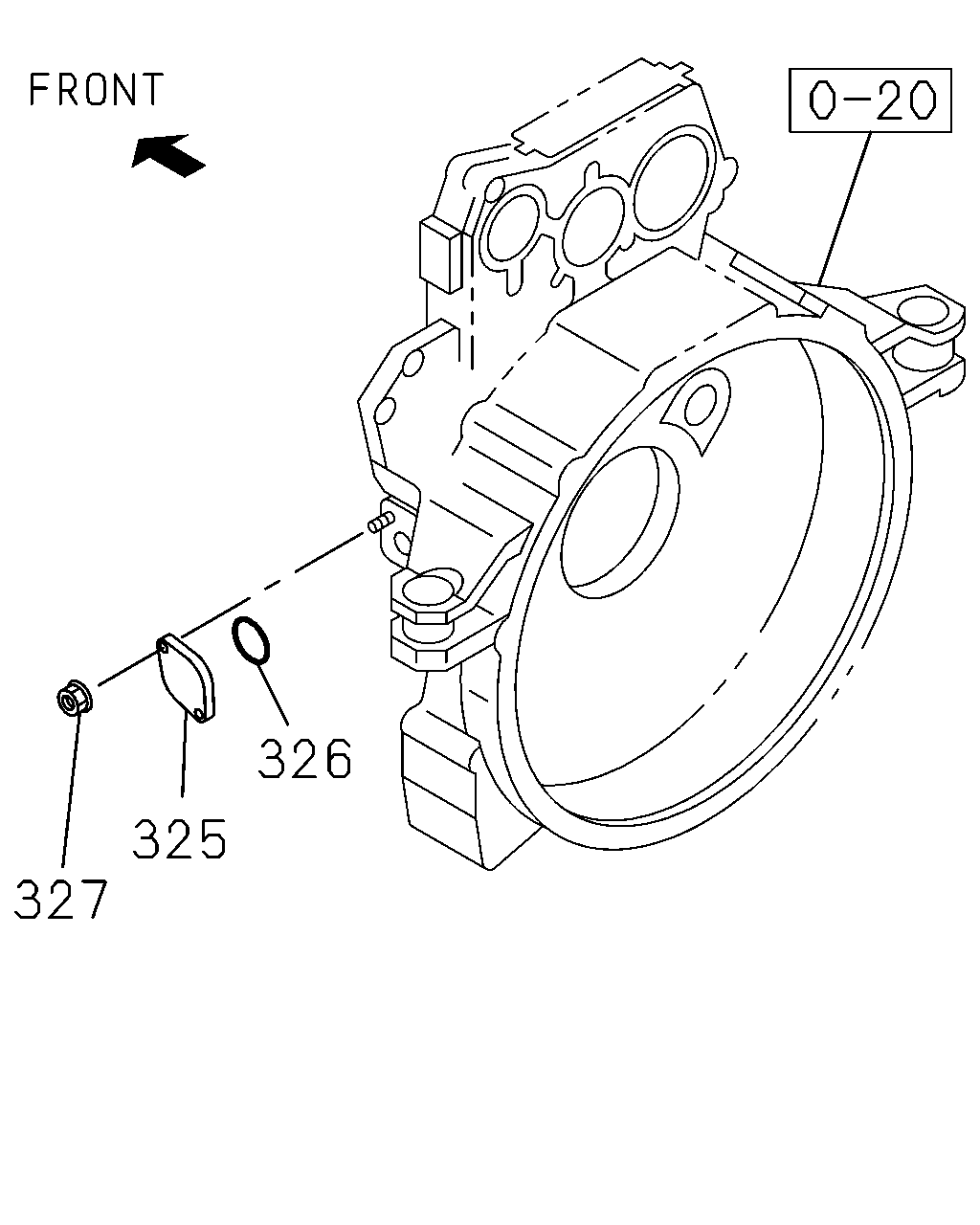

326 325 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
325	COVER; OIL FILTER HOLE	1-11749-074-0	01	1	9604-9904	●
325	COVER; OIL FILTER HOLE	1-11749-074-1	01	1	9905-	●	●
326	GASKET; COVER,OIL FILTER HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9604-9904	●
326	GASKET; COVER,OIL FILTER HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9905-	●	●
327	NUT; COVER,OIL FILTER HOLE M10 FLANGE	0-91150-110-0	02	1	9604-9904	●
327	NUT; COVER,OIL FILTER HOLE M10 FLANGE	0-91150-110-0	02	1	9905-	●	●

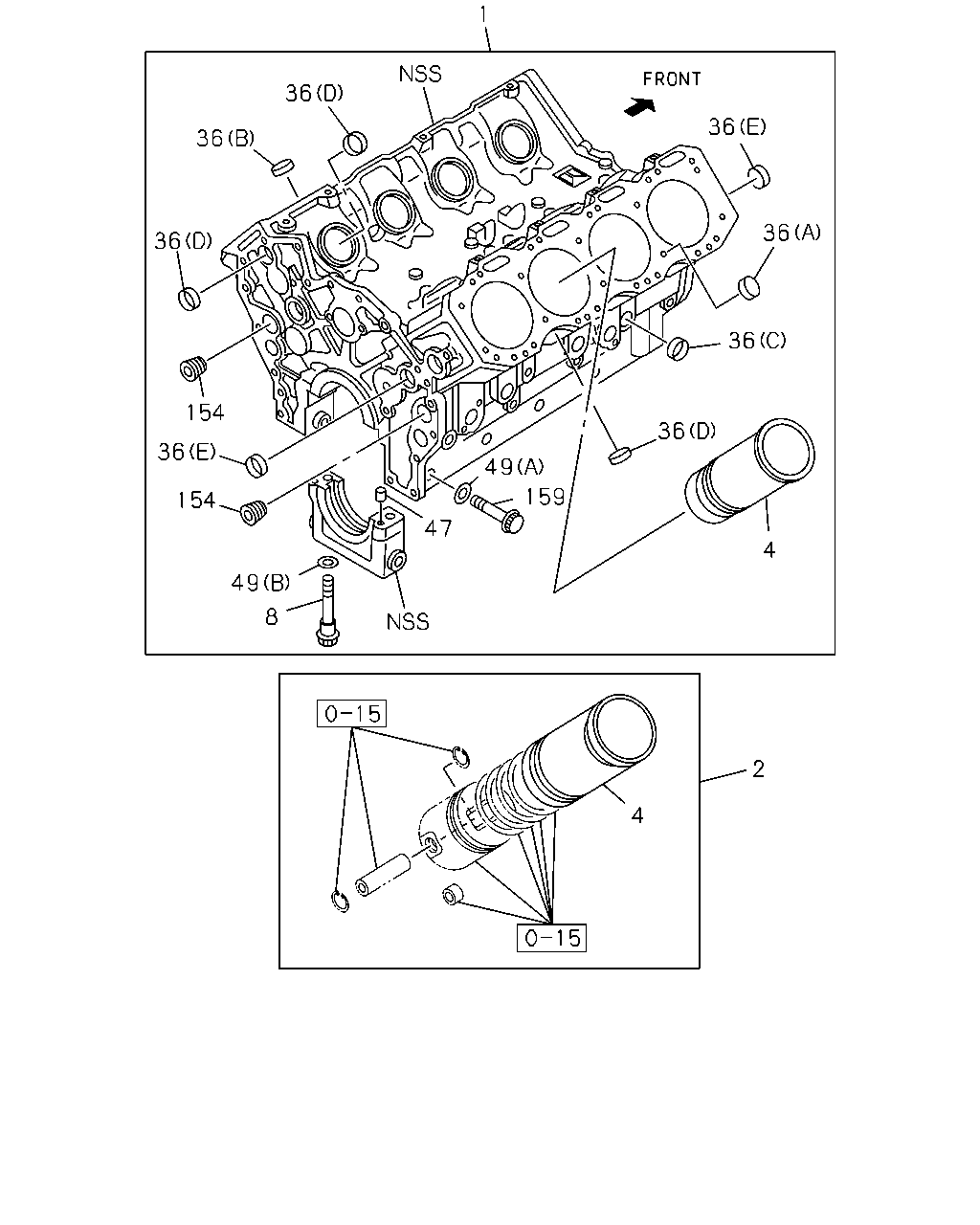

1 36 36 36 36 36 36 154 36 36 49 159 154 47 4 49 8 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	1-11210-586-7	01	1	9604-	●
1	BLOCK ASM; CYL	1-11210-584-7	01	1	9905-		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-445-0	08	1	9604-9705	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-789-3	08	1	9706-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-446-0	08	1	9604-9705	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-790-3	08	1	9706-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-807-3	10	1	9905-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-808-3	10	1	9905-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-286-0	08	1	9604-9809	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-1	08	1	9810-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-287-0	08	1	9604-9809	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-1	08	1	9810-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-1	10	1	9905-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-1	10	1	9905-		●
8	BOLT; BRG CAP M16X138	1-09070-040-1	10	1	9604-9902	●
8	BOLT; BRG CAP M16X138	1-09070-140-0	10	1	9903-	●
8	BOLT; BRG CAP M16X138	1-09070-140-0	12	1	9905-		●
36	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-2	23	1	9604-	●
36	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	06	1	9604-	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	12	1	9604-	●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-020-1	07	1	9604-	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-058-0	04	1	9604-9904	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-058-1	04	1	9905-	●	●
36	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-2	27	1	9905-		●
36	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	08	1	9905-		●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	14	1	9905-		●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-020-1	09	1	9905-		●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9604-9904	●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9905-	●	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	10	1	9604-	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	10	1	9604-	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9905-		●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9905-		●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9604-9904	●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9905-	●	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	10	1	9604-9810	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	10	1	9811-	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	12	1	9905-		●

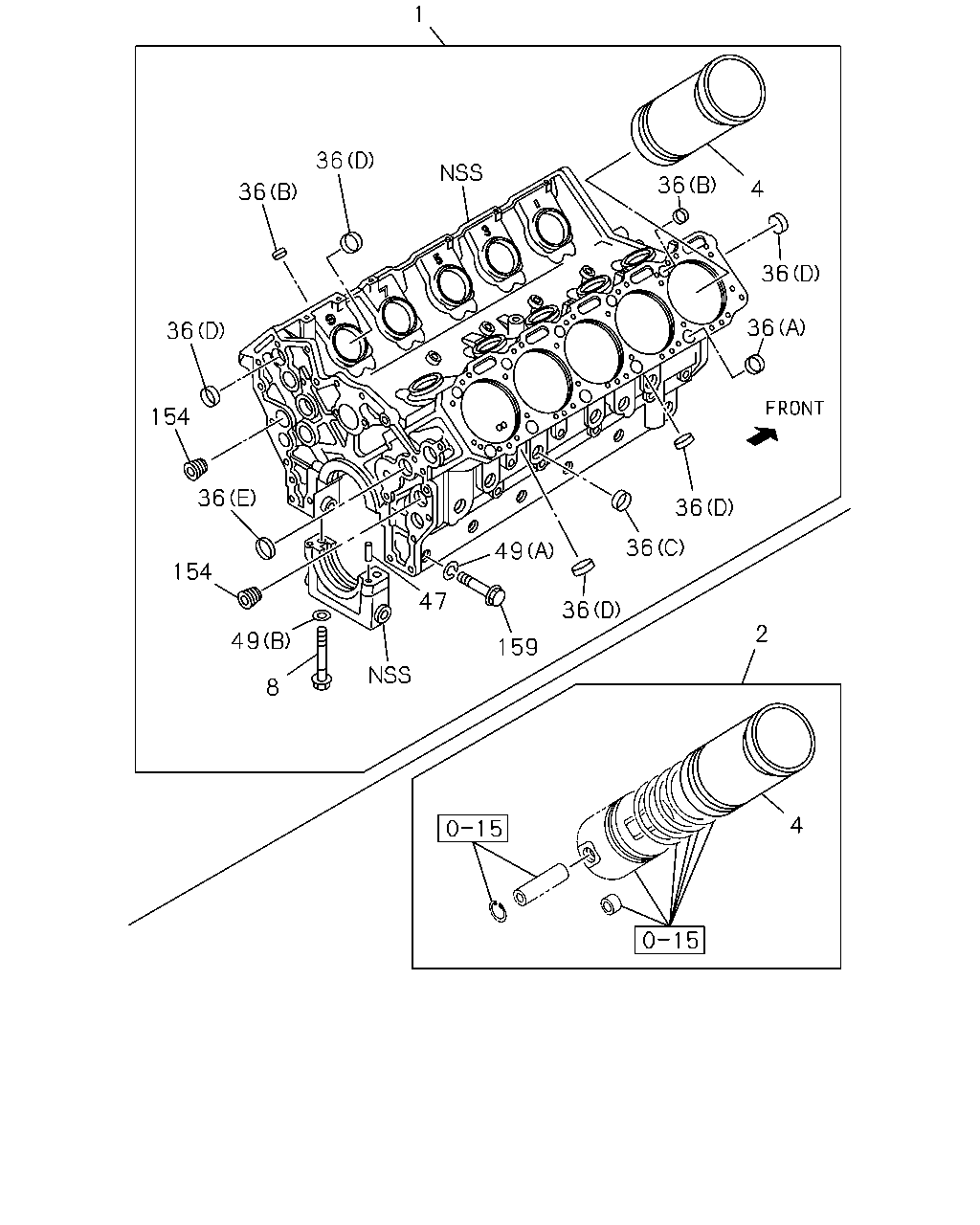

1 36 36 4 36 36 36 36 154 36 36 36 49 154 47 36 2 49 159 8 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	1-11210-586-7	01	1	9604-	●
1	BLOCK ASM; CYL	1-11210-584-7	01	1	9905-		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-445-0	08	1	9604-9705	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-789-3	08	1	9706-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-446-0	08	1	9604-9705	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-790-3	08	1	9706-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-807-3	10	1	9905-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-808-3	10	1	9905-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-286-0	08	1	9604-9809	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-1	08	1	9810-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-287-0	08	1	9604-9809	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-1	08	1	9810-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-1	10	1	9905-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-1	10	1	9905-		●
8	BOLT; BRG CAP M16X138	1-09070-040-1	10	1	9604-9902	●
8	BOLT; BRG CAP M16X138	1-09070-140-0	10	1	9903-	●
8	BOLT; BRG CAP M16X138	1-09070-140-0	12	1	9905-		●
36	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-2	23	1	9604-	●
36	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	06	1	9604-	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	12	1	9604-	●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-020-1	07	1	9604-	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-058-0	04	1	9604-9904	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-058-1	04	1	9905-	●	●
36	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-2	27	1	9905-		●
36	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	08	1	9905-		●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	14	1	9905-		●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-020-1	09	1	9905-		●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9604-9904	●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9905-	●	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	10	1	9604-	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	10	1	9604-	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9905-		●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9905-		●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9604-9904	●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9905-	●	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	10	1	9604-9810	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	10	1	9811-	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	12	1	9905-		●

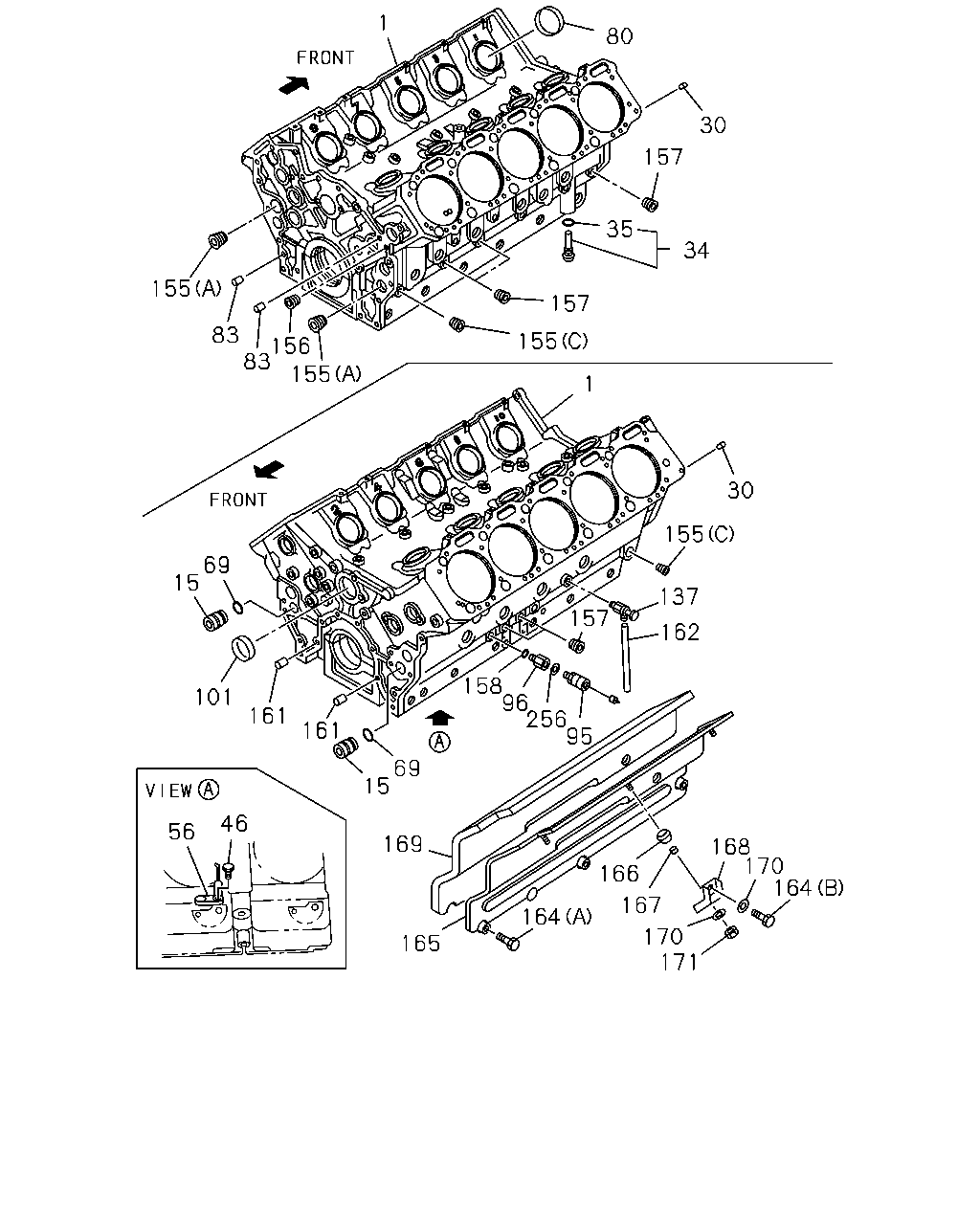

80 1 157 155 35 34 155 83 83 156 155 155 155 1 155 69 15 137 30 101 162 161 161 157 158 96 256 95 69 15 56 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	1-11210-586-7	01	1	9604-	●
1	BLOCK ASM; CYL	1-11210-584-7	01	1	9905-		●
15	PLUG; OIL GALLERY M30X20	1-09609-019-0	02	1	9604-9904	●
15	PLUG; OIL GALLERY M30X20	1-09609-019-0	02	1	9905-	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9604-9904	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9905-	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9604-9904	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9905-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9604-9904	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9905-	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	08	1	9604-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	10	1	9905-		●
56	JET; OIL,PISTON COOLING	1-13342-135-1	08	1	9604-	●
56	JET; OIL,PISTON COOLING	1-13342-135-1	10	1	9905-		●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	06	1	9604-	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9707-	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	02	1	9905-		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-1	08	1	9604-	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-1	10	1	9905-		●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9604-9904	●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9905-	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9604-9904	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9905-	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9604-9904	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9905-	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9604-9904	●
101	CUP; SEALING CAM END	1-09600-022-1	01	1	9905-	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9604-9904	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9905-	●	●
155	PLUG; OIL GALLERY END (C) PT3/4	1-09605-020-0	02	1	9604-9904	●
155	PLUG; OIL GALLERY END (C) PT3/4	1-09605-020-0	02	1	9905-	●	●
155	PLUG; OIL GALLERY END (A) PT1	1-09605-021-0	02	1	9604-9904	●
155	PLUG; OIL GALLERY END (A) PT1	1-09605-021-0	02	1	9905-	●	●
155	PLUG; OIL GALLERY END (B) M30X20	1-09609-019-0	02	1	9604-	●
156	PLUG; IDLE GEAR PT1/4	1-09605-019-0	02	1	9604-9904	●
156	PLUG; IDLE GEAR PT1/4	1-09605-019-0	02	1	9905-	●	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	06	1	9604-	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	08	1	9905-		●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9604-9904	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9905-	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9604-9904	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9905-	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9604-9904	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9905-	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9604-9904	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
