3-30 — BRAKE MASTER CYLINDER (#51977) — 14 parça

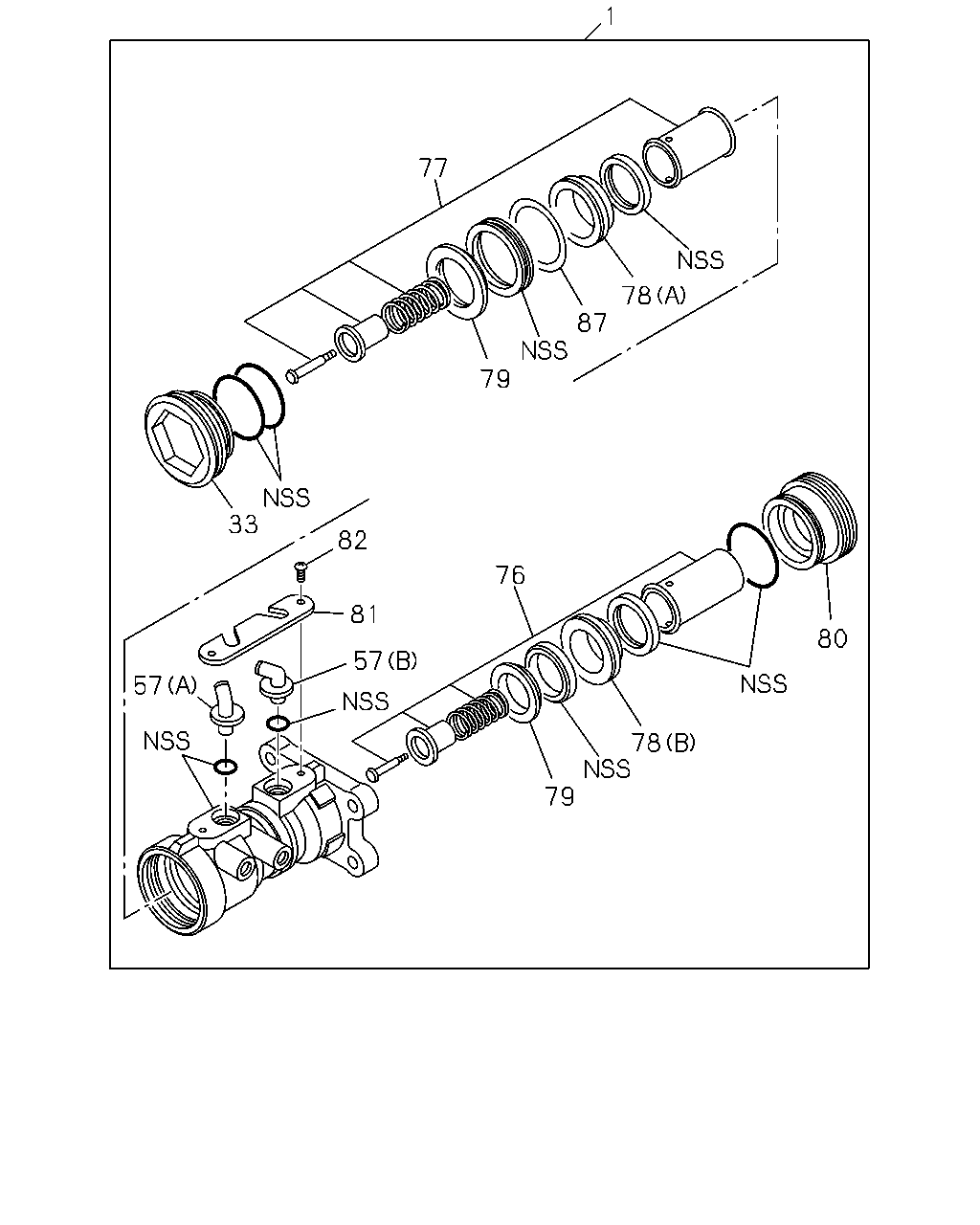

çizim 58333
1 77 78 87 79 33 82 76 81 80 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; BRK MASTER 8-97315-165-0 01 1 0707- ● ●
33 PLUG; END,M/CYL 8-97186-698-0 01 1 0707- ● ●
57 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 0707- ● ●
57 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 0707- ● ●
76 PISTON ASM; PRIMARY 8-97224-639-0 01 1 0707- ● ●
77 PISTON ASM; SECONDARY 8-97224-637-0 01 1 0707- ● ●
78 BUSHING; MASTER CYL
(B) 		8-97141-410-0 01 1 0707- ● ●
78 BUSHING; MASTER CYL
(A) 		8-97217-830-0 01 1 0707- ● ●
79 SUPPORTER; CUP 8-97141-417-0 02 1 0707- ● ●
80 COVER; MASTER CYL 8-97141-404-0 01 1 0707- ● ●
81 HOLDER; NIPPLE 8-97315-168-0 01 1 0707- ● ●
82 SCREW; HOLDER 8-97130-446-0 02 1 0707- ● ●
87 SPACER; CUP 8-97141-413-0 01 1 0707- ● ●

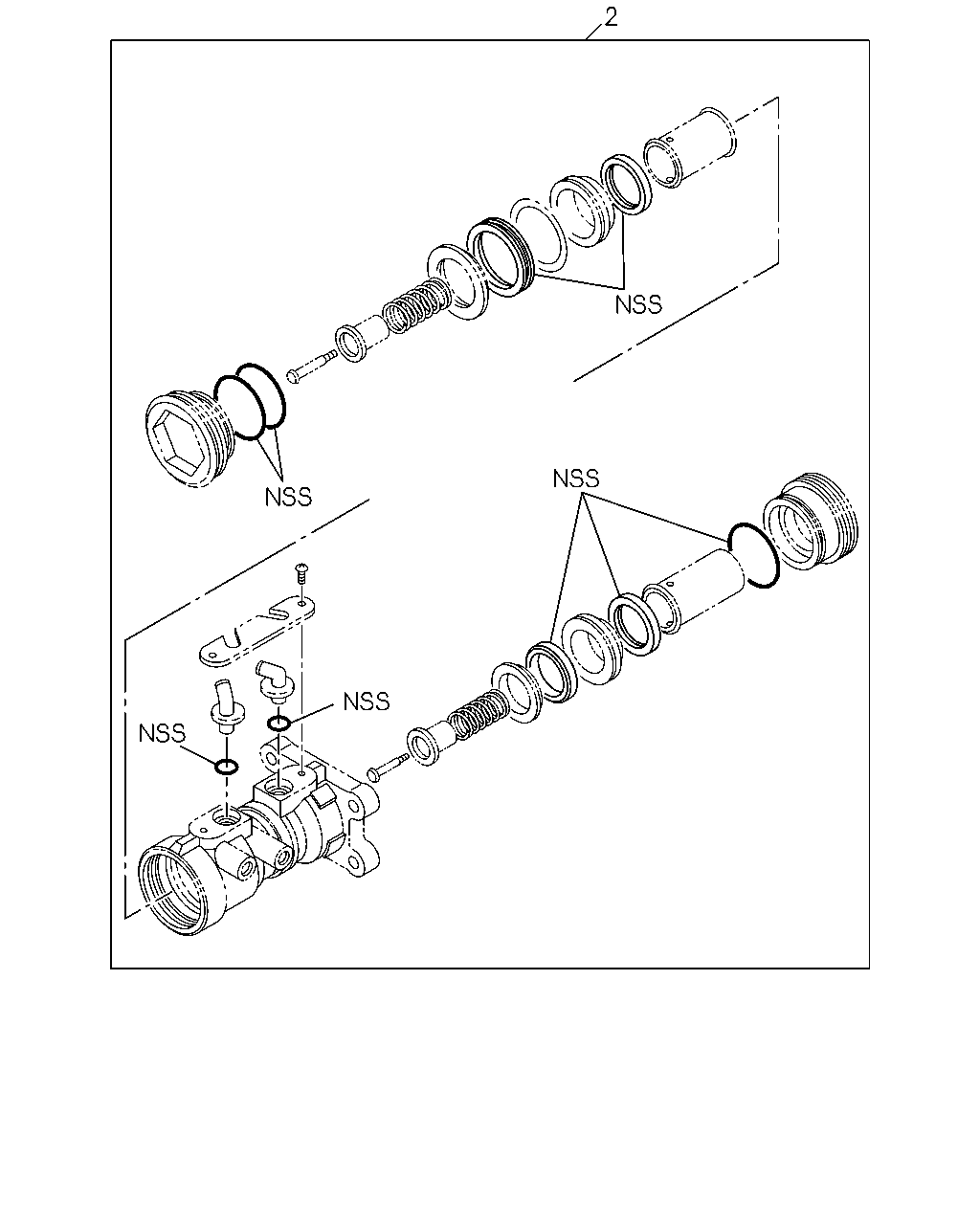

çizim 58887
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; BRK,M/CYL 8-97141-423-0 01 1 0707- ● ●
