◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#51974) — 26 parça

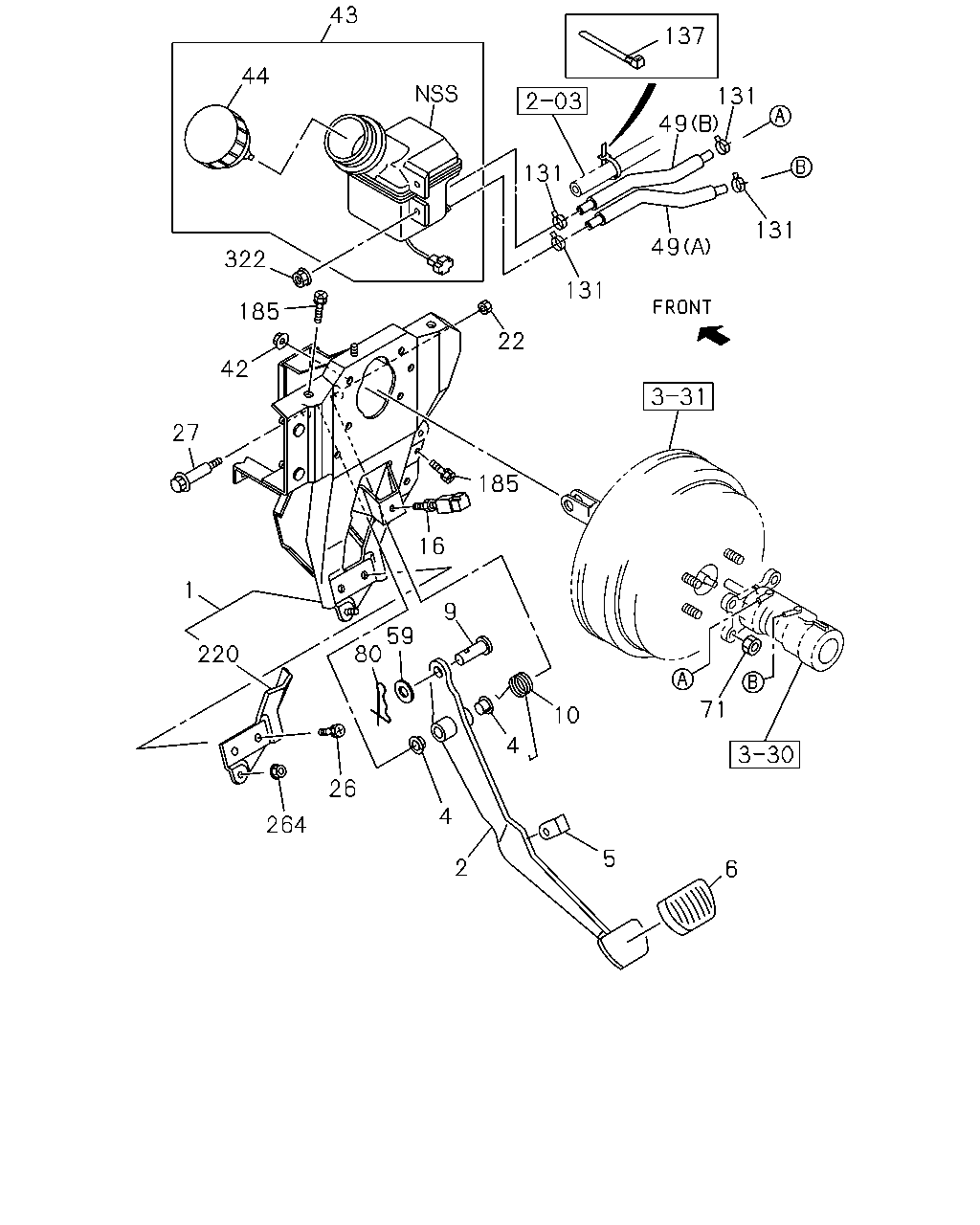

çizim 57434
43 137 44 131 49 131 131 49 322 131 185 22 42 27 185 16 1 59 80 220 10 4 26 4 264 5 2 6 71 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL 8-97896-969-5 01 1 0707- ● ●
2 PEDAL; BRK 8-97856-336-2 01 1 0707- ● ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 0707- ● ●
5 STOPPER; BRK PEDAL 8-97853-602-1 01 1 0707- ● ●
6 COVER; BRK PEDAL 8-97853-413-2 01 1 0707- ● ●
9 PIN; JAW JOINT 8-94410-276-0 01 1 0707-1406 ● ●
9 PIN; JAW JOINT 8-97359-812-0 01 1 1407- ● ●
10 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 0707- ● ●
16 SWITCH; STOP LAMP 8-97855-187-0 01 1 0707- ● ●
22 NUT; SHAFT
M10 FLANGE 		1-09440-022-0 01 1 0707- ● ●
26 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 02 1 0707- ● ●
27 SHAFT; BRK PEDAL 8-97866-667-0 01 1 0707- ● ●
42 NUT; BRK PEDAL
M8 W/LK WASHER 		8-94279-050-0 04 1 0707- ● ●
43 TANK ASM; OIL 8-97178-245-1 01 1 0707- ● ●
44 CAP; OIL TANK 8-97178-291-1 01 1 0707- ● ●
49 HOSE; OIL TANK TO BRK M/CYL
(B) L=315 		8-97129-584-0 01 1 0707- ● ●
49 HOSE; OIL TANK TO BRK M/CYL
(A) L=320 		8-97129-585-0 01 1 0707- ● ●
59 WASHER; PL,JAW JOINT
ID=15 		0-91610-514-0 01 1 0707- ● ●
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 04 1 0707- ● ●
80 PIN; SNAP,BRK PEDAL 8-94279-912-0 01 1 0707- ● ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY 8-97130-480-0 04 1 0707- ● ●
137 CLIP; BAND,RUBBER HOSE
L=250 		5-09707-030-1 01 1 0707- ● ●
185 BOLT; BRKT
M10X25 FLANGE 		0-28661-025-0 02 1 0707- ● ●
220 BRACKET; STRG SHAFT 8-97857-044-1 01 1 0707- ● ●
264 NUT; BRKT,COLUMN SUPT TO B.PDL
M8 W/DISHED WASHER 		8-97329-625-0 01 1 0707- ● ●
322 NUT; OIL TANK
M6 FLANGE 		0-91180-106-0 02 1 0707- ● ●
