Isuzu WW
▶
TRUCKS
▶
ELF
▶
51139 - ELF300(MEXICO)
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶
3-05 — REAR WHEEL BRAKE
(#51972) — 37 parça
Tümü
A - NKC6SC
B - NKC6SF
◀
[305A] NO.2 (20 parça)
[305A] NO.1 (17 parça)
▶
95
94
102
97
96
101
104
99
106
108
101
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
94
CYLINDER; WHEEL,RR BRK
8-97349-689-0
02
1
0707-
●
●
94
CYLINDER; WHEEL,RR BRK
REAR
8-97349-690-0
01
1
0707-
●
●
94
CYLINDER; WHEEL,RR BRK
FRONT
8-97349-692-0
01
1
0707-
●
●
95
CUP SET; RR WHEEL CYL
5-87831-622-0
01
1
0707-
●
●
96
SCREW; BLEEDER,RR BRK
9-47615-027-0
01
1
0707-0707
●
●
96
SCREW; BLEEDER,RR BRK
8-98050-476-0
01
1
0708-
●
●
97
CAP; BLEEDER,RR WHEEL CYL
1-47619-009-0
01
1
0707-0707
●
●
97
CAP; BLEEDER,RR WHEEL CYL
8-98050-479-0
01
1
0708-
●
●
99
PISTON; RR WHEEL CYL
8-97349-727-0
02
1
0707-
●
●
99
PISTON; RR WHEEL CYL
8-97349-728-0
02
1
0707-
●
●
101
SCREW; ADJ,RR WHEEL CYL
(B)
8-97349-747-0
04
1
0707-
●
●
101
SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 LH THREAD
5-47622-004-1
02
1
0707-
●
●
101
SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 RH THREAD
5-47622-003-1
02
1
0707-
●
●
102
PISTON; REAR WHEEL CYL
D=25.4
8-94128-531-1
04
1
0707-
●
●
104
LEVER; ADJ
8-97349-743-0
02
1
0707-
●
●
104
LEVER; ADJ
8-97349-744-0
02
1
0707-
●
●
106
SPRING; ADJ LEVER
8-97349-745-0
04
1
0707-
●
●
107
GEAR; ADJ,RR W/CYL
8-97349-737-0
02
1
0707-
●
●
107
GEAR; ADJ,RR W/CYL
8-97349-739-0
02
1
0707-
●
●
108
WASHER; THRUST,GEAR ADJ
8-97029-304-0
04
1
0707-
●
●

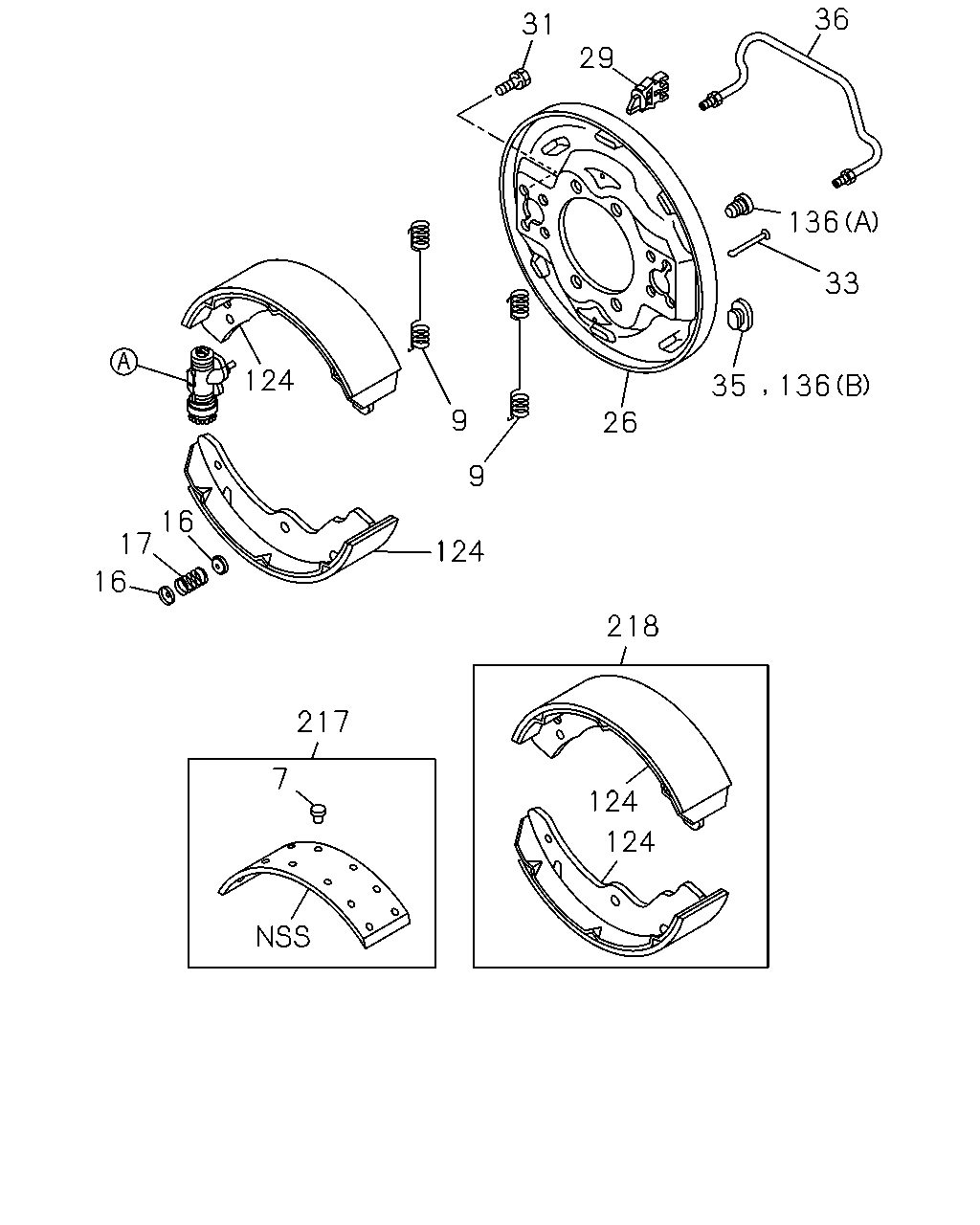

36
31
29
136
33
124
35
136
9
26
9
16
17
124
16
218
217
7
124
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
RIVET; LINING,RR BRK
1-09732-029-0
40
1
0707-
●
●
9
SPRING; RETURN,BRK SHOE
5-09583-118-0
04
1
0707-
●
●
16
CUP; SHOE HOLDING
9-47165-096-0
08
1
0707-
●
●
17
SPRING; SHOE HOLD DOWN
5-09580-101-1
04
1
0707-
●
●
26
PLATE; BACK,RR BRK
8-97079-849-0
01
1
0707-
●
●
26
PLATE; BACK,RR BRK
8-97079-848-0
01
1
0707-
●
●
29
CLIP; PIPE,BRK
8-94128-306-0
02
1
0707-
●
●
31
BOLT; RR WHEEL CYL
5-09030-016-1
16
1
0707-
●
●
33
PIN; SHOE HOLD DOWN
5-47162-001-0
04
1
0707-
●
●
35
GROMMET; CHECK HOLE
8-94171-287-0
02
1
0707-
●
●
36
PIPE; OIL,RR BRK
8-94154-916-0
02
1
0707-
●
●
124
SHOE ASM; BRK,RR
8-97287-778-0
04
1
0707-
●
●
136
GROMMET
(A)
1-47154-008-0
04
1
0707-
●
●
136
GROMMET
(B)
8-94171-287-0
04
1
0707-
●
●
217
LINING KIT; RR BRK
5-87831-801-0
01
1
0707-
●
●
217
LINING KIT; RR BRK
BEST VALUE PARTS
5-87610-121-0
01
1
0707-
●
●
218
SHOE KIT; BRK,RR
5-87832-047-0
01
1
0707-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
