2-85 — POWER TAKE OFF CONTROL (#51969) — 47 parça

70 15 71 18 79 19 245 256 79 121 16 83 24 21 222 256 31 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-217-1	01	1	0707-
16	CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66)	8-94152-900-0	01	1	0707-
18	PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) L=27.7	8-94111-137-0	01	1	0707-
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) ID=8.4 OD=16	0-91610-508-0	01	1	0707-
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	0-91610-708-0	01	1	0707-
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0707-
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2907	8-98019-194-1	01	1	0707-
31	CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) L=300	1-09707-001-1	01	1	0707-
70	KNOB; DUMP CONT PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	0707-
71	LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-218-0	01	1	0707-
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-94238-596-0	02	1	0707-
83	BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97118-977-0	01	1	0707-
121	RING; SNAP PTO TRANSMISSION SIDE(V66) ID=10	0-91805-510-0	01	1	0707-
192	BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) M6X16 FLANGE	0-28650-616-0	01	1	0707-
222	BOLT; LEVER PTO TRANSMISSION SIDE(V66) M8X14 FLANGE	0-28080-814-0	02	1	0707-
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0707-
256	PLATE; LOCK PTO TRANSMISSION SIDE(V66) (B)	8-97118-983-0	01	1	0707-
256	PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97142-947-0	01	1	0707-

195 172 24 173 172 172 173 195 173 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2907	8-98019-194-1	01	1	0707-
172	BOLT; BRKT PTO TRANSMISSION SIDE(V66) M8X25 FLANGE	0-28650-825-0	03	1	0707-
173	NUT; BRKT PTO TRANSMISSION SIDE(V66) M8 FLANGE	0-91180-108-0	03	1	0707-
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-98019-196-1	01	1	0707-
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-98054-639-1	01	1	0707-
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-98057-737-1	01	1	0707-

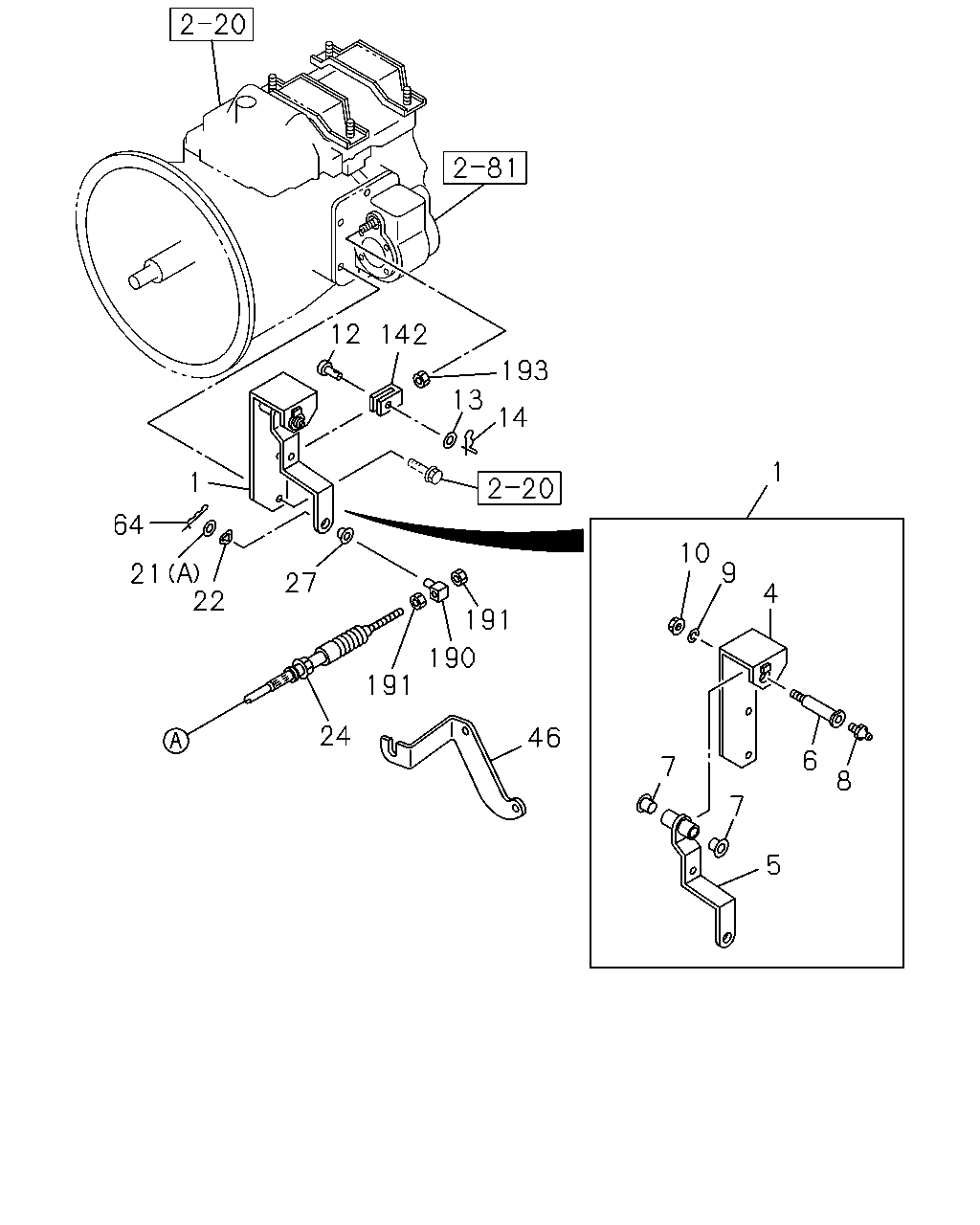

12 142 193 13 14 1 1 64 10 9 21 22 27 4 191 190 191 24 46 6 7 8 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-97357-219-0	01	1	0707-
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0707-
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-97357-218-0	01	1	0707-
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0707-
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0707-
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	0-90301-406-0	01	1	0707-
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0707-
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) M8	0-91110-508-0	01	1	0707-
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0707-
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0707-
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	1-09987-158-1	01	1	0707-0805
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0806-
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22	0-91610-708-0	01	1	0707-
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0707-
22	WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) ID=8.5 T=0.3	5-09509-001-0	01	1	0707-
24	CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2907	8-98019-194-1	01	1	0707-
27	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	8-94367-367-0	01	1	0707-
46	BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97357-083-0	01	1	0707-
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) L=27.7	8-94111-137-0	01	1	0707-
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0707-
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66)	8-94366-842-2	01	1	0707-
191	NUT; BOSS PTO TRANSMISSION SIDE(V66) M6	0-91110-506-0	02	1	0707-
193	NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0707-
