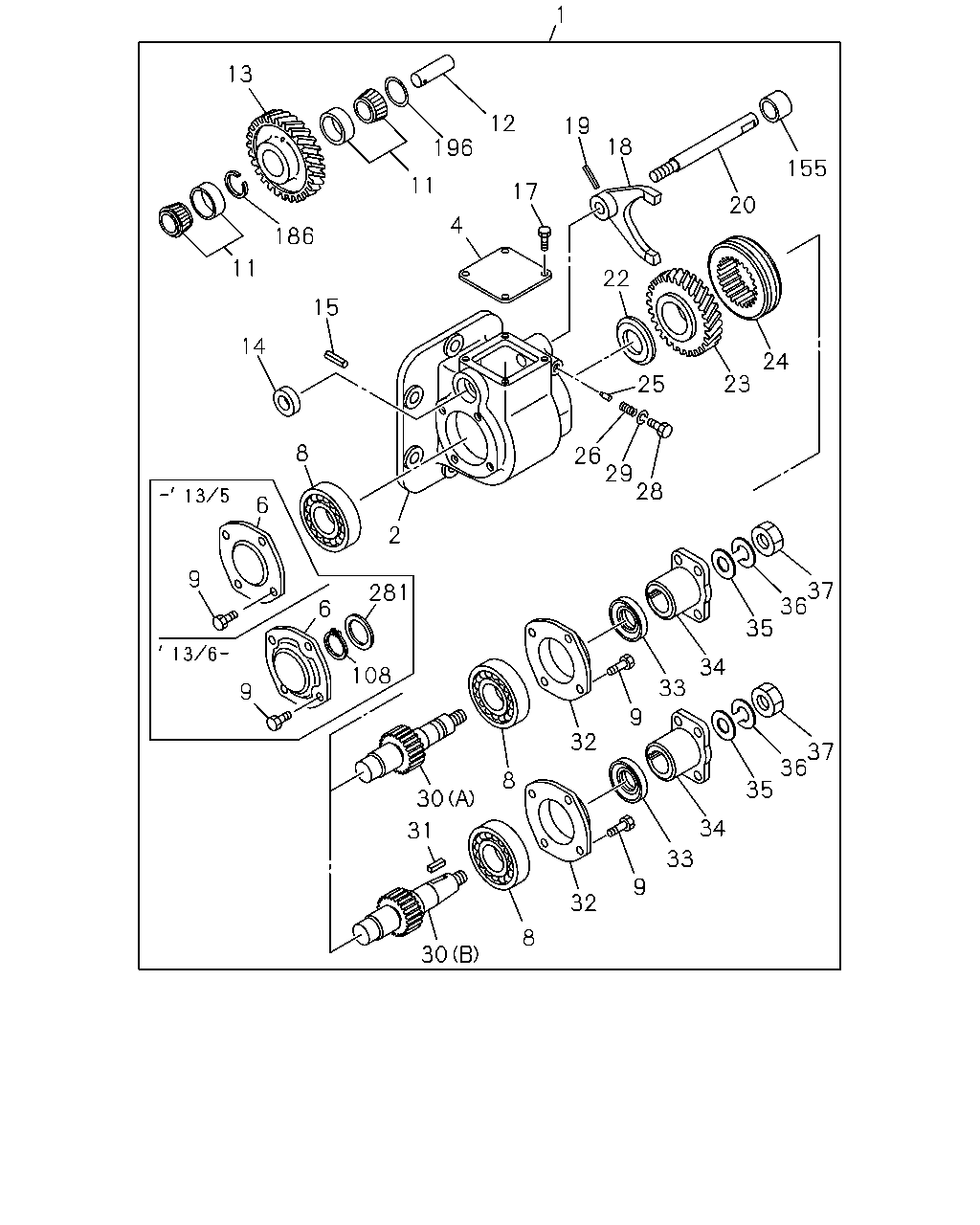

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#51968) — 48 parça

13 11 11 186 15 14 6 281 108 9 196 12 4 17 19 18 22 25 26 29 28 23 24 20 155 31 30 8 32 9 33 34 35 36 37 37 36 35 34 33 9 32 8 30 9 1 2 8 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG	8-97286-908-7	01	1	0707-1210
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1305
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG	8-98233-783-1	01	1	1306-
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0707-1409
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98282-381-0	01	1	1410-
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-613-0	01	1	0707-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0707-1305
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98233-778-0	01	1	1306-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0707-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X20 FLANGE	0-28050-820-0	08	1	0707-
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0707-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0707-
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0707-
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0707-
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0707-
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X20 FLANGE	0-28050-820-0	04	1	0707-
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0707-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25 OD=5	8-94135-771-0	01	1	0707-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-623-0	01	1	0707-
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0707-
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0707-0805
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0707-
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0707-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0707-
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8	8-98038-424-0	01	1	0707-
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-808-0	01	1	0707-
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	0707-1210
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98223-518-0	01	1	1211-1305
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98233-777-0	01	1	1306-
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0707-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0707-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0707-1210
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	0-91610-514-0	01	1	0707-
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2	0-91510-814-0	01	1	0707-
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14	0-91111-514-0	01	1	0707-
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=23.2	9-09180-025-0	01	1	1306-
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0707-
186	RING; SNAP,IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	0707-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	0707-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	0707-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	0707-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	0707-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	0707-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	0707-
281	SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	01	1	1306-
