Isuzu WW
▶
TRUCKS
▶
ELF
▶
51139 - ELF300(MEXICO)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

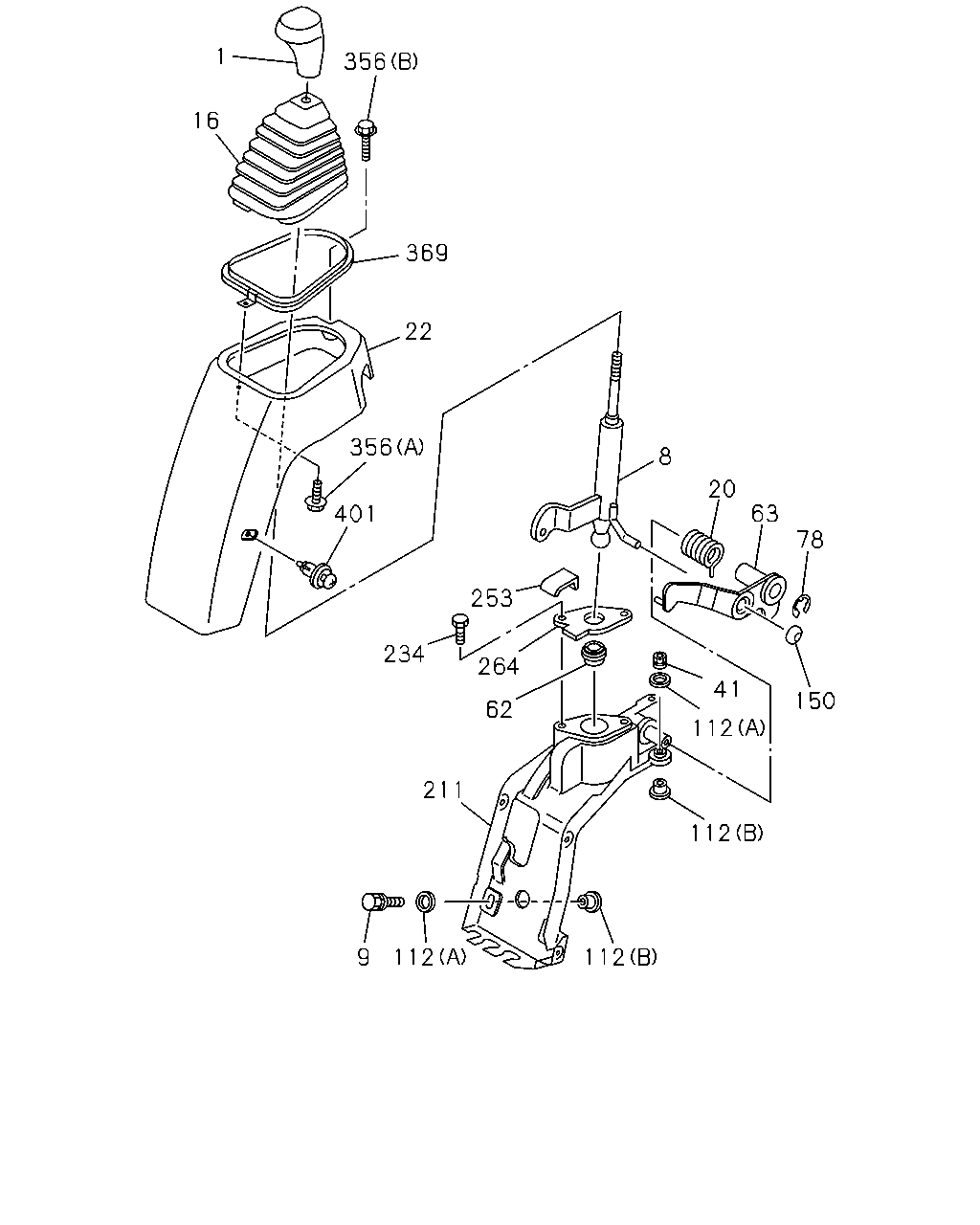

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#51965) — 21 parça
1
356
16
369
22
356
8
20
63
401
78
253
234
264
41
150
62
112
211
112
9
112
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
BLACK
8-97196-286-1
01
1
0707-
8
LEVER; CHANGE
8-97204-506-0
01
1
0707-
9
BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER
8-94438-324-1
02
1
0707-
16
BOOT; CHANGE LEVER
8-97066-287-2
01
1
0707-
20
SPRING; CHANGE LEVER
8-97204-514-1
01
1
0707-
22
COVER; DUST,CHANGE LEVER
GRAY
8-97587-501-1
01
1
0707-
41
NUT; CHANGE LEVER
M8 W/DISHED WASHER
8-97329-625-0
02
1
0707-
62
SEAT; BALL,CHANGE LEVER
8-97011-895-1
01
1
0707-
63
LEVER; RELAY,SELECT
8-97143-199-0
01
1
0707-
78
RING; SNAP,CHANGE LEVER
ID=10
0-91805-510-0
01
1
0707-
112
RUBBER; CUSHION
(A)
8-97091-426-0
04
1
0707-
112
RUBBER; CUSHION
(B)
8-97091-427-0
04
1
0707-
150
BALL; DETENT,CONT LEVER
8-97049-147-0
01
1
0707-
211
BRACKET; CHANGE LEVER
8-97204-505-1
01
1
0707-
234
BOLT; BRKT
M6X12 FLANGE
1-33739-842-0
02
1
0707-
253
STOPPER; CHANGE LEVER
8-97204-510-0
01
1
0707-
264
PLATE; COVER
8-97204-511-0
01
1
0707-
356
SCREW; COVER
(B) T25 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
01
1
0707-
356
SCREW; COVER
(A) M5X14 TAPPING W/PL WASHER
0-74160-514-0
01
1
0707-
369
RETAINER; REINF
8-97066-288-1
01
1
0707-
401
CLIP; COVER
GRAY
8-97582-240-0
03
1
0707-
