◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#51963) — 70 parça

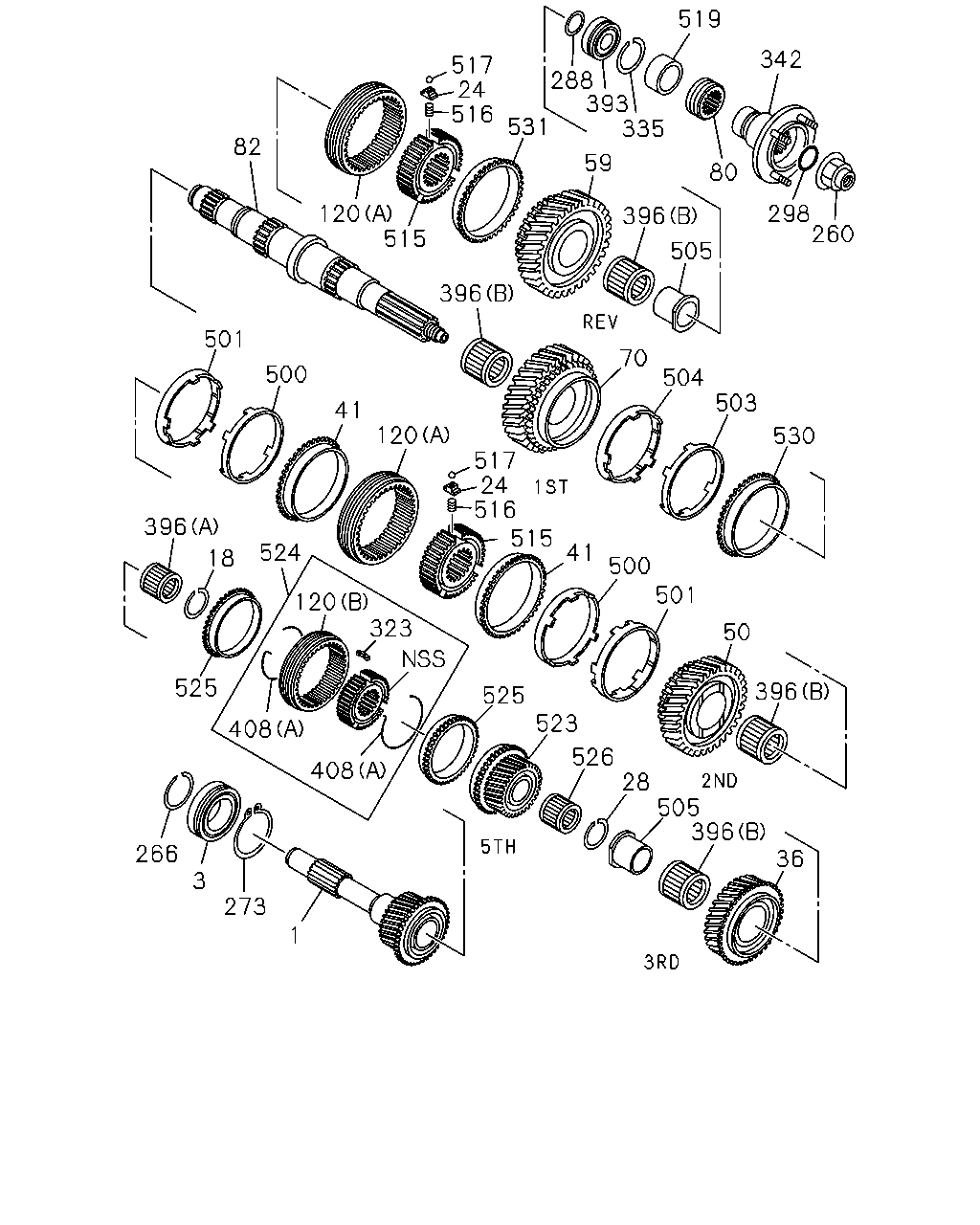

çizim 14160
519 342 517 24 516 288 393 335 531 82 59 80 120 298 260 515 396 505 396 501 70 500 504 503 41 120 530 517 24 516 515 396 524 41 18 500 501 120 323 50 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
Z=28 		8-97252-924-1 01 1 0707-
3 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0707-
18 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0707-
24 BLOCK; INDEX,SYN 8-97241-313-1 06 1 0707-
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0707-
36 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0707-
41 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0707-
50 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0707-
59 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 0707-
70 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 0707-
80 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0707-
82 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 0707-
120 SLEEVE
(B) Z=45 		8-94421-871-1 01 1 0707-
120 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 0707-1311
120 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-
260 NUT; MAINSHAFT END
M27 H=25 		8-97360-410-0 01 1 0707-
266 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0707-
273 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0707-
288 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0707-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0707-
323 INSERT 8-94448-202-2 03 1 0707-
335 RING; SNAP,BEARING 8-97254-722-0 01 1 0707-
342 FLANGE; OUTPUT 8-98031-640-0 01 1 0707-
393 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0707-
396 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0707-
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0707-
408 SPRING
(B) 		8-94148-196-0 03 1 0707-
408 SPRING
(A) 		8-97366-040-1 02 1 0707-
500 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0707-
501 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0707-
503 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 0707-
504 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 0707-
505 COLLAR; 3RD & REV 8-97253-119-2 02 1 0707-
515 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 0707-
516 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 0707-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 0707-
519 COLLAR; MAINSHAFT END,5TH 8-97252-940-0 01 1 0707-
523 GEAR; OD,MAINSHAFT
Z=22 		8-97241-231-0 01 1 0707-
524 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 0707-
525 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 0707-
526 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 0707-
530 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 0707-
531 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 0707-

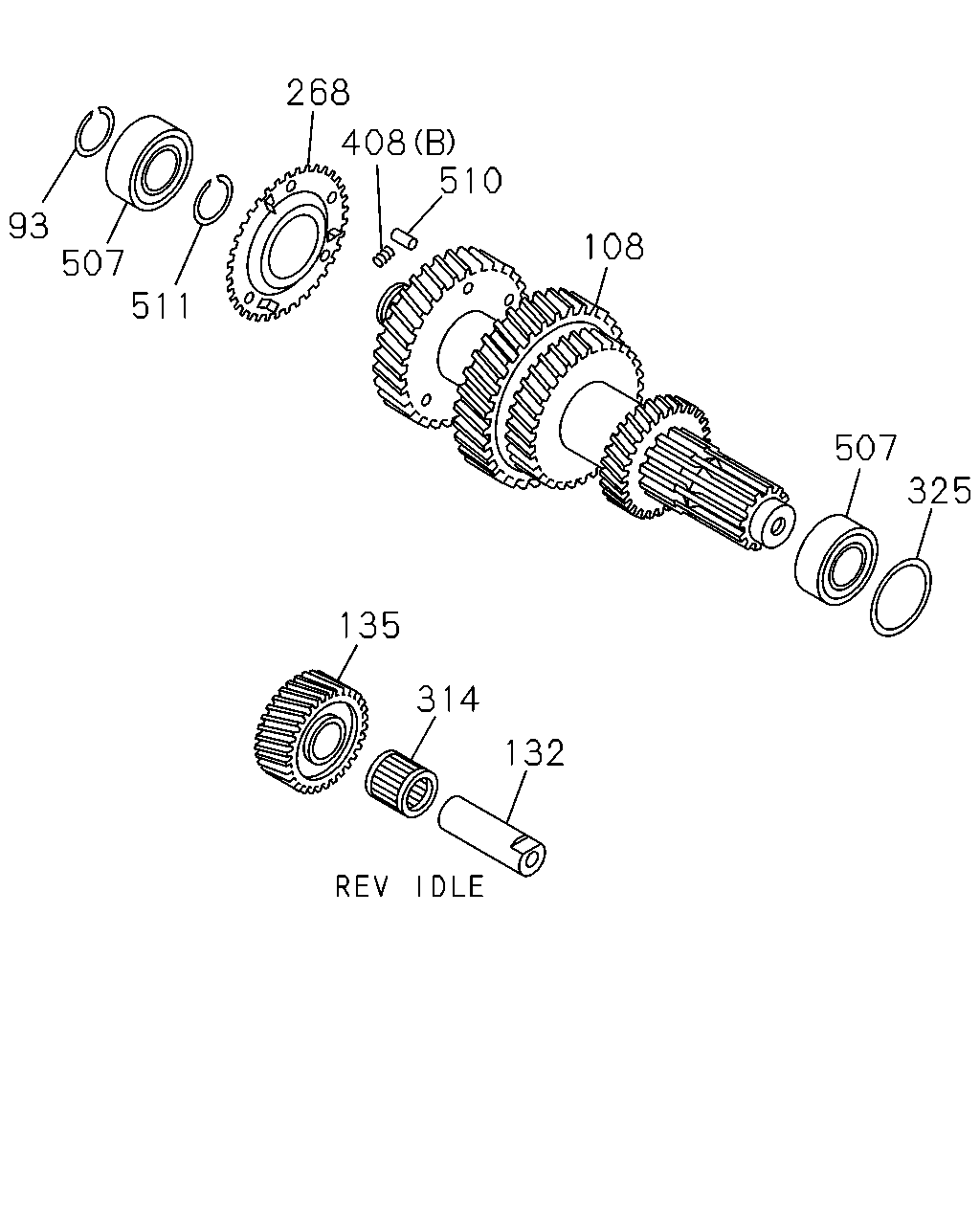

çizim 57497
268 408 510 93 507 511 108 507 325 135 314 132
BalonParca AdiParca NoAdetTipApplied Date
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0707-
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0707-
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0707-
108 SHAFT; COUNTER
Z=45-49-33-20 		8-97380-630-1 01 1 0707-
132 SHAFT; REV 8-97252-655-0 01 1 0707-
135 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 0707-
268 PLATE; ANTI LASH,COUNTER 8-97257-300-1 01 1 0707-
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0707-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0707-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0707-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0707-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0707-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0707-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0707-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0707-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0707-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0707-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0707-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0707-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0707-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0707-
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0707-
408 SPRING
(B) 		8-94148-196-0 03 1 0707-
408 SPRING
(A) 		8-97366-040-1 02 1 0707-
507 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0707-
510 PIN; STRAIGHT,ANTI LASH 9-08160-825-0 03 1 0707-
511 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 0707-
