2-03 — CLUTCH PEDAL AND CONTROL (#51956) — 29 parça

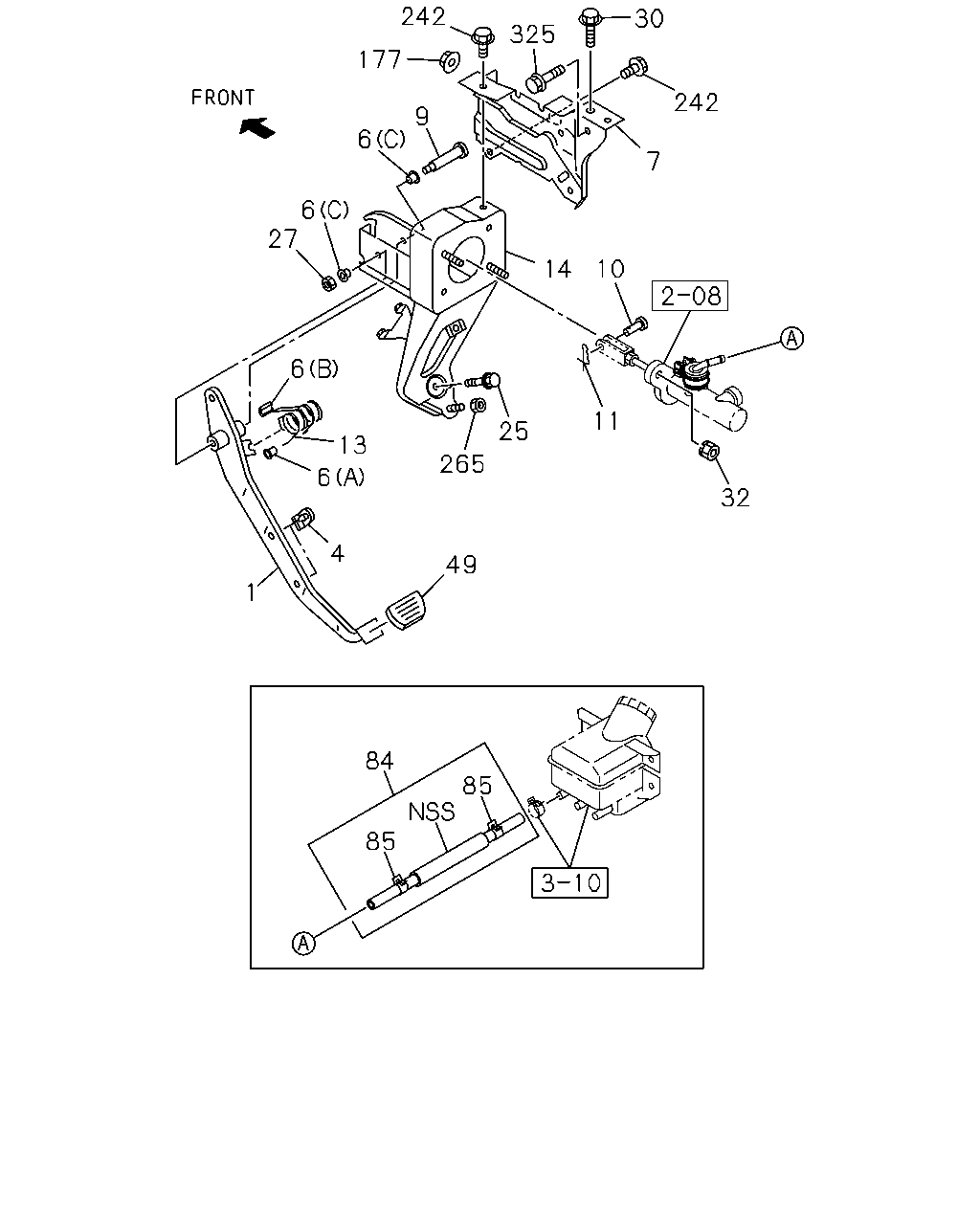

çizim 57597
242 30 325 177 242 9 6 7 6 27 10 14 6 11 25 13 265 6 32 4 49 1 84 85 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 8-97853-219-2 01 1 0707- ● ●
4 STOPPER; CLU PEDAL 8-97853-534-1 02 1 0707- ● ●
6 BUSHING; CLU PEDAL
(C) 		8-94238-596-0 02 1 0707- ● ●
6 BUSHING; CLU PEDAL
(A) 		8-97853-619-0 02 1 0707- ● ●
6 BUSHING; CLU PEDAL
(B) 		8-97853-620-0 01 1 0707- ● ●
7 BRACKET; CLU PEDAL 8-97856-307-3 01 1 0707- ● ●
9 PIN; CLU PEDAL 8-97866-667-0 01 1 0707- ● ●
10 PIN; CLU PEDAL 8-97387-230-0 01 1 0707-0707 ● ●
10 PIN; CLU PEDAL 8-94410-276-0 01 1 0708-1406 ● ●
10 PIN; CLU PEDAL 8-97359-812-0 01 1 1407- ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL 8-98007-161-0 01 1 0707-0707 ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL 8-94279-912-0 01 1 0708- ● ●
13 SPRING; ASSIST,CLU PEDAL 8-97853-221-1 01 1 0707- ● ●
14 BRACKET ASM; CLU PEDAL MTG 8-98030-646-0 01 1 0707- ● ●
25 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0707- ● ●
27 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 0707- ● ●
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28661-025-0 01 1 0707- ● ●
32 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0707- ● ●
49 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0707- ● ●
84 HOSE; RUBBER,CLU LINE
PTO TRANSMISSION SIDE(V66) 		8-97135-026-1 01 1 0707-1405 ● ●
84 HOSE; RUBBER,CLU LINE
PTO TRANSMISSION SIDE(V66) 		8-98252-236-1 01 1 1406- ● ●
84 HOSE; RUBBER,CLU LINE
EXC. PTO TRANSMISSION SIDE(V66) 		8-97135-021-0 01 1 0707-1405 ● ●
84 HOSE; RUBBER,CLU LINE
EXC. PTO TRANSMISSION SIDE(V66) 		8-98193-588-1 01 1 1406- ● ●
85 CLIP; HOSE TO M/CYL 8-97130-480-0 02 1 0707-1405 ● ●
85 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1406- ● ●
177 NUT; BRKT
M8 W/LK WASHER 		8-94279-050-0 02 1 0707- ● ●
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28450-816-0 02 1 0707- ● ●
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 W/DISHED WASHER 		8-97329-625-0 01 1 0707- ● ●
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28650-820-0 01 1 0707- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
