2-01 — CLUTCH (#51955) — 12 parça

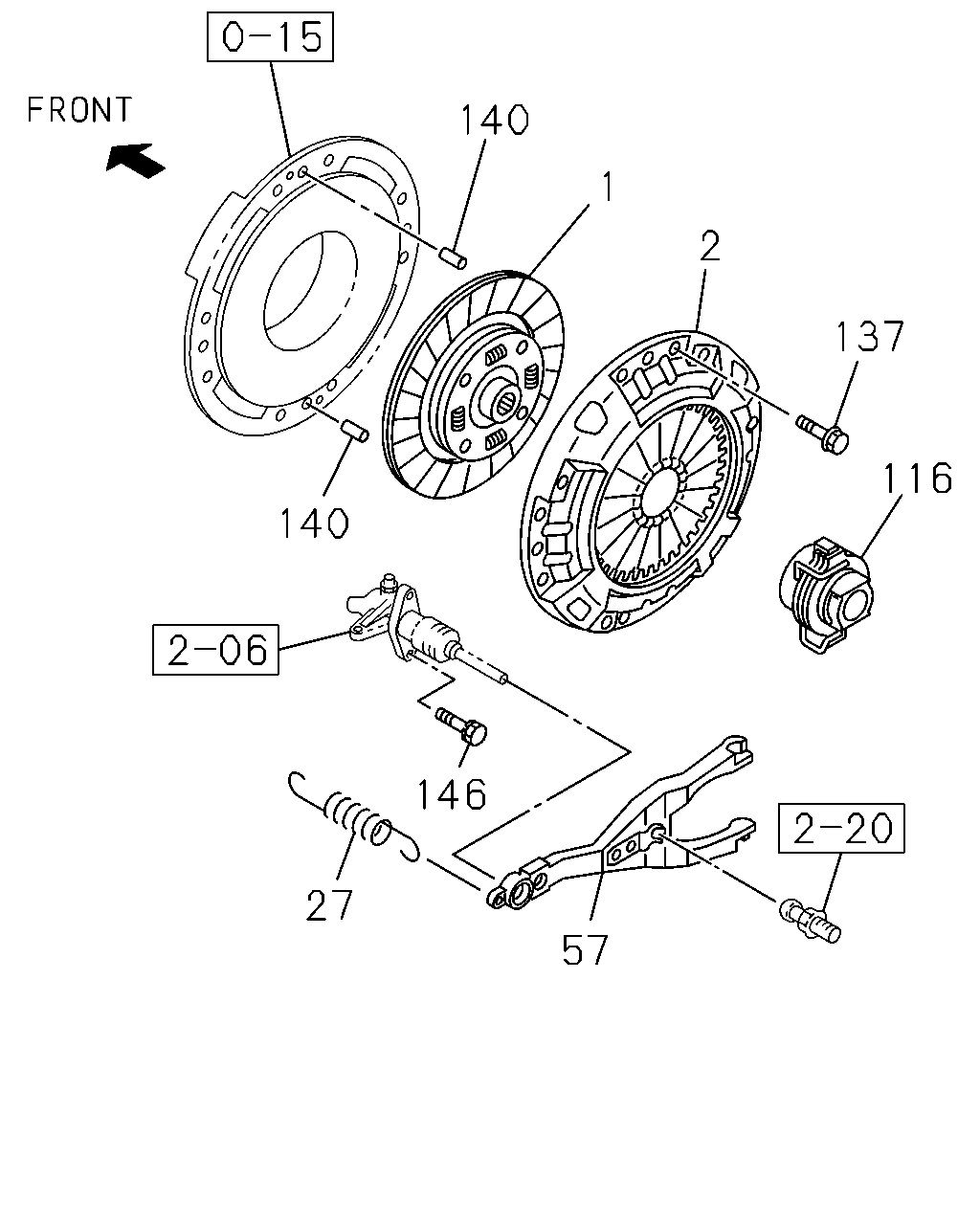

çizim 12898
140 1 2 137 116 140 146 27 57
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
EXC. KD PREPARATORY PACK<6HF> 		8-98037-004-2 01 1 0707-1401
1 DISC; CLUTCH
EXC. KD PREPARATORY PACK<6HF> 		8-98255-139-1 01 1 1402-
1 DISC; CLUTCH
EXC. KD PREPARATORY PACK<6HF> BEST VALUE PARTS 		5-87610-077-1 01 1 0806-1501
2 PLATE ASM; PRESSURE,CLU
EXC. KD PREPARATORY PACK<6HF> 		8-98040-093-0 01 1 0707-
2 PLATE ASM; PRESSURE,CLU
EXC. KD PREPARATORY PACK<6HF> BEST VALUE PARTS 		5-87610-091-0 01 1 0707-
27 SPRING; RETURN,SHIFT FORK 8-98025-313-0 01 1 0707-
57 FORK; SHIFT,CLU 8-97255-303-0 01 1 0707-
116 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 0707-
116 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 0707-
137 BOLT; CLU COVER
EXC. KD PREPARATORY PACK<6HF> M10X16 FLANGE 		0-28051-016-0 10 1 0707-
140 PIN; STRAIGHT
EXC. KD PREPARATORY PACK<6HF> L=25 		8-94410-361-0 02 1 0707-
146 BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE 		0-28650-830-0 02 1 0707-
