1-50 — EXHAUST PIPE AND SILENCER (#51952) — 61 parça

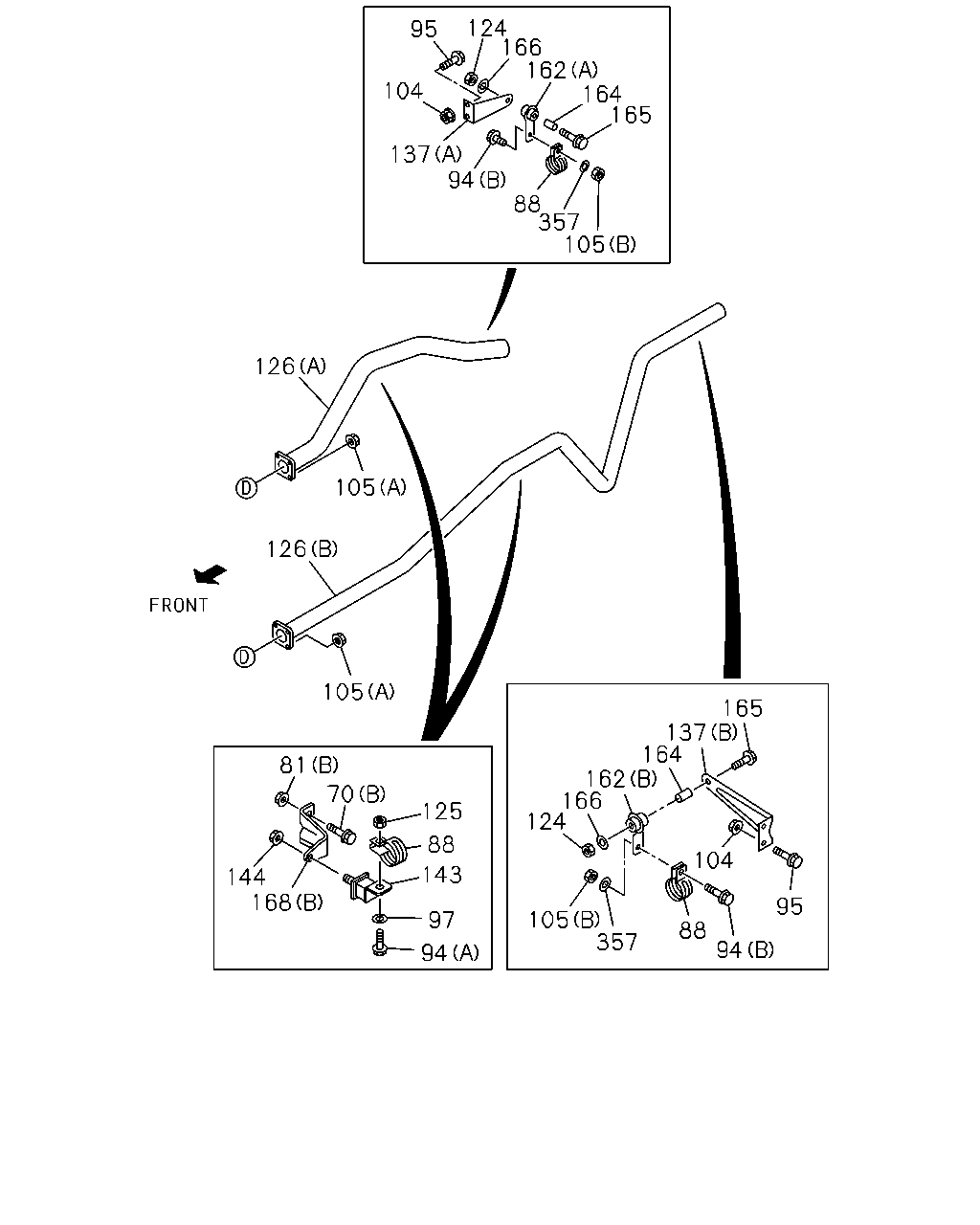

124 166 162 164 165 95 104 137 94 88 357 105 126 105 126 105 165 137 164 162 166 124 81 70 125 88 104 143 144 168 95 105 357 97 88 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
70	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0707-	●	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0707-	●	●
81	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0707-	●	●
81	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0707-	●	●
88	CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0707-	●	●
88	CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0707-	●	●
94	BOLT; CLAMP (A) M8X40 FLANGE	0-28050-840-0	01	1	0707-	●	●
94	BOLT; CLAMP (B) M8X45 FLANGE	0-28050-845-0	01	1	0707-	●	●
95	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0707-	●	●
97	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0707-	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0707-	●	●
105	NUT; CLAMP (B) M8	0-91110-508-0	01	1	0707-	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91180-108-0	04	1	0707-	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE	0-91180-110-0	01	1	0707-	●	●
125	NUT; CLAMP M8	0-91110-508-0	01	1	0707-	●	●
126	PIPE; EXH,RR REAR WIDE TREAD(V4T) (A)	8-98027-847-1	01	1	0707-	●
126	PIPE; EXH,RR (B)	8-98027-848-1	01	1	0707-		●
137	BRACKET; TAIL PIPE REAR WIDE TREAD(V4T) (A)	8-97169-014-0	01	1	0707-	●
137	BRACKET; TAIL PIPE (B)	8-94468-175-0	01	1	0707-0709		●
137	BRACKET; TAIL PIPE (B)	8-98096-331-0	01	1	0710-		●
143	RUBBER; SUPPORT	8-97371-655-1	01	1	0707-	●	●
144	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0707-	●	●
162	RUBBER; SUPPORT,TAIL PIPE REAR WIDE TREAD(V4T) (A) L=148	8-97145-971-0	01	1	0707-	●
162	RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-94156-256-0	01	1	0707-		●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0707-	●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0707-	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0707-	●	●
168	BRACKET; EXH PIPE,FRT (B)	8-94468-174-1	01	1	0707-	●	●
168	BRACKET; EXH PIPE,FRT (A)	8-98026-063-0	01	1	0707-	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0707-	●	●

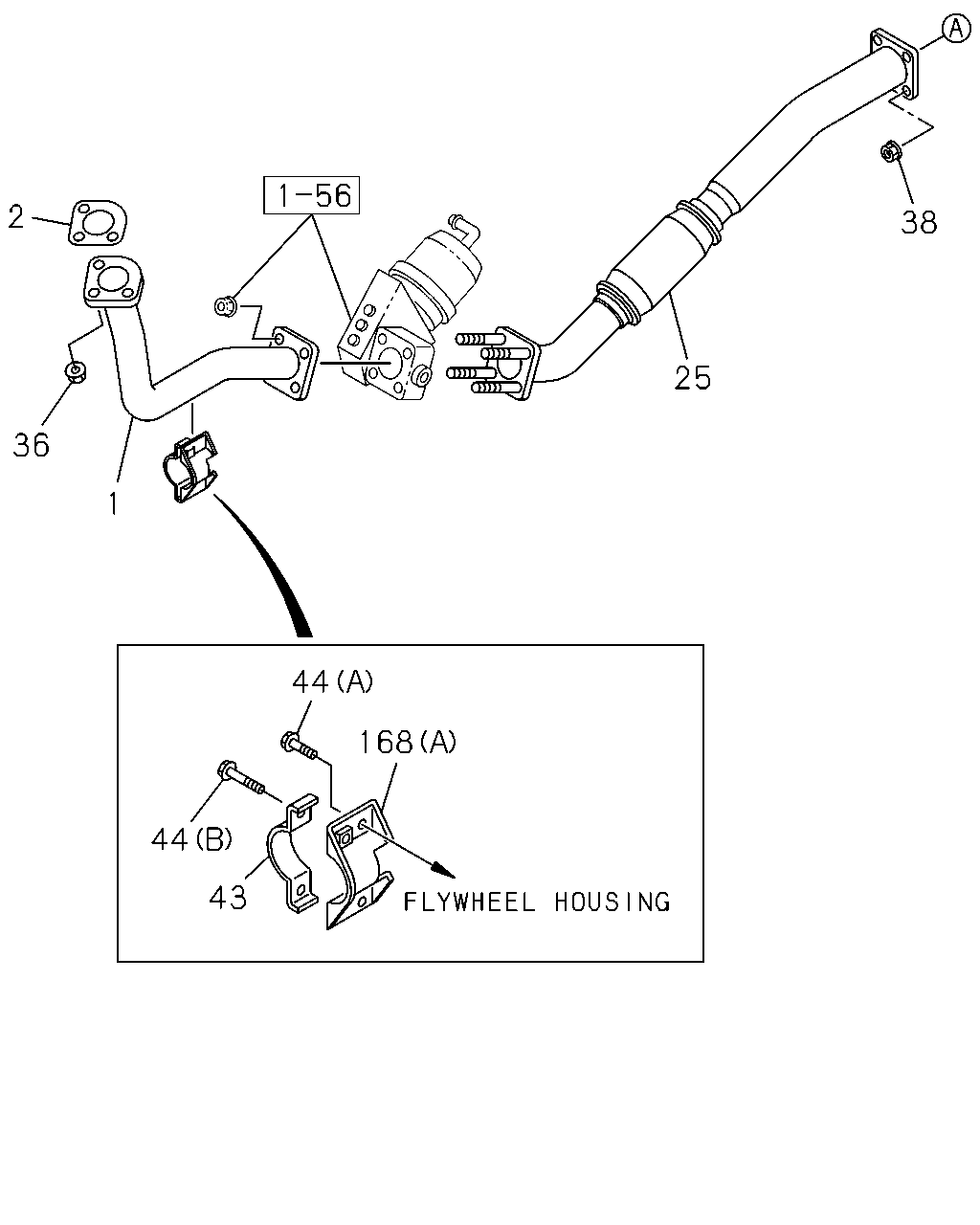

2 38 25 36 1 44 168 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH	8-98027-804-0	01	1	0707-0805	●	●
1	PIPE; EXH	8-98075-966-0	01	1	0806-	●	●
2	GASKET; PIPE TO MANIF	8-97384-590-0	01	1	0707-	●	●
25	PIPE; EXH,BRK VLV TO SILENCER	8-98027-805-1	01	1	0707-	●	●
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0707-	●	●
38	NUT; SILENCER M8 FLANGE	0-91180-108-0	04	1	0707-	●	●
43	CLAMP; EXH PIPE	8-97351-200-1	01	1	0707-	●	●
44	BOLT; BRKT (A) M10X25 FLANGE	0-28151-025-0	02	1	0707-	●	●
44	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0707-	●	●
168	BRACKET; EXH PIPE,FRT (B)	8-94468-174-1	01	1	0707-	●	●
168	BRACKET; EXH PIPE,FRT (A)	8-98026-063-0	01	1	0707-	●	●

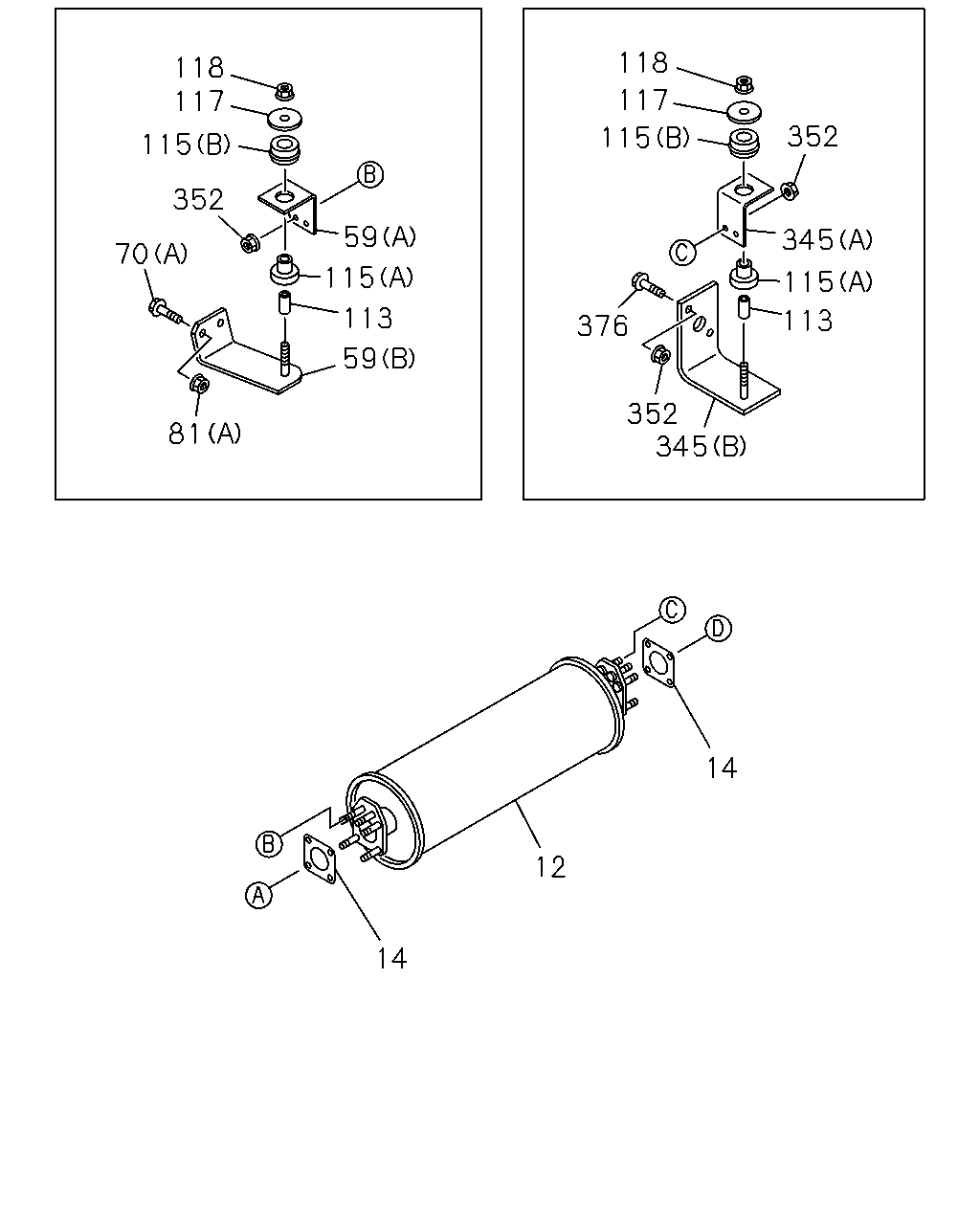

118 118 117 117 352 115 115 352 59 345 70 115 115 113 113 376 59 352 345 81 14 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH	8-98027-813-1	01	1	0707-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64	8-97373-108-0	02	1	0707-	●	●
59	BRACKET; EXH SILENCER,FRT (B)	8-98032-798-0	01	1	0707-	●	●
59	BRACKET; EXH SILENCER,FRT (A)	8-98082-156-0	01	1	0707-0709	●	●
59	BRACKET; EXH SILENCER,FRT (A)	8-98027-822-0	01	1	0710-	●	●
70	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0707-	●	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0707-	●	●
81	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0707-	●	●
81	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0707-	●	●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	02	1	0707-	●	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	0707-	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	0707-	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0707-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	02	1	0707-	●	●
345	BRACKET; EXH SILENCER,RR REAR WIDE TREAD(V4T) (B)	8-98036-518-1	01	1	0707-	●
345	BRACKET; EXH SILENCER,RR (A)	8-98027-822-0	01	1	0707-	●	●
345	BRACKET; EXH SILENCER,RR (B)	8-98032-799-1	01	1	0707-		●
352	NUT; BRKT M10 FLANGE	0-91180-110-0	06	1	0707-	●	●
376	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0707-0707	●	●
376	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0708-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
