1-31 — AIR DUCT (#51947) — 39 parça

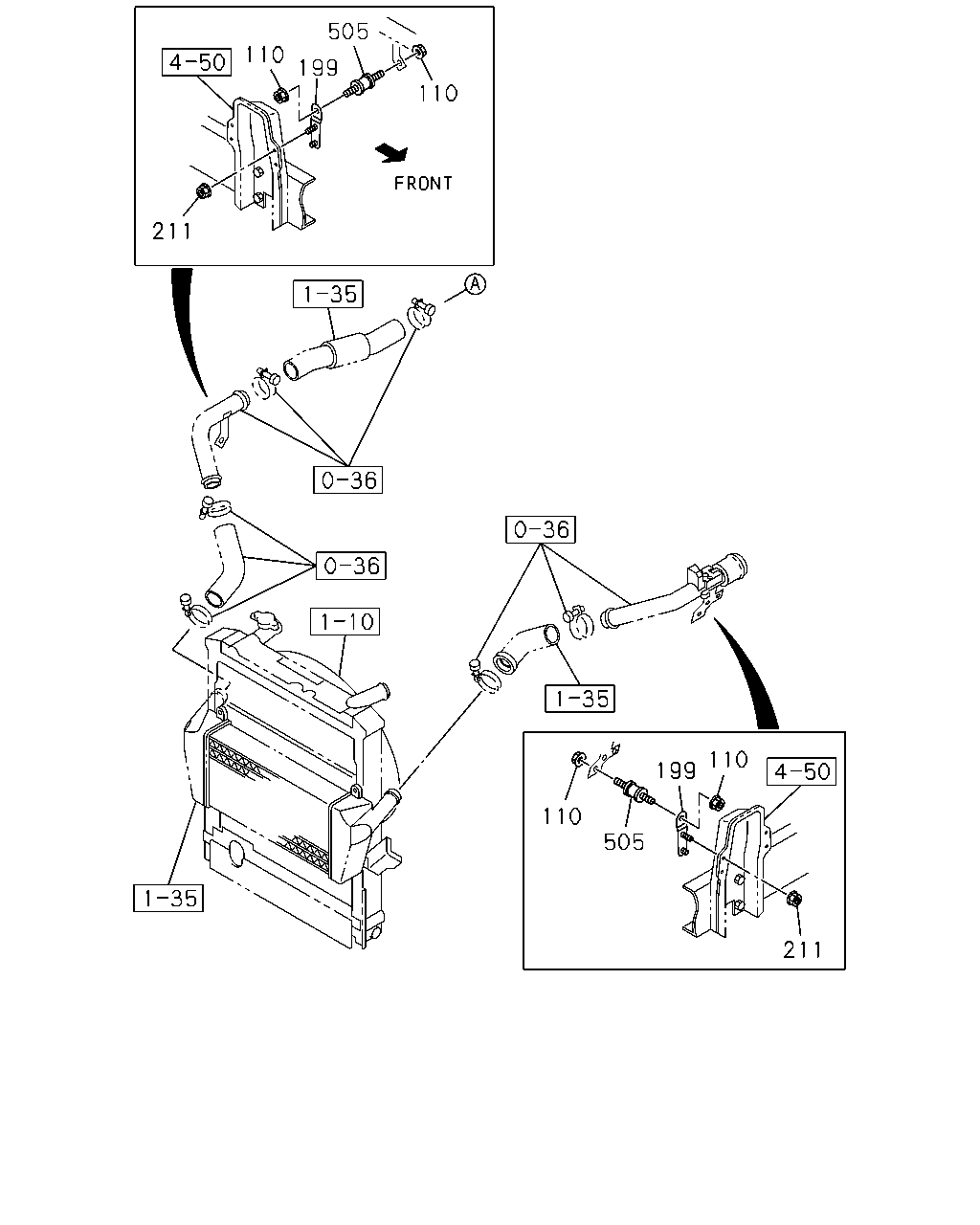

çizim 57496
505 110 199 110 211 110 199 110 505 211
BalonParca AdiParca NoAdetTipApplied Date A B
110 NUT; RUBBER MTG
M8 FLANGE 		0-91180-108-0 04 1 0707- ● ●
199 BRACKET; PIPE 8-98018-807-1 01 1 0707- ● ●
199 BRACKET; PIPE 8-98018-806-1 01 1 0707- ● ●
211 NUT; BRKT
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0707- ● ●
505 RUBBER; MTG 8-97077-387-0 02 1 0707- ● ●

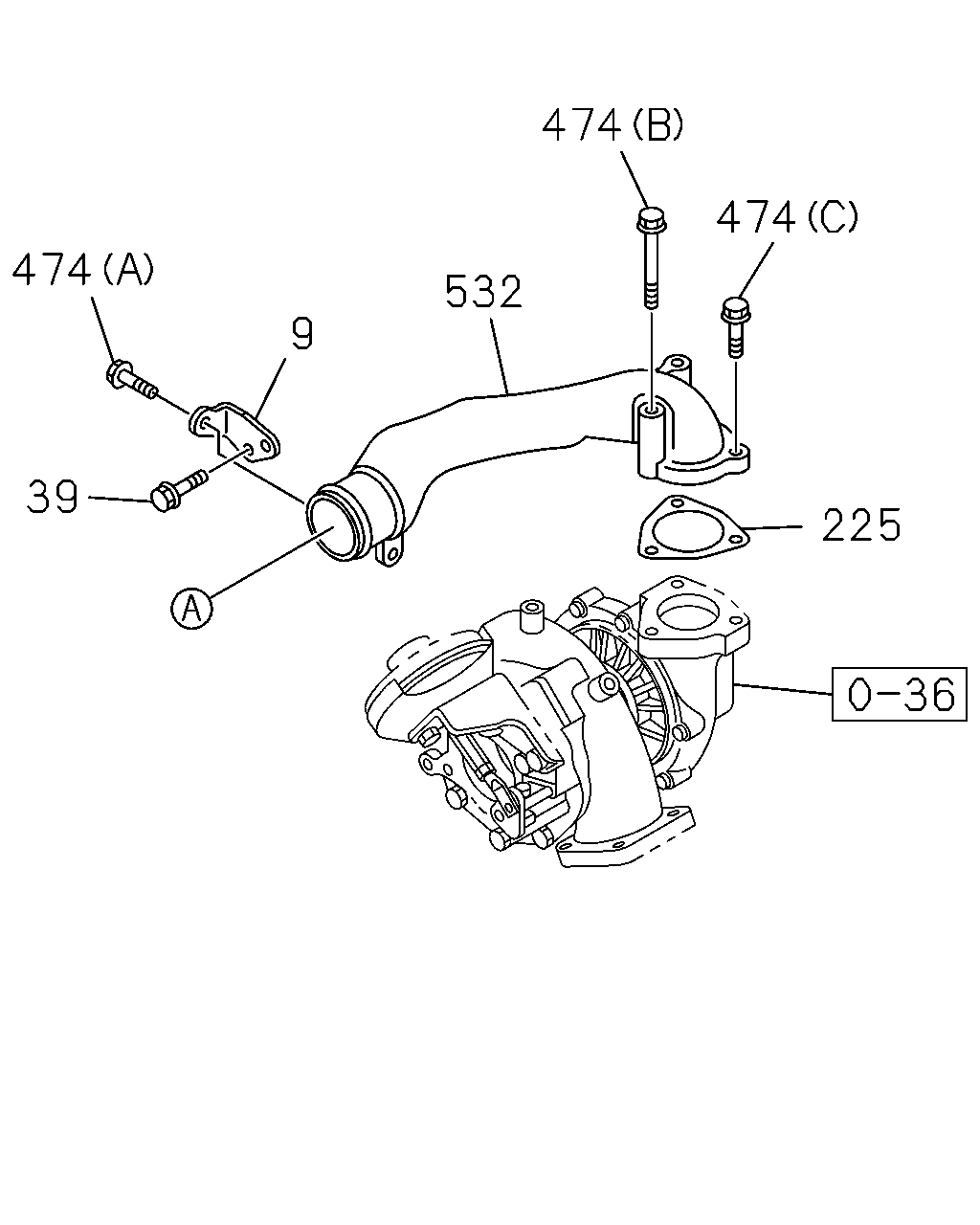

çizim 58300
474 474 474 532 9 39 225
BalonParca AdiParca NoAdetTipApplied Date A B
9 BRACKET; INT PIPE 8-98009-086-0 01 1 0707- ● ●
39 BOLT; BRKT
M8X14 FLANGE 		8-97378-075-0 01 1 0707- ● ●
225 GASKET; AIR PIPE
ID=47 		8-97202-328-1 01 1 0707- ● ●
474 BOLT; PIPE
(B) M6X70 FLANGE 		0-28050-670-0 02 1 0707- ● ●
474 BOLT; PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0707- ● ●
474 BOLT; PIPE
(C) M6X30 FLANGE 		0-28650-630-0 01 1 0707- ● ●
532 PIPE; INTAKE 8-97385-203-1 01 1 0707-1303 ● ●
532 PIPE; INTAKE 8-98237-771-1 01 1 1304- ● ●

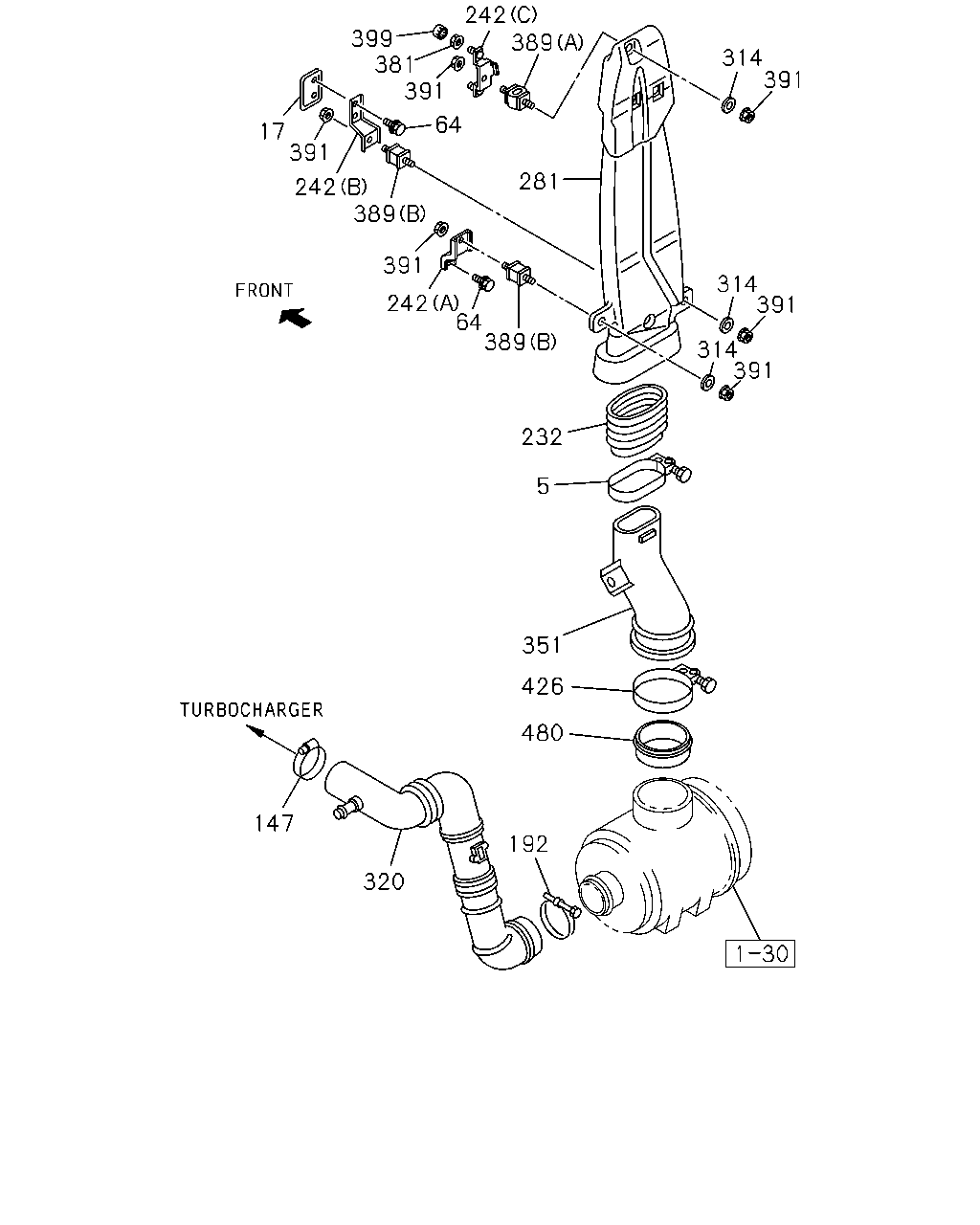

çizim 58339
242 389 399 381 391 314 391 64 17 391 281 242 389 391 314 391 242 64 389 314 391 232 5 351 426 480 147 192 320
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
D=101.6 		9-09915-502-1 01 1 0707- ● ●
17 GASKET; AIR DUCT 8-97853-699-2 01 1 0707- ● ●
64 BOLT; BRKT,AIR DUCT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0707- ● ●
147 CLIP; HOSE TO ENG
ID=68-85 		1-09707-202-0 01 1 0707-0810 ● ●
147 CLIP; HOSE TO ENG
ID=65-85 		8-98133-350-0 01 1 0811- ● ●
192 CLIP; HOSE
ID=117 		9-09915-075-1 01 1 0707- ● ●
232 HOSE; CONN 8-97109-423-0 01 1 0707-0802 ● ●
232 HOSE; CONN 8-98115-594-0 01 1 0803- ● ●
242 BRACKET; AIR DUCT
(A) 		8-97312-894-1 01 1 0707- ● ●
242 BRACKET; AIR DUCT
(B) 		8-97329-201-0 01 1 0707- ● ●
242 BRACKET; AIR DUCT
(C) 		8-97329-306-0 01 1 0707- ● ●
281 DUCT; AIR,VERTICAL INT 8-97369-706-0 01 1 0707- ● ●
314 WASHER; PL,AIR INT DUCT
ID=10.2 T=3.2 		8-94279-642-0 03 1 0707-1204 ● ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 1205- ● ●
320 HOSE; CONN,ACL 8-98048-540-0 01 1 0707-1409 ● ●
320 HOSE; CONN,ACL 8-98269-834-0 01 1 1410- ● ●
351 DUCT; AIR 8-98019-067-1 01 1 0707- ● ●
381 NUT; BRKT,AIR DUCT
M6 FLANGE 		1-09984-018-0 02 1 0707- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-97080-149-0 01 1 0707- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-97081-886-0 02 1 0707- ● ●
391 NUT; SUPPORT RUBBER,UPR
M8 FLANGE 		8-94279-517-0 06 1 0707-0910 ● ●
391 NUT; SUPPORT RUBBER,UPR
M8 W/LK WASHER 		8-97581-234-0 06 1 0911- ● ●
399 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 0707- ● ●
426 CLIP; DUCT 9-09915-504-1 01 1 0707-0802 ● ●
426 CLIP; DUCT
ID=127 		1-14239-263-0 01 1 0803- ● ●
480 ADAPTER 8-97093-075-0 01 1 0707- ● ●
