1-10 — RADIATOR
(#51944) — 55 parça
Tümü
A - NKC6SC
B - NKC6SF
◀
[110A] CLIP;RADIATOR HOSE (6 parça)
[110A] COMPONENT (27 parça)
[110A] FIXING (22 parça)
▶
1
132
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
8-98018-952-2
01
1
0707-1410
●
●
1
RADIATOR ASM
8-98260-301-0
01
1
1411-
●
●
131
CLIP; ENG SIDE TOP
ID=48
8-98036-282-0
01
1
0707-0901
●
●
131
CLIP; ENG SIDE TOP
ID=48
8-98133-956-0
01
1
0902-
●
●
132
CLIP; HOSE,ENG SIDE BOTTOM
ID=48
8-98036-282-0
01
1
0707-0901
●
●
132
CLIP; HOSE,ENG SIDE BOTTOM
ID=48
8-98133-956-0
01
1
0902-
●
●
25
51
89
232
267
62
70
89
16
79
82
80
92
100
80
100
80
100
100
2
100
100
80
80
549
21

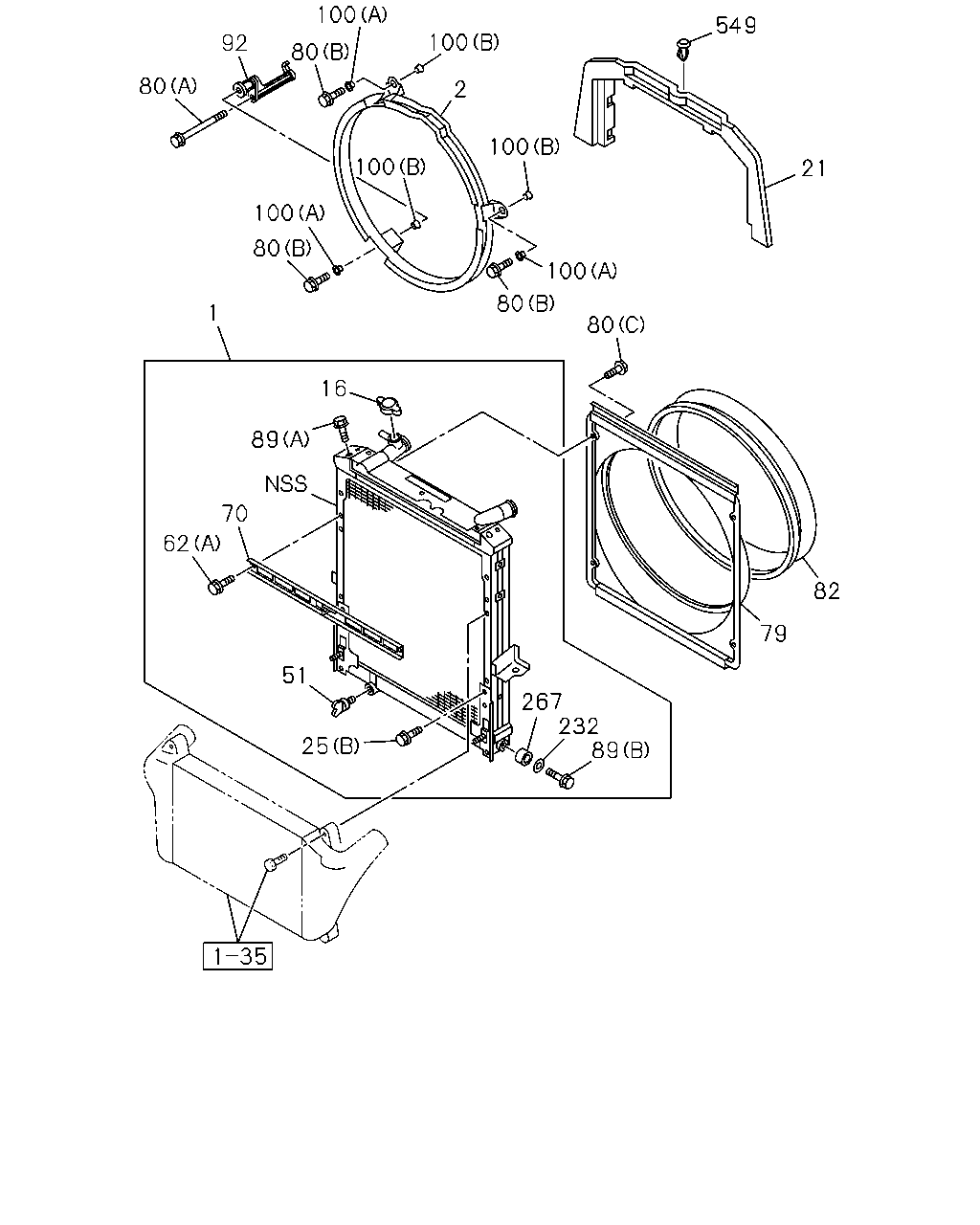

1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
8-98018-952-2
01
1
0707-1410
●
●
1
RADIATOR ASM
8-98260-301-0
01
1
1411-
●
●
2
GUIDE; FAN
8-98054-659-0
01
1
0707-
●
●
16
CAP; RAD
8-97239-187-0
01
1
0707-
●
●
21
SEAL; RAD
8-98000-813-1
01
1
0707-
●
●
25
BOLT; BRKT
(B) M6X12 FLANGE
0-28050-612-0
04
1
0707-
●
●
25
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
02
1
0707-
●
●
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
0707-
●
●
62
BOLT; STAY
(A) M8X12 FLANGE
0-28050-812-0
02
1
0707-
●
●
62
BOLT; STAY
(B) M8X45
8-94401-350-0
01
1
0707-
●
●
70
STAY; RAD
8-98018-940-0
01
1
0707-
●
●
79
GUIDE; FAN,RAD
8-97387-081-1
01
1
0707-1410
●
●
79
GUIDE; FAN,RAD
8-98234-712-0
01
1
1411-
●
●
80
BOLT; FAN GUIDE
(A) M8X130 FLANGE
0-28055-813-0
01
1
0707-
●
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
0707-
●
●
80
BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
02
1
0707-1410
●
●
80
BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
04
1
1411-
●
●
82
COVER; FAN,RAD
8-97387-085-1
01
1
0707-
●
●
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
0707-
●
●
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
0707-
●
●
92
BRACKET; FAN GUIDE
8-97381-550-1
01
1
0707-1303
●
●
92
BRACKET; FAN GUIDE
8-98237-770-0
01
1
1304-
●
●
100
RUBBER; MTG
(B) OD=32
8-94395-766-0
03
1
0707-
●
●
100
RUBBER; MTG
(A)
8-98058-502-1
03
1
0707-
●
●
232
COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
0707-
●
●
267
RUBBER; CUSHION
1-21467-023-0
02
1
0707-
●
●
549
CLIP; SEAL,RAD
8-97228-568-0
07
1
0707-
●
●

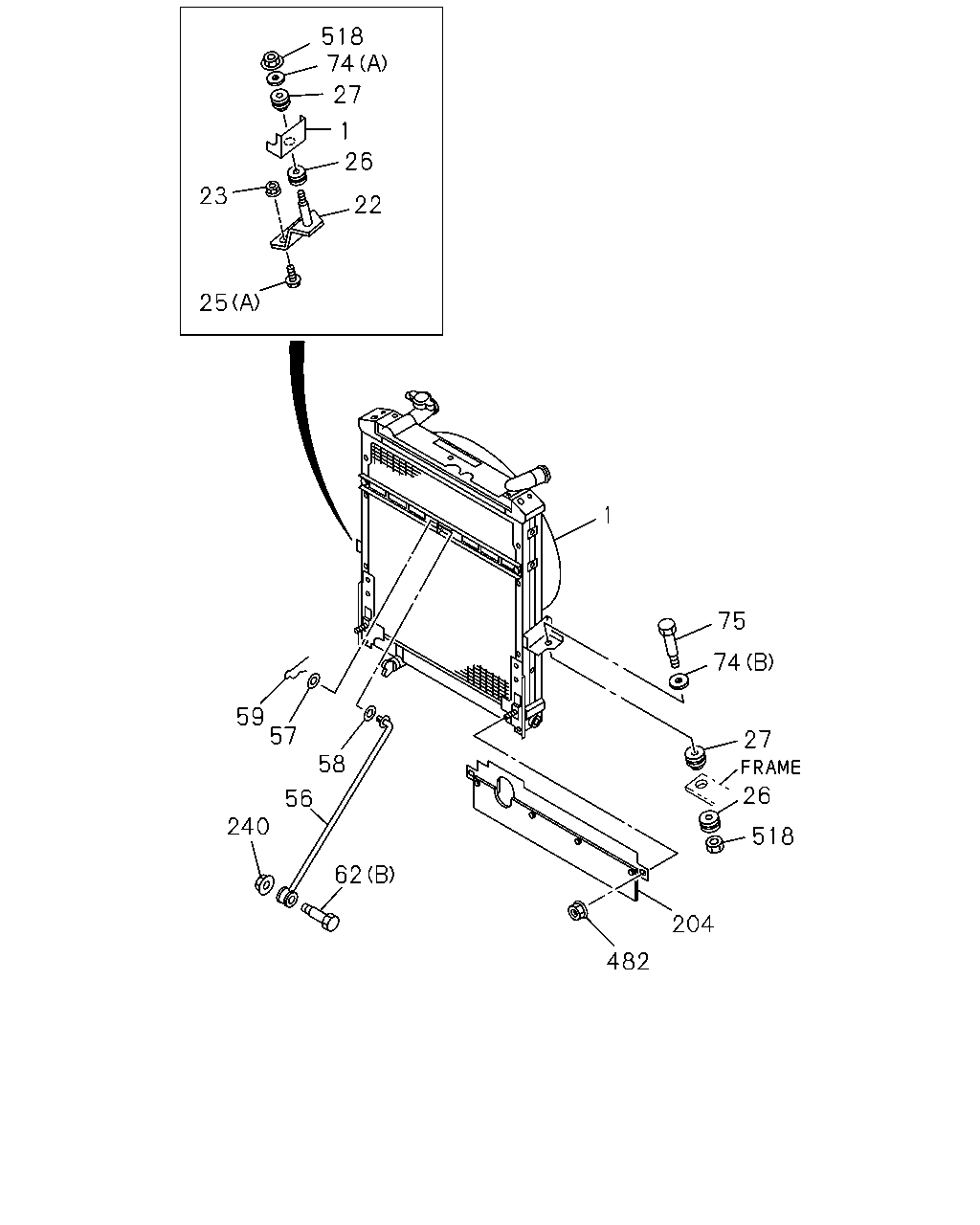

518
74
27
1
26
23
22
25
1
75
74
59
57
27
58
26
56
240
518
62
204
482
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
8-98018-952-2
01
1
0707-1410
●
●
1
RADIATOR ASM
8-98260-301-0
01
1
1411-
●
●
22
BRACKET; RAD MTG
8-97386-340-1
01
1
0707-
●
●
23
NUT; RAD MTG
M10 FLANGE
0-91180-210-0
02
1
0707-0909
●
●
23
NUT; RAD MTG
M10 FLANGE
0-91180-110-0
02
1
0910-
●
●
25
BOLT; BRKT
(B) M6X12 FLANGE
0-28050-612-0
04
1
0707-
●
●
25
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
02
1
0707-
●
●
26
BUFFER; RAD,LWR
8-94249-347-0
02
1
0707-
●
●
27
BUFFER; RAD,UPR
8-94249-346-0
02
1
0707-
●
●
56
STAY; RAD
8-97386-344-0
01
1
0707-
●
●
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
01
1
0707-
●
●
58
WASHER; CURVED,STAY
ID=12
8-97011-676-0
01
1
0707-
●
●
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
01
1
0707-
●
●
62
BOLT; STAY
(A) M8X12 FLANGE
0-28050-812-0
02
1
0707-
●
●
62
BOLT; STAY
(B) M8X45
8-94401-350-0
01
1
0707-
●
●
74
WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=36
8-97031-437-0
01
1
0707-
●
●
74
WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36
8-97359-049-1
01
1
0707-
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
M8X63
8-94249-446-0
01
1
0707-
●
●
204
GUIDE ASM; AIR
8-97383-928-1
01
1
0707-
●
●
240
NUT; STAY
M8 FLANGE
8-94178-701-0
01
1
0707-
●
●
482
NUT; AIR GUIDE
M8 FLANGE
0-91180-108-0
02
1
0707-
●
●
518
NUT
M8 FLANGE
0-91180-108-0
02
1
0707-
●
●
