1-01 — ACCELERATOR PEDAL AND CONTROL (#51943) — 28 parça

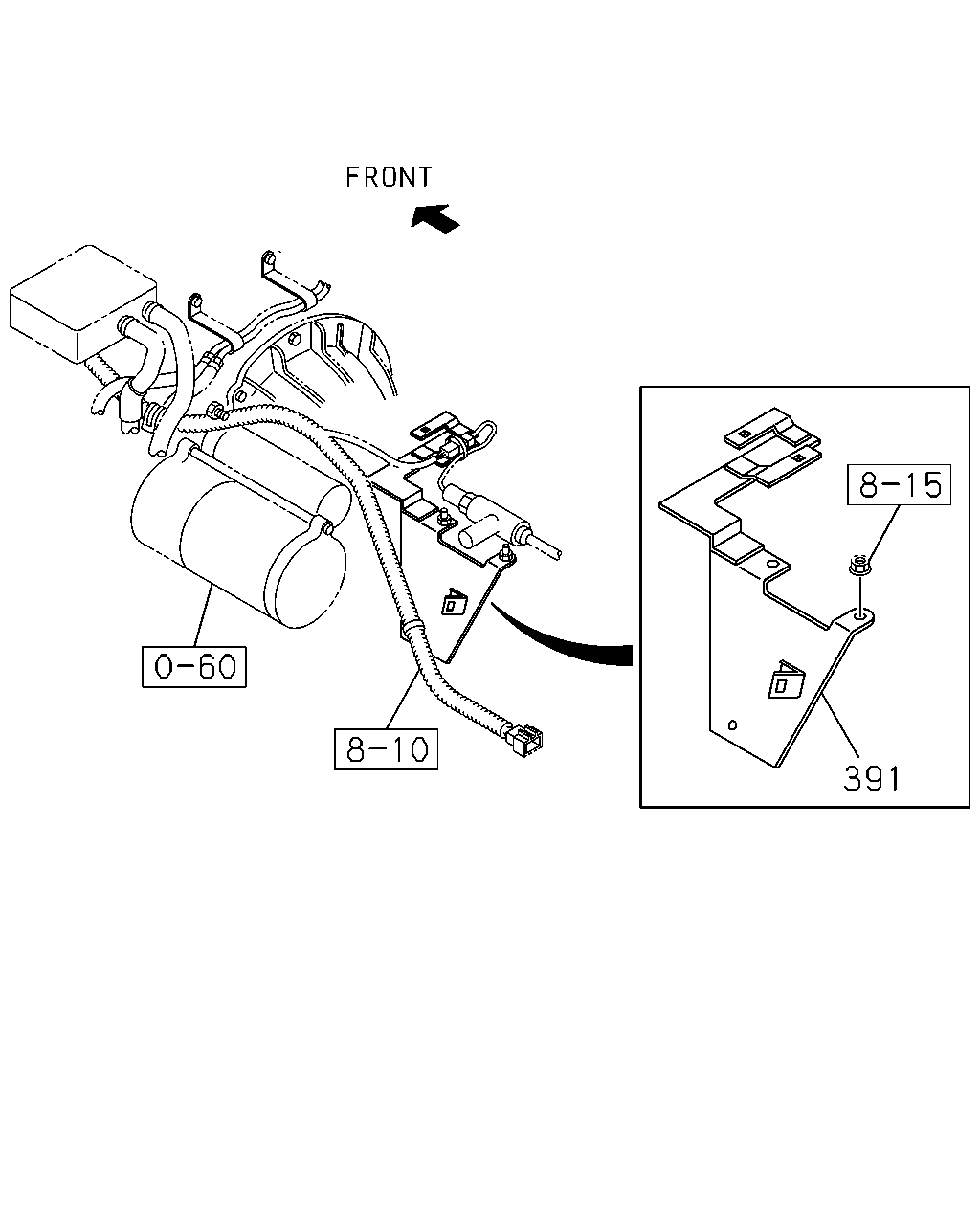

391

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	391	BRACKET; ENG CONT	8-97357-141-0	01	1	0707-	●	●

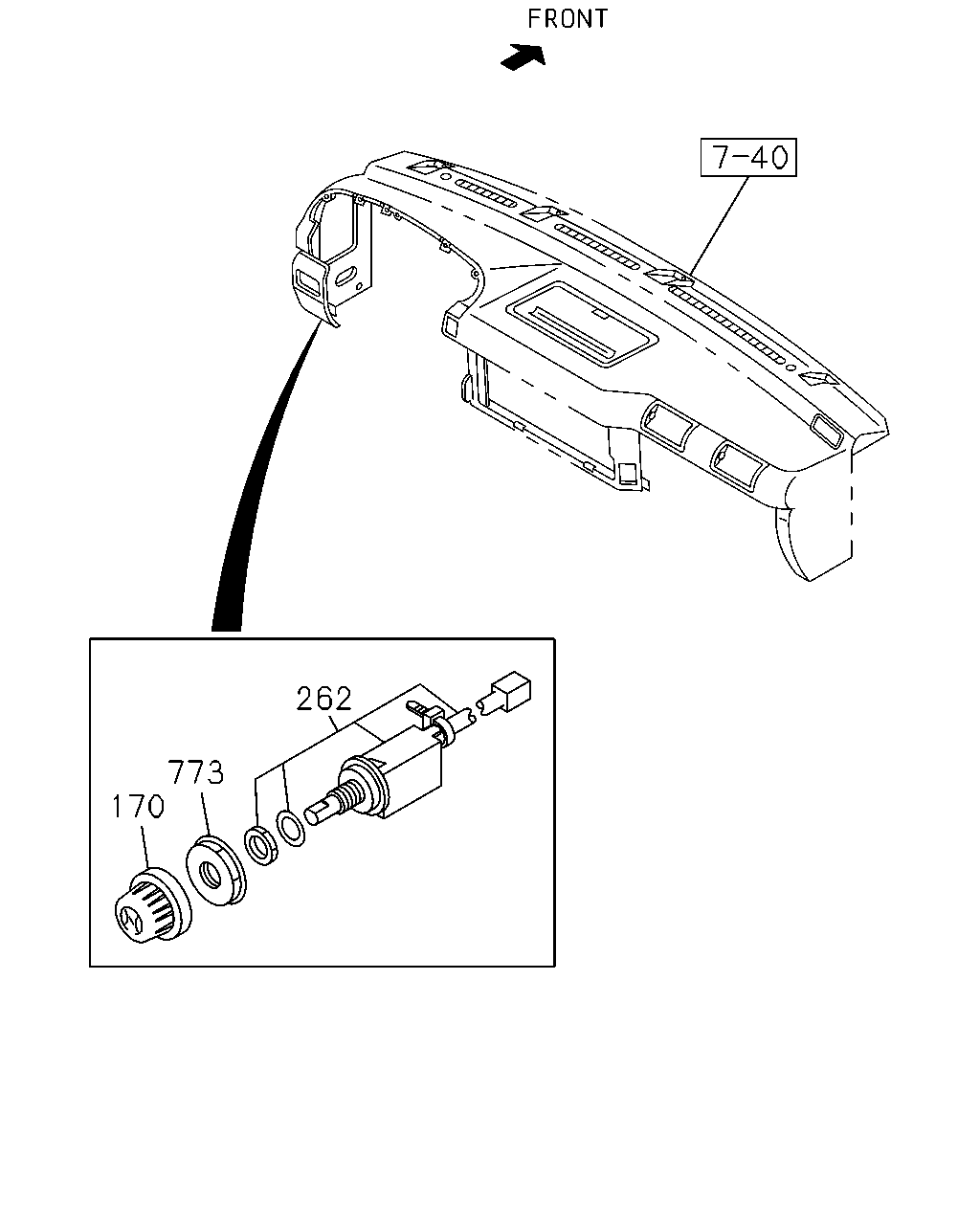

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
170	KNOB	8-97310-165-0	01	1	0707-	●	●
262	SWITCH; ACCEL,IDLE	8-97215-119-1	01	1	0707-	●	●
773	HOLDER; ACCEL PEDAL	8-97352-127-0	01	1	0707-	●	●

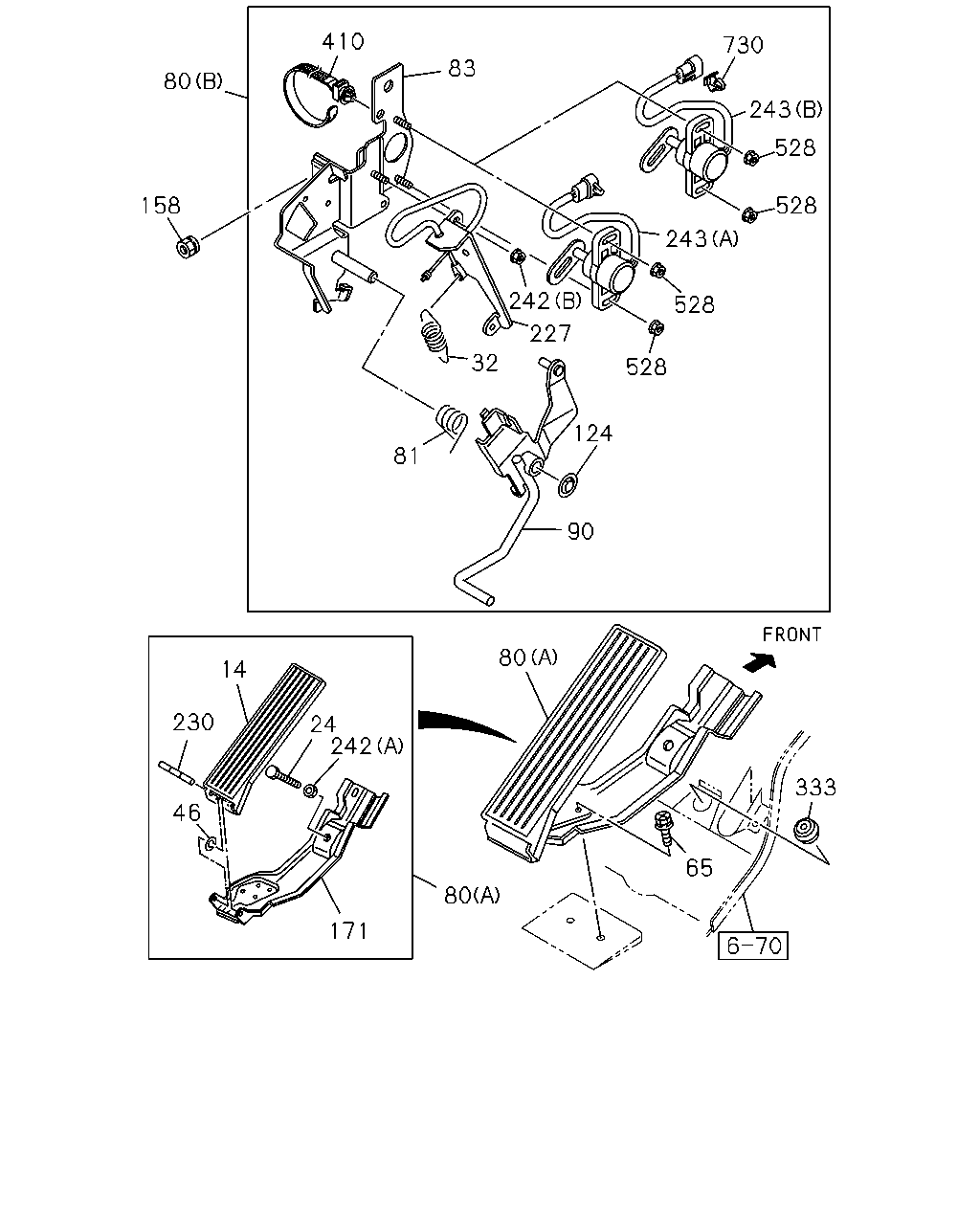

80 158 410 83 81 730 243 528 528 243 528 242 528 124 90 32 227 80 333 65 80 242 24 14 230 46 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0707-	●	●
24	BOLT; BRKT	0-20800-840-0	01	1	0707-	●	●
32	SPRING; RETURN,ACCEL PEDAL	8-97997-917-0	01	1	0707-	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0707-	●	●
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0707-	●	●
80	LINK ASM; ENG CONT (A)	8-97859-100-0	01	1	0707-	●	●
80	LINK ASM; ENG CONT (B)	8-98032-148-2	01	1	0707-	●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0707-	●	●
83	BRACKET; CONT LINK	8-98032-263-2	01	1	0707-	●	●
90	LEVER; RELAY,ENG CONT	8-97994-590-4	01	1	0707-	●	●
124	NUT; LEVER ID=9.9 PUSH NUT	8-97012-098-0	01	1	0707-	●	●
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	0707-	●	●
171	BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0707-	●	●
227	CABLE ASM; RETURN,ACCEL PEDAL	8-97892-203-5	01	1	0707-	●	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0707-	●	●
242	NUT; ACCEL PEDAL (A) M8	0-91110-508-0	01	1	0707-	●	●
242	NUT; ACCEL PEDAL (B) M6 W/DISHED WASHER	8-94423-325-0	01	1	0707-0805	●	●
242	NUT; ACCEL PEDAL (B) M6 W/DISHED WASHER	8-98029-921-0	01	1	0806-	●	●
243	SENSOR; ACCEL (A)	8-97384-127-1	01	1	0707-1205	●	●
243	SENSOR; ACCEL (B)	8-98200-050-0	01	1	1206-	●	●
333	GROMMET; HOLE,CABLE OD=24.5 T=7.5	8-97224-683-0	01	1	0707-	●	●
410	CLIP; BAND L=155	8-97173-307-0	01	1	0707-	●	●
528	NUT; ACCEL SENSOR M5	8-94169-022-0	02	1	0707-	●	●
730	CLIP OD=9 H=6	8-97368-793-0	01	1	1206-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
