◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#51941) — 27 parça
çizim 14283
51
BalonParca AdiParca NoAdetTipApplied Date
51 COVER SET; DUST ENGAGE SW STARTER
ASM PART: A = 8-98054-984-0 		8-97179-778-0 01 1 -

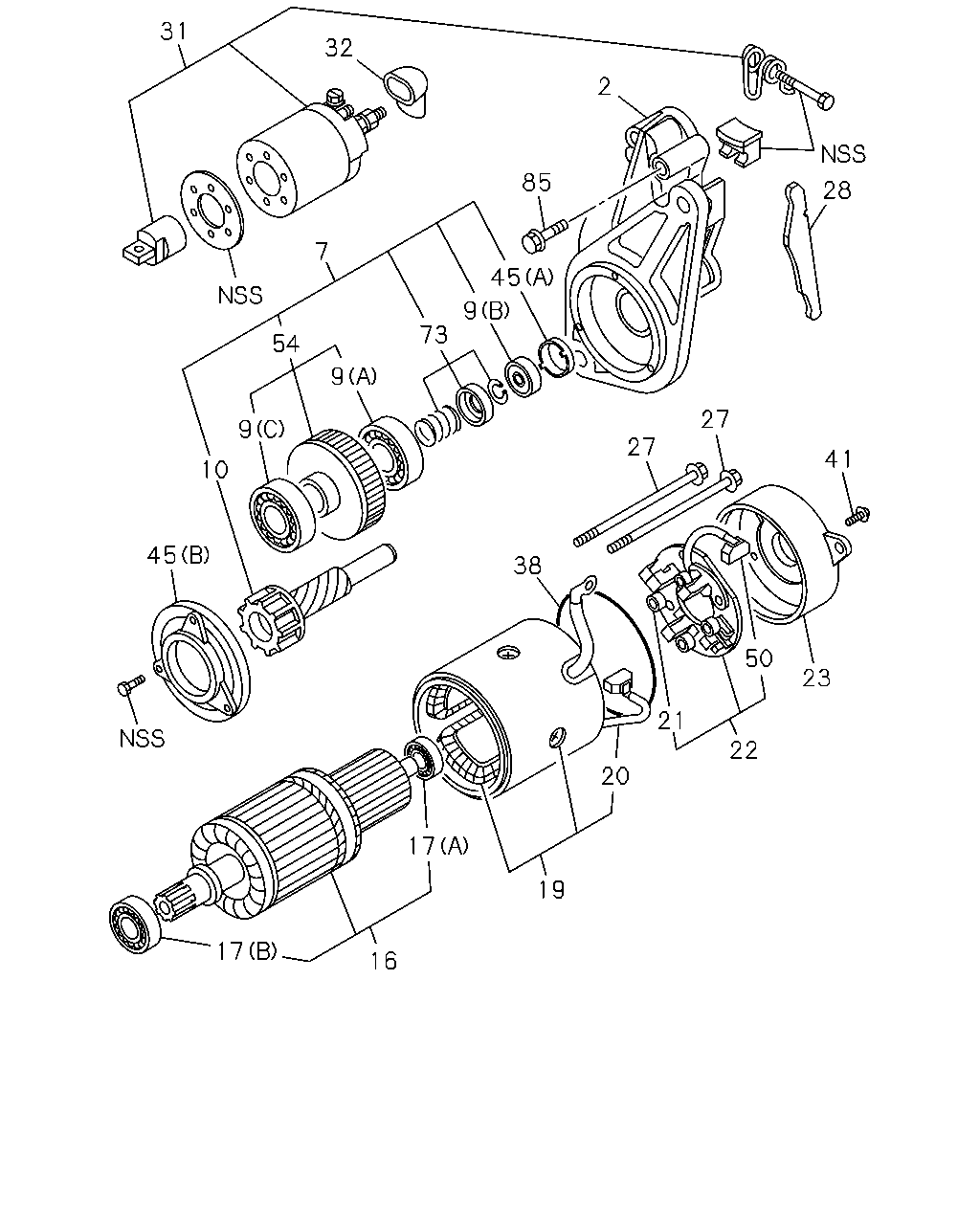

çizim 58434
31 32 2 85 28 7 45 9 73 54 9 27 9 27 41 10 45 38 50 23 21 22 20 17 19 17 16
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 8-98054-984-0 		8-97227-902-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-98054-984-0 		8-97179-770-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
(C) ASM PART: A = 8-98054-984-0 		8-97025-673-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
(A) ASM PART: A = 8-98054-984-0 		8-97025-674-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
(B) ASM PART: A = 8-98054-984-0 		8-97025-676-0 01 1 -
10 SHAFT; GEAR STARTER
ASM PART: A = 8-98054-984-0 		8-97179-772-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 8-98054-984-0 		8-97192-299-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A) ASM PART: A = 8-98054-984-0 		8-94228-436-0 01 1 -
17 BEARING; ARMATURE,STARTER
(B) ASM PART: A = 8-98054-984-0 		8-97030-387-0 01 1 -
19 COIL; FIELD,STARTER
ASM PART: A = 8-98054-984-0 		8-98055-295-0 01 1 -
20 BRUSH; (+),STARTER
ASM PART: A = 8-98054-984-0 		8-98055-296-0 02 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-98054-984-0 		8-94152-972-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 8-98054-984-0 		8-98055-298-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 8-98054-984-0 		8-97227-901-0 01 1 -
27 BOLT; THROUGH,STARTER
ASM PART: A = 8-98054-984-0 		8-97192-423-0 02 1 -
28 LEVER; SHIFT,STARTER
ASM PART: A = 8-98054-984-0 		8-97179-776-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-98054-984-0 		8-97161-789-0 01 1 -
32 COVER; RUBBER,STARTER
HITACHI ASM PART: A = 8-98054-984-0 		5-81129-069-0 01 1 -
38 GASKET; RR COVER,STARTER
ASM PART: A = 8-98054-984-0 		8-97115-763-0 01 1 -
41 SCREW; RR COVER,STARTER
ASM PART: A = 8-98054-984-0 		8-97117-107-0 02 1 -
45 RETAINER; BEARING,STARTER
(A) ASM PART: A = 8-98054-984-0 		8-94435-567-0 01 1 -
45 RETAINER; BEARING,STARTER
(B) ASM PART: A = 8-98054-984-0 		8-97179-774-0 01 1 -
50 BRUSH; (-),STARTER
ASM PART: A = 8-98054-984-0 		8-98055-296-0 02 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 8-98054-984-0 		8-97179-771-0 01 1 -
73 STOPPER SET; PINION
ASM PART: A = 8-98054-984-0 		8-97030-396-0 01 1 -
85 BOLT; ENGAGE SW FIX,STARTER
ASM PART: A = 8-98054-984-0 		8-94408-500-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
