Isuzu WW
▶
TRUCKS
▶
ELF
▶
51139 - ELF300(MEXICO)
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

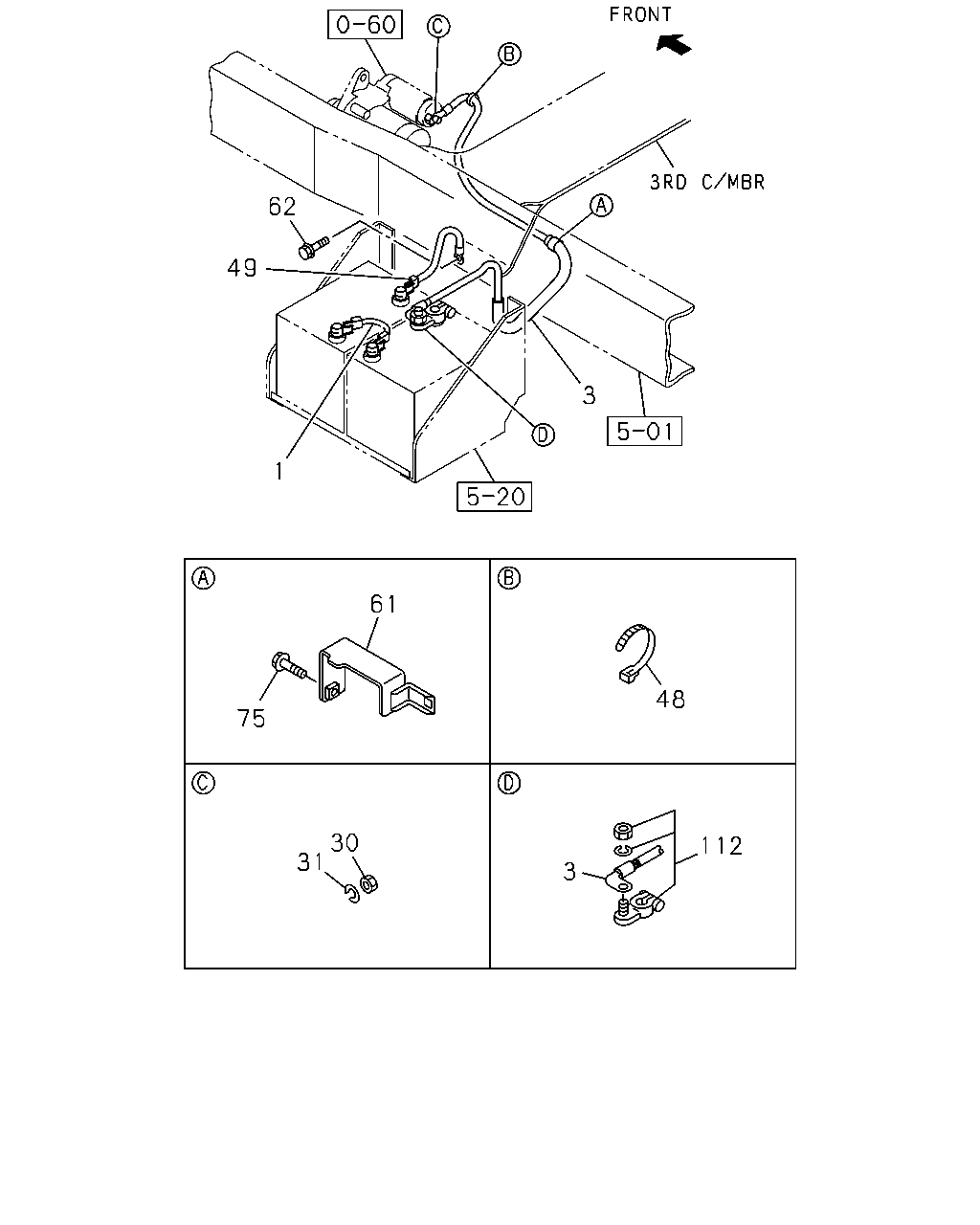

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#51940) — 11 parça
62
49
3
1
61
48
75
30
31
112
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
L=280
8-97230-719-2
01
1
0707-
3
HARNESS; CABLE,BATTERY TO STARTER
8-98019-625-0
01
1
0707-
30
NUT; CABLE,STARTER TO BATTERY
M8
0-91110-508-0
01
1
0707-
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2
0-91510-808-0
01
1
0707-
48
CLIP; CABLE
L=140
5-09707-031-1
01
1
0707-
49
CABLE; BATTERY TO S/MBR,RH
L=330
8-97373-778-0
01
1
0707-
61
BRACKET; BATTERY CABLE
8-97369-198-1
01
1
0707-
62
BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
0707-1004
62
BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER
8-98141-256-1
01
1
1005-
75
BOLT; BRKT
M6X25 FLANGE
0-28650-625-0
01
1
0707-
112
TERMINAL; BATTERY
<+>
8-97356-925-1
01
1
0707-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
