Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#5194) — 231 parça

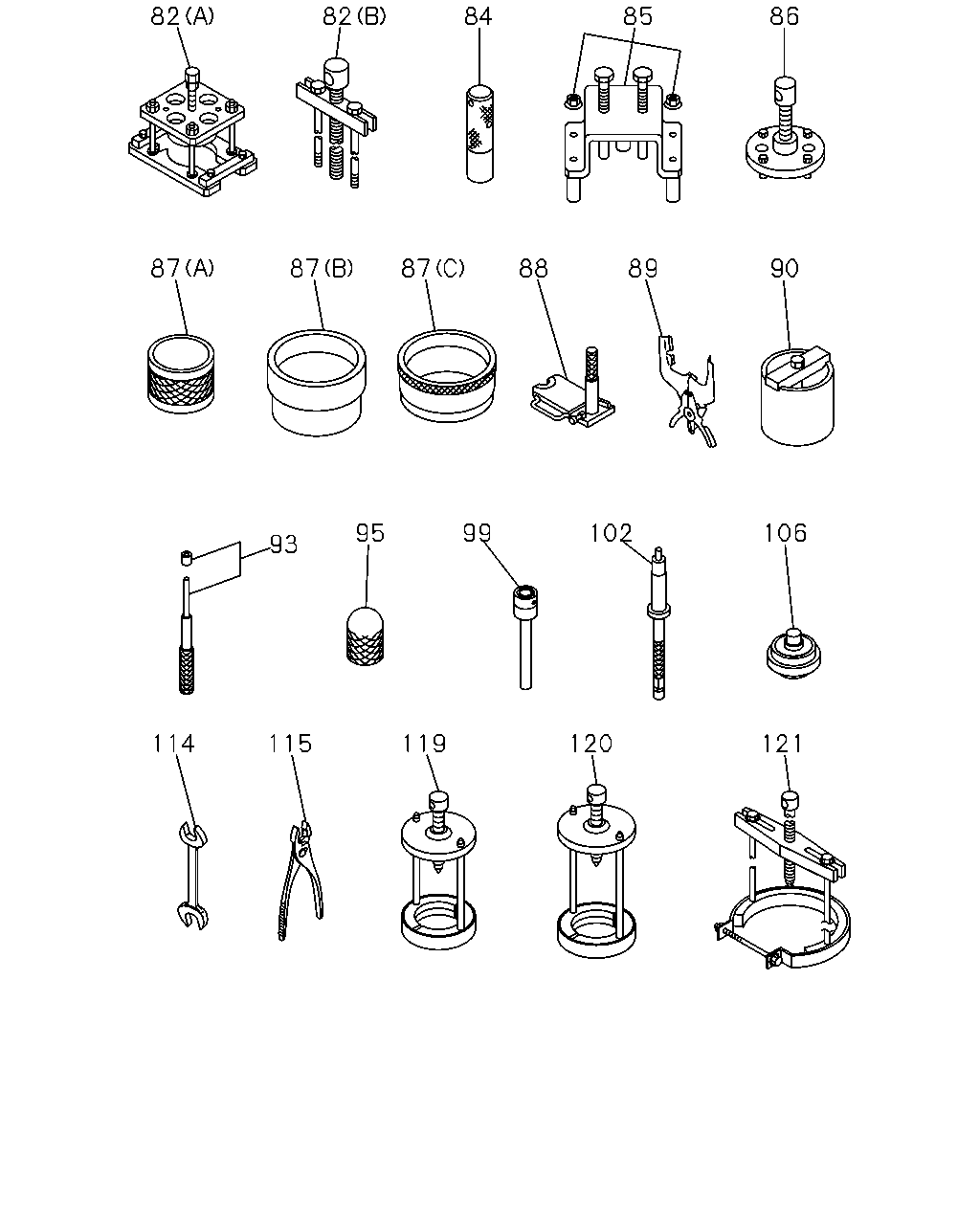

82 82 84 85 86 87 87 87 88 89 90 95 99 102 106 93 115 119 120 121 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	PULLER ASM; CR/SHF GEAR 10PE1S(60L) (B)	9-85211-139-0	01	1	9606-9905
82	PULLER ASM; CR/SHF GEAR 10PE1N(61L) (B)	9-85211-139-0	01	1	9906-
82	PULLER ASM; CR/SHF GEAR 6WA1 TC-S(56L) (A)	1-85210-064-0	01	1	9606-9706
82	PULLER ASM; CR/SHF GEAR 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-85210-064-0	01	1	9707-9905
82	PULLER ASM; CR/SHF GEAR 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-85210-064-0	01	1	9906-
84	REPLACER; VALVE SEAL 6WA1 TC-S(56L) INL VALVE	1-85221-136-0	01	1	9606-9609
84	REPLACER; VALVE SEAL 6WA1 TC-S(56L) INL VALVE EXHAUST	1-85221-184-0	01	1	9610-9706
84	REPLACER; VALVE SEAL 6WA1 TC-S(56L),6WG1 TC-N(71L) EXHAUST	1-85221-184-0	01	1	9707-9905
84	REPLACER; VALVE SEAL 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) EXHAUST	1-85221-184-0	01	1	9906-
84	REPLACER; VALVE SEAL 6WA1 TC-S(56L) EXH VALVE	1-85221-140-1	01	1	9606-9612
84	REPLACER; VALVE SEAL 6WA1 TC-S(56L) EXH VALVE INLET	1-85221-187-0	01	1	9701-9706
84	REPLACER; VALVE SEAL 6WA1 TC-S(56L),6WG1 TC-N(71L) INLET	1-85221-187-0	01	1	9707-9905
84	REPLACER; VALVE SEAL 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) INLET	1-85221-187-0	01	1	9906-
85	REPLACER ASM; VALVE SPR 6WA1 TC-S(56L)	1-85235-010-0	01	1	9606-9609
85	REPLACER ASM; VALVE SPR 6WA1 TC-S(56L)	1-85235-013-0	01	1	9610-9706
85	REPLACER ASM; VALVE SPR 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85235-013-0	01	1	9707-9905
85	REPLACER ASM; VALVE SPR 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85235-013-0	01	1	9906-
86	REPLACER; FLYWHEEL 10PE1S(60L)	1-85230-006-0	01	1	9606-9905
86	REPLACER; FLYWHEEL 10PE1N(61L)	1-85230-006-0	01	1	9906-
87	TOOL; PISTON 10PE1S(60L) (A)	1-85220-058-0	01	1	9606-9806
87	TOOL; PISTON 10PE1S(60L) (A)	1-85220-082-0	01	1	9807-9905
87	TOOL; PISTON 10PE1N(61L) (A)	1-85220-082-0	01	1	9906-
87	TOOL; PISTON 6WA1 TC-S(56L) (B)	1-85220-046-0	01	1	9606-9905
87	TOOL; PISTON 6WA1 TC-C(55L),6WA1 TC-S(56L) (B)	1-85220-046-0	01	1	9906-
87	TOOL; PISTON 6WG1 TC-N(71L) (C)	1-85220-059-0	01	1	9707-9905
87	TOOL; PISTON 6WG1 TC-C(72L) (C)	1-85220-059-0	01	1	9906-
88	TOOL; CONNROD BUSHING 10PE1S(60L)	1-85220-002-0	01	1	9606-9905
88	TOOL; CONNROD BUSHING 10PE1N(61L)	1-85220-002-0	01	1	9906-
89	TOOL; PISTON RING 10PE1S(60L)	1-85221-029-0	01	1	9606-9905
89	TOOL; PISTON RING 10PE1N(61L)	1-85221-029-0	01	1	9906-
89	TOOL; PISTON RING 6WA1 TC-S(56L)	1-85221-029-0	01	1	9606-9905
89	TOOL; PISTON RING 6WA1 TC-C(55L),6WA1 TC-S(56L)	1-85221-029-0	01	1	9906-
89	TOOL; PISTON RING 6WG1 TC-N(71L)	1-85221-025-0	01	1	9707-9905
89	TOOL; PISTON RING 6WG1 TC-C(72L)	1-85221-025-0	01	1	9906-
90	PULLER; INJ PUMP BRG 10PE1S(60L)	1-85210-039-0	01	1	9606-9905
90	PULLER; INJ PUMP BRG 10PE1N(61L)	1-85210-039-0	01	1	9906-
93	SETTING KIT; VALVE GUIDE 10PE1S(60L) L=260	9-85231-202-0	01	1	9606-9905
93	SETTING KIT; VALVE GUIDE 10PE1N(61L) L=260	9-85231-202-0	01	1	9906-
93	SETTING KIT; VALVE GUIDE 6WA1 TC-S(56L) L=260	9-85231-202-0	01	1	9606-9706
93	SETTING KIT; VALVE GUIDE 6WA1 TC-S(56L),6WG1 TC-N(71L) L=260	9-85231-202-0	01	1	9707-9905
93	SETTING KIT; VALVE GUIDE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) L=260	9-85231-202-0	01	1	9906-
95	SETTING TOOL; BRIDGE GUIDE 6WA1 TC-S(56L)	9-85221-324-0	01	1	9606-9706
95	SETTING TOOL; BRIDGE GUIDE 6WA1 TC-S(56L),6WG1 TC-N(71L)	9-85221-324-0	01	1	9707-9905
95	SETTING TOOL; BRIDGE GUIDE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	9-85221-324-0	01	1	9906-
99	WRENCH; CYL HD BOLT 10PE1S(60L)	1-85115-013-0	01	1	9606-9905
99	WRENCH; CYL HD BOLT 10PE1N(61L)	1-85115-013-0	01	1	9906-
102	ADAPTER; COMP GAGE 6WA1 TC-S(56L)	1-85317-019-0	01	1	9606-9706
102	ADAPTER; COMP GAGE 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85317-019-0	01	1	9707-9905
102	ADAPTER; COMP GAGE 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85317-019-0	01	1	9906-
106	TOOL; SETTING PILOT BRG 10PE1S(60L)	1-85221-057-0	01	1	9606-9905
106	TOOL; SETTING PILOT BRG 10PE1N(61L)	1-85221-057-0	01	1	9906-
106	TOOL; SETTING PILOT BRG 6WA1 TC-S(56L)	1-85221-057-0	01	1	9606-9706
106	TOOL; SETTING PILOT BRG 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85221-057-0	01	1	9707-9905
106	TOOL; SETTING PILOT BRG 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85221-057-0	01	1	9906-
114	WRENCH; INJ PUMP 10PE1S(60L)	1-85220-027-0	01	1	9606-9905
114	WRENCH; INJ PUMP 10PE1N(61L)	1-85220-027-0	01	1	9906-
115	PLIER	5-85171-001-0	01	1	9606-
119	PULLER ASM; TOP GEAR BRG ISUZU M/T<X9A> L=235	9-85210-190-0	01	1	9606-
120	PULLER ASM; MAIN REAR BRG ISUZU M/T<X9A> L=285	9-85210-184-0	01	1	9606-
121	PULLER ASM; COUNTER REAR ISUZU M/T<X9A>	1-85210-069-0	01	1	9606-

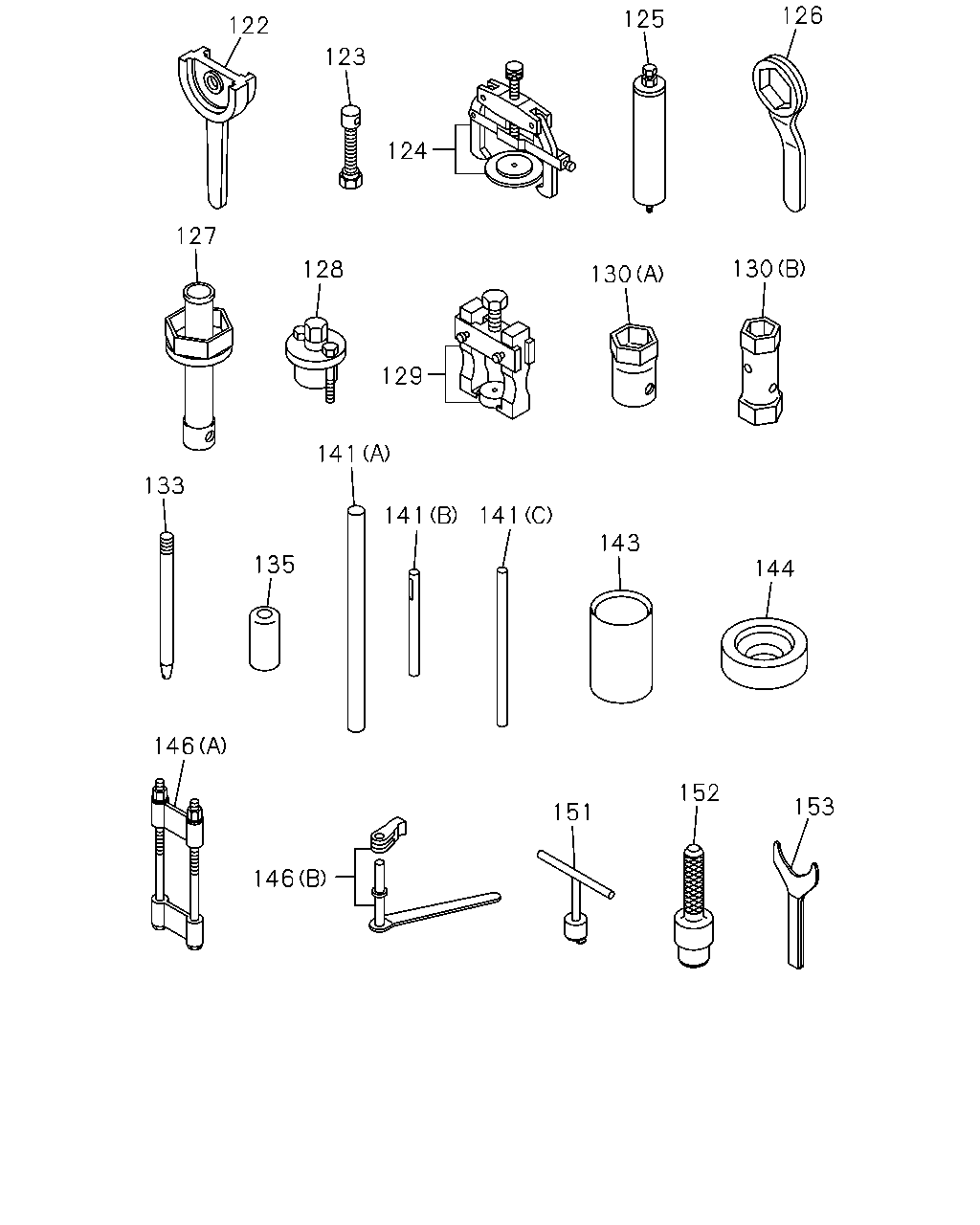

126 125 122 123 124 127 130 128 130 129 141 133 141 141 143 135 144 146 152 153 151 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
122	PULLER ASM; COUNTER FRT ISUZU M/T<X9A>	9-85210-129-1	01	1	9606-
123	PULLER; SPEEDOMETER BUSHING ISUZU M/T<X9A>	9-85210-091-0	01	1	9606-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	9606-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9606-
126	WRENCH; FRT HUB BRG NUT L=257 B=63	9-85111-373-0	01	1	9606-
127	WRENCH ASM; HUB BRG NUT L=400 B=105	9-85113-509-0	01	1	9606-
127	WRENCH ASM; HUB BRG NUT L=400 B=116	9-85113-524-0	01	1	9606-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	9606-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9606-
130	WRENCH; BOX (A) B=63	9-85111-368-0	01	1	9606-
130	WRENCH; BOX (B) B=46 & 54 L=165	9-85112-320-0	01	1	9606-
130	WRENCH; BOX (B) B=32 & 41 L=150	9-85112-322-0	01	1	9606-
130	WRENCH; BOX (B) B=36 & 41 L=200	9-85112-330-0	01	1	9606-
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	9606-
133	WRENCH; NUT STARTER 10PE1S(60L)	1-85221-030-0	02	1	9606-9905
133	WRENCH; NUT STARTER 10PE1N(61L)	1-85221-030-0	02	1	9906-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	9606-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	9606-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	9606-
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	9606-
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	9606-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	9606-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	9606-
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	9606-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	9606-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	9606-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	9606-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9606-

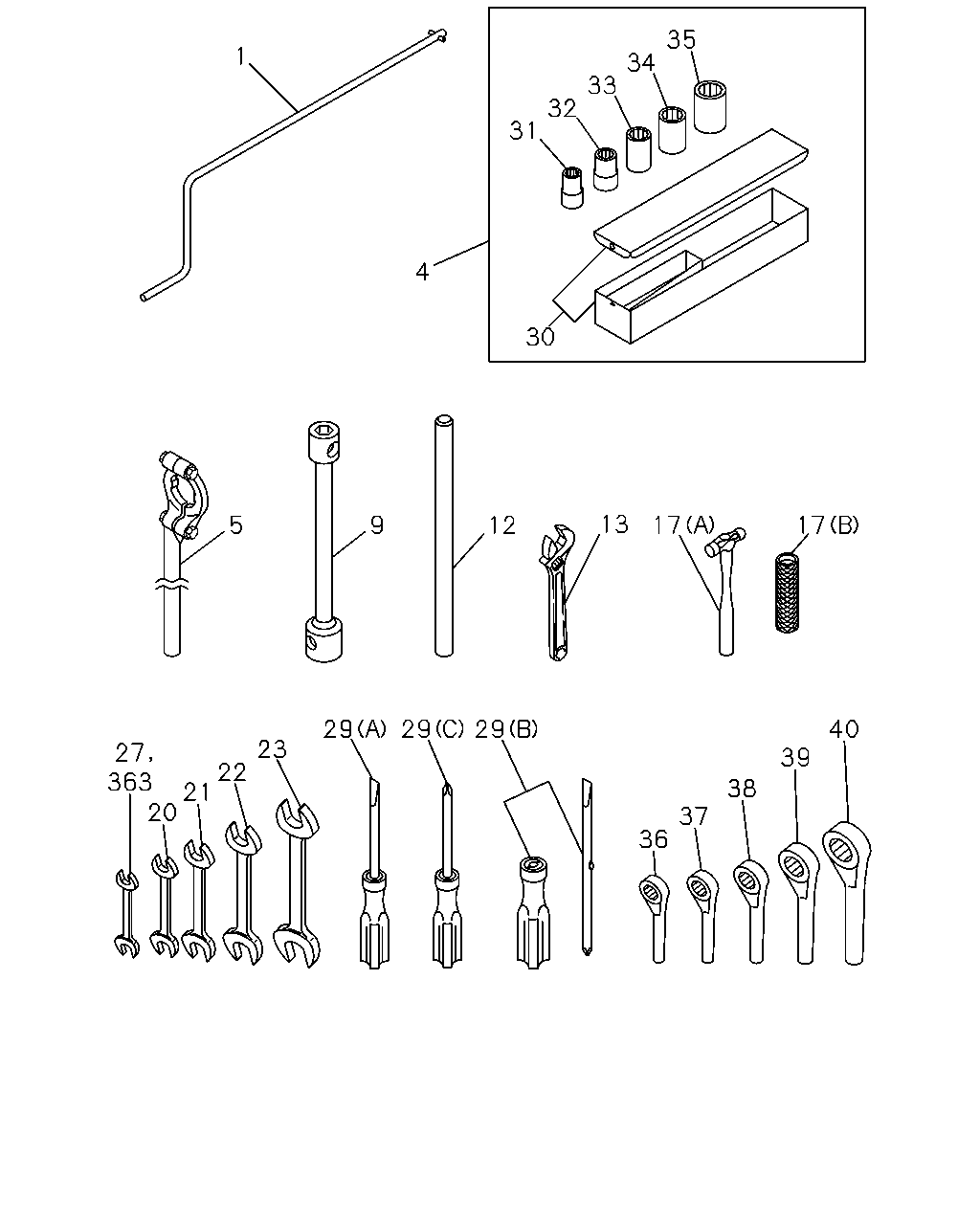

35 34 33 32 1 31 4 30 13 5 9 12 17 17 29 40 27 23 22 363 21 20 39 38 37 36 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9606-9905
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	9906-
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	9606-
5	WRENCH ASM; NUT,MAINSHAFT ZF M/T<X9E>	1-85110-010-0	01	1	9606-9905
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	9606-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9606-
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9606-
17	HAMMER (A) L=310	9-85121-406-0	01	1	9606-
17	HAMMER 10PE1S(60L) (B) L=150	1-85220-021-0	01	1	9606-9905
17	HAMMER 10PE1N(61L) (B) L=150	1-85220-021-0	01	1	9906-
20	WRENCH; 10X12	9-09592-110-0	01	1	9606-
21	WRENCH; 14X17	9-09592-114-0	01	1	9606-
22	WRENCH; 19X22	9-99592-119-0	01	1	9606-
23	WRENCH; 24X27	9-09592-124-0	01	1	9606-
27	WRENCH; OPEN END 5.5X7	9-99592-108-0	01	1	9606-9905
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	9606-
29	DRIVER; SCREW (B) <+>,<-> L=160	8-94242-798-1	01	1	9606-
29	DRIVER; SCREW (C) <+> L=275	9-09595-023-0	01	1	9606-
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	9606-
31	WRENCH; 12	9-09590-012-0	01	1	9606-
32	WRENCH; 14	9-09590-014-0	01	1	9606-
33	WRENCH; 17	9-09590-017-0	01	1	9606-
34	WRENCH; 19	9-09590-019-0	01	1	9606-
35	WRENCH; 22	9-09590-022-0	01	1	9606-
36	WRENCH; 24	9-85111-377-0	01	1	9606-
37	WRENCH; 27	9-85111-375-0	01	1	9606-
38	WRENCH; 32	9-85111-358-0	01	1	9606-
39	WRENCH; 36	9-85111-374-0	01	1	9606-
40	WRENCH; 41	9-85111-356-0	01	1	9606-
363	WRENCH; OPEN END 8X10 8X10	9-99592-108-0	01	1	9906-

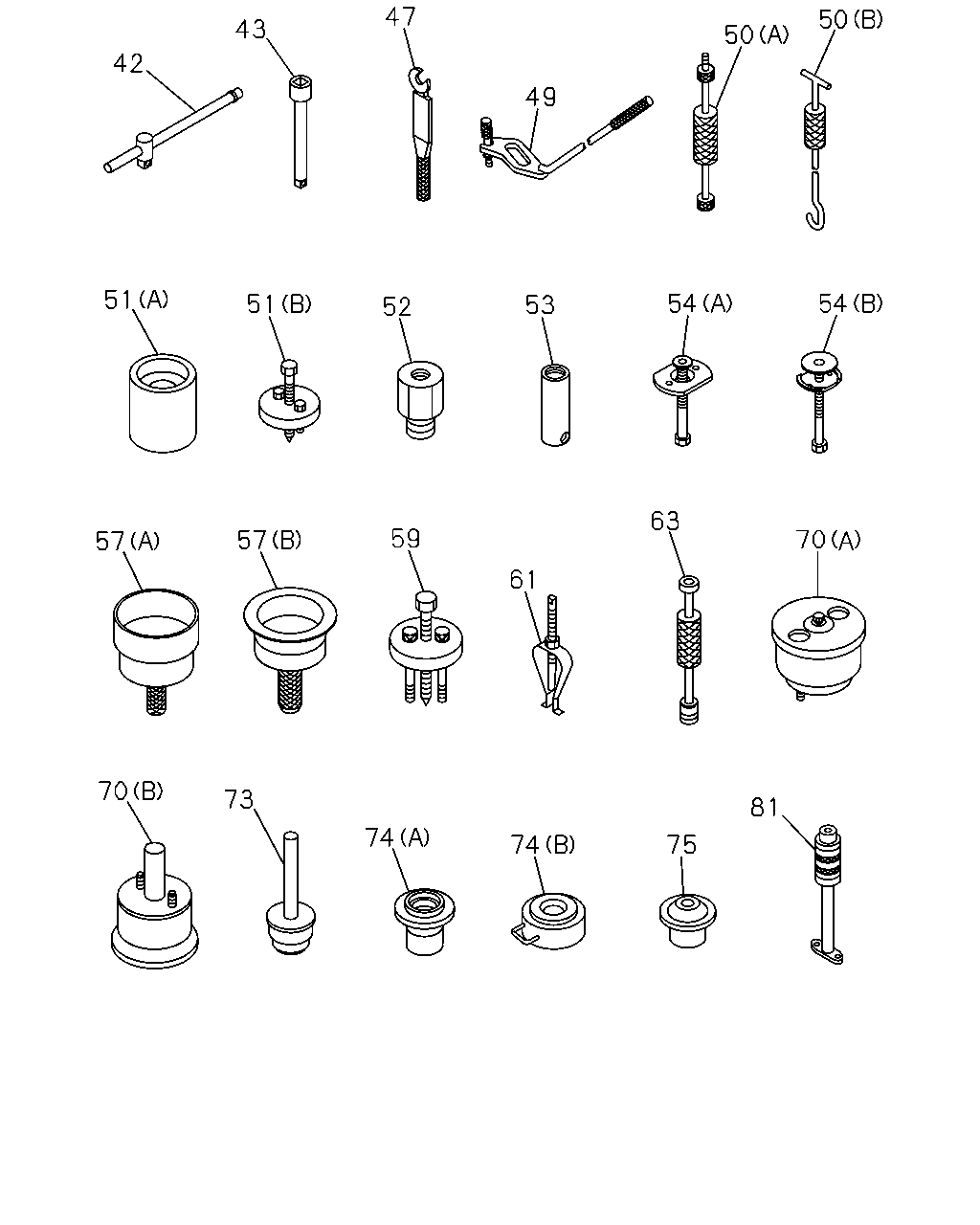

47 50 43 50 42 49 51 54 54 51 53 52 63 59 70 57 57 61 70 73 81 74 74 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	HANDLE; SLIDING	9-09590-512-0	01	1	9606-
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	9606-
47	WRENCH ASM; UNIVERSAL,INJ PUMP 10PE1S(60L)	1-85220-018-0	01	1	9606-9905
47	WRENCH ASM; UNIVERSAL,INJ PUMP 10PE1N(61L)	1-85220-018-0	01	1	9906-
49	REPLACER ASM; VALVE 10PE1S(60L)	1-85235-001-0	01	1	9606-9905
49	REPLACER ASM; VALVE 10PE1N(61L)	1-85235-001-0	01	1	9906-
50	REPLACER; NOZZLE HOLDER 10PE1S(60L) (B) L=500	1-85230-007-0	01	1	9606-9905
50	REPLACER; NOZZLE HOLDER 10PE1N(61L) (B) L=500	1-85230-007-0	01	1	9906-
50	REPLACER; NOZZLE HOLDER 6WA1 TC-S(56L) (A) L=300	1-85230-013-0	01	1	9606-9706
50	REPLACER; NOZZLE HOLDER 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) L=300	1-85230-013-0	01	1	9707-9905
50	REPLACER; NOZZLE HOLDER 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A) L=300	1-85230-013-0	01	1	9906-
51	PULLER ASM; WATER PUMP 10PE1S(60L) (B)	1-85210-028-0	01	1	9606-9905
51	PULLER ASM; WATER PUMP 10PE1N(61L) (B)	1-85210-028-0	01	1	9906-
51	PULLER ASM; WATER PUMP 6WA1 TC-S(56L) (A)	1-85220-047-0	01	1	9606-9706
51	PULLER ASM; WATER PUMP 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-85220-047-0	01	1	9707-9905
51	PULLER ASM; WATER PUMP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-85220-047-0	01	1	9906-
52	REMOVER; WATER PUMP 6WA1 TC-S(56L)	1-85210-062-0	01	1	9606-9706
52	REMOVER; WATER PUMP 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85210-062-0	01	1	9707-9905
52	REMOVER; WATER PUMP 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85210-062-0	01	1	9906-
53	PULLER; TAPER BUSHING 6WA1 TC-S(56L)	1-85210-063-0	01	1	9606-9706
53	PULLER; TAPER BUSHING 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85210-063-0	01	1	9707-9905
53	PULLER; TAPER BUSHING 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85210-063-0	01	1	9906-
54	PULLER; THERMOSTAT SEAL 10PE1S(60L) (A)	1-85210-029-0	01	1	9606-9905
54	PULLER; THERMOSTAT SEAL 10PE1N(61L) (A)	1-85210-029-0	01	1	9906-
54	PULLER; THERMOSTAT SEAL 6WA1 TC-S(56L) (B)	1-85210-067-0	01	1	9606-9706
54	PULLER; THERMOSTAT SEAL 6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-85210-067-0	01	1	9707-9905
54	PULLER; THERMOSTAT SEAL 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B)	1-85210-067-0	01	1	9906-
57	TOOL; SETTING CRANK GEAR 10PE1S(60L) (A) OD=175	1-85221-028-0	01	1	9606-9905
57	TOOL; SETTING CRANK GEAR 10PE1N(61L) (A) OD=175	1-85221-028-0	01	1	9906-
57	TOOL; SETTING CRANK GEAR 6WA1 TC-S(56L) (B) OD=162	1-85220-045-0	01	1	9606-9706
57	TOOL; SETTING CRANK GEAR 6WA1 TC-S(56L),6WG1 TC-N(71L) (B) OD=162	1-85220-045-0	01	1	9707-9905
57	TOOL; SETTING CRANK GEAR 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) OD=162	1-85220-045-0	01	1	9906-
59	PULLER ASM; TIMING GEAR 6WA1 TC-S(56L)	1-85210-065-0	01	1	9606-9905
59	PULLER ASM; TIMING GEAR 6WA1 TC-C(55L),6WA1 TC-S(56L)	1-85210-065-0	01	1	9906-
61	PULLER ASM; PILOT BRG 10PE1S(60L)	9-85210-157-0	01	1	9606-9905
61	PULLER ASM; PILOT BRG 10PE1N(61L)	9-85210-157-0	01	1	9906-
61	PULLER ASM; PILOT BRG 6WA1 TC-S(56L)	9-85210-157-0	01	1	9606-9706
61	PULLER ASM; PILOT BRG 6WA1 TC-S(56L),6WG1 TC-N(71L)	9-85210-157-0	01	1	9707-9905
61	PULLER ASM; PILOT BRG 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	9-85210-157-0	01	1	9906-
63	PULLER; NOZZLE SLEEVE 10PE1S(60L)	1-85210-026-0	01	1	9606-9905
63	PULLER; NOZZLE SLEEVE 10PE1N(61L)	1-85210-026-0	01	1	9906-
70	TOOL; SETTING,OIL SEAL 10PE1S(60L) (B) FOR OIL SEAL	1-85220-051-0	01	1	9606-9905
70	TOOL; SETTING,OIL SEAL 10PE1N(61L) (B) FOR OIL SEAL	1-85220-051-0	01	1	9906-
70	TOOL; SETTING,OIL SEAL 10PE1S(60L) (B) FOR OIL THROWER	1-85220-053-0	01	1	9606-9905
70	TOOL; SETTING,OIL SEAL 10PE1N(61L) (B) FOR OIL THROWER	1-85220-053-0	01	1	9906-
70	TOOL; SETTING,OIL SEAL 6WA1 TC-S(56L) (A)	1-85220-043-0	01	1	9606-9706
70	TOOL; SETTING,OIL SEAL 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-85220-043-0	01	1	9707-9905
70	TOOL; SETTING,OIL SEAL 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-85220-043-0	01	1	9906-
73	TOOL; SETTING,THERMOSTAT SEAL 10PE1S(60L)	1-85221-034-0	01	1	9606-9905
73	TOOL; SETTING,THERMOSTAT SEAL 10PE1N(61L)	1-85221-034-0	01	1	9906-
73	TOOL; SETTING,THERMOSTAT SEAL 6WA1 TC-S(56L)	1-85221-034-0	01	1	9606-9706
73	TOOL; SETTING,THERMOSTAT SEAL 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85221-034-0	01	1	9707-9905
73	TOOL; SETTING,THERMOSTAT SEAL 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85221-034-0	01	1	9906-
74	TOOL; SETTING,INJ PUMP BRG 10PE1S(60L) (A)	1-85220-019-0	01	1	9606-9905
74	TOOL; SETTING,INJ PUMP BRG 10PE1N(61L) (A)	1-85220-019-0	01	1	9906-
74	TOOL; SETTING,INJ PUMP BRG 10PE1S(60L) (B)	1-85220-020-1	01	1	9606-9905
74	TOOL; SETTING,INJ PUMP BRG 10PE1N(61L) (B)	1-85220-020-1	01	1	9906-
75	TOOL; SETTING,OIL SEAL 6WA1 TC-S(56L)	1-85220-049-0	01	1	9606-9706
75	TOOL; SETTING,OIL SEAL 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85220-049-0	01	1	9707-9905
75	TOOL; SETTING,OIL SEAL 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85220-049-0	01	1	9906-
81	PULLER; BRG CAP 10PE1S(60L)	1-85210-015-0	01	1	9606-9905
81	PULLER; BRG CAP 10PE1N(61L)	1-85210-015-0	01	1	9906-

227 232 218 219 230 237 296 299 329 247 248 249 250 245 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
218	PLUG 10PE1S(60L)	1-15629-043-0	01	1	9606-9905
218	PLUG 10PE1N(61L)	1-15629-043-0	01	1	9906-
219	GASKET 10PE1S(60L)	9-09720-555-0	01	1	9606-9905
219	GASKET 10PE1N(61L)	9-09720-555-0	01	1	9906-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	9606-
230	PUMP; GREASE	1-85556-007-2	01	1	9606-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	9606-
237	BAG; TOOL	8-97130-902-0	01	1	9606-
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	01	1	9606-9905
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	9606-
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	9606-
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	01	1	9606-9905
248	CHAIN; TIRE,1000-20,DOUBLE L=2787	9-85591-240-0	AR	1	9606-
248	CHAIN; TIRE,1000-20,DOUBLE L=2679	9-85591-260-0	AR	1	9606-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	01	1	9606-9905
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	9606-
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	9606-
296	REPLACER; SLINGER 6WA1 TC-S(56L)	1-85210-027-0	01	1	9606-9706
296	REPLACER; SLINGER 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85210-027-0	01	1	9707-9905
296	REPLACER; SLINGER 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85210-027-0	01	1	9906-
299	PULLER ASM; TRANS CONTROL ZF M/T<X9E>	1-85210-081-0	01	1	9606-9905
329	PULLER ASM; SLINGER 10PE1S(60L) ID=124	1-85220-052-0	01	1	9606-9905
329	PULLER ASM; SLINGER 10PE1N(61L) ID=124	1-85220-052-0	01	1	9906-

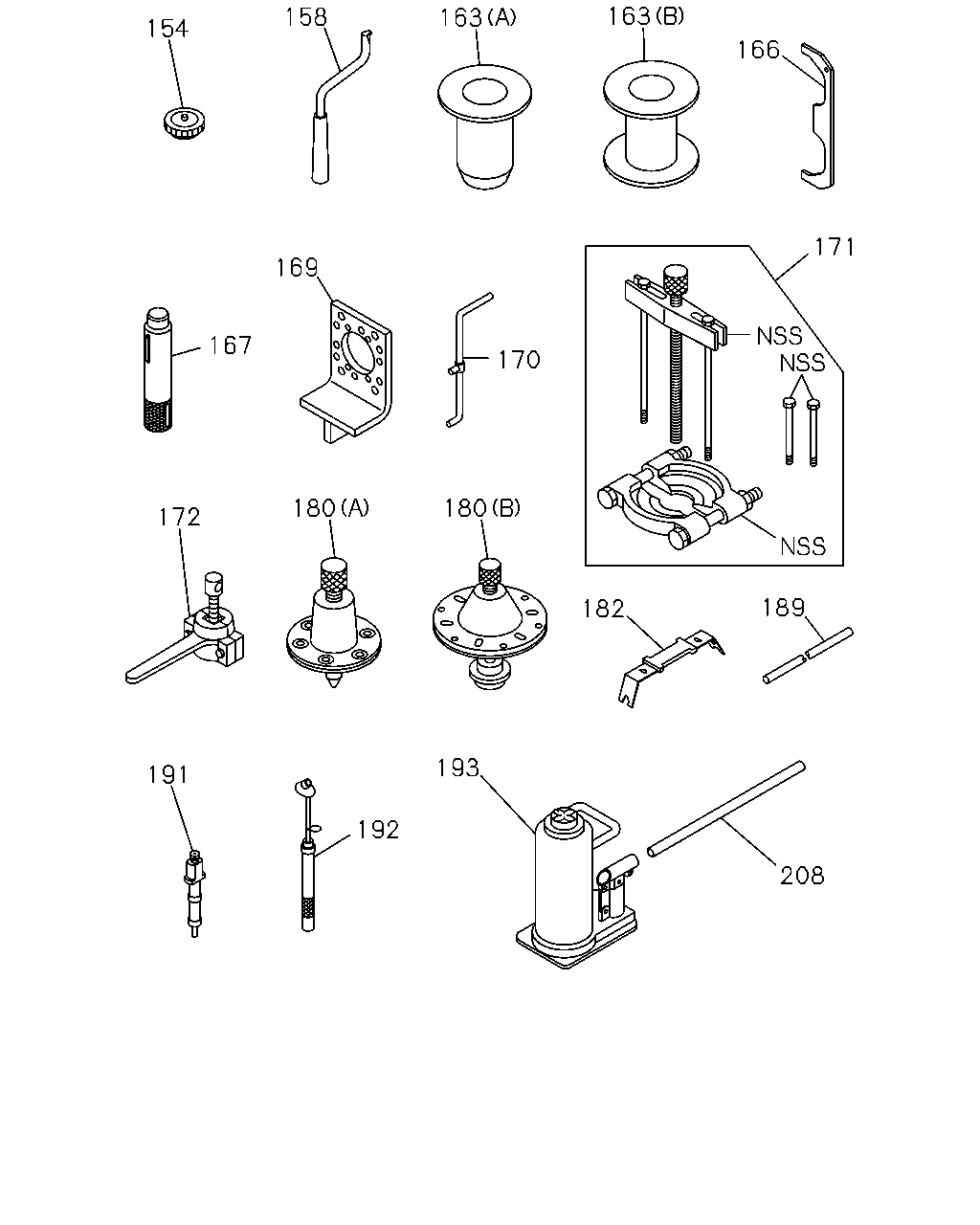

163 158 163 154 166 171 169 167 170 180 180 172 189 182 193 191 192 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9606-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9606-
163	TOOL; SETTING ISUZU M/T<X9A> (A) L=195	1-85221-162-1	01	1	9606-
163	TOOL; SETTING ISUZU M/T<X9A> (B) L=150	1-85221-163-0	01	1	9606-
166	ALIGNER; CLU RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5	1-85253-015-0	01	1	9606-
166	ALIGNER; CLU RELEASE LEVER EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE SPICER(TEY) L=550 H=17.5	1-85253-010-0	01	1	9606-
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	9606-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9606-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9606-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	9606-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	9606-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	9606-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	9606-
182	REMOVER ASM	1-85239-008-0	01	1	9606-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	9606-
191	ADAPTER 10PE1S(60L)	1-85317-002-0	01	1	9606-9905
191	ADAPTER 10PE1N(61L)	1-85317-002-0	01	1	9906-
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9606-9908
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-001-0	01	1	9606-9908
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9606-9908
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-001-0	01	1	9909-9912
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9909-9912
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0001-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0001-
193	JACK ASM 15TON	1-85510-019-0	01	1	9606-9608
193	JACK ASM 15TON	1-85510-021-0	01	1	9709-9709
193	JACK ASM 15TON	1-85510-019-1	01	1	9710-
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9606-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
