Isuzu WW
▶
TRUCKS
▶
ELF
▶
51139 - ELF300(MEXICO)
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

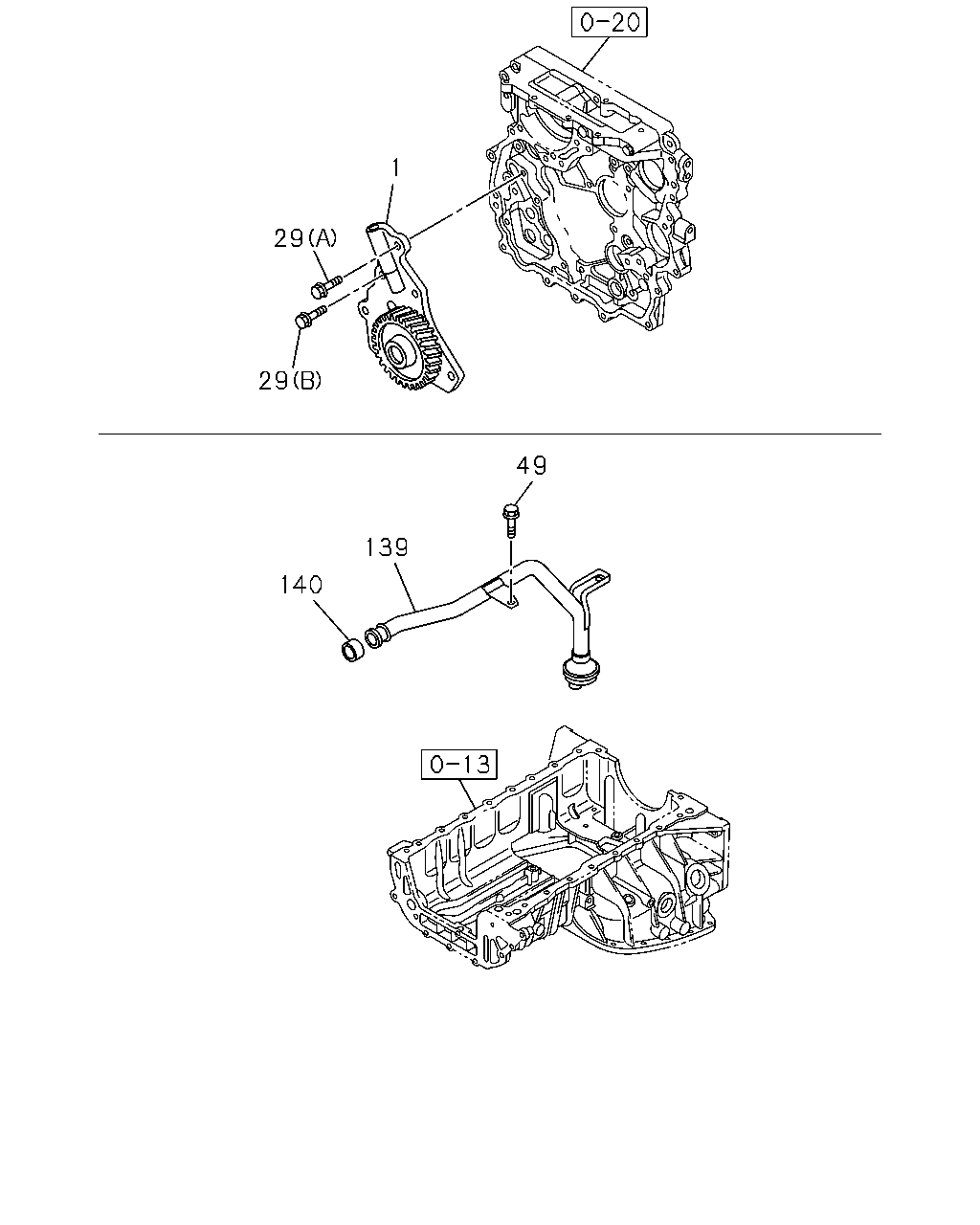

0-51 — OIL PUMP AND OIL STRAINER
(#51936) — 10 parça
1
29
29
49
139
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL
8-97381-553-3
01
1
0707-0907
1
PUMP ASM; OIL
8-98128-134-0
01
1
0908-1303
1
PUMP ASM; OIL
8-98232-624-1
01
1
1304-
29
BOLT; OIL PUMP
(B) M8X30 FLANGE
0-28050-830-0
04
1
0707-
29
BOLT; OIL PUMP
(A) M8X45 FLANGE
0-28050-845-0
02
1
0707-
49
BOLT; STRAINER,OIL PUMP
M8X12 FLANGE
0-28050-812-0
02
1
0707-1403
49
BOLT; STRAINER,OIL PUMP
M8X16 FLANGE
0-28050-816-0
02
1
1404-
139
PIPE; OIL STRAINER
8-98016-890-0
01
1
0707-1010
139
PIPE; OIL STRAINER
8-98149-035-0
01
1
1011-
140
GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97356-150-0
01
1
0707-
